What Is Cushioning in a Hydraulic Cylinder and How Does It Work?

Imagine a massive object that is being moved by a strong hydraulic cylinder. What happens when the load is at the end of its movement? If there's no way to stop it and it crashes into the cap's end with a loud thud, which would cause noise, vibration, and substantial stress to the cylinder and to the whole machine. This is the situation where hydraulic cushioning for cylinders can help as a smart engineering solution that is designed to bring the load to a controlled, smooth stop.

Cushioning is an essential feature, particularly in situations involving extreme speeds, large loads, or lengthy strokes, and is a significant contributor to the endurance and security in hydraulic equipment.

What exactly is Hydraulic Cylinder Cushioning?

In simplest terms, it is a built-in feature of a hydraulic cylinder. It reduces the speed of the piston rod prior to when it is at the point where it has reached its maximum stroke. It stops the piston from striking the cap on the end of the cylinder directly, turning what could be a stopper that is hard into the slowing of a controlled, gentle manner.

How Does It How Does It

The most common method of cushioning is to limit fluid flow in the hydraulic fluid when the piston is nearing the limit of its travel. Let's take a look at the typical mechanism:

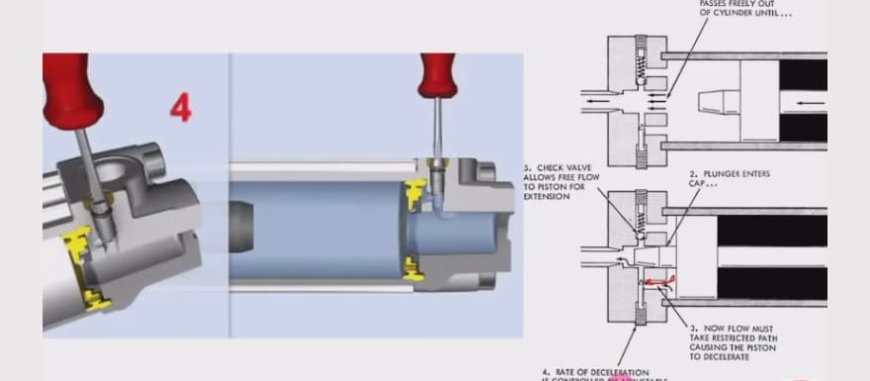

1. The Cushion Spear (or Sleeve): As the piston is close to the close of its stroke, an elongated protrusion (often called a cushion spear, or the plunger) in the piston rod of the piston enters a recess or bore within the cap on the end of the cylinder.

2. Restricted Fluid Flow Once the bone of the cushion is inserted into the bore, it blocks the main path for hydraulic fluids to escape the chamber of the cylinder. The fluid previously flowed freely has to go through a smaller, specially-designed orifice.

3. Pressure Building-Up and Deceleration. This issue causes localized pressure build-up along one side of the piston, which is retracting. The increasing pressure on the back is a hydraulic brake, slowly slowing the piston as well as the load attached to it.

4. Variable Orifice (Optional): Many cushions come with valves that can be adjusted. This lets you adjust the amount of restriction on fluid and, in turn, the rate of deceleration. This is vital to tailor the effect of cushioning to different demands and operating speeds.

5. Check Valve After the stroke has reversed, and when the piston is moved away from the cap's end, the check valve usually opens to allow free circulation of fluid back to the chamber. This ensures that the cushion isn't hindering the beginning of the following stroke.

Why is cushioning important? The Benefits

Incorporating cushioning into a hydraulic cylinder provides numerous advantages.

• Reduced Vibration and Shock: Eliminates the jarring impact at the end of the stroke, thereby protecting the cylinder as well as other elements of hydraulics, the structure of the machine, and the environment around it.

• Extra Longevity of Components: Preventing metal-on-metal collision and reducing stress cushioning can significantly extend the life of cylinders and seals, bearings, as well as other components in the hydraulic systems.

• Quieter operation: A smooth stop results in less background noise, which contributes to a quieter working atmosphere.

• Enhances Security: Prevents sudden movements that can dislodge loads and cause injuries to people.

• Improved Precision and Control It allows for more precise and controlled moving of loads, which improves the overall performance of machines.

• Higher Operating Speeds. Through effective cushioning, the cylinders can run at higher speeds, without the negative effects of hard stops, thereby increasing efficiency.

What is the best time to cushion?

Although it is not necessary for every hydraulic system that needs cushioning, it is necessary in situations where:

• Massive loads are being transported.

• The high piston speeds are at play.

• Long stroke lengths are common.

• Vibration and noise should be kept to a minimum.

• Stopping with precision is crucial.

• The machine, or the load it is supporting, is fragile.

Materials handling equipment, heavy-duty construction machinery and robotics, and industrial automation. The hydraulic cylinder cushioning system is an example of clever engineering that boosts the performance, as well as safety and endurance. It's a tiny element that can make a huge impact in the world that is powered by fluid power.
