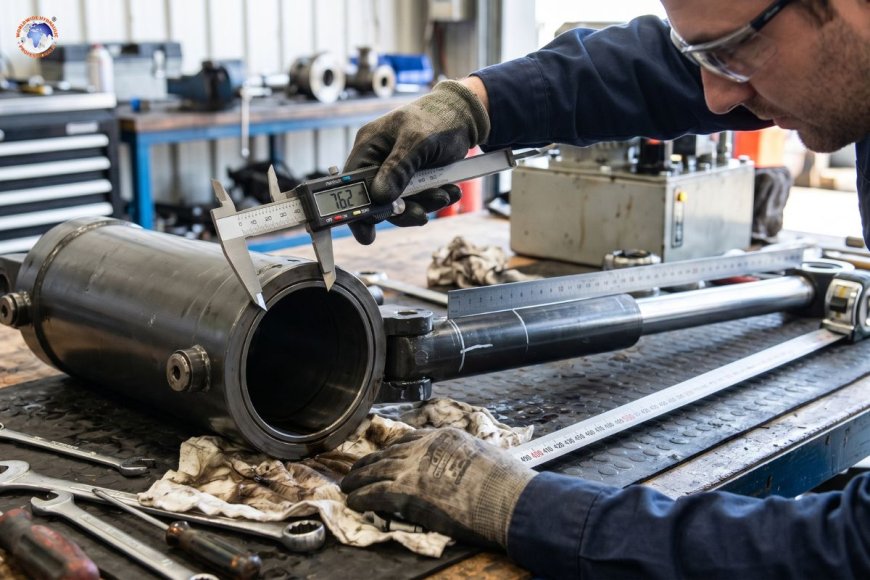

How to measure cylinder bore and stroke correctly?

Hydraulic cylinders are essential components in industrial presses, agricultural machinery, and many other systems. If you're replacing an old piston, developing a fresh hydraulic design, or attempting to resolve problems with performance, knowing how to accurately measure the cylinder's stroke and bore is crucial.

Improper measurements can result in low performance or seal failure, decreased efficiency, or even system damage. This guide will walk you through everything you need to know - from the basics to step-by-step measurements that will allow you to measure the cylinder's bore and stroke with accuracy and safely.

Understanding the basics

Before getting into the measurement process, it's essential to understand the meaning of bore and stroke. are.

Cylinder bore

The bore refers to the diameter inside the barrel of the cylinder. It is the area where hydraulic pressure exerts its influence directly on how much force is produced by the barrel.

Stroke length

The stroke is the length the piston travels within the cylinder, from fully retracting to full extension. It is the measure of how far the cylinder is able to move a load.

Why accurate measurement matters?

Correctly measuring stroke and bore is not just a purely technical practice; it has real-world consequences:

• Force calculation is correct: Bore size determines the force of output
• Proper fitment: Replacement cylinders must match original dimensions
• Compatible with sealing: Incorrect bore leads to problems with sealing
• System efficiency: Mismatched stroke affects machine operation
• Securing: Incorrect sizing can cause overload or failure

Tools you'll need

To determine the bore and stroke with precision, gather the following instruments:

• Vernier caliper, also known as a digital caliper
• Inside micrometer (for high-precision)
• Measuring tape or a steel ruler
• Gauge of depth (optional but useful)
• Scale or straight edge
• Chalk or marker (for marking locations)

Safety first

Before you measure the hydraulics of any cylinder

• The system should be completely depressurized
• Connect hydraulic lines
• Make sure the cylinder is secured in order to prevent it from moving
• Wear gloves that are protective and eyewear

Hydraulic systems are able to store energy even when they are not powered on. Therefore, it is important to take security measures.

How to measure cylinder bore?

Method 1: Measuring internally (best method)

It is by far the most precise method to determine the bore.

Step-by-step process:

1. Take the cylinder off (if feasible)
   Disassemble the cylinder in order to gain access to the barrel inside.
2. Cleanse your bore
   Clean the bore of dirt, oil, and other debris to ensure a precise measurement.
3. Make use of an internal micrometer or calibrator
   Place the tool into the barrel.
4. Multiple points of measurement. Take readings at:
   • Front end
   • Middle
   • Rear end
5. Verify for tapering or wear.
   If the measurements differ, you should use the largest diameter to determine the size of the bore.

Pro tip:

Always test using two parallel directions (horizontal as well as vertical) to detect oval wear.

Method 2: Measuring piston diameter (alternative)

If you are unable to determine the size of the barrel:

1. Take the piston out of the piston
2. Determine the diameter of the piston using an instrument such as a Caliper
3. This measurement is very close to the bore size.

Notice: This method assumes the piston has a minimum clearance from the bore.

Method 3: Using cylinder specifications

If the cylinder is marked with the nameplate or any other documents:

• Check the bore size of the markings
• Make sure to verify the measurement with a physical instrument when you can.

How to measure stroke length?

Stroke measurement is typically more straightforward than bore measurement, but still requires attention.

Method 1: External measurement (installed cylinder)

This technique works even if the cylinder is in its place.

Steps:

1. Retract the cylinder completely
2. Affix an area of reference to the rod
3. Expand the cylinder completely
4. Determine the exposed rod length

The distance that the rod travels is equal to the stroke length.

Method 2: Pin-to-pin measurement

Commonly used for cylinders mounted:

1. Determine the distance between mounting pins after retracting them
2. Take another measurement when fully extended
3. Subtract the length of the retracted from the length that was extended

Stroke = extended length - retracted length

Method 3: Internal measurement

If the cylinder has been disassembled:

1. Find the internal length of the barrel
2. Subtract the thickness of the piston and clearances
3. The result is an approximate measure of stroke length

Common mistakes to avoid

Even the most experienced technicians make mistakes when measuring the cylinders. These are some of the frequent mistakes:

1. Measuring the rod instead of the bore

The diameter of the rod can be different from what is called the bore. Confusion between the two can lead to an inaccurate measurement.

2. Ignoring wear

Cylinder bores wear unevenly. Always measure multiple times.

3. Not fully extending or retracting

A partial movement causes an incorrect stroke measurement.

4. Measuring dirty components

Debris and oil can impact readings in a significant way.

5. Using inaccurate tools

Tape measures work well for a stroke; however, boring requires precise tools.

Practical example

Let's say you're trying to measure a hydraulic cylinder on an excavator.

• The internal bore measurements are: 99.8 mm, 100.1 millimeters, 100.0 mm
  - Bore size final: 100 millimeters
• Retracted length: 500mm
• Extended length: 900mm
  Stroke 400mm

This cylinder is described as follows:

100 mm bore x 400 mm stroke

Additional measurements you might need

While stroke and bore are essential, other dimensions are frequently needed for replacements:

Rod diameter

It is measured using a caliper on the rod.

Mounting type

• Clevis
• Flange
• Trunnion

Port size and location

Essential for connections to hydraulic.

Closed and open length

Assists in confirming compatibility with current equipment.

Tips for field measurement

Working in real-world environments (construction sites or farms, etc. ):

• Make use of electronic calipers to read more quickly
• Carry a portable cleaning kit
• Make photographs of your dimensions to use as a reference
• Double-check the readings before ordering parts

When to replace instead of measure

Sometimes the measurement doesn't provide enough. Replace the cylinder in case you observe:

• Deep scoring within the bore
• Bent piston rod
• Extreme leakage
• Uneven wear patterns

An accurate measurement will not fix an unrepaired cylinder; it will help you select the best replacement.

How do bore and stroke affect performance?

Knowing the effect of your measures can help you make better choices.

Bore and force

A larger bore means more force (due to the larger surface area)

Stroke and movement

Longer stroke = greater travel distance

Balance matters

• Too big bore - excess force, cost
• Too small bore, not enough power
• Space issues
• Too short stroke, restricted operation

Quick reference checklist

Before you finalize your measurements, verify:

• Bore measurement at several locations
• Stroke was fully extended and retractable
• Tools calibrated and exact
• Components are clean
• Measurements clearly recorded

The ability to measure the stroke and bore accurately is essential knowledge for anyone working in hydraulic systems. Although the procedure may appear simple, precision is essential. Even a small error in measurement could result in costly errors or equipment malfunctions, as well as the risk of injury.

With the proper equipment, using the right procedures, and not making common mistakes, you will be able to guarantee exact measurements every time. If you're maintaining machinery or replacing a cylinder or constructing a fresh hydraulic structure, acquiring these techniques for measuring will help you save time, cut costs, and boost efficiency.

If you often work using hydraulic equipment, you should consider investing in quality measuring tools and establishing a consistent measurement routine. Measurement accuracy is the key to the reliability of your operation. In the field of hydraulics, reliability is essential.
