Systems that use hydraulics are the engine behind numerous industrial equipment, construction equipment, production pipelines, and vehicles for agriculture and other heavy-duty applications. They rely on hydraulic fluids to efficiently transfer power and lubricate moving parts, eliminate heat, and shield internal components from corrosion and wear. However, if hydraulic fluid starts to become foamy, the entire system may suffer from diminished performance, overheating, excess wear, or even catastrophic failure.

The foaming of hydraulic fluid is a typical but frequently neglected issue. At first look, a few small bubbles within the reservoir might not be a big deal. However, persistent foam could cause air to enter the system. This can cause disruption to the stability of pressure and even damage valves, seals, pumps, and actuators. Knowing the cause of foaming in hydraulic fluid is crucial for ensuring the performance of your equipment and avoiding costly downtime.

This article examines the major reasons for foaming in hydraulic fluids and its impact on hydraulic systems, as well as practical solutions to deal with the issue.

What is hydraulic fluid foaming?

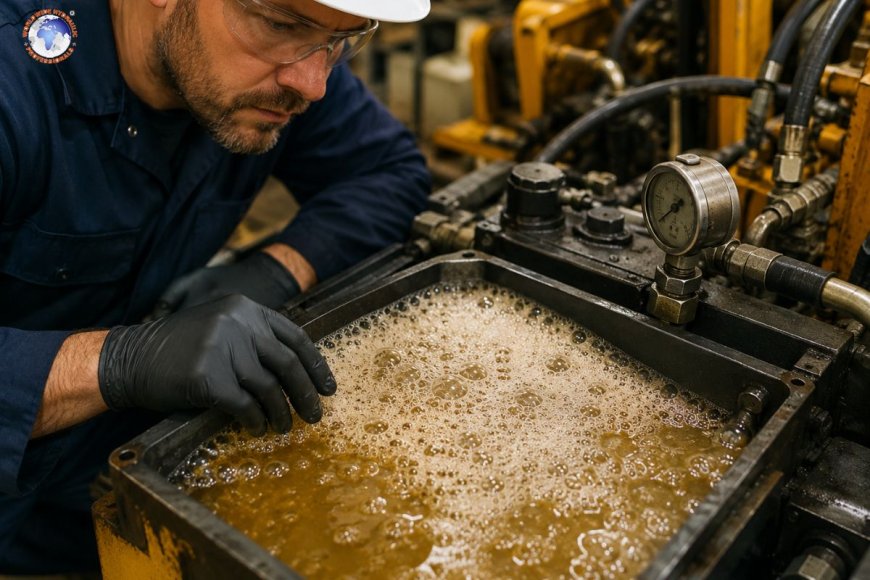

The foaming of hydraulic fluid is when air gets trapped in the hydraulic oil and creates bubbling or foam on top of the oil. It usually occurs inside the reservoir, but air pollution can cause a spread across the system.

Foaming is different from air infiltration. Air entrainment refers only to tiny air bubbles scattered throughout the fluid, whereas foam is the apparent accumulation of bubbles at the surface of the fluid. In many instances, both of these problems are present.

A well-functioning hydraulic system must allow air bubbles to be separated from the oil in a short time. If the fluid is unable to effectively release air trapped in it, foam is formed, and it begins to interfere with the operation of the system.

Why is hydraulic fluid foaming dangerous?

It may seem harmless at first; however, it can result in serious operational issues. Hydraulic systems are dependent on an incompressible fluid to ensure consistent power transmission. In contrast, oil is not compressible. When air is introduced within the hydraulic system, it decreases efficiency and results in instability in the operation.

Some of the most serious issues that result from foaming in hydraulic fluids are:

• Power loss from hydraulics

• Erratic actuator movement

• System noise has been increased

• Cavitation of the pump

• Overheating

• Hydraulic fluids are oxidized

• Lubrication is reduced.

• Wear and tear of components

• Seal damage

• Costs of maintenance have increased

If it is not addressed in the meantime, foaming could reduce the life span of costly hydraulic equipment and cause unexpected failure of equipment.

Common causes of hydraulic fluid foaming

There are many reasons hydraulic fluid might start to form a foam. The root of the issue is essential to solve the issue effectively.

1. Air leaks in the hydraulic system

One of the primary reasons for foaming can be the entry of air into the system via leaks. Even small leaks on the side that draws air from the hydraulic pump may let air get mixed in with the pump fluid.

Common leak points are:

• Loose fittings

• Cracked hoses

• Seals damaged by damage

• Worn O-rings

• Connections to pipes that are not working

• Leaking pump shafts

In contrast to pressure-side leaks, suction leaks aren't always obvious oil leakage, which makes them difficult to spot. But they are able to constantly inject air into your system.

If air gets in through these holes, the pump turns the fluid and forms foam inside the reservoir.

Warning signs of air leaks

• Cloudy or milky hydraulic fluid

• Excessive pump noise

• Vibrations

• Jerky hydraulic movement

• Spongy actuator response

Regularly inspecting seals and fittings can help stop air infiltration.

2. Low hydraulic fluid levels

Low levels of oil inside the reservoir can be an important factor in foaming. If the levels of fluid drop to a certain point, the pump can draw in air and the oil.

This causes turbulence within the reservoir, which increases the rate of air entrainment.

Low levels of fluid could be the result of:

• External leaks

• Poor maintenance practices

• Evaporation in high-temperature systems

• Filling methods that are not correct

Hydraulic reservoirs are constructed to let air bubbles segregate naturally from the oil prior to the fluid circulating. If the level of fluid is low, the separation process is ineffective.

Maintaining a proper oil level is among the most simple yet crucial steps to stopping foam from forming.

3. Contaminated hydraulic fluid

The presence of contaminants can significantly impact hydraulic fluid performance. Water, dirt, degraded oil, as well as chemical contaminants can alter the properties of the fluid and make it more likely to foam.

Water contamination

The water contamination can be particularly harmful as it affects the oil's ability to be lubricated and encourages the process of oxidation. Water can also alter the fluid's air-release properties, which makes it more likely to foam.

The system could be flooded via:

• Condensation

• Seals that aren't working properly

• Unsafe storage

• Cooler leaks

• High-humidity zones

Dirt and particles

Solid contaminants disrupt fluid flow and can cause increased turbulence, which can cause air to be trapped. They also cause wear and tear on valves and pumps and can cause foaming problems to worsen.

Utilizing high-quality filtration systems and ensuring that the storage of fluids is clean are crucial to ensuring that contamination is controlled.

4. Using the wrong hydraulic fluid

Different hydraulic oils are appropriate for all systems. The use of the wrong fluid can create foaming problems due to air-release issues or additives that are incompatible.

Hydraulic fluids have been specially designed with anti-foam components that assist in helping bubbles to collapse rapidly. If the wrong oil is used, the system could be unable to separate liquid from air.

Problems may arise when:

• Mixing different oil brands

• Utilizing non-compatible fluid types

• Making the wrong choice of viscosity grades

• Fluids that are expired or degraded

Always follow the manufacturer's instructions regarding the selection of hydraulic fluid.

5. Overfilled hydraulic reservoir

Even though low fluid levels can be unavoidable, overfilling the reservoir could cause foaming.

If the reservoir is overflowing, there might not be enough room for air separation. The return fluid causes turbulent conditions and then churns the oil too much, leading to foam creation.

The overflowing reservoirs can also trigger the following:

• Aeration of the fluid is increased

• Excessive heat generation

• Problems with overflow

• Pressure instability

Operators must ensure that the level of the reservoir is within the recommended levels of the manufacturer.

6. Poor reservoir design

The reservoir of hydraulics plays a crucial part in eliminating any air that is in the liquid. A poor design of the reservoir can hinder the proper deaeration process and cause the recurring problem of foaming.

Common design issues include:

• Insufficient reservoir size

• Poor baffle placement

• Inadequate return line positioning

• Turbulent flow of fluid

• Improper suction line location

In the event that return liquid flows straight towards the suction line for the pump, air bubbles could return to circulation, but they won't have the chance to disperse.

A properly designed reservoir permits the fluid to be able to settle and release the air trapped naturally.

7. Pump cavitation

Cavitation happens when the hydraulic pump is unable to absorb enough fluid, leading to bubbles or vapor cavities within the oil. The bubbles break up violently under pressure, creating noise, vibration, and major damage to components.

Cavitation can also cause foam to be introduced into the fluid hydraulics.

Common cavitation triggers are the following:

• Restricted suction lines

• Filters that are blocked

• Excessive fluid viscosity

• Low reservoir levels

• Pump speeds at high levels

A pump that is cavitating typically produces a whining sound or a knocking sound. If not taken care of, cavitation could cause damage to pump components quickly.

8. Excessive agitation and turbulence

Hydraulic systems are dependent on smooth flow of fluid. A high level of turbulence within the pipe or reservoir increases foam formation and mixing.

Turbulence could be the result of the following:

• High return flow rate

• Poor plumbing design

• Pipes that have sharp bends

• Improper return line placement

• High operating speeds

Reduced agitation can improve the separation of air and the stability of fluids.

9. Degraded hydraulic oil

The fluid's natural degradation occurs as time passes due to oxidation, heat, the effects of mechanical stress, and contamination.

As the oil gets older, it loses its anti-foam ingredients' effectiveness. The oil that has been oxidized also becomes more dense and less able to release air trapped in it.

The signs of degraded hydraulic oil can be seen in the following:

• Darker color

• Sludge formation

• Strong burnt odor

• Viscosity is increased

• Persistent foam

A routine oil analysis will assist in determining when a fluid replacement is needed.

Effects of hydraulic fluid foaming on equipment

Foaming can affect almost every component of the hydraulic system. The most harmful consequences are:

Reduced lubrication

Air-contaminated oil is unable to lubricate the components effectively. This can increase friction and cause wear on bearings, pumps as well as valves, cylinders, and pumps.

Overheating

Foamed oil carries heat less efficiently than pure hydraulic fluid. As temperatures increase the degradation of fluids accelerates and creates a vicious pattern of worsening the performance of the system.

Pump damage

Air bubbles that collide inside the pump could erode the surface of the metal and cause damage to internal components. Cavitation damages often manifest as pitting on the surfaces of pumps.

Erratic operation

Since air expands at pressure, actuators for hydraulics can respond in unpredictable ways. Equipment may become jerky, sluggish, or unstable.

Increased oxidation

The exposure to air increases the rate of oxidation inside the hydraulic fluid, which leads to varnish, sludge and acid creation.

How to prevent hydraulic fluid foaming

To prevent foaming of hydraulic fluid, it is the proper maintenance, system inspection and a good operating practice.

Maintain proper fluid levels

Make sure to check the levels of hydraulic fluid regularly and refill as needed with the correct type of oil.

Inspect for air leaks

Examine fittings, hoses and hoses for seals and suction lines for indications that they are worn or loose. Replace the damaged parts immediately.

Use the correct hydraulic fluid

Always use manufacturer-approved hydraulic oil with proper anti-foam properties and viscosity ratings.

Control contamination

Install efficient filtration systems and keep the hydraulic fluid clear and dry.

Monitor oil condition

Conduct regular oil analyses to identify oxidation, contamination and depletion of additives prior to major issues arise.

Maintain reservoir design

Be sure to ensure proper sizing of the reservoir as well as baffling and return-line location to achieve effective air separation.

Replace clogged filters

Filters with restricted turbulence increase the risk of cavitation. Keep track of scheduled maintenance intervals for the filter.

Avoid excessive heat

Be sure to maintain proper cooling and ventilation in order to prevent the degradation of the hydraulic fluid's temperature.

Hydraulic fluid foaming is more than just a cosmetic issue—it is a warning sign that something within the hydraulic system is not functioning correctly. Whether caused by air leaks, contamination, incorrect fluid selection, cavitation, or poor maintenance practices, foam can severely reduce system efficiency and damage critical components.

Understanding the reasons for foaming of hydraulic fluid and taking preventive measures equipment operators can increase the performance of their hydraulic system, decrease maintenance costs and increase the life of equipment. Regular inspections, correct fluid management, pollution control and prompt maintenance are essential to ensure that hydraulic systems run efficiently and effectively.

In the industries which hydraulic systems are the primary source of power for activities, preventing the formation of foam in the fluid is a crucial step towards maximising productivity, safety and long-term health of equipment.
