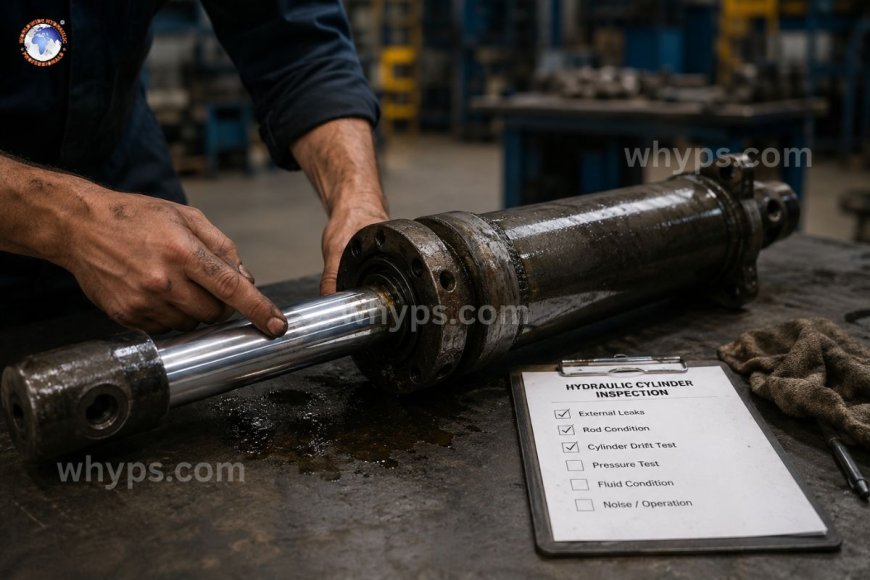

How to know when your hydraulic cylinder seals need replacing?

Hydraulic cylinder seals must be replaced whenever you observe external leaks of fluid around the rod or its end caps, cylinder drift when under loads, jerky or slow rod movement, visible marks on the rod's surface or a drop in pressure within the system that cannot be traced back to the valves or pump. Seal failures typically develop slowly; therefore, recognizing earlier warning signals—instead of waiting for a complete seal failure—can save time and effort as well as the expense of further damages to rods and bores.

The seal's condition is more important than it appears?

The hydraulic seal performs one purpose: keep the pressurized fluid within a specified space while permitting the rod's movement around. If the seal begins failing, effects seldom remain within the seal. In the event that contaminants enter the system and leakage inside the system deprives the cylinder of power, a smashed rod can transform a seal kit that costs $30 into a replacement rod costing $2,000. Be aware of the warning signs of wear and tear on seals, which is what distinguishes a planned maintenance stop from an unplanned shutdown of production.

Signs that your hydraulic seals on cylinders are not working properly

1. External leakage of fluids

The most obvious indicator is the presence of fluid around the rod in it and accumulating around the base of the cylinder. A thin layer of oil covering the rod in normal use isn't uncommon, but active dripping or a moist gland following the machine's idle could indicate a damaged seal for the rod or wiper. Check how quickly the reservoir's level falls, and a higher-than-normal drop without any visible leak anywhere else in the circuit usually indicates that the leak is occurring internally.

2. Cylinder drift under load

When a cylinder that is holding an unmoving load slowly extends or retracts without intervention from an operator, it's drift. It almost always indicates an aging piston seal, which allows fluid to flow internal passageways from one side that the piston is to the opposite side. It is a risk in situations like lifts, presses, or stabilizer legs, in which the sudden shift in load can create danger to the safety of others. A simple test for drift—extend the cylinder, close the valve, then test the rod's movement over a certain time period—will determine how much bypass occurs.

3. Rod movement that is erratic or slow

If internal seals begin to wear and seals wear, some of the flow from the pump bypasses the piston, instead of performing work, and the rod is slower than the spec or stops under load. This is particularly evident when a cylinder is pressed to move a large load or when temperature increases and the viscosity of the fluid decreases, because the thinner fluid is able to bypass damaged seals much more quickly. If a cylinder that was able to move easily now struggles or is jerky, seal wear must be on the top of the diagnosis list.

4. Reduction in force or loss of pressure

A piston is only as robust as its ability to keep an appropriate pressure difference across its piston. If a cylinder that previously could handle loads with ease is now struggling or stalling with the load, and the pump or relief valve is functioning perfectly, then internal seal bypass is the probable cause. Examining the pressure readings on each side of the piston or examining the ability to hold pressure by extending the rod and the valve closed will help identify the cylinder as the cause instead of downstream components.

5. Visible wear, scoring, or damage to the rod.

Seals and rods wear down. A pitted, scored, or corroded surface can cut new seals nearly as quickly as it ruins the previous rods, which is why the condition of the rod must be checked every time prior to sealing replacement. Take a run with your hands (carefully) or a piece of cloth along the length of the rodmarks; rough patches or discoloration are signs of surface damage that requires fixing, often through polishing or chrome replating, prior to when new seals are installed.

6. Hydraulic fluid that is discolored or contaminated

A damaged wiper seal allows dirt or moisture over the rod during the retract stroke, introducing contaminants into the clear fluid. If analysis of oil shows increasing levels of particles or a high water content, but no other obvious entry point, then a damaged rod seal or a worn-out wiper is a typical source. The presence of cloudy or milky fluids is a common sign that signalizes water intrusion through a weakened seal.

7. Unusual noise during operation

The sound of a knock, cavitation, and a shift in the operating sound could indicate that air is getting into the system through the seal that is not functioning or fluid bypassing internal pressure and causing turbulent conditions. Noise alone isn't diagnosable; when it's paired with any of the indicators above, it can strengthen the need for sealing inspection.

How does wear on seals progress?

Seal degradation generally is a result of heat or abrasive contaminants. Initial causes minor wear on the surface that permits a tiny amount of bypass. The bypass causes localized heat and accelerates wear, eventually leading to obvious loss or drift. Finding the problem in the first stage of bypass—by conducting drift tests or pressure tests or fluid analysis—is much less expensive than waiting for complete external leakage, at which point damage to the point rod or bore may be in the process of being repaired.

The diagnostic steps to take prior to replacing seals

• Drift test Test the drift by extending the cylinder. Stop the valve and then measure how much the rod moves during 5-10 minutes when under tension.
• Test for pressure differential: Compare pressure on both sides of the piston, with the rod which is held at a fixed position.
• Check the rod's visual inspection. Look for pitting, scoring corrosion, scoring, or flaking of chrome across the entire stroke length.
• Fluid sampling: Submit the sample to be tested for particle count and analysis of water content if there is suspicion of contamination.
• Check temperature: note the extent to which leakage or drift increases when the system gets warmer; that could be due to the bypass of viscosity through worn seals.

Doing these checks prior to purchasing seal kits confirms that the seal kit is the main cause and is not the result of a bent rod, damaged bore, or upstream valve issue—problems that with a seal kit on its own can't be solved.

The right seal replacement

Find the right seal material based on the temperature range of the application as well as the type of fluid and pressure rating instead of choosing the material that came from the cylinder. Polyurethane seals can withstand abrasion and high pressure well, but they are more susceptible to degradation in extreme heat; PTFE and Viton compounds are able to withstand greater temperatures as well as more abrasive fluids. If the cylinder is operating in a particularly cold, hot, or dirty environment in comparison to its original specification, the replacement could be an excellent opportunity to upgrade the seal material, rather than just replicating the original.

Preventing premature seal failure

• Cleanse the hydraulic fluid and keep it within the recommended viscosity range for operating temperatures.
• Keep rods clean from dust, spatter from welding, and other abrasive particles by using wipers or boots when they are.
• Avoid side-loading cylinders in situations that they weren't made for, as this can cause the wear of seals that are uneven.
• Follow manufacturer-recommended fluid change and filtration intervals to reduce abrasive contamination reaching the seals.

Seals for hydraulic cylinders are not likely to malfunction without warning. Sluggish or drifting movement, pressure loss, and obvious leaks are all signs that are evident long before the complete failure of the seal takes the cylinder from service. Implementing a simple process of rod inspections and fluid monitoring into regular maintenance will catch wear on seals earlier, safeguard bores and rods from secondary damages, and help keep repair costs to a small only a fraction of what a catastrophic failure unplanned could cost.

What is the frequency at which the hydraulic seals on cylinders are checked?

For cylinders that are in continuous or heavy-duty use A visual and drift check every 3-6 months is the norm for cylinders in harsh environments or high-cycle applications, which could require periodic inspections.

Can a hydraulic cylinder be fixed without having to replace the rod?

Yes, provided that the surface of the rod is clear of pitting or scoring that is significant. The surface can occasionally be polished; however, deeply scored rods generally require reflating or replacing to prevent damage to the new seals.

What is the cause of premature failure of hydraulic seals?

The most frequent reasons are contamination of the fluid as well as excessive heat, insufficient sealing material side-loading, or installation damages from the previous seal replacement.

Is cylinder movement always due to a leaky seal?

But not always. A leaky directional control valve or relief valve may cause apparent drift, and it's important to isolate the device from the circuit before blaming the seals.

How long will the replacement of a hydraulic cylinder seal generally require?

A simple seal kit replacement for an unassembled cylinder typically takes 3 to 4 hours per cylinder, according to the size and access, without excluding rod machine or bore honing when there is damage.
