What role does IoT play in Water Hydraulics?

IoT plays a major role in the hydraulics of water through the ability to monitor in real-time temperature, flow, pressure, and the water's quality throughout hydraulic systems that employ water or water-glycol for the working fluid. Sensors linked to edge platforms or cloud platforms continuously monitor the health of the system and flag leaks, the risk of cavitation corrosion, and seal wear before they result in interruptions. The transition from regular maintenance into condition-based maintenance and predictive maintenance helps reduce water waste and extends the life of components and increases safety in industries such as marine systems, food processing, mining, and fire suppression, where water hydraulics are preferred over oil-based systems.

The reason water hydraulics require an entirely different approach to monitoring?

Water hydraulics are used as an alternative to conventional oil hydraulics in situations where the need for fire protection, food safety, fire resistance, or environmental safety is important. The most common applications are lines for processing food and beverages, underground mining equipment, offshore and marine machinery, and fire-resistant systems used in tunnels and steel mills. Water's low viscosity, lack of hydraulic lubricity, and susceptibility to corrosion and microbial growth pose operating issues that oil-based systems do not have in the same manner.

These issues make monitoring continuously more beneficial than traditional hydraulic systems. Hydraulic components made of water tend to wear more quickly and are more prone to cavitation and more susceptible to internal corrosion if they are left unmonitored. IoT-enabled sensing can address this issue by providing operators with a clear view of situations that were previously monitored only during scheduled inspections.

Key methods IoT helps support hydraulic water systems.

Monitoring of flow and pressure in real-time

IoT pressure transducers as well as flow meters are placed at the most critical points of the water hydraulic circuit, and stream data is sent in real-time to a monitoring dashboard. Since water hydraulic systems typically have lower viscosity and have a higher risk of cavitation than systems for oil monitoring, unusual pressure drops or flow anomalies early can prevent damage to pumps and unexpected downtime.

Quality of water and monitoring of contamination

In contrast to oil, the water hydraulic fluid is susceptible to bacterial growth along with mineral scaling as well as chemical contamination. Water quality monitors connected to IoT are able to measure conductivity, pH, and turbidity as well as the levels of dissolved oxygen in real-time. This is especially important for food-grade applications, in which contamination by fluids isn't merely an issue of mechanical repercussions but also an issue of safety and compliance.

The detection of wear and corrosion on components

Water- and hydraulic- systems usually employ corrosion-resistant materials such as bronze, stainless steel, and other specialized coatings. However, even these materials degrade over time in the presence of water for a long period of time. Vibration sensors as well as acoustic emission sensors attached to IoT platforms are able to detect early indicators of cavitation or bearing wear or seal degrading by detecting abnormal vibrations before a sign of failure can be heard or visible to users.

Monitoring of temperature to prevent cavitation

The limited temperature range of water in comparison to oil's temperature range (typically needing operation between 5 degrees Celsius and 50 degrees Celsius to prevent freezing or excessive pressure of vapor) is what makes monitoring temperature important in the hydraulics of water. IoT temperature sensors coupled with automated alarms permit operators to respond swiftly if the temperature of the fluid is approaching limits, which can cause cavitation risks or lower the effectiveness of lubrication.

Water conservation and detection of leaks

Since these systems are usually chosen for their environmental benefits, leaks are costs and a compliance dimension. IoT leak detectors that use flow-balance calculations and acoustic sensors can detect leaks at a much earlier level than manual inspection, which is in line with the goals of conservation, which often justifies the use of water-based hydraulics first in the instance.

Predictive maintenance: The most significant shift IoT allows

Traditional maintenance of water hydraulics has been based on fixed schedules—checking seals, pumps, and valves on a regular basis regardless of their actual state of the equipment. IoT alters the way maintenance is performed by providing predictive, which means that sensor data feeds into analytics platforms that can identify the signs of degradation and predict component failure prior to it happening.

For hydraulic systems that use water specifically, predictive maintenance models typically incorporate multiple data streams, including vibration signatures to assess motor and pump health and pressure trend analysis to determine seal and valve wear, as well as water quality indicators to determine corrosion risk. If these data streams are combined, maintenance teams can decide on the most effective actions on components that are most likely to fail in the near future instead of replacing components according to a calendar that could be too soon or late.

Specific to the industry

Processing of food and beverages

In food-grade hydraulic systems, IoT sensors assist plants in maintaining regular records of compliance with the quality of water and cleanliness of the system that aid in food safety audits and do not require manual sampling at each checkpoint.

Marine and offshore

Water- and hydraulic- systems in marine waters are often utilized for steering machinery and decks and can benefit from remote IoT monitoring since vessels are without maintenance assistance. Real-time diagnostics permit engineers on shore to evaluate the condition of the equipment and plan for interventions before the vessel arrives at port.

Underground and mining operations

Hydraulics for water are prevalent in underground mining due to fire safety standards. IoT surveillance in such areas helps ensure safety compliance as well as equipment reliability in situations where accessibility to physical inspections is restricted and downtime is costly.

Equipment for fire protection and suppression

For fire-resistant hydraulic systems such as steel mills, IoT-enabled monitoring makes sure that the system is ready for any emergency, because the systems can be idle for long times between activations and require verification of availability.

Problems with implementing IoT in water hydraulics

IoT use in water hydraulics has its own challenges. Sensors used in corrosive, wet, or washdown environments require appropriate ingress protection ratings as well as corrosion-resistant housings. Connectivity can be an issue in underground mining and offshore locations where wireless signal quality is not as high and often requires hybrid wired-wireless systems or edge computing to process data locally prior to the transmission.

Data integration is a different consideration. A lot of facilities use hydraulic equipment that does not have sensors built-in, which means they need retrofitting sensor packages and gateway devices that can bring old systems to the IoT surveillance framework.

As water hydraulics continue to be used in industries that are focused on environmental sustainability and fire safety, IoT integration is likely to become a standard feature rather than an added-on option. Incorporating IoT sensor information with machine-learning models could lead to more precise failure prediction, and integration with larger system-wide IIoT platforms helps water hydraulic systems to be part of the unified monitoring strategy of industrial plants instead of functioning as separate equipment.

1. What are the most crucial sensors for IoT-enabled water hydraulic systems?

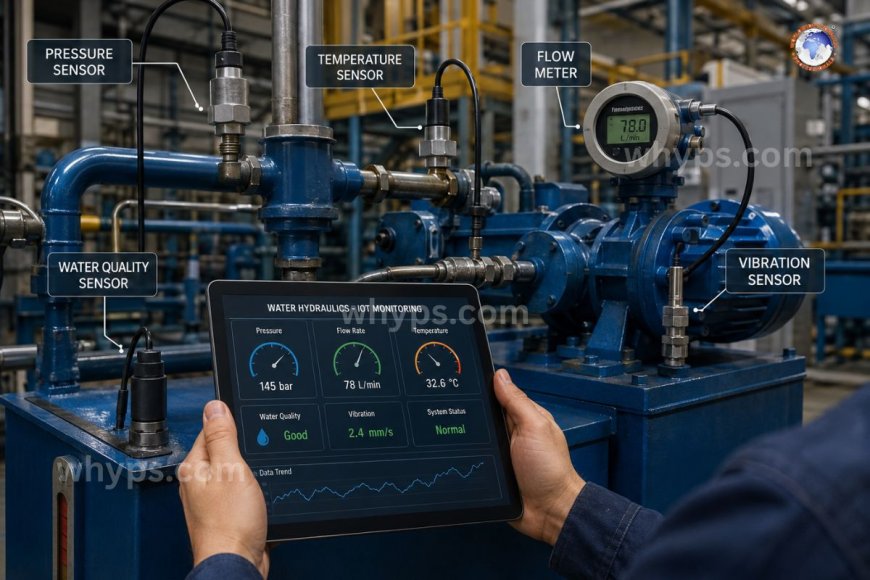

Pressure transducers, flow meters, temperature sensors, and vibro sensors, along with water quality monitors (measuring conductivity, pH, and turbidity), are the primary sensor set that provides comprehensive monitoring of the water's hydraulics.

2. How can IoT help to prevent cavitation occurring in hydraulic water systems?

IoT sensors for temperature as well as pressure provide constant information that triggers alerts when cavitation risks are approaching thresholds, which allows operators to alter the flow rate or cool down before damage is caused to valves and pumps.

3. Is IoT monitoring more cost-effective for smaller hydraulic water systems?

Retrofit sensor kits as well as platform-based cloud monitoring have made it easier to access IoT for smaller systems; however, the ROI of investment is contingent on factors like the cost of downtime as well as water conservation requirements and compliance requirements that are specific to the particular facility.

4. Can IoT detect issues with water quality before they harm the hydraulic components?

Absolutely, IoT water quality sensors monitoring conductivity and turbidity will detect mineral buildup or contamination patterns early, giving maintenance personnel time to fix the fluid's quality prior to it causing corrosion or fouling of valves.

5. Does IoT integration mean that you have to replace existing water-hydraulic equipment?

Not necessarily. Many facilities employ retrofit sensor packages as well as gateway devices to add IoT monitoring capabilities to their existing water hydraulic systems, without replacing valves, pumps, or the cylinders.
