How do you test pulsation dampeners after maintenance?

To test a pulsation dampener after maintenance, isolate and depressurize the system, inspect the unit, verify the gas precharge against the manufacturer's specification, leak-test the gas and fluid sides, then run the pump and measure pressure fluctuation with and without the dampener in service. If precharge holds, there are no leaks, and the pressure ripple falls within your target range, the unit is ready to return to service. Pulsation dampeners protect pumps, piping, instruments, and downstream components from the pressure spikes and flow surges created by reciprocating pumps. After a bladder replacement, recharge, seal change, or any other service, a dampener that looks fine can still perform badly. A wrong precharge, a pinched bladder, or a slow gas leak can leave the system exposed to the very pulsation the dampener was installed to control. A structured post-maintenance test confirms the repair worked before the unit goes back into production.

Why post-maintenance testing matters?

A dampener works by using a gas-filled bladder, diaphragm, or gas cushion to absorb pressure peaks and release energy during pressure dips. That only works if the gas volume and pressure are correct. Skipping verification can lead to:

• Persistent pipe vibration and noise
• Fatigue cracking in welds, fittings, and hoses
• Unstable readings on gauges and flow meters
• Premature pump valve, seal, and plunger wear
• Bladder or diaphragm damage from incorrect precharge

Testing also creates a documented baseline you can compare against at future inspections.

Before you begin: Safety and preparation

Dampeners store energy on both the gas side and the fluid side, so safety comes first.

• Follow lockout/tagout. Isolate the pump and the dampener from the system.
• Relieve fluid pressure fully. Open the drain or bleed point and confirm zero pressure on the fluid side before touching any connection.
• Use only the specified gas. Dry nitrogen is the standard. Never use oxygen or compressed air.
• Use rated equipment. Charging kits, regulators, hoses, and gauges must suit the pressure range and be in calibration.
• Gather documentation. Have the manufacturer's manual, the nameplate data, and the system's operating pressure on hand.

Check the nameplate for maximum working pressure, the specified precharge range, and any local pressure-vessel inspection requirements.

Step 1: Visual and mechanical inspection

Start with what you can see.

External checks

• Look for corrosion, dents, or damage on the shell
• Confirm the nameplate is legible and matches the unit
• Inspect connection flanges, threads, and fittings for damage or weeping
• Check mounting brackets and supports for tightness

Internal and component checks (if opened during service)

• Confirm the new bladder or diaphragm is the correct material for the fluid and temperature
• Verify seals and O-rings are seated properly and not twisted
• Make sure the gas valve core and cap are installed correctly
• Ensure no debris or tools were left inside

Step 2: Verify the gas precharge

Precharge is the single most important setting on a dampener. The fluid side must be at zero pressure when you check it, otherwise the reading is meaningless.

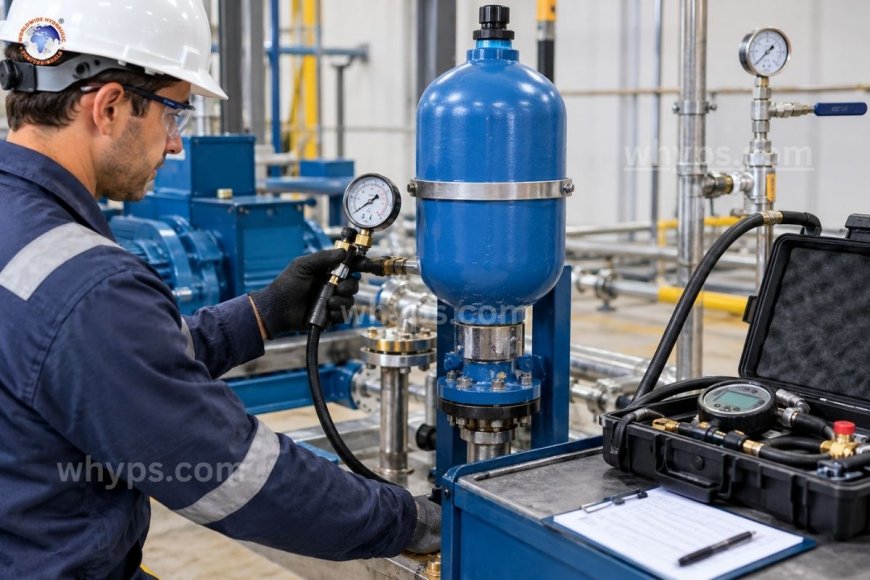

1. Attach a calibrated gauge or charging kit to the gas valve.
2. Read the precharge pressure.
3. Compare it to the manufacturer's specification. A common starting point is roughly 60 to 80 percent of the system's mean operating pressure, but the exact figure depends on dampener design and application, so always defer to the manual.
4. Add or release nitrogen slowly to reach the target.
5. Allow a few minutes for the gas temperature to stabilize, then recheck.

Gas temperature changes pressure, so a unit charged in a cold workshop will read differently at operating temperature. Note the ambient temperature when you record the value.

Step 3: Leak testing

Gas-side leak test

Apply a leak detection solution to the gas valve, valve core, and cap, and look for bubbles. Then let the charged unit stand and recheck pressure after a set period. A measurable drop with no external bubbles may point to a leak past the bladder or diaphragm.

Fluid-side leak test

Refill the system and bring it to pressure gradually. Hold at working pressure and inspect every joint, flange, and port. Any proof or hydrostatic test pressure should follow the manufacturer's instructions and applicable codes, never an arbitrary figure.

For pressure vessels, confirm whether re-certification or inspection by a competent person is required after the work performed.

Step 4: Functional testing under load

Once static checks pass, test the dampener in operation.

1. Bleed air from the fluid side so there are no trapped air pockets.
2. Start the pump at low speed and increase gradually to normal operating conditions.
3. Watch for abnormal noise, knocking, or vibration at the dampener and connected piping.
4. Observe the pressure gauge. A well-performing dampener produces a visibly steadier needle.

For a more rigorous check, install a fast-response pressure transducer near the pump discharge and record the pressure signal. Where possible, compare readings with the dampener isolated and then in service. The reduction in peak-to-peak pressure variation is your clearest measure of performance.

Step 5: Measure and compare performance

Useful indicators include:

• Pressure ripple amplitude: the difference between peak and trough pressure, ideally expressed as a percentage of mean pressure
• Pipe vibration: measured with a vibration meter or accelerometer
• Flow stability: steadier readings on downstream flow meters
• Noise level: a noticeable reduction in hammering or knocking sounds

Acceptable ripple depends on the application. Many systems target a limit set by pump manufacturer guidelines or industry standards for the process. Document the figures you record so future tests have a reference.

Step 6: Recheck after initial operation

Bladders can settle, and gas can equilibrate after the first hours of operation. A sensible follow-up routine is

• Recheck precharge after the first operating day or two
• Recheck again after about a week
• Then move to the regularly scheduled inspection interval

A noticeable precharge loss during this period suggests a slow leak or a seating problem that needs attention.

Troubleshooting common test results

• Precharge too low: the bladder is overstretched on every cycle, risking early failure. Recharge and monitor for leaks.
• Precharge too high: the bladder barely moves and absorbs little pulsation. Release gas to the correct level.
• Precharge drops quickly: check the gas valve, core, and bladder for leaks.
• Pulsation remains high with correct precharge: the dampener may be undersized, poorly located, or too far from the pump. Placement close to the pump discharge matters.
• Fluid in the gas side: a ruptured bladder or diaphragm. Remove from service and repair.

Common mistakes to avoid

• Checking precharge while fluid pressure is still present
• Using uncalibrated or inappropriate gauges
• Charging with air or oxygen instead of nitrogen
• Skipping the post-startup precharge recheck
• Failing to record test values and ambient conditions
• Ignoring local pressure-equipment inspection requirements

Keep a simple test sheet for each dampener that includes the date, technician, precharge value, ambient temperature, leak test results, operating pressure, measured ripple, and any corrective actions. These records speed up troubleshooting and show compliance during audits.

1. How do I know if a pulsation dampener is working properly?

The clearest signs are a steadier pressure gauge, reduced pipe vibration and noise, and a measurable drop in peak-to-peak pressure ripple compared with running without the dampener. A correct precharge reading and no gas leakage confirm the unit is mechanically sound.

2. What precharge pressure should a pulsation dampener have?

The correct value is stated in the manufacturer's manual or on the nameplate. A common guideline is a percentage of the mean system operating pressure, but it varies by design and application, so always follow the specification for your specific unit.

3. Can I use compressed air to charge a pulsation dampener?

No. Use dry nitrogen only. Air contains oxygen, which can create a fire or explosion risk with hydraulic oil and can degrade bladder materials.

4. How often should precharge be checked after maintenance?

Check it once the system has been running for a day or two, then again after about a week. After that, return to the routine interval set by the manufacturer or your maintenance plan, which is often every few months depending on duty.

5. What does it mean if the dampener loses precharge quickly?

Rapid precharge loss usually indicates a leaking gas valve or core, a damaged or poorly seated bladder, or a seal problem. Leak-test the gas side, replace faulty parts, and recharge and retest before returning the unit to service.
