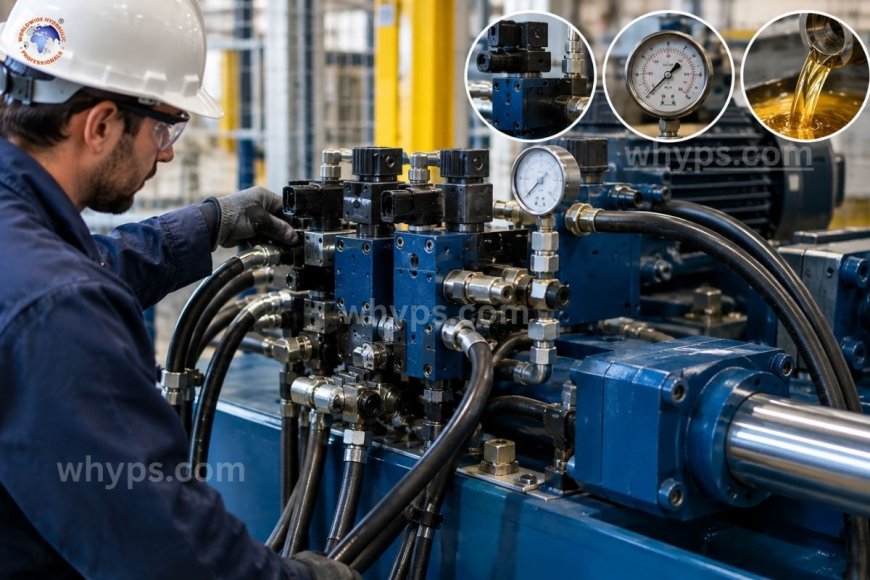

How does hydraulic valve sizing affect system performance?

Hydraulic valve sizing directly controls pressure drop, heat generation, energy efficiency, actuator speed, and controllability. An undersized valve restricts flow, wastes power as heat, and slows the machine. An oversized valve costs more, takes up more space, and can make fine control harder. The right size passes the required flow at an acceptable pressure drop (typically within the manufacturer's rated flow at its test pressure drop) while staying matched to the pump, actuator, and duty cycle. Valve sizing is one of the most overlooked decisions in hydraulic design. Many engineers pick a valve to match the port size on the manifold or the line size they already have, then wonder why the system runs hot or responds sluggishly. In reality, a valve is a controlled restriction in the circuit, and its size determines how much energy it consumes just to let oil pass through. This post explains what valve sizing really means, how it affects performance, and how to get it right.

What does valve sizing actually mean?

Sizing a hydraulic valve means selecting a valve whose flow capacity suits the maximum flow the circuit will push through it. Capacity is usually described by:

• Rated flow: The flow at which the manufacturer publishes performance, usually at a stated pressure drop (commonly 5 bar or about 70 psi for directional valves).
• Flow coefficient (Cv or Kv): A number that links flow to pressure drop. A higher Cv means less restriction.
• Maximum operating pressure and flow limit: The upper limits beyond which the valve may suffer flow-force problems, spool lock, or damage.

Port size alone is a poor guide. Two valves with identical port threads can have very different internal flow paths and very different pressure drops at the same flow.

The core relationship: flow and pressure drop

Pressure drop across a valve rises roughly with the square of the flow. Double the flow and the pressure drop is about four times higher. This is why a valve that seems fine at 70% of its rated flow can perform badly at 130%.

A simple estimate is

ΔP actual ≈ ΔP rated × (Q actual ÷ Q rated)²

For example, a valve rated for 40 L/min at 5 bar that passes 60 L/min will show roughly 5 × (60 ÷ 40)² ≈ 11 bar of pressure drop. Power lost as heat can be approximated as

Power loss (kW) ≈ ΔP (bar) × Q (L/min) ÷ 600

In this case, that is about 11 × 60 ÷ 600 ≈ 1.1 kW, continuously turned into heat in a single valve. Multiply that across several valves, and the oil temperature, cooler size, and energy bill all climb.

How do undersized valves hurt performance?

Selecting a valve that is too small is the most common and most costly error. Typical consequences include:

Excess heat and energy waste

Every bar of unnecessary pressure drop is energy converted directly to heat. Higher oil temperature thins the oil, accelerates oxidation, hardens seals, and shortens the life of nearly every component. It may also force you to install a larger heat exchanger.

Slower actuator speed

If the valve cannot pass the required flow, the cylinder or motor simply cannot reach its design speed. Cycle times increase, and productivity falls. Operators often compensate by raising pump output or relief settings, which makes the heat problem worse.

Reduced available pressure at the actuator

A large pressure drop in the valve means less pressure reaches the work port. In a heavily loaded circuit, this can reduce usable force or cause stalling under load.

Noise, cavitation, and erosion

High flow velocity through small openings creates turbulence, noise, and in extreme cases, cavitation and erosion of spool edges and seats. Over time this leads to internal leakage and drifting actuators.

Flow forces and spool sticking

At high flow, fluid forces on the spool can exceed what the solenoid or pilot stage can overcome. The valve may shift slowly, hesitate, or fail to fully shift. This is especially common with direct-acting solenoid valves pushed beyond their flow limits.

The hidden trap: differential cylinder flow

Many sizing errors come from forgetting that cylinders do not move equal volumes of oil in both directions. On a cylinder with a 2:1 area ratio, retracting the rod at the same speed forces roughly twice the extend flow through the return path. If the valve was sized only for the pump flow, the return side may be badly restricted.

The same issue appears with regenerative circuits and with large-load cylinders that are lowered under gravity. Always check flow in both directions, at the highest speed the actuator will reach, not just at nominal pump output.

How do oversized valves hurt performance?

It might seem safe to simply choose a larger valve. Oversizing avoids pressure drop problems, but it creates its own issues:

Higher cost and larger footprint

Larger valves, manifolds, and fittings cost more and add weight. On mobile equipment, space and weight are strict limits.

Poor controllability

Flow control and proportional valves work by modulating a small opening. If the valve is far larger than needed, the useful working flow occupies only a small part of the spool stroke. The result is coarse resolution, poor repeatability, and difficulty achieving smooth low-speed motion. A proportional valve running at 10% of its capacity may have a noticeably weaker response than one running at 60 to 80%.

Slower response in some designs

Larger spools have more mass and need more pilot flow to move. In pilot-operated valves, an oversized main stage can respond more slowly, which affects cycle time and machine dynamics.

Instability risks

In certain pressure-control and relief valve applications, running a valve at a tiny fraction of its rated flow can produce chatter or unstable pressure control. Relief valves and pressure-reducing valves generally perform best within their intended flow window.

Sizing different valve types

Different valve functions place different demands on sizing:

• Directional control valves: Size for the maximum flow in either direction, keeping pressure drop low across the working path. Check each spool configuration, since center-position and crossover flow paths differ.
• Pressure relief valves: Size for the full pump flow at the relief setting, because the valve must pass all of it in a fault condition without a dangerous pressure rise.
• Flow control valves: Size for the controlled flow range, not the pump maximum, so adjustment remains fine and repeatable.
• Proportional and servo valves: Match rated flow closely to the actual working flow, and consider response time, hysteresis, and fluid cleanliness requirements.
• Check and counterbalance valves: Consider cracking pressure and the flow required for the load speed, and check stability with overhung loads.

A practical valve sizing process

Follow these steps for a dependable selection:

1. Define the maximum flow in each direction, including cylinder area ratios, accumulator discharge, and any combined functions running together.
2. Set an acceptable pressure drop target. Many designers aim for a low single-digit to around 5 bar drop across each directional valve at maximum flow, depending on the application.
3. Check the manufacturer's flow versus pressure drop curve for the specific spool type, not just the catalog headline figure.
4. Verify pressure and flow limits so the valve operates within its safe range, including flow-force limits for the solenoid or pilot stage.
5. Consider response time and control needs. Fast or precise control may justify a different valve technology rather than simply a larger one.
6. Check line velocities. As a rough guide, many designers keep pressure lines near 4.5 to 7.5 m/s, return lines lower, and suction lines lower still, so the valve is not undermined by restrictive piping.
7. Allow reasonable margin for future capacity changes, typically staying below the valve's rated flow instead of at the limit.

Signs that valve sizing is wrong

Existing systems often reveal sizing problems through symptoms such as

• Oil temperature that runs high even with a healthy cooler and clean oil
• Actuators slower than design speed, especially on retraction
• Noisy valves or hammering during shifting
• Pump working harder than the calculated load suggests
• Erratic or jerky low-speed motion on proportional circuits
• Frequent spool or seat wear without contamination as the cause

A simple pressure drop measurement across the valve at working flow, compared with the manufacturer's curve, will quickly confirm or rule out a sizing issue.

Valve sizing sits at the junction of efficiency, speed, control quality, and component life. Undersizing wastes energy and builds heat. Oversizing sacrifices precision and adds cost. The best approach is to calculate real flows in every direction, use the manufacturer's performance curves, and select the valve that delivers the needed flow at a modest pressure drop and works comfortably within its design range.

1. What happens if a hydraulic valve is too small for the system?

It creates a high pressure drop, which converts hydraulic energy into heat. This leads to higher oil temperatures, slower actuator speeds, reduced force at the work port, noise, and faster wear of the valve and the rest of the system.

2. Is it better to oversize a hydraulic valve to be safe?

Not always. Moderate oversizing can lower pressure drop, but a valve that is much larger than needed costs more, takes up more space, and can give poor control resolution in proportional and flow control applications.

3. How do I calculate the pressure drop across a hydraulic valve?

Use the manufacturer's flow versus pressure drop curve for the exact valve and spool type. As an estimate, pressure drop scales roughly with the square of flow, so ΔP actual is about ΔP rated multiplied by (actual flow ÷ rated flow) squared.

4. Why does cylinder area ratio matter when sizing a valve?

A differential cylinder moves different oil volumes on extend and retract. At the same rod speed, the flow on the larger-volume side can be much higher than pump flow suggests, so the valve must be sized for the highest flow in either direction.

5. Does valve size affect the oil temperature in a hydraulic system?

Yes. Pressure drop across a valve is lost as heat, and an undersized valve increases that loss. Even a few bar of unnecessary drop across several valves can add noticeable heat load and may require a larger cooler.
