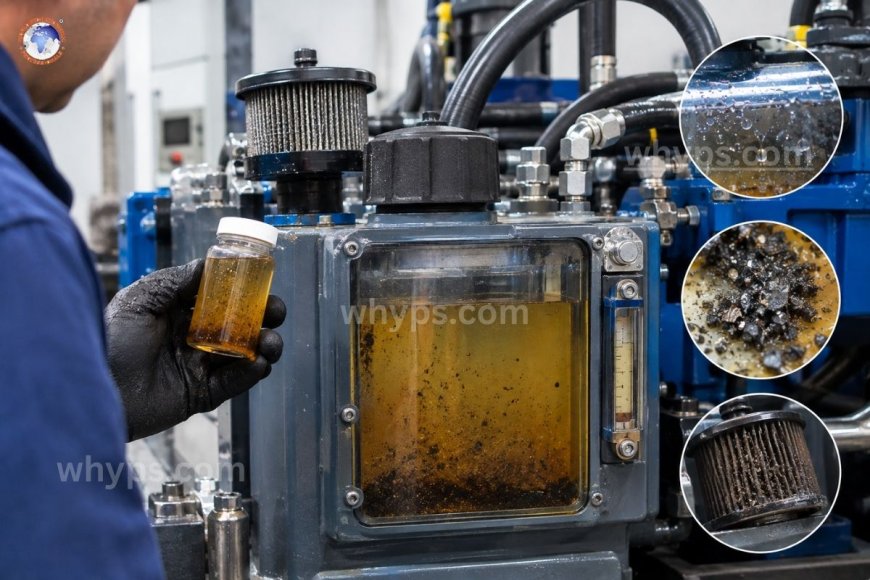

What causes hydraulic fluid contamination?

Hydraulic fluid contamination is caused by unwanted substances—solid particles, water, air, heat-generated byproducts, or the wrong fluid—that enter or form inside a hydraulic system. The most common causes are residual debris from manufacturing and assembly, ingress through breathers, seals and reservoir openings, wear and fluid breakdown generated inside the system, and careless maintenance, top-up, or storage practices. Because most hydraulic failures trace back to dirty fluid, controlling these sources is the most effective way to extend component life and reduce downtime. Hydraulic oil does far more than transmit power. It lubricates moving parts, carries heat away, seals tight clearances, and flushes wear debris toward the filter. When that fluid is contaminated, every one of those jobs suffers. Understanding where contamination comes from is the first step toward stopping it.

Why does hydraulic fluid contamination matter?

Modern pumps, servo valves, and proportional valves operate with clearances of just a few microns. A particle smaller than the width of a human hair can score a spool, jam a poppet, or wear a pump's internal surfaces. Industry experience consistently shows that the majority of hydraulic system failures are linked to fluid condition rather than mechanical design faults.

The consequences of contamination include:

• Accelerated wear of pumps, motors, valves, and cylinders
• Sticking or erratic valve operation
• Seal damage and leakage
• Higher operating temperatures and lower efficiency
• Shortened fluid life and more frequent oil changes
• Unplanned downtime and costly repairs

The main types of hydraulic contaminants

Before looking at the causes, it helps to know what contamination actually looks like.

• Particulate contamination: dirt, dust, metal wear particles, rust, fibers, and seal fragments.
• Water contamination: dissolved, emulsified, or free water.
• Air contamination: dissolved, entrained, or foamed air.
• Chemical and thermal contamination: oxidation products, acids, sludge, and varnish.
• Fluid contamination: the wrong oil, mixed fluids, or incompatible additives.

Primary causes of hydraulic fluid contamination

1. Built-in contamination from manufacturing and assembly

Many systems are contaminated before they ever run. Welding slag, machining chips, casting sand, thread sealant, paint flakes, and rust can remain inside reservoirs, tubes, manifolds, and hoses after fabrication. Even brand-new components can carry debris from production, shipping, and storage.

New hydraulic oil is not automatically clean either. Fluid delivered in drums or totes frequently contains particles well above the cleanliness level that sensitive components can tolerate. Skipping a flush or pre-filtering new oil is a common root cause of early-life failures.

2. Ingress from the surrounding environment

External ingress is one of the biggest ongoing sources of contamination. Dust, moisture, and process debris enter through:

• Reservoir breathers: As oil level and temperature change, the tank "breathes" air in and out. Without a quality breather filter, that air carries dust and humidity straight into the fluid.
• Cylinder rod seals and wipers: Each time a rod retracts, a worn wiper or seal can drag dirt and moisture back into the system. This is especially severe in mining, construction, agriculture, and forestry equipment.
• Open fill ports, loose caps, and damaged gaskets: Poorly sealed access points allow continuous contamination.
• Cracked or poorly clamped hoses and fittings: Pinholes and loose connections can draw in air and particles on the suction side of the pump.

3. Internally generated contamination

Even in a perfectly sealed system, contamination is created from within.

Wear debris: Normal wear in pumps, motors, bearings, and cylinders releases fine metallic particles. These particles act like abrasive grit, causing further wear in a destructive chain reaction known as three-body abrasion.

Seal and hose degradation: Aging seals, hose liners, and gaskets shed rubber and polymer fragments, particularly when exposed to excessive heat or incompatible fluids.

Corrosion: Rust and corrosion products form when water is present, and these flakes circulate through the system.

Cavitation and aeration: Vapor bubbles collapsing at high pressure damage metal surfaces, releasing additional particles and accelerating fluid breakdown.

4. Water contamination

Water enters hydraulic systems through condensation inside the reservoir, leaking heat exchangers or coolers, washdown procedures, rain exposure, and humid air drawn through breathers. Water causes rust, reduces lubrication film strength, depletes additives, promotes bacterial growth in some fluids, and can trigger hydrolysis in certain synthetic oils. Even small amounts can noticeably shorten bearing and component life.

5. Heat, oxidation, and fluid degradation

Excessive temperature is a major driver of chemical contamination. As a general rule, oil oxidation rates roughly double for every 10°C (18°F) rise above the fluid's recommended operating temperature. Oxidation produces acids, sludge, and varnish that:

• Coat valve spools and cause sticking
• Clog filters prematurely
• Increase viscosity and reduce efficiency
• Corrode internal surfaces

Hot spots caused by cavitation, undersized coolers, restricted lines, or overworked relief valves create localized fluid breakdown even when overall system temperature appears normal.

6. Air contamination

Air enters through leaking suction lines, low reservoir levels, poor return-line design, or turbulence in the tank. Entrained air causes foaming, spongy actuator response, noise, and overheating. It also speeds up oxidation because the oxygen supply to the oil increases.

7. Maintenance and handling errors

Human factors are among the most preventable causes of contamination:

• Opening the system in dirty conditions without protecting ports and fittings
• Using unclean funnels, hoses, buckets, or transfer containers
• Topping up with unfiltered oil
• Failing to cap hose ends and open ports during repairs
• Reusing contaminated components without proper cleaning
• Poor drum and tote storage, such as leaving containers outdoors or unsealed

8. Mixing incompatible fluids

Combining different base oils or additive packages can cause additive dropout, sludge, foaming, seal damage, and loss of performance. Even oils with the same ISO viscosity grade can behave poorly together. Cross-contamination during top-offs is a frequent problem, especially in facilities that stock multiple fluid types.

9. Filter problems and poor system design

Inadequate filtration lets contamination circulate freely. Common issues include:

• Filters with the wrong micron or beta ratio rating
• Clogged elements in bypass mode
• Missing return line or offline filtration
• Poorly positioned filters that don't protect critical components
• Lack of differential pressure indicators

Warning signs of contaminated hydraulic fluid

Watch for these early indicators:

• Dark, milky, or cloudy oil
• Burnt or sour odor
• Foaming in the reservoir
• Sluggish or erratic actuator movement
• Rising operating temperature
• Frequent filter changes
• Noisy pumps
• Sticking valves or inconsistent control

Regular oil analysis, including particle counts reported to ISO 4406 cleanliness codes, water content, and viscosity, provides the earliest and most reliable warning.

How to prevent hydraulic fluid contamination?

1. Filter new oil before it enters the reservoir, using a filter cart or transfer pump with proper filtration.
2. Install quality breathers such as desiccant or combination filter breathers.
3. Maintain rod seals and wipers and replace them at the first sign of leakage.
4. Set cleanliness targets based on the most sensitive component in the system.
5. Use the right filters with appropriate beta ratios and monitor differential pressure.
6. Control temperature with properly sized coolers and by fixing heat-generating faults.
7. Practice clean maintenance by capping open lines, wiping fittings before disconnecting, and using dedicated, labeled transfer equipment.
8. Store fluids properly in sealed, indoor, clearly labeled containers.
9. Schedule oil analysis at regular intervals and trend the results over time.
10. Train technicians on contamination control as a core part of reliability.

Hydraulic fluid contamination rarely has a single cause. It usually builds from a combination of built-in debris, environmental ingress, internal wear, water, heat, and maintenance habits. The good news is that nearly every source is controllable. By filtering new oil, sealing entry points, managing temperature, and monitoring fluid condition, operators can dramatically extend component life, protect uptime, and cut maintenance costs.

1. What is the most common cause of hydraulic fluid contamination?

Particulate contamination from external ingress, wear debris, and built-in residue is the most common cause. Dirt entering through breathers, rod seals, and during maintenance accounts for a large share of problems in the field.

2. Can new hydraulic oil be contaminated?

Yes. New oil often arrives with particle levels higher than what sensitive pumps and valves can tolerate. Filtering oil before it goes into the system is a best practice.

3. How does water get into hydraulic fluid?

Water enters through condensation in the reservoir, humid air drawn through breathers, failed cooler tubes, washdown, and rain exposure at fill points or damaged seals.

4. How can I tell if my hydraulic fluid is contaminated?

Look for cloudy or dark oil, foaming, odd odors, erratic actuator response, noisy pumps, and frequent filter clogging. Laboratory oil analysis is the most accurate way to confirm contamination levels.

5. How often should hydraulic fluid be tested?

Most systems benefit from oil analysis every 250 to 500 operating hours or quarterly, with more frequent sampling for critical, high-pressure, or harsh-environment equipment.
