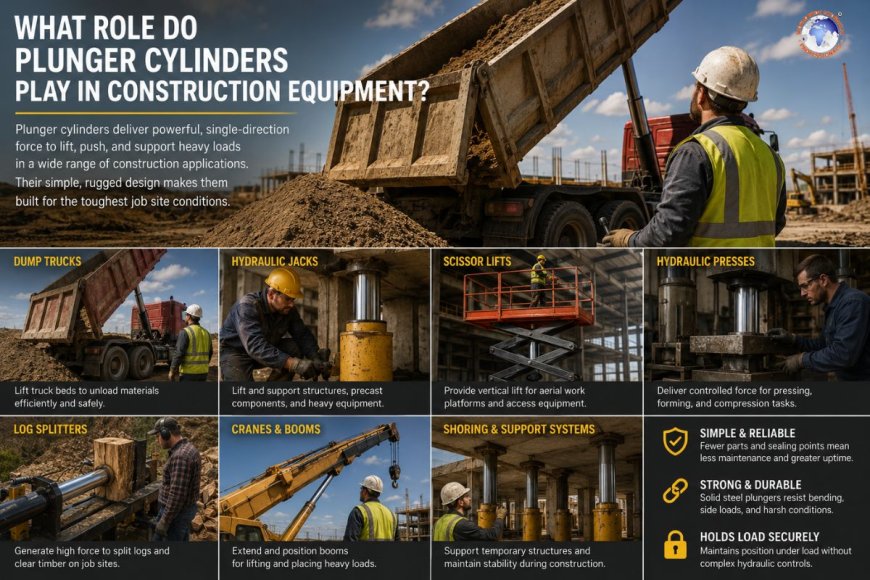

What role do plunger cylinders play in construction equipment?

Visit any construction site, and you'll be enveloped by the force of hydraulics moving—excavators' arms tearing into the soil, dump truck beds rising up under the weight of loaded loads, and crane booms that extend skyward in a controlled manner. The majority of people think of this power in the larger classification of hydraulic cylinders; however, underneath all these actions is a distinct and frequently overlooked component that is the plunger cylinder. Simple in appearance, durable in its function, and highly efficient in the right circumstances, the plunger cylinder is vital to the way construction equipment functions.

What is an axial plunger?

A plunger cylinder, sometimes referred to as a single-acting hydraulic in a ram cylinder, is a simple principle. Contrary to a double-acting tie rod or a welded cylinder that utilizes the same pressure to force a piston in order to expand and retract, a plunger cylinder exerts hydraulic force only on one side. It's the plunger (a metal rod that doubles up as a piston) that is pulled outward by a pressurized fluid. Retraction occurs passively via gravity, the weight of the load, or an external mechanical force.

The single-direction design may sound restricting. When it comes to construction equipment, it's typically the most practical option to be found.

Where can plunger cylinders be seen on construction websites?

The most well-known and prominent usage is found in dump trucks as well as tipper trucks. When a dump truck raises its bed to remove soil, aggregates, and demolition waste, plunger cylinders, usually multi-stage versions that are telescopic, do their heavy lifting. The bed rises up under the pressure of hydraulics, then gravity pulls it back to its original position. This is exactly the operational condition a plunger cylinder is designed for: heavy vertical loads, one-directional push, and dependable, repeatable, and consistent cycles.

Hydraulic jacks utilized at construction sites work on the same concept. Floor bottles and jacks, as well as hydraulic post-jacks, are employed to bolster structures and lift precast components or to support temporary formwork; they are all applications of a plunger cylinder. The plunger is extended upwards by pressure and stays in position when under load, and there is no requirement of hydraulic returns.

In scissor lifts as well as platforms for aerial works, cylinders with plungers provide the vertical thrust that raises the platform. The design for the mechanism turns an extension vertically of the cylinder to a steady, controlled rise. Retraction is controlled by the collapsed load of the cylinder and the workers above.

Hydraulic presses that are used in workshops for construction to press bearings, compressing soil samples, and creating structural elements -- depend on cylinders for the plunger. The plunger is able to deliver a high compression force with a precisely controlled stroke. The return of the force is handled either mechanically or via spring.

Log splitters, typically seen in the timber industry and other site-clearing activities, employ single-acting plungers to generate the force required to break wood. The cutting stroke is hydraulic, and the return is assisted by springs. Simple maintenance makes it so that equipment that experiences high-volume use in the winter months is subject to rough conditions.

Why does construction favor the plunger style for these types of applications?

Construction environments aren't controlled labs. Equipment can be used in mud, dust, extreme temperatures, vibrations, and even shock loads. The characteristics of the plunger cylinder make it ideal for these conditions.

Since it is a cylinder without a piston and there is no inside rod seal as such, it's just the seal on the cylinder's head where the plunger leaves the barrel. Fewer sealing interfaces mean fewer leak points. In cases where contamination is a constant threat, it is important to consider this. A more simple seal arrangement can be easier and less expensive to maintain on the job.

The plunger itself, as solid steel, not hollow rods, provides better resistance to bending and side-loading forces. In a dump truck, for example, the cylinder isn't only in compression; it also experiences lateral forces because the bed shifts as it unloads. A cylinder that is plunger-friendly handles more effectively than a standard piston rod of the same size.

The ability to hold the load is another benefit. Since fluid pressure is kept on one end and the plunger is not dependent on a piston that is balanced for position, the cylinder can hold its position during load-independent conditions without the need for complex counterbalance valve configurations. For lifting and shoring applications in which static load-holding is crucial, the simplicity of this design translates into security and reliability.

Telescopic plunger Cylinders: Extend reach in small packages

A substantial portion of the plunger cylinders in the construction industry are telescopic, comprising two or more stages nested in order to extend in a series. This lets a cylinder have a very lengthy stroke while being compact in its retracted length. Dump trucks are the most famous illustration of this: a 3 or 4-stage telescopic cylinder can expand the bed of a truck by several meters and fit into the chassis when it is retracting.

The same principle is applicable to certain mobile crane configurations and specially designed hydraulic platforms in which the storage area is small; required, however, is a substantial vertical reach during the operation.

Telescopic plunger cylinders create more complications than single-stage versions. Sealing from stage to stage becomes essential, and the sequence of extension is to be managed to avoid instability. But for applications where stroke-to-retracted-length ratio is the design constraint, they are often the only viable solution.

Operating tensions and considerations regarding material

The plungers of the construction industry typically operate within the 150 to 350 bar pressure range based on their use. Dump truck cylinders, in particular those used on large off-road haulers, could have pressures that are at the higher end of this range in the full-load condition.

Plunger material is mostly carbon steel that has hard chrome plating on the plunger's surface. The chrome layer gives resistance to wear and corrosion. The seal of the gland needs to work properly for hundreds of thousands of cycles. When equipment is used in harsh conditions—such as exposure to road salt coastal humidity, silica dust that is abrasive Other protective coatings or stainless steel plungers are available.

Barrels are constructed with the same logic: seamless steel tubing polished internally to achieve a perfect surface finish guarantees even seal wear and a clean hydraulic operation throughout the duration of the cylinder's life.

Common failure mechanisms and maintenance priority

Despite their apparently simple nature, plunger cylinders will fail, and in the case of construction equipment, the results can be severe. The most frequent cause of failure is a degraded seal at the gland—the point at which the plunger leaves the barrel. Exposure to abrasive particles, UV degradation of the elastomeric seals, and thermal cycling can all increase the wear of seals. The leaky seal of a gland on a cylinder for a dump truck isn't just a fluid loss issue; it can be a fire risk when the fluid comes into contact with the hot components of exhaust.

The damage to chrome plating due to corrosion pitting, impact, or abrasive wear can be the most prevalent problem. When the chrome plating surface has been affected, the steel beneath corrodes rapidly, and seal damage can result. Regularly checking the plunger's surface to check for pitting, scoring, and rusting is the one and only best maintenance technique for these parts.

Internal contamination, while less of a threat in single-acting systems than double-acting systems, can be a problem. Making sure that the hydraulic fluid is clean and within the viscosity limit for operating temperatures prolongs the life of the cylinder considerably.

Determining the appropriate plunger cylinder to be used in construction

The selection of a plunger cylinder suitable to be used in a construction project will require a matching length of stroke as well as the bore's diameter and operating pressure and mounting configurations for the particular workload and the duty cycle. The cylinders that are not properly sized fail sooner under the typical shock loads in construction. Oversized cylindricals can add weight and cost.

For OEM equipment makers and fleet operators who are requesting replacements, the primary specifications include the bore size (which determines the force output) and stroke (which determines the distance) and the maximal operating pressure as well as the mounting design. Partnering with a manufacturer who is familiar with the construction duty cycle and not just laboratory specifications makes sure that the cylinder will function reliably throughout the entire duration of the machine it is powering.

Plunger cylinders might lack the view of more intricate hydraulic components However, when it comes to construction sites, their impact is crucial. from the dump truck which moves material, to the shoring Jack that keeps structures safe The simplicity and dependability of the single-acting plunger model make it an ideal device for situations in which gravity does the return work and where the durability of the plunger cylinder in adverse conditions is not a matter of debate. Understanding why and where the use of plunger cylinders is the best starting point for designing and maintaining hydraulic equipment that allows construction to move, as well as troubleshooting it.
