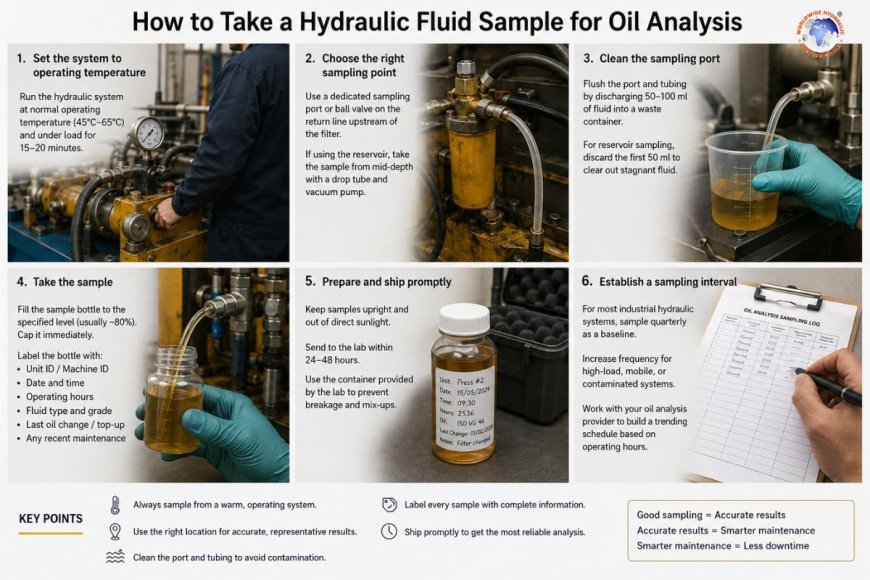

How to take a hydraulic fluid sample for oil analysis?

The analysis of hydraulic oils is among the most efficient and cost-effective and efficient predictive maintenance tools for the fluid power engineer and management of equipment. A single report from a laboratory will reveal levels of contamination and additive depletion levels as well as water ingress and wear-metal concentrations, as well as viscosity drift—without revealing any symptoms are evident within the system. However, there's one fundamental flaw that is affecting the whole system: the majority of failures in oil analysis aren't lab failures. They're sampling issues.

If it is taken from the wrong place, at the wrong moment, and using the wrong equipment or improperly handled prior to reaching the laboratory, a fluid sample can become a statistical myth. The report will reflect your method of sampling and not the oil you used. Making sure you do it right is therefore not a matter of choice and much more complicated than many people think.

Why do sampling techniques determine the entire process?

Before tackling the procedure It is helpful to know the reasons why the hydraulic system is a problem for sampling. The hydraulic circuit isn't an unmoving container of fluid. It's a dynamic system where contaminant particles, wear debris, and water disperse unevenly, based on the flow rate, temperature, flow rate, and the state of the system. At rest, heavier particles settle. When they are cold, the particles are distributed differently when operating temperatures are high. Return lines transport freshly liberated contamination, while reservoir fluid represents the accumulation of time.

This means that a test taken from a reservoir that has been drained when the machine is idle and cold will have a different story than one that is taken from the live return line operating at a temperature. The two samples are not "wrong" when taken in their own contexts, and only one is representative of the state of the oil performing real work under pressure. The purpose of a proper sampling is to get the most representative portion of the fluid in the active system, not just a snapshot of fluid that is sitting or settled.

The equipment you'll require

Make use of a vacuum pump using a one-use, clean tube for sampling that can get to the middle of the reservoir or the center in the pipeline. Beware of reusing tubes between systems or samples, as cross-contamination can invalidate results instantly.

Also, you will need:

• Sample bottles that have been certified ISO-certified and pre-cleaned (typically 100 milliliters or as required by the laboratory you work for)
• Lint-free gloves
• Absorbent pads or clean rags
• Permanent marker and label samples
• A minimaless valve fitting, or a designated port for sampling, when the fitting is
• Chain-of-custody document or the sample submission form provided by your analysis service provider

Do not use samples that have been washed using tap water, stored open, or kept in dusty locations. Inhalation of contaminants from one exposed bottle could artificially increase levels of particles, resulting in reports that look like the system has failed catastrophically in the case of a perfectly well-maintained machine.

1. Set the system at operating temperature

Always take a sample from a running, warm system. Let the hydraulic system attain its normal operating temperature (generally 45°C-65°C, dependent on the use) and run it at load for 15 to 20 mins prior to taking the sample. This ensures that wear and dirt particles are completely dispersed and circulated to give you a good representation of what's within the oil.

The results of a cold idle system will often underreport the presence of contaminants because larger particles have settled. It will also misrepresent viscosity, since hydraulic oil viscosity is temperature-dependent and your lab will interpret readings relative to expected in-service conditions.

Second Step: Choose the correct sampling point

The exact location you draw the sample from will have an impact directly on the outcome accuracy.

Ideal location: A specially designed minimaless port or a ball valve sampler that is located on the return line just upstream from the filter. This port is where you can sample the fluid that has been throughout the circuit and is able to carry an accurate contamination report. If your system is equipped with an in-line kidney loop or offline filtering, you should take samples from the circuit upstream and not downstream.

Affordable location: mid-depth of the reservoir, using a drop tube and a vacuum pump, keeping out either the top (where the aerated oil and floating contaminants build up) or the base (where particles that settle accumulate).

Avoid drain lines for the case as your primary sample location unless you are focused on motor wear or pump analysis. Do not take samples directly from the port for breathers, the housing of the filter, or any other point directly downstream of the filter; it will result in sampling clean oil but not the working fluid.

If you don't have a dedicated port, you can install one. Minimess fittings are cheap and adaptable and can pay for themselves in the event of a single component failure.

Third Step: Clean the port for sampling

Before making an actual test, wash the tube and port thoroughly. To use a mini-mess device, place the tube in, then open the valve and allow 50 to 100 milliliters of fluid to flow through and then be discarded in a garbage container. To draw a vacuum out of the reservoir, permit the first 50 ml of drawn fluid to be flushed away and purge the stagnant fluid that is inside the tubing or near the port's mouth.

By skipping this step, you risk dead-leg fluid contamination of the sample bottle. This is a typical mistake that causes fakely higher particle counts and causes unneeded fluid modifications and false alarms for maintenance actions.

Step 4 Take the sample

Clean your sample bottle right away prior to filling. Fill it up to the fill line that is specified by the lab—typically around 80% filled, leaving a headspace to fit the cap. Cap it immediately. Don't allow the bottle to stand open on a table and then place it on the floor without caps or expose it to dust in the air during the minutes between filling and sealing.

Label the bottle right on the spot by using the following:

• Unit ID, machine identification
• Time and date of the sampling
• Operating hours of the system at the time of sampling
• Fluid type, brand and grade
• Last date for fluid changes and the volume that was last topped-up
• Any recent replacements for components or other known system-related events

This information on context isn't an administrative burden. Laboratories utilize it to track the results across time and identify abnormalities and differentiate between normal wear and tear as well as severe contamination incidents. The absence of information forces analysts to make assumptions, which reduce the diagnostic significance of the report.

Phase 5: Prepare and ship in a timely manner

Keep samples in an upright position and away from direct sunlight for a period of time prior to dispatch. The majority of oil analysis labs recommend sending samples within 24-48 hours of the collection. In the meantime, particles settle and the water separates, which can result in skewing results. Utilize the container that your lab has made; there is one available. It was specifically designed to avoid the breakage of bottles and mix-ups in the transportation.

If you're sampling multiple machines within a group Keep bottles separate with clearly labeled labels and do not put them in a loose stack. A damaged bottle that contaminates the sample next to it is an unproductive service call and an unfinished maintenance log.

The process of establishing the sampling interval

For the vast majority of industrial hydraulic systems that run using standard mineral oil periodic sampling, quarterly intervals of time are an appropriate basis. Mobile or high-cycle equipment that is under constant load could require periodic sampling, especially in the event that the equipment is running hot, is operating in dusty conditions or has a long background of contamination issues.

Critical infrastructure—offshore hydraulic power presses, units, or huge mobile cranes—typically operates with fixed-interval sampling that is tied to machine hours, not the calendar time. In conjunction with an oil analysis service, establish a trending schedule that will generate adequate historical points so you can detect slow degradation before it reaches the point of failure.

The difference difference a great test creates

Properly performing hydraulic oil sampling takes less than ten minutes for each machine if the procedure and equipment are formulated ahead of time. The benefit of those 10 minutes—no component replacement, extended time between oil changes, and early warnings of failure of valves and pumps—is often in the multiples of the price of the test the analysis itself.

The lab can only be able to work on what you send them. Send them something that is representative.
