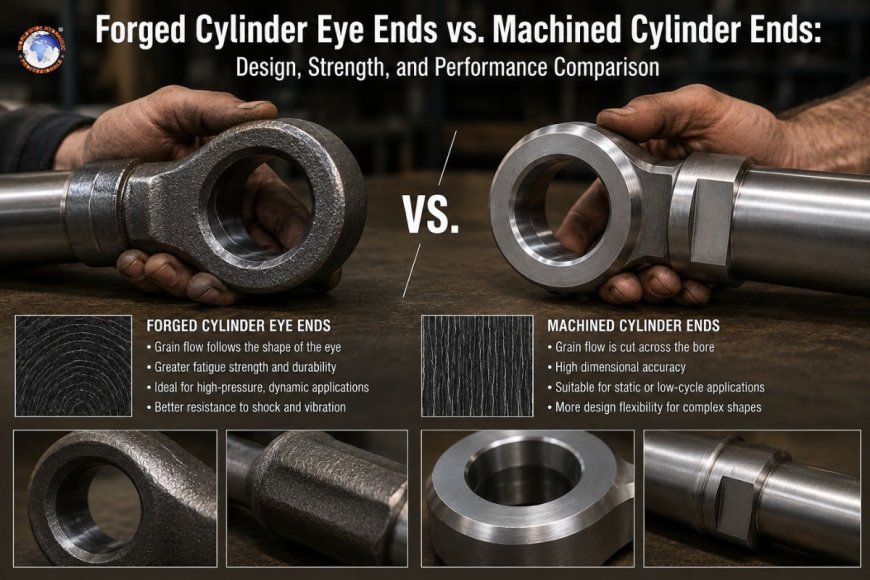

Forged Cylinder Eye Ends vs. Machined Cylinder Ends: Design, Strength, and Performance Comparison

Forged cylinder eye ends for cylinders are robust, resistant to fatigue, and more suited to high-load dynamic applications due to the forging process aligning the grain structure of the metal. Forged cylinder ends provide greater accuracy in dimensional measurement and design flexibility as well as cost-effectiveness in low- to medium-duty cycles. The ideal choice will depend on the operational pressure, the type of load, and the volume of production.

What are the cylinder eye ends?

In a cylinder that is hydraulic, the connection at the end—which is located at the cap end or at the rod's end—determines the method of transfer of force to the load and how the cylinder is attached to the frame of the machine. A popular and commonly used design of mounting is the eye end (also called a clevis or rod eye), which is a circular loop that has an opening that a rod can pass through to form a pivoting connection.

Eye ends are made with one of two principal techniques: forging or machining. Both methods can create practical components; both are different in their internal structure of metallurgical chemistry and mechanical properties, as well as their suitability for various applications.

The process of forging: how does it work?

Forging is a process whereby metal—generally stainless steel or even alloy steel—is formed under extreme compressive force, whether through pressing or hammering, in a state of being warm or hot. When the metal is formed under pressure, its internal grain structure expands and is aligned to the shape of the piece that is being created.

In the case of a forged eye, the grain lines follow the geometrical shape of the eye and wrap constantly all around the bore. This results in a part in which the natural strength of the material is directed to that direction as it is loaded. Eye ends forged by forging are usually made in large quantities by using dies and then finish-machined to attain final dimension tolerances.

The process of machining: how does it work?

Eye ends of cylinders manufactured by machine start life as billet, bar stock, or plate material that is then cut, then turned, drilled, and then milled using CNC equipment to create the desired shape. In the beginning, grains of raw materials flow in a linear fashion through bars' stock, and the machining process cuts across the grain lines to form the eye's geometry.

While machining provides incredible dimensional accuracy and allows for intricate geometries, it does not alter the natural flow of grain in the metal. An eyebore is made by removing material, rather than moving it. This means that the grain lines that run through the critical bore's location are perpendicular to instead of around the area of stress.

The grain structure and the material's strength

This variation in grain direction is the main reason why machined and forged eye ends behave differently under stress.

In an eye-end forge, the grain wraps all around the bore, similar to the rings on a tree trunk. When pin loads are placed through the bore, the structure of the material is strained along its strongest line. Cracks are difficult to propagate across the tightly packed and well-defined grain boundaries. This makes forged eyes have greater resistance to fatigue.

In a machined finish, the bore cut across the grain. In the case of cyclic loads, stress concentrations near the edges of the bore have a more efficient route to grain boundaries, making crack formation and spread more likely in the course of time. For low-cycle or static applications, this is a good thing; however, in dynamic conditions—when load reversals and shock and vibration are commonplace—the distinction becomes important in terms of operation.

Independent tests along with industry standardization consistently demonstrate that forged steel parts exhibit 20% to 30% more strength than similar machined components made of the same grade, and this margin increases significantly under extreme service conditions.

Precision in dimension and complexity of geometrical

Eye ends that are machined have an advantage when precision tolerances and intricate geometrical shapes are needed. CNC machining is able to hold the bore's tolerance of ±0.01 millimeters or tighter, produce diameters of bores that aren't standard, incorporate integral threads, incorporate grease grooves, or make asymmetrical designs that are difficult to create.

Forged blanks require a second process of machining to get them to their final dimensions. Although this process can achieve acceptable tolerances for common eye ends However, the process isn't as adaptable. Forging dies that are custom-designed are costly and require lengthy lead times, which makes forgings a good investment only in moderate to high production levels.

For prototypes, short durations, or for cylinders that have unusual end designs, machined eye ends are the most efficient and economical option.

Performance under static and dynamic loading

The loading schedule of the application is usually the most important aspect.

Dynamic load—which includes side loads that oscillate, oscillating loads vibrating, and impact—creates stress on the eye's bore and the contact area of the pin. Forged eye ends are especially suitable for this. Their high strength in fatigue ensures they can endure millions of cycles of load before developing the signs of cracking due to stress. This is the reason the heavy equipment for construction, drilling offshore machines, agricultural equipment, as well as military hydraulic systems rely on eye ends that are forged for high-load cylinders.

The quasi-static or static loading, which is when the cylinder extends or retracts with a controlled rate and the load remains fairly constant, doesn't require the same resistance to fatigue. A properly sized machined eye end made of high-quality steel is able to perform reliably under these situations and is particularly effective in the field of industrial control, materials handling, and presses where cycle speeds are managed while shock forces are low.

It is important to note that even in static situations system pressure is a factor. Over 250 bars (approximately 3 625 pounds). It is the consensus of engineers that generally favors forged ends for larger bore cylindrical cylinders, regardless of cycles per minute, since the load that is placed on the bore and pin is so high that any material discontinuity can become an issue.

Efficiency of size and weight

Since forging allows the materials to be placed exactly where they are required to be strong, forged eye ends are often less heavy than the equivalents made by machine that have the same load capacity. The continuous grain flow also means that the designer can decrease the thickness of the wall or the eye in areas that aren't very stressed while not compromising the strength of the bore area.

Eye ends that are machined, by contrast, typically require more rigid cross-sections to account for the grain that is interrupted, especially in the area around the bore. When it comes to applications that are weight-sensitive, like mobile devices as well as aerospace-adjacent equipment, or any other situation where the payload margins are important, this variation in strength can affect the design of mounting choices.

Cost factors

Costs aren't always easy to determine when comparing machined and forged components.

Forged eye ends incur higher costs for tooling (die production), but they have lower material per unit and processing expenses at a volume. The standard forged eye ends are available as common parts from large cylinder component manufacturers and keep the cost of procurement affordable for bore sizes of common sizes.

Machined eye ends do not have a lot of cost of tooling (CNC programs are inexpensive to create and alter) as well as a longer processing time and more material waste due to cutting. But, if you are working with small production runs, machined eye ends tend to be less costly in general because there is no investment in dies.

The life of a cylinder's service and your total cost of ownership include maintenance. An eyeend forged from steel, which lasts longer than two replacements made of machine for high-cycle use, is a less costly option, regardless of its greater initial cost.

The right end to use for your project

Make use of this framework when determining the ends of a cylinder eye:

Select forged eye ends when:

• Operating pressure exceeds 200-250 bar
• The application is based on oscillating, dynamic, or shock loads.
• The cylinder runs at high rates of cycle (thousands of cycle per shift)
• It is mobile and subject to vibration in harsh environments.
• Service life is long, and there is minimal unplanned maintenance; these are the top priorities.

Make sure to use a machined eye end at the time.

• Operating pressures range from moderate to low (under 200 and 150 bar)
• The loading is either static or low-cycle.
• Complex geometry is needed
• The production volumes aren't as high or the design is evolving
• The sensitivity to cost at the unit level is greater than long-term fatigue issues

Machined and forged cylinder eye ends aren't competing products, but rather, they are complementary solutions that are calibrated to various operating conditions. Forging provides grain-aligned strength, durability against fatigue, and long-term reliability for dynamic and demanding service. The advantages originate in metallurgy and not marketing. Machining provides accuracy, flexibility, and a quick-run efficiency that forging simply can't compete with at small volumes or in unusual geometries.

The decision rests on a precise analysis of cycle rate, type of load, and budget. Make sure that the manufacturing process is compatible with the conditions of use, and both eye ends that are machined and forged are guaranteed to provide reliable, consistent performance throughout the time of the hydraulic cylinder.
