Rod seal vs piston seal vs wiper seal: functions, positions, and profiles explained

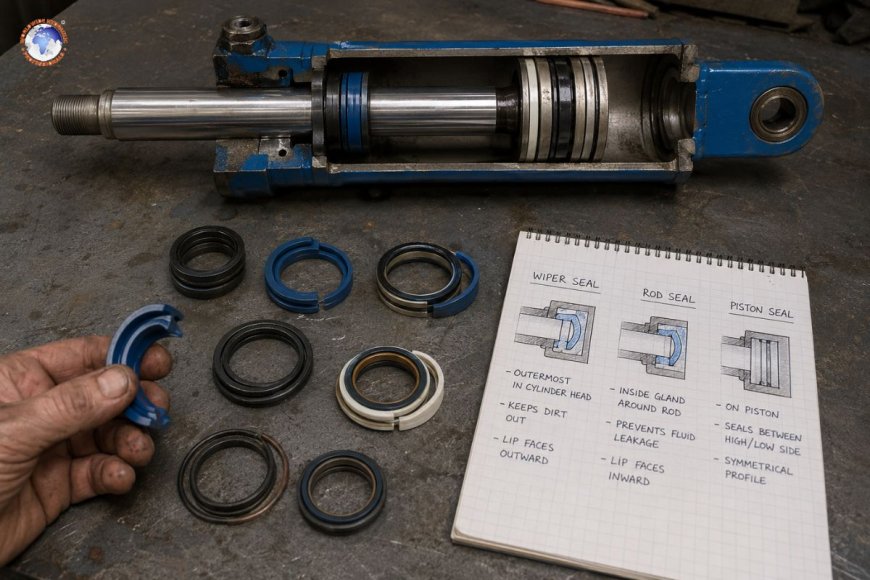

If you've ever taken down a hydraulic cylinder and set up a sealing kit onto your workbench, you've noticed none of the seals look exactly identical. Some are square-cut, others have lips, some U-shaped, and others look as if they could not possibly keep back the flow of fluid. That's intentional. Each seal profile within the hydraulic cylinder is designed to perform a specific task or location and a particular combination of motion and pressure conditions. If you confuse a rod seal and the piston seal when you reassemble them, you'll be returning to your workbench quicker than you'd prefer.

This article explains the three primary seals found in hydraulic piston cylinders: rod seals, piston seals, and wiper seals, detailing where each is located, how it functions, and why its shape appears the way it does.

The reason why seal type and position are not separate?

A hydraulic cylinder is an enclosed pressure vessel that is controlled and that has a moving element within it. The pressure of the fluid enters and is absorbed by the piston's face and then drives the rod out or back. In order for this sequence to function efficiently, seals have to prevent the flow of fluid from areas it shouldn't and prevent contaminants from entering areas that aren't allowed to enter.

The crucial point is that every sealing area inside the cylinder has an entirely different environment. When the piston is in place, the seal is positioned against the bore of the cylinder with the highest differential pressure to one side. When the rod is in place, the seal engages with an elongated rod that moves through the cylinder head at moderate pressure. In the groove for the wiper, there's minimal pressure from the hydraulic system; however, there's direct exposure to the outside surrounding environment. Different environments require different geometries and different material and seal cross-sections that differ.

Piston seals: the main pressure barrier

The piston seal is situated on the piston's head—the head or disc that divides the piston into 2 chambers (cap ends and rod's). Its function is to stop hydraulic fluid from escaping through the piston and moving from the high-pressure side to the lower-pressure side. Internal leakage is known as bypassing. Even the smallest amount of bypassing can reduce the efficiency. A cylinder that has a worn piston seal will move down, lose strength, and struggle to support an object under static conditions.

Because the piston seal is required to stop high differential pressure (usually 200 bar or higher in industrial standard applications), its design reflects that need. The most commonly used piston seal design is the double-acting seal. It will seal efficiently in both directions. This is because double-acting pistons apply pressure through both ports based on the direction of stroke. The seal is typically made with a symmetrical profile, which is typically either a step-seal or T-seal arrangement that includes a PTFE wear ring that helps keep the piston in the bore. This helps reduce contact between metal and the bore and piston and can result in scoring.

Piston seals are seated inside a groove that is machined into the OD of the piston and are bonded to the bore ID of the cylinder. The sealing contact extends outwards—the seal's outer lip, or face, presses against the wall of the bore. The bore's surface finish is crucial in this regard; a surface that is too rough will accelerate wear and tear on the seal, while an unsatisfactory surface will actually diminish the thin film of fluid required to lubricate the seal.

The rod seals Maintaining the pressure inside

The rod seal can be found inside the head of the cylinder (also known as the end cap, or gland, that the rod is extended from). It is sealed around the rod's diameter as the rod is moved through and out of the cylinder during operation. Its role is to stop the hydraulic fluid from spilling out of the cylinder and into the rod. This can lead to external leakage, which can cause pollution of the environment and loss of fluid, and in many situations it is a safety or compliance problem.

Rod seals work under significant pressures from hydraulics, specifically in the extension strokes during the time that the end chamber has been pressurized. They have to ensure a consistent sealing lip's contact with the surface of the rod throughout the entire spectrum of operational temperatures and pressures as well as rod speed. In contrast to piston seals, rod seals on double-acting cylinders tend to be symmetrical in their profile and are designed to seal mostly against internal pressure instead of across both directions equally.

The most commonly used rod seal profiles are the U-cup (also known as the lip seal) and the V-ring stack, as well as compact composite seals that incorporate the primary sealing lip and an anti-extrusion ring backup. The U-cup is extensively utilized because the pressure from the hydraulic system opens the sealing lip and pushes into the rod, resulting in an energy-generating effect. A higher pressure results in a more secure seal. That's precisely what you need when you are using a dynamic seal.

Surface finish of the rod is essential for the life of the rod seal. The most common recommendation for finishing the rod will be Ra 0.1-0.4 millimeters (roughly 4-16 microinches). A rough surface will tear the seal lip early, and one that's too smooth could result in the seal's ability to adhere and slip, causing damage and heat over many cycles.

Protective seals on the wiper. defense against contamination

It is the wiper's seal—sometimes called the scraper seal or dust seal—located in the groove that is at the outside of the cylinder head, facing the direction of travel. It's the last thing that the rod comes into contact with before it leaves the cylinder upon extension and is its first contact it comes into contact with upon retracting. Its function is not to maintain the hydraulic pressure. Its job is to scrape dirt or moisture as well as contamination off the surface of the rod before the material can be pulled into the rod seal through the hydraulic fluid.

This distinction is important. Engineers often underestimate the wiper since it does not detect high pressure; however, contamination is among the main reasons for failure of the hydraulic system. The particles that make it past the wiper could get into the lip of the rod seal and then scratch the rod's surface and get into the hydraulic circuit, where they can damage valves, pumps, or actuators downstream. The failed wiper doesn't signal it by leakage from outside; it just allows for progressive degradation until it is completed.

Wiper seals are made with a lip that scrapes towards the outside. A lot of wiper designs have an additional inner lip, which acts as a seal with a slight static that helps to hold any tiny amount of film that is left around the rod, which the seal has allowed to flow through. The controlled micro-film is beneficial for rod seal lubrication, and the role of the wiper is to keep it from forming a visible drip while also preventing entry.

In the harshest environments—construction equipment or agricultural machinery, as well as offshore applications—wiper seals are typically upgraded to high-performance profiles using reinforced plastic casings made of metal or polyurethane that are more resistant to abrasion by sand, grit, and water penetration than wipers made of nitrile.

Comparison of profiles at an enumeration

The understanding of the 3 seals in tandem helps understand the engineering rationale for each one:

The piston seal is a straight, radially outward-facing shape that is situated at the piston's OD and with respect to the bore ID. It is the one that handles the most differential pressure within the cylinder and has to seal in both directions to ensure double-acting systems. The rod seal is fitted with an asymmetrical lip profile (typically U-cups or composite) and is situated in the cylinder head near the rod's OD. It works with the pressure of moderate or high based on the direction of the stroke and stops external leakage of fluid. The wiper seal is equipped with the profile of a lip scraper that is angled towards the side, located in the outermost groove in the head of the cylinder. It is able to handle minimal pressure from hydraulics and serves as a filter rather than an actual pressure seal.

Selecting the seal material for every position

The selection of materials follows the same logic of position-specific selection. Piston seals typically make use of PTFE materials or polyurethane to ensure high chemical resistance and low friction over a broad temperature range. Rod seals are usually made of nitrile (NBR) for normal mineral oil applications. They also have NBR (HNBR) or FKM (Viton) employed for aggressive or high-temperature fluid conditions. Wiper seals typically are made of polyurethane for standard use, selected for their toughness and resistance to abrasion, or PTFE for cleaner areas where friction is low and chemical inertness is the main goal.

The main takeaway for Maintenance teams

If you are ordering seal kits or replacement seals for individual seals, the position of the seal is not negotiable. A piston seal placed within the rod groove, or vice versa, may not seal or extrude when pressure is applied or produce heat due to a wrong contact geometry. Always check the profile of the seal and its groove dimensions and the manufacturer's designation for its position prior to installation.

Each seal type performs an exact job unlike any other seal inside the cylinder able to accomplish. Be sure to respect the location and match the profile, and then your cylinder is guaranteed to give an unmatched performance over its service duration.
