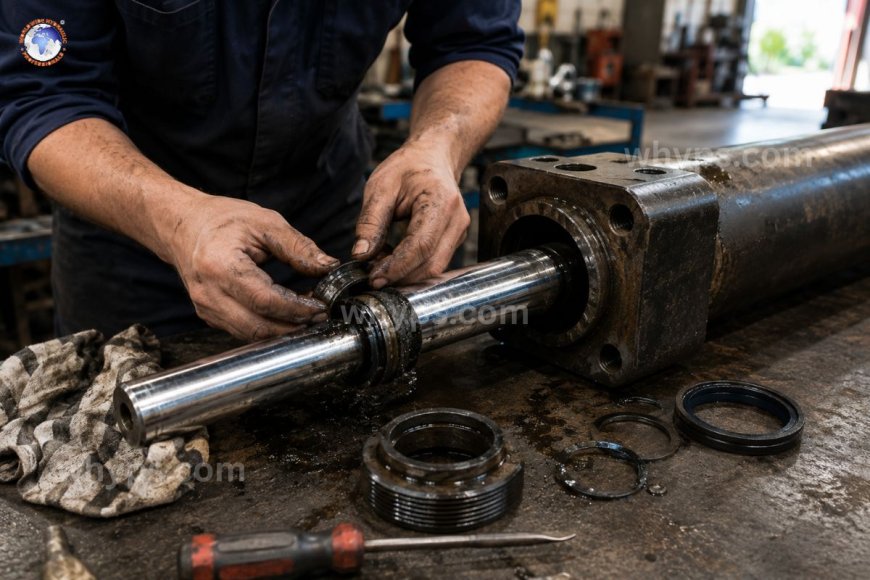

Hydraulic cylinder seal failure: causes, symptoms & solutions

Seal failure in the cylinder of a hydraulic cylinder is usually due to damage to the heat source, incorrect installation, misalignment, or pressure spikes. It manifests as external leakage and cylinder drift, unsteady movement, or a reduction in holding force. Identifying the early signs—leakage of fluid, a scratching on the rod, or a slow response—and fixing the cause (not simply swapping the seal) will prevent recurring problems and unnecessary downtime.

Seals are tiny components that perform a huge task. A rod seal that is only smaller than a millimeter wide is responsible for keeping thousands of PSI of fluid in check while a rod made of steel moves through it countless times per day. If the seal fails, it can cause a lot of damage beyond the puddle of oil loss of force, contaminated systems, and unplanned downtime for equipment. Knowing why seals fail and knowing how to recognize the warning signs in advance and then fix the root of the issue is vital for anyone who is a technician or fleet manager who works on hydraulic cylinders.

Why do hydraulic cylinder seals fail?

Seal failures are rarely unintentional. It is almost always traced back to one of the causes. Knowing which one is at play will determine whether repairs actually resolve the issue or simply hinder the likelihood of a subsequent failure.

Contamination

Particulate contamination is by far the most frequently cited reason for premature wear of seals. Metal shavings, dirt, or silica particles work as sandpaper that rubs against the seal's lip each time the rod is moved. Even contamination within the 5-15 micron range that is not visible to the untrained eye is able to gradually degrade the seal's sealing edge, allowing fluid to escape.

Contamination usually enters through:

• Wear or damaged seals on the wipers fail to scrape dirt off the rod when retracting the rod.
• Contaminated fluid is introduced when topping off or during fluid change
• Chrome plating on the rod that is breached is able to trap abrasive particles
• Dust that is blown in from unsealed or poorly filtered reservoirs

Chemical degradation and heat

Seals are constructed from thermoplastics and elastomers, such as nitrile (NBR), polyurethane (NBR), PTFE, and fluorocarbon (FKM)—each of which is rated for the right temperature and range of chemical compatibility. Continuous operation over a seal material's temperature can cause cracking, hardening, and the loss of elasticity. When a seal has lost its flexibility, it is unable to continue to maintain continuous contact with the bore or rod, and the result is leakage.

The incorrect hydraulic fluid for sealing materials—or a fluid that has deteriorated and turned acidic due to oxidation—causes the same effect via chemical attack instead of heat.

Improper installation

The damage to seals that occurs during installation is often and completely avoidable. Common errors during installation include:

• The seal is stretched to its maximum elastic capacity while placing it on the piston or rod
• Cutting or nicking the seals on threads, sharp edges, or keyways in the assembly
• Installing a seal backwards by reversing the sealing direction
• Inadvertently lubricating during assembly, creating dry friction and instant scratching

Side loading and misalignment

Cylinders are specifically designed to withstand the axial load. When a cylinder's mounting is in an unbalanced position or side loading is introduced through an unsupported path of load, the rod is no longer in a straight line through the bore of the seal. The uneven wear puts the strain on one side of the seal, which can lead to a localized extrusion, or a cut lip that is long after the expected lifespan of the seal is completed.

Cycling fatigue and pressure spikes

The pressure spikes caused by shock load, fast directions, or an inoperative relief valve could cause a seal to expand beyond its extrusion gaps, pushing the material into the gap between the bore and piston. Over time, the repeated pressure events can cause fatigue to the seal even when no single event results in a complete failure—an insidious breakdown that often is misinterpreted by the manufacturer as wear normal.

Recognizing early the symptoms

The detection of seal failures in the beginning stages is less costly than repairing the issue after a complete blowout. Look out for these signs of trouble during regular inspection.

External leakage of fluids

The most obvious sign is the appearance of fluid on the seal on the rod or static seal ports. Even a small weep is a sign that the seal isn't creating a barrier that is fully formed and can get worse as you continue cycling.

Cylinder drift

If a piston creeps or moves under stress even though it is supposed to stay in place, the internal piston seal bypass is usually the reason. Fluid is flowing between one side of the piston and another internal, even if there isn't any external leak visible.

The rod can be pitted or scored. rod

The visible pitting, scratches, or corrosion of the rod's surface can damage seals in a direct way and may indicate corrosion or plating failure has already begun.

Sluggish or reduced force

A piston that is slower than normal, sluggish, or unable to achieve full extension force, often losing internal pressure after an old piston seal.

The system is flooded with air-fluid motion.

A spongy or jerky feeling in operation could indicate that a rod seal or wiper allows air to enter returning strokes, creating the possibility of compression in what should be an erect hydraulic column.

Strategies and preventive practices

Apply the seal material in a way that matches with the application.

The selection of the right elastomer based on the temperature of operation as well as the type of fluid and duty cycle will prevent thermal and chemical degradation before it begins. FKM compounds are able to withstand high temperatures and chemical exposure. Polyurethane is more resistant to abrasion and extrusion than standard nitrile used in high-pressure systems.

Maintain fluid cleanliness

Regular oil analysis, properly measured filtration, and well-organized fluid handling practices when it comes to top-offs and changing the oil reduce the particle load that causes the majority of premature wear. The setting of an ISO cleanliness standard that the entire system is able to meet and observing against it transforms contamination control into a tangible method rather than a guess.

Verify alignment and ensure it is correct.

When rebuilding a cylinder, check the alignment of the mounting and ensure that side loading is not present in the process. A misalignment that caused the initial problem will recur with a newly seated seal when left uncorrected.

Make sure you follow the correct installation procedure.

Make use of the appropriate seal installation tools, not screwdrivers and other tools that are not designed for the job. Lubricate seals prior to installation, and ensure proper orientation prior to sealing the valve. The installation instructions of the manufacturer are there for a reason; adhering to them will prevent self-inflicted failures.

Monitor pressure behavior.

Check that the relief valves are set properly, and look into any patterns of spikes in pressure rather than considering a repeat failure to seal as bad luck. Addressing the pressure issue and not simply changing the seal stops the cycle of failure.

Conduct a bore and rod inspection on the schedule.

Since the condition of the rod directly affects the life of seals, regular inspection for pitting, scoring or corrosion is a must in any preventive maintenance plan, especially for cylinders that operate in corrosive, dusty or high-cycle conditions.

A failure of the hydraulic cylinder seal is typically a sign of a bigger issue: heat, contamination, improper installation, or pressure anomalies. Repairing a damaged seal without identifying the cause will only reset the clock for the next failure. A systematic method of cleaning the fluid and proper selection of seals, a meticulous installation, and regular inspections prolong the life of seals and ensure that hydraulic systems are operating smoothly.

1. How long do you expect the seal on a hydraulic cylinder to last?

Service life is different for each application, but seals that are well maintained in clean systems that have proper alignment can last for many years or even tens of thousands of cycles. Heat or contamination can reduce the lifespan of seals significantly.

2. Can a hydraulic seal for a cylinder be repaired instead of replaced?

Seals are a single-use component. If damaged or removed, they should be replaced by a new seal that is of the right dimensions and materials, rather than installed.

3. What's the distinction between a rod seal and a wiper seal?

The rod seal holds hydraulic fluid within the cylinder. The wiper seal (or scraper) is located outside and stops external contaminants from getting trapped on the return stroke of the rod.

4. Is it possible that the wrong hydraulic fluid could result in seal failure?

Yes. Fluids that are chemically incompatible with seal material or that have oxidized and then become acidic could affect the elasticity of seals and cause premature failure.

5. What's the first thing to look into when a cylinder begins to leak?

Begin by identifying the source of the leak—rod seals, piston seals, or static seal—because each indicates a different possibility of a cause. Check the cleanliness of the fluid and examine for any visible rod damage prior to disassembling.
