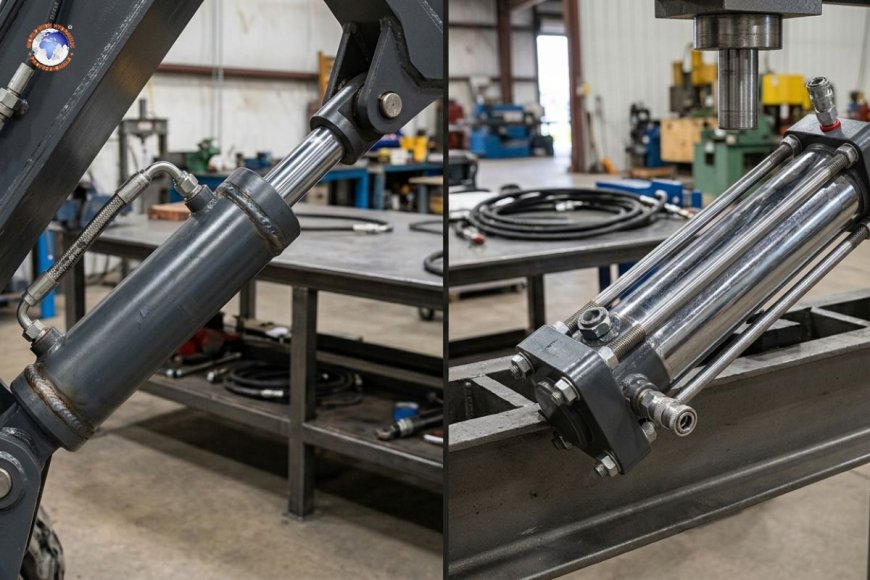

What is the difference between welded and tie-rod hydraulic cylinders?

Welded (also known as "mill-type") hydraulic cylinders have their end caps permanently joined onto the barrel, resulting in an extremely compact and strong design that is suitable for heavy-duty mobile devices. Tie-rod cylinders utilize rods made of steel that clamp the cap's end to the barrels, allowing the complete disassembly of the barrel for repairs, making them the most popular option for stationary and industrial hydraulic systems. The ideal choice will depend on the operating pressure, servicing requirements, space limitations, and if the system is fixed or mobile.

Why is it important to build cylinders?

The design of a hydraulic cylinder is more important than just the way it appears. It affects how the cylinder is able to handle pressure and maintain it on the job, the amount it weighs, how long it will last, and what it's going to cost in the beginning versus its lifespan. Tie rods and welded cylinders are two of the most common kinds of construction, and each was designed to address specific issues. Knowing the difference can help engineers as well as procurement teams and maintenance planners select the appropriate cylinder first time and avoids the need to find an inconsistency after installing.

What is the meaning of a hydraulic cylinder that is welded?

A welded cylinder is an end cap and a barrel. caps (both the head and base), which are welded directly onto the tube. It isn't equipped with any external fixings to hold the cylinder together. The weld itself is the one that carries its structural weight. This type of construction is referred to as "mill-type" or "mill-duty" since it was developed in mills and heavy industrial applications where the strength of the weld was crucial, much more so than the field's serviceability.

Welded cylinders have a few key features

• Compact profile: With no tie rods running along the long length of a barrel Welded cylindricals have a narrower outer diameter than a bore of the same dimension, which is crucial when the envelope is small.
• High strength-to-size ratio: The joint distributes stress evenly across the entire circumference, allowing cylindrical units to withstand greater pressures and the shock load in relation to their dimensions.
• Rugged and vibration-resistant: Typically in off-highway and mobile equipment such as excavators, loaders, dump trucks, and agricultural machinery, in which the cylinder is subjected to constant jolts and dirt and impact loads.
• Repairable only on the spot (typically) Since the caps are welded to each other, seal replacement or internal repair typically requires cutting the weld, machining, and re-welding, which is a specialist shop task rather than one that is performed on-site.
• Stroke lengths and sizes can be customized Welded designs are easy to create with custom lengths of stroke and mounting configurations since there is no requirement to use standard tie-rod hardware.

What is the cylinder of a tie-rod hydraulic?

A tie-rod cylinder keeps its end caps with a set of rods made of steel that are external and are along the same direction as the barrel and are threaded and torqued with nuts at both ends. These rods are not the welds; they take on the axial load and hold the whole assembly with preload.

Some of the key features of tie-rod Cylinders

• Fully serviceable: The cylinder is able to be disassembled through the removal of tie-rod nuts. This gives direct access to the rod, piston seals, and bore for repair or inspection. This is an advantage for those who want to build cylinders themselves instead of having them replaced.
• Design standardization (NFPA-compliant) A large number of tie rods are designed to conform to NFPA (National Fluid Power Association) interchangeability standards. That means replacement parts or even complete cylinders manufactured by different companies are often swapped without having to redesign the mounting.
• Costs are lower for standard sizes: Since they're made to standards that are common and are available in standard combinations of bore and stroke, tie rods are typically more affordable to buy for common industrial uses.
• Greater envelope The tie rods are added to the overall dimension of the cylinder; thus, tie rod cylinders occupy greater space than a welded one of the same bore.
• Pressure ratings are based on the rod count and preload. Tie-rod cylinders generally can handle medium to heavy pressures very well; however, at extreme pressures or under shock load conditions, the tie-rod joint may become the main factor to consider in the event that the design does not incorporate more rods or hardware that is heavier.

The welded vs. tie-rod: Comparison side-by-side

What is the difference between tie-rod and welded cylindricals

1. Take into consideration the operating environment

If the cylinder will be positioned on mobile equipment susceptible to vibrations, shocks, and dirt, as well as the limitations of space, the welded cylinder is typically the best choice. Its compact, one-piece structure can withstand the abuse of off-highway cycles more effectively than bolted assemblies.

In the event that the device is placed inside a static industrial setup like a press, an automated factory line, or an electric power unit fixed to the ground—the tie rod's quality of service and standardization usually outweigh its bigger footprint.

2. Factors in maintenance philosophy

Facilities that have internal maintenance teams and wish to repair cylinders, rather than replace them, should opt for tie-rod designs. Facilities that are more inclined to swap and replace maintenance, or in areas where disassembly of the field isn't possible, are typically better equipped with welded cylinders, in the knowledge that repairs are done by specialist shops.

3. Assess the pressure and space requirements

In the case of extremely high pressures in the system, welded construction usually provides an extra-strong, reliable joint. When envelope space is constrained Think rigid mounting brackets for loader booms or excavators—the smaller dimension of a cylinder could be the primary element.

4. Assess the your total cost of ownership

The cylinders with tie-rods can cost less initially; however, they will cost more as time passes when seals fail and require periodic replacement. However, the cost of rebuilding is usually less expensive than replacing the entire cylinder. The cylinders that are welded may cost more in the beginning for custom-designed configurations, but they will provide a longer time frame prior to any intervention being required and especially in less harsh conditions.

Common error to avoid

A common error in specification is that it defaults to tie-rod cylinders on mobile devices just because they're an option that's the "standard" and cheaper option but doesn't take into consideration the impact and vibration that mobile applications cause. As time passes, this can result in a loosening of the preload on the tie rod as well as leakage of seals at the joint cap and ultimately premature failure. Making sure that the construction type is compatible with the duty cycle and not only in relation to budgets -- are vital to ensure the longevity of your cylinder.

Hydraulic cylinders with tie-rods and welded parts aren't two different versions of the same item—they reflect different concepts of design that are based on distinct priorities. Welded cylinders compromise field serviceability for strength and compactness, which makes them the ideal option for heavy-shock and mobile applications. The cylinders with tie-rods have a bigger footprint to provide standardized repairs and cost-effective performance for stationary systems. The process of selecting the best one begins by knowing the nature of the work environment, its duty cycle, and the maintenance approach the cylinder will be operating under.

1. Can a hydraulic cylinder that is welded be repaired in the event of failure?

Yes, but it involves specific shop work such as cutting the weld to eliminate the cap from the end, then cutting as required as well as replacing internal components and welding again. This is not a job to be performed for field maintenance and is usually contracted out to a specialist in repairing cylinders.

2. Are tie-rod cylinders more durable than welded cylinders?

It's not necessarily that they are less robust; however, they react differently when stressed. The cylinders with tie-rods depend on rod preload to remain in place, which means that the force of shock or vibration could loosen the preload over time. However, welding joints don't rely on the constant force of clamping.

3. Which type of cylinder is the best for hydraulic systems with high pressure?

Welded cylinders typically handle higher tensions and shock loads more effectively due to the fact that the joint is welded and is able to distribute stress evenly. Tie-rod cylinders are limited due to the size and number of the rods that clamp the assembly.

4. Do tie-rod cylinders adhere to NFPA standards?

There are many that do, especially in the industrial market, that allow interchangeability between different manufacturers. However, it is not the case that all tie rods are NFPA-compliant. It's crucial to check for standardization when parts interchangeability is required.

5. Welded cylinders are less frequent on loaders and excavators.

Mobile equipment like excavators or loaders requires cylinders that are small, able to withstand vibration and shock, and can fit into tight mounting envelopes on arms and booms. Welded construction can meet all three requirements better than a heavier tie-rod design.
