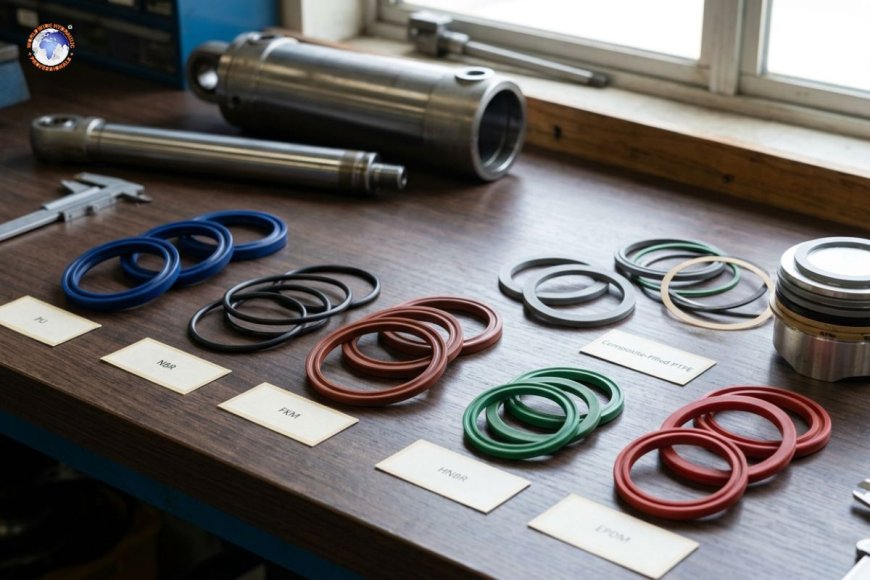

What are hydraulic cylinder seals made of?

Hydraulic cylinder seals are made from a range of elastomers, thermoplastics, and composite materials—most commonly nitrile rubber (NBR), polyurethane (PU), fluorocarbon rubber (FKM/Viton), and PTFE (polytetrafluoroethylene), often reinforced with fabric or bronze-filled backup rings. The best material is determined by the operating temperature, pressure, and fluid compatibility, as well as the seal's purpose (piston rod, swab, or static), with polyurethane as well as PTFE being the most popular seals for dynamic applications in the modern mobile and industrial hydraulic cylinders.

What is the significance of sealing material selection?

A hydraulic cylinder can only be as secure as the weakest seal. Every cylinder is dependent on a seal system that works together, including piston seals, rod seals, wipers, and static seals, to hold in pressurized fluid as well as to prevent contamination and keep the pressure differential that generates force. Selecting the wrong material for a seal to suit the purpose is among the main reasons for premature cylinder failure that manifests as leakage from the outside, internal bypasses, rod scores, or total loss of holding force.

Material selection isn't just a single choice, but rather a combination of several operating variables that are interconnected with one another. Making this decision right early can help save time and the cost of replacement in the future.

Core seal material categories

Nitrile rubber (NBR / Buna-N)

NBR is one of the commonly utilized seal elastomers used in all-purpose hydraulic systems. It is resistant to mineral-based hydraulic fluids, has solid mechanical properties, and is a low cost, which makes it the preferred option for cylinders that operate in moderate temperatures (roughly 30°C-100°C).

The primary limitation of NBR is its temperature range, as well as compatibility with specific synthetic and fire-resistant fluids. When it comes to high temperatures or when phosphate esters are utilized, NBR degrades faster and is not the ideal choice.

Polyurethane (PU)

Polyurethane is now the most common material used for dynamic seals, especially rod and piston seals used in industrial and mobile hydraulic cylinders. It has excellent abrasion resistance as well as a high tensile force and a good resistance to extrusion at high pressures. This makes it well-suited for the pressure and shock load spikes that are common for mobile devices.

PU seals stand up well against mineral oils and have more longevity than NBR in a variety of dynamic applications; however, they are more prone to hydrolysis in high humidity or water-glycol fluids, and performance is susceptible to decline in temperatures that are maintained at about 80-90°C.

Fluorocarbon rubber (FKM or Viton)

FKM is the most preferred choice for systems that need to withstand extreme temperatures, chemical environments, and fire-resistant liquids. It is able to maintain its properties from around -20°C to 200°C and more in certain formulations. It is also resistant to degradation by many fuels, synthetic fluids, and oxidized oils that could degrade NBR or PU in a short time.

The cost is a trade-offThe tradeoff is cost—FKM is much more expensive than NBR or standard PU, but it also has less low-temperature flexibility unless a special low-temperature compound is used. It is typically used for industrial cylinders with high temperatures and applications that have high-pressure fluid chemistry or systems that are exposed to harsh environmental conditions.

PTFE (Polytetrafluoroethylene)

It's not an elastomer; it's a thermoplastic that plays a distinct role in sealing cylinders, particularly for wear rings, rod seals, and guide rings, instead of as the principal pressure-sealing component. PTFE has a very high coefficient of friction and superior chemical inertness, as well as the ability to operate over a wide temperature range that spans from temperatures that are cryogenic to 250°C.

Since PTFE does not have elastic memory on its own, it's always coupled with an energizer—usually an O-ring or a spring comprised of NBR or FKM, as well as a spring made of metal that creates the mechanical load to ensure that the PTFE lip is in contact with the sealing surface. This combination provides designers with the low-friction, high-temperature advantages of PTFE, along with the elasticity of an elastomeric back-up.

HNBR (Hydrogenated nitrile rubber)

HNBR is, in essence, an improved version of NBR that is produced by hydrogenation to increase the resistance to heat, ozone, and mechanical strength. It's utilized when NBR's temperature limit is an issue, however, the full FKM performance isn't needed—it's a middle ground material suitable for moderately demanding tasks.

EPDM (Ethylene propylene diene monomer)

EPDM is not a good choice for mineral oils, making it unsuitable for most hydraulic cylinders However, it's the right material for systems that use water-based or phosphate-ester fire-resistant fluids and brake fluid applications where NBR and PU could swell and break. Seal manufacturers mark EPDM especially for those types of fluids instead of general-purpose hydraulic service.

Construction of seals: There's not just one component.

Modern cylinder seals don't comprise an individual homogenous material; they're engineered materials. A typical high-performance piston seal, for instance, could include

• A PTFE or polyurethane seal lip to provide high wear-resistant and low friction
• The NBR as well as an FKM O-ring energizer that maintains the load radially
• The PTFE is filled with bronze or reinforced with fabric. backup/wear rings to stop expansion into gaps in clearance when under high pressure

This layering approach allows designers to mix the strengths of several materials instead of compromising on a single elastomer, which must handle friction, extrusion resistance, and chemical compatibility by itself.

Material selection that is compatible with operating conditions

When it comes to determining or troubleshooting materials for cylinder seals, the following four elements are typically driving the choice:

Operating pressure: higher system pressures can increase risk of extrusion in the clearance space between the bore and piston, which is why PTFE or PU and reinforced backup rings are preferred over standard NBR.

Temperature range: NBR and PU provide moderate temperatures; FKM as well as PTFE are required at extreme temperatures, be it industrial processes or mobile equipment.

Fluid type: Water-glycol, mineral oil phosphate esters, and biodegradable (ester-based) fluids have their own compatibility profiles. Seals that perform well with mineral oil may expand and shrink or get hard in a biodegradable or fire-resistant fluid. Therefore, the fluid's chemical properties should be checked against the seal's compatibility chart prior to selecting the material.

Speed and duty cycle High-speed, high-cycle applications produce more heat from friction on the seal's surface, which favors materials with low friction such as PTFE or PUR over the standard NBR materials.

Common failure indicators that are linked to material incompatibility

The material of the seal can manifest in regular manners: softening or swelling points to a fluid incompatibility; cracking and hardening points to the temperature limit of the material or age-related degradation; and extrusion damage on the seal's edge leads to inadequate extrusion resistance to the pressure at which it operates. Understanding the failure pattern being observed helps identify if the solution is an upgrade or a replacement of the seal with the same specifications.

Hydraulic seals for cylinders are based on a specific set of components including NBR, polyurethane, FKM, PTFE, HNBR as well as EPDM Each one is suited to a particular combination of temperature, pressure, and fluid chemical properties. Knowing what each material can offer and the places it fails is essential to specifying seals that will be durable and last for the entire service life, rather than falling apart prematurely in the conditions the material was never intended to handle.

1. Is there a most commonly used seal material that is used in hydraulic cylinders?

Nitrile rubber (NBR), along with polyurethane (PU), are the most popular rubbers, with NBR popular for general-purpose static and moderate-to-high applications, while PU is preferred for the use of dynamic rod seals and pistons in industrial and mobile cylindrical components due to its resistance to abrasion and extrusion.

2. What is the reason for PTFE being used for seals in the hydraulic industry if there isn't an elastomer?

PTFE provides very low friction and a broad temperature range; however, it is not equipped with elastic memory. It is paired with an elastomeric or a metal spring energizer, which provides the necessary mechanical load to keep the seal in place with the seal surface.

3. Do NBR seals work in conjunction with hydraulic fluids that are fireproof?

Most of the time, there is no. NBR does not perform well with phosphate esters as well as some water-based fire-resistant liquids, which result in swelling and degrading. FKM or EPDM is usually better suited to these types of fluids, dependent on the particular fluid's chemical properties.

4. What causes the material of a hydraulic seal to expand or soften?

Swelling or softening typically indicates chemical incompatibility between the material used to seal and the fluid used. Examining the seal's compatibility chart with the actual type of fluid is the first procedure.

5. What is the best time to use FKM (Viton)? Should it be employed instead of NBR or seals made of PU?

FKM is used when the system is operating at extreme temperatures (above the threshold of NBR and PU), is using the most oxidized or aggressive fluids, or is subjected to harsh atmospheric or chemical conditions. Normal elastomers will degrade more quickly than the service interval intended.
