What is the difference between rod seals and piston seals?

A rod seal sits in the cylinder head (gland) and seals around the moving piston rod, keeping hydraulic oil from leaking out of the cylinder. A piston seal sits on the piston and seals between the piston and the cylinder bore, keeping pressure separated between the two chambers. In short, rod seals prevent external leakage, while piston seals prevent internal leakage (bypass). Both are dynamic seals, but they work on different surfaces, handle different loads, and fail in different ways. Every hydraulic cylinder depends on a set of seals working together. The rod seal and piston seal are often confused because both hold pressure against a sliding surface. Knowing what each one does, where it sits, and how it fails makes it easier to select the right seal, diagnose leaks, and plan maintenance.

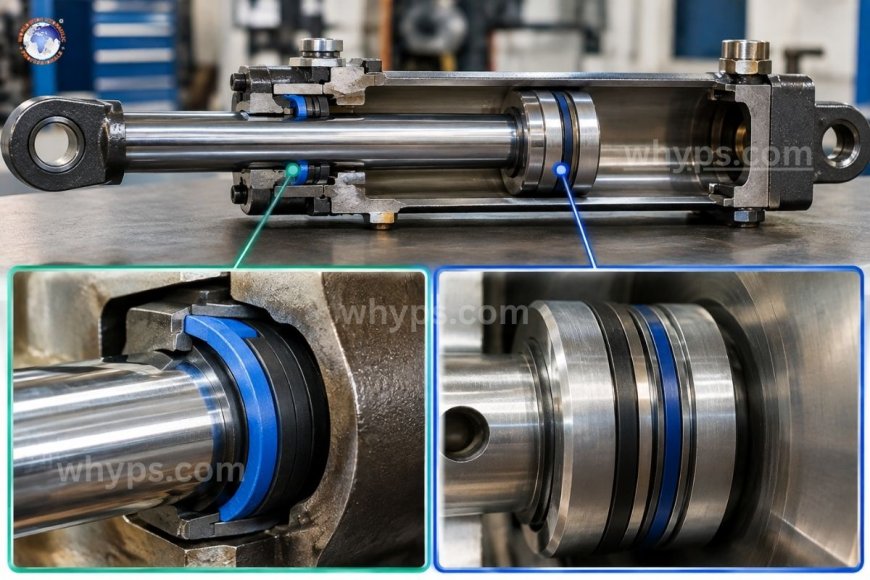

Where each seal sits in a hydraulic cylinder

A hydraulic cylinder has a barrel (bore), a piston attached to a rod, and end caps. The rod passes through the rod-end cap, also called the head or gland. This layout creates two distinct sealing locations.

Rod seal location

The rod seal is installed in a groove inside the gland. Its sealing lip presses against the outer surface of the piston rod as the rod extends and retracts. The seal's outer diameter is static in the gland, while the rod slides against the lip.

Piston seal location

The piston seal is installed in a groove machined into the piston and seals against the inner wall of the barrel. It travels with the piston, sliding along the bore on every stroke.

The main job of each seal

What a rod seal does

The rod seal is the primary barrier between system pressure and the outside world. It holds pressure inside the cylinder while allowing an extremely thin oil film to pass on the extension stroke. That film lubricates the seal and rod, and a well-designed rod seal returns it into the cylinder on retraction. The goal is a dry rod with no visible external leakage.

What a piston seal does

The piston seal separates the cap-side chamber from the rod-side chamber. Without it, oil would bypass the piston, reducing force, causing drift under load, and generating heat. Its priority is holding pressure across the piston and supporting stable, repeatable motion.

Key differences at a glance

• Sealing direction: A rod seal seals radially inward against the rod. A piston seal seals radially outward against the bore.
• Type of leakage prevented: Rod seal failure causes visible external leaks. Piston seal failure is usually hidden and shows up as drift, weak motion, or heat.
• Pressure direction: Rod seals mainly see pressure pushing outward. Piston seals may see pressure from either side in double-acting cylinders, so they are often designed to seal both ways.
• Lubrication film: Rod seals must control the oil film carefully, since too much means leakage and too little means wear. Piston seals run fully wetted, so film control is less critical.
• Typical designs: Rod seals commonly use U-cups, buffer seals, and step seals. Piston seals commonly use double-acting PTFE seals, compact seals, and U-cup pairs, usually with wear rings.

Common seal designs

For rod sealing, U-cups are the general-purpose choice, buffer seals absorb pressure spikes ahead of the primary seal, and PTFE step seals offer low friction at higher speeds and pressures. Tandem arrangements (buffer plus primary) are common in mobile and heavy equipment. A wiper sits outside the rod seal and cleans the rod on retraction, and a rod seal without a good wiper will not last long in a dusty environment.

For piston sealing, double-acting PTFE seals with elastomer energizers suit precise, high-speed motion, while compact seals with backup features are popular in construction and mobile machinery. Wear rings keep the piston centered in the bore and carry side loads the seal should never carry.

Materials used for rod and piston seals

• Nitrile (NBR): economical and suited to mineral-based hydraulic oils.
• Polyurethane (PU): excellent abrasion and extrusion resistance, very common in rod and buffer seals.
• FKM (Viton): handles higher temperatures and aggressive fluids.
• PTFE and filled PTFE: very low friction and broad chemical compatibility.

Material must match the fluid, temperature, pressure, and speed. A material that suits a piston seal in one application may be wrong for a rod seal in another because friction, surface finish, and environmental exposure differ.

How do rod seals and piston seals fail?

Rod seal failure causes

• Rod surface damage: scratches, pitting, or worn plating cut the seal lip.
• Contamination: dirt past a worn wiper acts like sandpaper.
• Pressure spikes: shock loads extrude or tear an unprotected seal.
• Misalignment or side loading: uneven contact wears one side of the lip.
• Heat and chemical attack: hardening, cracking, or swelling.

The result is oil on the rod, dripping from the gland, or a wet, dirty cylinder.

Piston seal failure causes

• Bore damage: scoring or wear lets fluid bypass the seal.
• Extrusion: high-pressure forces seal material into the clearance gap.
• Worn or missing wear rings: metal-to-metal contact damages the seal and barrel.
• Contamination and degraded fluid: particles and oxidized oil accelerate wear.
• Installation damage: nicks from sharp groove edges or poor tools.

The result is drift, slow or weak motion, unexplained heat, and pressure that will not hold.

How to tell which seal has failed?

Oil on the rod or gland points to the rod seal (and possibly the wiper). Drift under load with no visible leak points to the piston seal or a leaking control valve, so isolate the valve first. Loss of force or slow speed with a healthy pump suggests piston seal bypass. A simple drift test, holding the cylinder under load with the valve isolated and watching for movement, helps confirm internal leakage.

Maintenance tips that protect both seals

• Keep oil clean and within target ISO 4406 cleanliness levels.
• Inspect the rod surface regularly for scratches, corrosion, and pitting.
• Replace wipers before they wear out, since they protect the rod seal.
• Check for side loading and misalignment at mounting points.
• Control operating temperature to prevent hardening and degradation.
• Use proper installation tools and lubricate seals during assembly.
• Replace seals as a full set rather than only the one that failed.

1. Can a rod seal and a piston seal be interchanged?

No. They are designed for different locations, sealing directions, and groove geometries. A rod seal seals inward on the rod, while a piston seal seals outward against the bore, so profiles and lip orientation differ.

2. Which seal fails first in a hydraulic cylinder?

It depends on the application. Rod seals often show trouble first because they are exposed to the outside environment and any rod damage. Piston seals fail more quietly, and the problem usually goes unnoticed until performance drops.

3. Why does my cylinder drift even though there is no external leak?

Internal leakage past the piston seal is a common cause, though a leaking control or load-holding valve can produce the same symptom. Isolating the cylinder from the valve during a drift test shows which component is at fault.

4. Is a small amount of oil film on the rod normal?

A very thin film is normal because it lubricates the rod seal. Visible dripping or oil that builds up on the rod indicates a worn or damaged rod seal that should be inspected.

5. Do rod seals and piston seals need to be replaced together?

It is good practice. Both seals see the same fluid, temperature, and contamination, so if one has reached the end of life, the other is usually close behind. Replacing the full kit, including wipers and wear rings, avoids repeat teardowns.
