What causes premature hydraulic seal failure?

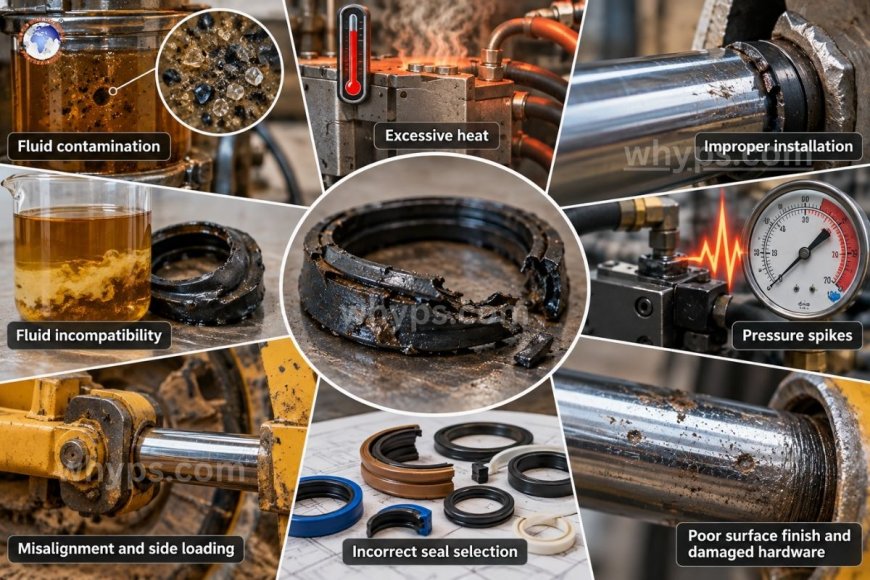

Premature hydraulic seal failure is most often caused by fluid contamination, excessive heat, improper installation, pressure spikes, misalignment or side loading, incompatible or degraded fluid, and incorrect seal selection. A seal that fails long before its expected service life is rarely the real problem. It is usually the first component to reveal a condition elsewhere in the system, so replacing it without finding the root cause almost guarantees a repeat failure. Hydraulic seals are small, inexpensive parts that hold back enormous pressure. When one fails, the consequences are out of proportion to its cost: leaking fluid, lost force, contaminated oil, damaged rods and bores, and unplanned downtime. Understanding why seals fail early is the fastest way to extend the life of cylinders, pumps, valves, and the equipment they power.

Premature failure vs. normal wear

Every dynamic seal wears over time. Normal wear is gradual and even, with a polished contact surface and a slow, predictable rise in leakage near the end of the seal's life. Premature failure appears early, often within weeks or months, and shows distinctive damage such as cuts, nibbling, hardening, blistering, or twisting. Each pattern points toward a specific cause, which is why examining a failed seal is worth the extra few minutes.

1. Fluid contamination

Contamination is the leading cause of premature seal failure. Solid particles such as dirt, metal fragments, and silica dust act like abrasive grit between the seal lip and the rod or bore. They score the sealing surface, cut into the elastomer, and create leak paths.

Contaminants typically enter through:

• Poor filtration or neglected filters
• Worn or damaged wiper seals that let dirt travel in on the rod
• Dirty top-offs, open reservoirs, and unprotected breathers
• Internal wear debris from pumps, valves, and cylinders

Once particles score the rod, every stroke damages the new seal further. Water is another contaminant to watch, since it promotes rust on rods and degrades many fluids.

2. Excessive heat

Elastomer aging accelerates sharply as temperature climbs. Operating above a seal material's rated limit leads to hardening, cracking, and permanent compression set. A seal with compression set no longer springs back to maintain contact, so it leaks.

Common heat sources include undersized or fouled heat exchangers, relief valves dumping flow at high pressure, internal leakage that converts pressure into heat, high ambient temperatures, and friction from excessive seal squeeze. Heat also thins the oil and weakens the lubricating film, which raises friction and generates more heat, a self-reinforcing cycle.

3. Improper installation

A large share of "early" failures actually happen on day one. Seals are easily damaged during assembly, and the damage may not show until the system is under pressure.

Typical errors include:

• Dragging the seal over sharp edges, threads, or ports without protection
• Missing or too-steep lead-in chamfers
• Twisting or rolling an O-ring or U-cup during fitting
• Installing a seal backwards or in the wrong groove
• Assembling dry or leaving burrs and debris in the gland

Assembly sleeves, proper tools, and clean, compatible lubricant prevent most of these problems.

4. Fluid incompatibility and degradation

Seal materials are chemically matched to specific fluids. Nitrile (NBR) works well in mineral oil but suffers in phosphate esters, while FKM handles higher temperatures but may not suit certain water-based fluids. The wrong combination causes swelling, softening, or embrittlement.

Aged fluid is a hidden risk as well. Oxidized oil forms acids and sludge, and depleted additives leave seals unprotected. Mixing different fluids can cause additive dropout or shift the chemistry so that a previously compatible seal no longer performs. Regular oil analysis catches these problems early.

5. Pressure spikes and extrusion

Real systems often see transient spikes far above working pressure. Rapid valve shifting, sudden load reversals, accumulator discharge, and pump start-up can all create shock loads.

Under high pressure, seal material is forced into the clearance gap between the piston and bore or rod and gland. This is called extrusion, and it appears as a ragged, nibbled edge on the low-pressure side of the seal. Worn guide rings, excess clearance, and missing backup rings make it worse, as does heat, since a softened elastomer extrudes more easily.

6. Misalignment and side loading

A cylinder should push and pull in a straight line. When mounting points are misaligned or the load applies force sideways, the rod presses one side of the seal harder than the other. The result is uneven, localized wear, sometimes with metal-to-metal contact between rod and gland.

Signs include one-sided rod wear, scoring in a single region of the bore, and rapid wear-ring damage. Correcting alignment, using pivot mounts where the application demands them, and checking for loose hardware all help.

7. Incorrect seal selection

A profile designed for slow, light-duty motion may fail quickly on a high-speed press, and a general-purpose material may not survive a mining or steel-mill environment. Common mistakes include:

• Choosing a material without checking temperature and fluid compatibility
• Ignoring stroke speed and the seal's pressure-velocity (PV) limits
• Using a single-acting design in a double-acting application
• Skipping backup or wearing rings where pressure demands them

The right seal depends on pressure, speed, temperature, fluid, stroke length, and environment together, not any single factor.

8. Poor surface finish and damaged hardware

The seal is only as good as the surface it rubs against. A rod that is too rough wears the seal like sandpaper, while one that is too smooth cannot hold a lubricating film, causing dry running and stick-slip. Pitted chrome, corrosion, dents, and scratches are all leak paths. Groove dimensions matter equally: too shallow over-compresses the seal, and too wide lets it roll or shift.

How to diagnose a failed seal?

Before fitting a replacement, inspect the old seal and the hardware:

• Nibbled, ragged edge on the low-pressure side: extrusion from pressure spikes or excess clearance
• Hard, brittle, cracked surface: heat damage or chemical attack
• Swollen, soft, or sticky seal: fluid incompatibility
• Scratches and embedded particles: contamination
• Cuts, pinches, or twisting: installation damage
• One-sided wear: misalignment or side loading

Pair this visual check with an oil sample, an inspection of rod and bore surfaces, and a review of operating conditions.

How to prevent premature seal failure?

• Maintain filtration and monitor cleanliness against a target such as ISO 4406
• Replace wiper seals and breathers proactively
• Keep temperatures within the seal material's rating
• Train technicians on correct installation and tooling
• Confirm fluid compatibility before any fluid change or top-off
• Protect against known pressure spikes
• Verify alignment during every rebuild

Premature hydraulic seal failure is rarely random. Contamination, heat, installation errors, pressure shocks, misalignment, fluid problems, and poor selection each leave recognizable evidence. Treat each failed seal as a diagnostic report: read it, trace the cause, and fix the system, not just the part.

1. What is the most common cause of hydraulic seal failure?

Contamination. Abrasive particles score the seal and sealing surfaces, entering through poor filtration, worn wipers, dirty fluid, and unprotected breathers.

2. Can high temperature cause a hydraulic seal to fail early?

Yes. Operating above a seal material's rated temperature causes hardening, cracking, and compression set, so the seal loses sealing contact and begins to leak.

3. How can I tell whether a seal failed from installation damage?

Look for cuts, nicks, twisting, or pinched sections where the seal passed over edges, threads, or grooves. Failures within days or weeks of a rebuild usually point to installation problems.

4. Why do new hydraulic seals keep failing in the same cylinder?

The root cause has not been corrected. A scored rod, contaminated fluid, misalignment, excess heat, or the wrong seal material will damage each new seal in the same way.

5. How often should hydraulic seals be replaced?

There is no fixed interval. It depends on duty cycle, pressure, temperature, and fluid cleanliness. Condition-based monitoring, including leak checks and oil analysis, works better than replacing seals on the calendar alone.
