What role does additive manufacturing play in seal development?

Additive manufacturing (3D printing) is reshaping hydraulic seal development by compressing prototyping cycles from weeks to hours, enabling complex geometries that traditional molding cannot achieve, and allowing engineers to test custom seal designs for low-volume or legacy equipment without the cost of hard tooling. For decades, hydraulic seal development followed a rigid path: design a profile, commission a mold or machining tool, produce a sample batch, test it, and repeat the cycle if the design needed changes. Each iteration could take weeks and cost thousands of dollars in tooling alone. Additive manufacturing is changing that equation, giving seal manufacturers and end users new flexibility in how seals are designed, prototyped, and, in some cases, produced.

How does additive manufacturing fit into seal development?

Additive manufacturing, commonly known as 3D printing, builds parts layer by layer from a digital model rather than removing material (machining) or forcing material into a mold (injection or compression molding). In hydraulic seal development, this technology is used across several stages of the product lifecycle rather than as a wholesale replacement for traditional seal manufacturing.

Rapid prototyping of seal geometries

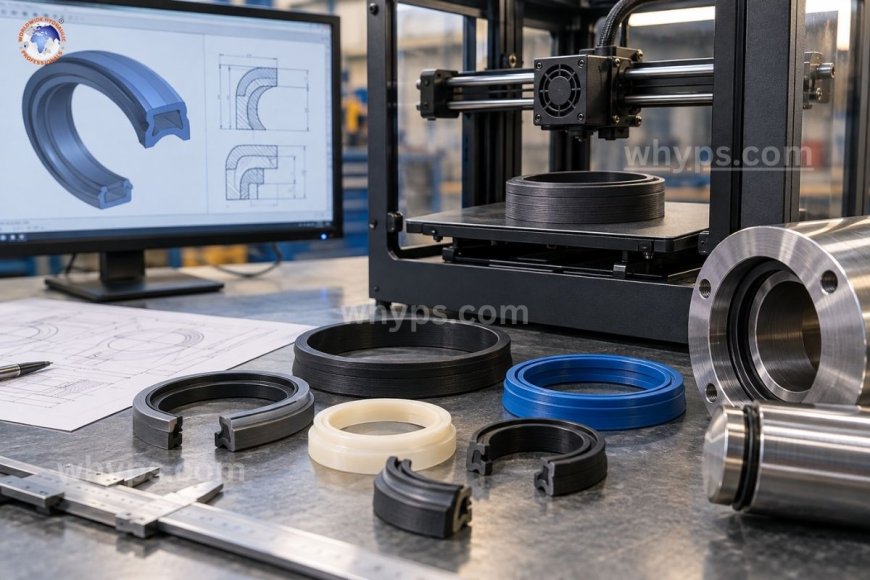

The most immediate and widely adopted use of additive manufacturing in seal development is rapid prototyping. Engineers can print a proposed seal profile—whether a U-cup, rod wiper, or custom rotary seal—and physically evaluate its fit, gland clearance, and installation behavior before committing to expensive tooling.

This matters because seal geometry is rarely correct on the first attempt. Lip angles, chamfer dimensions, and groove interference all affect sealing performance, and small adjustments often require several rounds of testing. Printing prototypes allows engineers to iterate on these details quickly, catching interference or clearance issues in a physical part rather than relying solely on CAD simulation.

Custom and low-volume seal production

Additive manufacturing is also valuable for producing custom seals in small quantities, particularly for legacy equipment where original seal designs are no longer available or documented. Rather than reverse-engineering a seal and paying for a full mold run to produce a handful of parts, manufacturers can print a functional seal directly from a scanned or measured profile.

This is especially relevant in industries running older hydraulic equipment—mining, agriculture, and marine applications often include machinery decades old, where sourcing an exact replacement seal from the original supplier is difficult or impossible. Additive manufacturing offers a path to produce a working replacement without redesigning the entire cylinder or valve assembly.

Complex internal geometries

Traditional seal manufacturing methods, particularly injection molding, are constrained by mold design limitations. Undercuts, internal channels, and multi-lip geometries can be difficult or impossible to mold as a single piece. Additive manufacturing removes many of these constraints, allowing designers to explore seal geometries that would otherwise require multi-piece assemblies or secondary machining operations.

This opens design possibilities such as internal lubrication channels within a seal body, graded lip stiffness across a single profile, or hybrid seal-and-backup-ring components printed as one part rather than assembled from separate pieces.

Materials: The current limiting factor

Material availability remains the primary constraint on additive manufacturing's role in functional hydraulic seals. Hydraulic seals depend on elastomer and polymer properties—compression set resistance, chemical compatibility with hydraulic fluids, temperature stability, and long-term creep resistance—that are difficult to replicate with current 3D printing materials.

Standard photopolymer resins and thermoplastics used in most desktop and industrial printers do not match the performance of compression-molded NBR, FKM (Viton), or PTFE in continuous dynamic sealing applications. However, material science is advancing quickly:

• Printable elastomers with rubber-like flexibility are increasingly available for functional prototyping, though most still fall short of NBR or FKM in long-term fluid compatibility.
• Flexible TPU (thermoplastic polyurethane) filaments are being used for low-pressure static seals and prototype fit checks, offering reasonable abrasion resistance for short-term testing.
• High-performance printable PTFE and PEEK-based materials are emerging for specialized applications, though they remain expensive and are not yet widely adopted for production sealing components.

Because of these material limitations, most functional hydraulic seals in service today are still produced using conventional compression molding, injection molding, or precision machining from extruded stock. Additive manufacturing's current role is concentrated more heavily on prototyping, fit-testing, and low-duty or short-term replacement applications than on high-pressure, high-cycle production seals.

Where additive manufacturing adds the most value today

Design validation before tooling investment

Printing a prototype seal and testing it in an actual gland, even if the printed material differs from the final production elastomer, lets engineers confirm dimensional fit and installation behavior before committing to a mold. This reduces the risk of discovering a design flaw only after tooling has already been cut.

Gland and housing design iteration

Additive manufacturing isn't limited to the seals themselves—it's also used to prototype the metal or polymer housings, glands, and cylinder end caps that seals fit into. Engineers can print test glands to verify seal groove dimensions, chamfer angles, and surface finish requirements before finalizing machining specifications for production hardware.

Emergency and field repair scenarios

In situations where equipment downtime is costly and a replacement seal isn't readily available, additive manufacturing offers a bridge solution. A printed seal, even if not rated for the same service life as an OEM part, can sometimes keep equipment operational until a proper replacement arrives, particularly in lower-pressure or non-critical circuits.

Limitations to keep in mind

Additive manufacturing is not yet a replacement for established hydraulic seal production methods in demanding applications. Key limitations include:

• Surface finish and layer lines can create micro-leak paths or accelerate wear against a dynamic sealing surface unless post-processing (polishing, vapor smoothing) is applied.
• Anisotropic material properties—printed parts often have different strength and elongation characteristics along different axes, which can affect how a seal behaves under compression and dynamic loading.
• Long-term fluid and temperature exposure data for many printable elastomers is still limited compared to decades of field data on NBR, FKM, and PTFE.
• Certification and standards compliance for critical applications (aerospace, high-pressure industrial systems) generally still require materials and processes with established qualification histories.

Additive manufacturing is unlikely to replace compression molding or machining as the dominant method for producing high-performance hydraulic seals in the near term. Its real value lies in compressing the development timeline around seal design—faster prototyping, easier iteration on complex geometries, and practical solutions for custom or legacy applications where traditional tooling isn't economically justified.

As printable elastomer and high-performance polymer materials continue to mature, it's reasonable to expect additive manufacturing's role to expand from prototyping and low-duty applications into a broader set of production scenarios, particularly for specialized, low-volume, or highly customized sealing solutions.

Can 3D-printed seals be used in high-pressure hydraulic systems?

Generally not yet for continuous duty. Most printable materials don't match the compression set resistance and fluid compatibility of compression-molded NBR or FKM, making printed seals better suited to prototyping or short-term, lower-pressure applications.

What materials are used to 3D print hydraulic seals?

Flexible TPU filaments and printable elastomer resins are the most common choices for prototypes, while emerging high-performance materials like printable PTFE and PEEK are being explored for more demanding applications, though cost and availability remain barriers.

Is additive manufacturing cheaper than traditional seal molding?

For one-off or low-volume parts, yes—it avoids tooling costs entirely. For high-volume production, traditional compression or injection molding remains far more cost-effective per unit.

Can additive manufacturing help with obsolete or legacy seal designs?

Yes, this is one of its strongest current use cases. Scanning or measuring an original seal and printing a functional replacement can solve sourcing problems for older equipment where OEM parts are no longer manufactured.

Will 3D printing eventually replace conventional hydraulic seal manufacturing?

It's unlikely to fully replace it, especially for high-cycle, high-pressure applications. More realistically, additive manufacturing will continue to expand as a complementary tool for prototyping, customization, and niche production alongside conventional molding and machining methods.
