What is the difference between rod seal and piston seal?

Hydraulic systems form the basis of modern machines, ranging from agricultural tractors and construction equipment to aerospace manufacturing systems and applications. The heart of these systems is a set of components created to regulate fluid movement under pressure. One of the most crucial yet often neglected elements is hydraulic seals, particularly piston and rod seals.

Although they appear identical at first, Rod seals and piston seals have distinct functions in ensuring the system's efficiency, preventing leaks, and ensuring reliability. Knowing the distinction between these two kinds of seals is vital for engineers, technicians, and owners of equipment who wish to extend the life of their systems and reduce expensive downtime.

What are hydraulic seals?

Before examining the distinctions in the different types of seals, it's essential to know the functions of hydraulic seals. Hydraulic seals are the components that are used to stop the leakage of fluid and ensure pressure inside the hydraulic cylinder. They also assist in keeping harmful substances out of the system.

Hydraulic cylinders generally comprise a cylinder barrel, piston rod, piston, and end caps. Seals are placed strategically at various places within the assembly to ensure that it operates properly. Of these, rod seals and piston seals are among the most crucial dynamic sealing elements.

What is a rod seal?

Rod seals are rod seal is installed inside the cylinder head. It is responsible for sealing the connection between the rod of the piston and the head of the cylinder. Its main function is to stop the hydraulic fluid from spilling from the cylinder when the rod is moving between operations.

Key functions of a rod seal

1. Protect against leakage from the outside.
   A rod seal makes sure that the pressurized hydraulic fluid doesn't leave the valve into the external environment.
2. maintain system pressure
   By storing fluid within the cylinder, rod seals aid in maintaining a consistent pressure that is crucial to ensure the smooth operation of.
3. Protect against contaminants
   While wiper seals are typically used to manage contamination, rod seals help to prevent dust, dirt, and moisture from getting into the system.
4. Improve Equipment Safety
   Leaks in hydraulic fluid could lead to risks to your safety. Rod seals reduce the danger.

Characteristics of rod seals

• The cylinder head is located on the (external side)
• Susceptible to high-pressure and friction
• designed to deal with dynamic movement (reciprocating motion)
• Most often, they are used in conjunction with wiper seals or backup rings

What is a piston seal?

It is a piston seal is a seal that is placed on the piston itself, and closes the gap between the piston and the bore of the cylinder. Its main function is to divide the zones of pressure on the opposite end of the piston.

Key functions of a piston seal

1. Keep pressure separation
   This seal makes sure that hydraulic fluid is not able to flow across the piston to the opposite side.
2. Allow efficiency in motion
   by maintaining a pressure differential; piston seals enable the piston to move with ease and create force.
3. Enhance the performance of your system
   A proper seal ensures the best energy transfer and reduces internal leakage.
4. Enhances load handling
   A reliable piston sealing enables the system to handle larger loads with greater accuracy.

Characteristics of piston seals

• Inside the cylinder, located on the piston
• Work in a closed-door environment
• Susceptible to pressure from both directions (in double-acting Cylinders)
• They are available in a variety of styles, such as seals that double-act and single-act.

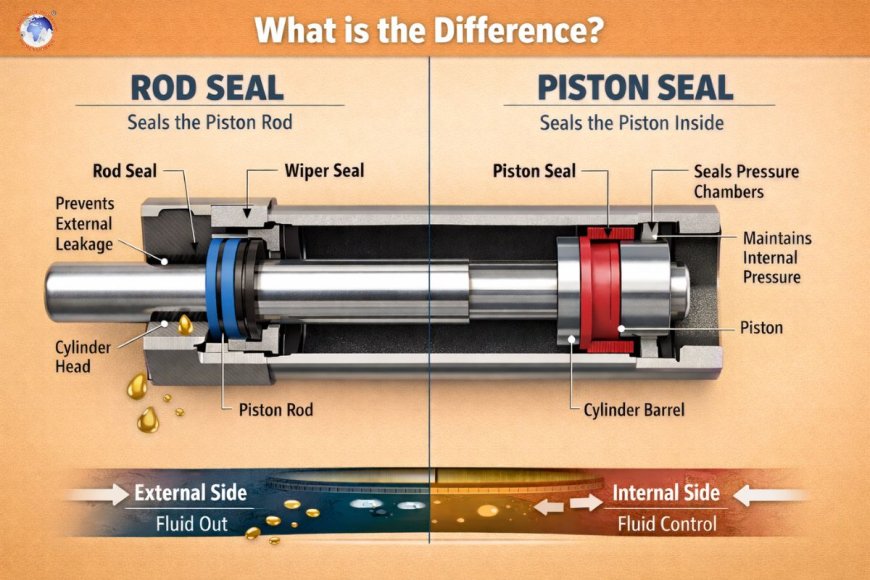

Key differences between a rod seal and a piston seal

Understanding the distinctions between piston seals and rod seals is vital for proper maintenance and selection. Let's examine the key differences:

1. Location in the hydraulic cylinder

• Rod seal: The seal is located at the head of the cylinder; it seals the piston rod when it enters and exits the cylinder.
• Piston seal: It is mounted on the piston that seals against the bore of the piston.

2. Function

• The rod seal stops the hydraulic fluid from leaking from the system.
• Piston seal: Blocks the flow of fluid through the piston's internal space.

3. Type of leakage prevented

• Rod seals: External leakage (fluid out to the outside).
• Piston seal: Internal leakage (fluid flowing between chambers of pressure).

4. Pressure exposure

• Rod seals: Typically exposed to pressure from one side.
• Piston seal. The seal is often subjected to both pressures, most notably on double-acting hydraulic cylinders.

5. Design complexity

• Rod seals: Designed for tight sealing and resistance to wear from exposure.
• Piston seal: Created to ensure the balance of sealing with low friction to allow for smooth movement.

6. Environmental exposure

• Rod seals: Exposed to external pollutants like dirt, dust, and moisture.
• Piston seal: Functions in a sealed space that is shielded from the elements.

7. Wear and tear

• Rod seal: Experiences higher wear because of friction and exposure.
• Piston seal. Most often, it has a longer duration due to the well-controlled internal environment.

Materials used in rod and piston seals

The piston and rod seals are constructed from special materials that are designed to withstand the most severe conditions. The most common materials are:

• (PU): Polyurethane (PU): Excellent wear resistance and endurance
• Nitrile rubber (NBR): Good oil resistance and elasticity
• FKM: fluoroelastomer (FKM): High temperature and chemical resistance
• The PTFE (Teflon): Low friction and high resistance to chemicals

The material selection depends on factors like temperature, pressure, fluid type, and the application environment.

Applications of rod and piston seals

Seals for pistons and rods are widely used in a variety of industries:

• Construction equipment: Excavators, loaders, cranes
• Agriculture: Tractors, harvesters, plows
• Manufacturing: Press machines, injection molding
• Aerospace: Landing gear systems
• Automotive: Shock absorbers, hydraulic brakes

In each of these situations, the seals are paired to ensure leak-free and efficient operation.

Common failure modes

Knowing how seals fail will help with the prevention and maintenance.

Rod seal failures

• Abrasions due to contamination
• Extrusions that are pressed to high pressure
• Cracks or hardening caused by temperatures
• Improper installation

Piston seal failures

• Wear from friction
• Chemical degradation
• Deformation induced by pressure
• Incorrect sizing

Maintenance tips for better performance

To extend the lifespan of piston and rod seals:

1. Make sure you use the correct seal Materials
   Make sure you match the material used for sealing to the conditions of application.
2. Ensure Proper Installation
   Avoid damage during assembly.
3. Make sure your hydraulic fluid is clean
   The presence of a contaminant in the fluid increases wear.
4. Monitoring Operation Conditions
   Maintain temperatures and pressure within the acceptable limits.
5. Check regularly
   Early detection of wear could prevent major failures.

Choosing the right seal for your application

If you are deciding between rod seals or piston seals (or selecting the best kind of each) take into consideration:

• Temperature and operating pressure
• The speed of movement
• Different types of hydraulic fluid
• Conditions of the environment
• Requirements for loading

Consultation with seal makers or hydraulic experts will help to ensure the best selection.

Seals for pistons and rod seals are both crucial components of a hydraulic system; however, they have distinct functions. While rod seals are focused on preventing leakage from external sources and securing the system from contamination, piston seals are responsible for ensuring internal pressure separation and also allowing efficient movement.

A clear understanding of their differences helps in proper selection, installation, and maintenance--ultimately leading to improved system performance, reduced downtime, and longer equipment life.

If you're using large machinery, agricultural equipment, or industrial equipment, paying attention to these small but crucial components could make a significant difference in performance and dependability.
