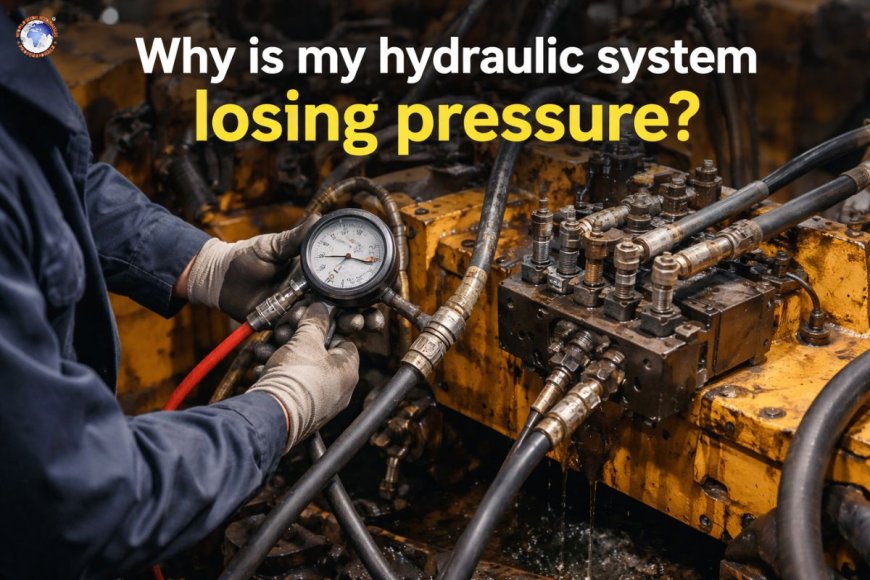

Why is my hydraulic system losing pressure?

Hydraulic systems are the foundation of a variety of agricultural, industrial, and construction machines. From excavators and tractors to production machines, they depend on constant pressure to function effectively. If a hydraulic system begins to lose pressure, the performance decreases, and expensive damage could result if the problem is not addressed.

In this complete guide, we'll examine the most frequent reasons hydraulic systems suffer from pressure loss, identify the issue, and provide practical solutions to restore performance.

Understanding hydraulic pressure

Before we get into the reasons, it is important to know what the word "hydraulic pressure" actually means.

The hydraulic pressure is the force produced by the fluid within an entire system. This pressure allows motors to turn, cylinders to move, and valves to work. In the event of a pressure drop, the system will not be able to provide the required force, which results in slow or unfinished operation.

Common causes of hydraulic pressure loss

1. Internal leakage

One of the main reasons for pressure loss is internal leakage in components like cylinders, valves, pumps or.

What is the process:

• O-rings, seals, or worn seals
• Rings of the piston are damaged
• Internal wear on valves or pumps

Symptoms:

• Slow actuator movement.
• Inability to hold the load
• System overheating

Solution:
Examine seals and internal parts. Replace worn components and ensure that the seals are in good condition for pressure restoration.

2. External leaks

External leaks are less difficult to identify, but are equally harmful.

What happens:

• Cracked hoses
• Loose fittings
• Connectors that are damaged

Symptoms:

• Oil leaks visible
• Lower levels of fluids
• The performance of the system is affected.

Solution:
Fix fittings tight, replace damaged hoses, and check the system for obvious leaks.

3. Worn hydraulic pump

A hydraulic pump is responsible for generating flow, which then produces pressure. A damaged or worn-out pump will not maintain an appropriate pressure.

What is the process:

• Long-term use with no maintenance
• Wear and tear from contaminated fluids.
• Cavitation damage

Symptoms:

• System pressure is reduced
• Unusual sound (whining or grinding)
• Slow system response

Solution:
Check the efficiency of the pump and then replace or repair the pump if required.

4. Contaminated hydraulic fluid

Fluid contamination can be a quiet but significant issue for hydraulic equipment.

The types of contaminants:

• Dirt and other debris
• Water ingress
• Air bubbles

Effects:

• More wear on components
• Valves that are blocked
• The efficiency of sealing is reduced.

Symptoms:

• Irregular system behavior
• More noise
• Overheating

Solution:
Always filter and change the hydraulic fluid regularly. Utilize high-quality filters to ensure the cleanliness of your operation.

5. Faulty pressure relief valve

The valve for pressure relief safeguards the system from high pressure. If it fails, it could result in pressure loss.

How does it happen:

• Valve is stuck open
• Incorrect pressure setting
• Contamination or wear

Symptoms:

• The system is unable to create pressure
• Continuous fluid bypassing

Solution:
Clean, inspect, and calibrate the valve for relief. Replace it if damaged or worn.

6. Air in the hydraulic system

The presence of air in the system can dramatically reduce the pressure and effectiveness.

How does it get into

• Loose suction lines
• Low levels of fluids
• Improper bleeding after maintenance

Effects:

• The effect of compression is diminished by compressibility.
• Creates vibration and noise
• Cavitation can cause cavitation.

Symptoms:

• Spongy or violent motions
• Foamy fluid
• Knocking sounds

Solution:
Make sure to clean the system thoroughly and make sure all connections are secure.

7. Blocked or restricted filters

Filters are crucial to ensure clean fluids. However, filthy filters can hinder the flow of fluid and lower pressure.

How does it happen:

• Debris and dirt accumulation
• Inadequate maintenance

Symptoms:

• Reducing flow rate
• Pressure decreases across the system
• Overheating

Solution:
Replace or clean filters on a regular basis in accordance with maintenance schedules.

8. Improper fluid viscosity

Hydraulic systems depend on fluid with the proper viscosity for effective operation.

Problems caused by incorrect viscosity

• Too thick: decreased flow and resistance
• Too thin: more leakage and less sealing

Symptoms:

• Pressure instability
• Poor performance in extreme temperatures

Solution:
Use manufacturer-recommended hydraulic fluid and adjust for seasonal conditions.

9. Damaged or worn cylinders

Cylinders that convert pressure to mechanical force. When they wear out, they lose pressure internally.

What is the process:

• Wear and tear on seals
• Cylinder scoring
• Rods damaged

Symptoms:

• Load drifting
• Uneven movement
• The capacity for lifting has been reduced

Solution:
Check cylinders for leaks and replace seals, or repair damaged surfaces.

10. Incorrect system design or setup

Sometimes, the issue is in the design of the system itself.

Possible issues:

• Pumps that aren't big enough
• The wrong valve selection
• Poor layout, resulting in pressure drops

Symptoms:

• Chronic low pressure
• Inefficient operation even after repairs

Solution:
Examine the design of the system and speak with experts in hydraulics to improve performance.

How to diagnose pressure loss?

The use of a systematic method is crucial in determining the source of the loss in pressure.

Step 1: Check fluid levels

Insufficient fluid levels can create air, which can reduce pressure.

Step 2: Inspect for leaks

Find both internal and external leaks.

Step 3: Test system pressure

Use pressure gauges of different nqTs to determine the areas where pressure drops are evident.

Step 4: Examine components

Check valves, pumps, cylinders, and filters for damage or wear.

Step 5: Analyze Fluid Condition

Examine for discoloration, contamination, or foaming.

Preventive maintenance tips

Prevention of loss of pressure is more affordable and less expensive to fix. Be sure to follow these guidelines:

1. Regular inspections

Perform regular checks on fittings, hoses, and other components.

2. Maintain clean fluid

Utilize proper filtration and replace fluid in accordance with the guidelines.

3. Monitor operating conditions

Monitor temperatures, pressures, and the system's performance.

4. Replace worn parts early

Don't wait until your system is completely broken. Replace components as soon as you notice signs of wear.

5. Train operators

Make sure that operators are aware of how to use the equipment and maintain it properly.

The impact of ignoring pressure loss

The inability to recognize pressure loss could cause serious problems:

• Productivity is reduced
• More energy consumption
• Equipment damage
• Safety hazards
• Repairs and downtime are costly.

A minor issue, such as an unimportant leak or blocked filter, could transform into a major system malfunction in the event that it is not addressed.

When to call a professional

While some problems can be solved by simple maintenance, other issues require the assistance of a specialist.

Consult a professional in the event:

• Pressure loss continues to occur even after basic troubleshooting
• Pumps and the cylinders are thought to be involved.
• The design of the system needs to be evaluated
• Significant damage or contamination.

Pressure loss from hydraulics is a typical, but manageable issue that is easily fixed. By identifying the root cause, such as leaks, worn parts, or contamination, as well as inadequate maintenance, you can identify and correct the problem before it causes expensive damage.

Regular maintenance, effective fluid management, and regular inspections are crucial to keep your hydraulic system operating efficiently. If you're using industrial machinery or heavy machinery, being proactive can ensure the same performance and reliability for the long term.

If your system begins to show signs of loss of pressure, don't put it off. Investigate the issue quickly, address the issue, and ensure that your equipment is running at its peak.
