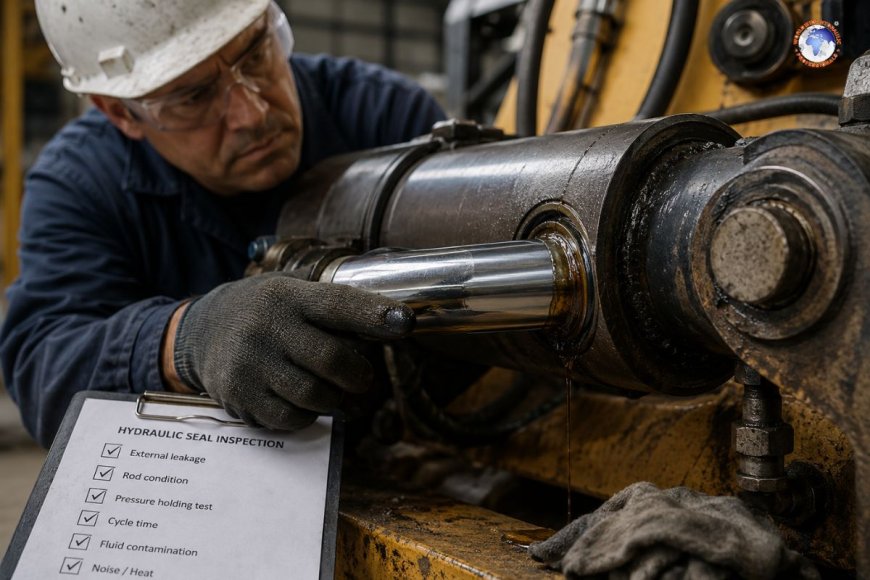

How to Identify a Failed Hydraulic Seal Before Machine Breakdown

A damaged hydraulic seal seldom occurs without warning. In the weeks or days before the seal is able to release completely, it usually causes tangible signs: external fluid leaks around the piston or rod; a gradual decrease in pressure throughout the system and a cylinder that is slipping under loads; spongy or irregular actuator movement; foaming or discolored hydraulic fluid; or unusual sound or heat in the piston. Identifying any of these indicators early can lead to the replacement of a seal being planned instead of a sudden shutdown, which usually costs significantly more in terms of downtime and cleaning up contamination and damage to secondary components.

Hydraulic seals are a small component that can have a huge impact on the reliability of systems. One failure of a piston seal or rod seal can cause a decrease in the force of cylinders or fluid levels and then cause damage to rod surfaces and the cylinder bores, pumps, and valves, which were not the source of the problem. Understanding the warning signs that indicate seal wear is among the most powerful skills that maintenance technicians are able to develop.

Why does seal failure detection matter?

Hydraulic seals function under a complex mix of temperature swings, exposure to contaminants, and constant friction against the moving rods and bores. Contrary to sudden hose bursts, the degradation of seals is typically gradual. The polymer or elastomer material dries and cracks, then extrudes or wears away slowly before failing completely. This process creates a warning window that is usually measured in a period of days or weeks, based on the operation intensity and duty cycle.

In the event that you do not close that window, it can have devastating consequences. Loss of fluid over the seal's failure reduces volumetric efficiency, which forces pumps to run harder and hotter. The contaminants that enter through a damaged seal can cause wear to all downstream components. In industrial and mobile equipment, the failure of a seal completely during operation could cause abrupt loss of control authority, which is a major security risk when it comes to lifting, steering, or braking.

Early alert sign 1: external leakage of fluid

The most obvious sign of seal wear is the appearance of fluid where it shouldn't be. The most important signs to look for are the following:

Rod seal crying

A thin layer of oil covering the exposed rod during extended strokes, often called "weeping," often indicates that the seal of the rod is beginning to wear out or is losing its alignment. A tiny amount of film in a new stroke of normal lubrication. A persistent wet rod after a wipe-down and multiple cycles is not.

Piston seal bypass signposts

Internal leakage that goes past the seal of a piston doesn't necessarily appear from the outside, but it can manifest as a reduced hold force or a reduction of the cylinder's creep or a cylinder that can move manually by a pressure it is capable of holding.

Leaks in O-rings and static seals

Leakage at fixed joints, sports, end caps, fittings, and even gland connectors generally indicates O-rings or static seals instead of the piston or dynamic rod seal; however, it indicates that the seal material is wearing out throughout the system and could cause a more thorough inspection.

Early warning indicator 2 A cylinder's drift and loss of force to hold

If a cylinder is designed to maintain a fixed load, however, it instead shifts downwards or retracts slowly with time; an internal bypass over the seal of the piston is most likely to be the cause. This is among the most evident functional indicators of wear on seals because it is directly a measure of the seal's capacity to divide the two chambers of pressure.

A field-based test that can be done in a practical manner is to extend the cylinder with pressure, turn off the directional valve into neutral, and then measure the drift over a set time. Check the results against the specifications of the equipment's base or prior readings. The rate of change that has increased in the course of several checks, even if it's within the acceptable range, can be an early indication that is worth recording and tracking.

Early warning signal 3: performance and pressure abnormalities

A seal that fails in the initial stages of failure can alter the pressure behavior of the circuit, but it doesn't modify anything apparent.

• Pressure drops gradually at the setting for relief When the pressure of the system does not reach its set point, regardless of a well-maintained relief valve and pump Internal bypass is a great possibility.
• A slower rate of cycle time: Actuators who require longer to finish an action than they did previously without any load change suggest that fluid is bypassing the seal instead of performing the work.
• The reduced force output of a cylinder that once moved an object with ease but is now struggling indicates a loss of effective pressure area because of internal leakage.

Data on cycle time and pressure over time, rather than only reacting to readings that are not in-spec -- is what differentiates the maintenance of seals that is predictive and reactive repairs.

Early warning signal 4: Fluid contamination and/or condition changes

The wear of seals causes debris to build up, and seal leaks allow contamination get in. Both are present in the fluid.

Physical and visible indicators

A cloudy or milky-colored fluid typically indicates water intrusion through an insecure seal or breather, and a change in the color of fluid to darker or burned tones could be a sign of heat generated by sealing that is dragging or expanding under pressure it wasn't intended to withstand.

Particle counts and analysis of oil

A routine oil analysis revealing increasing particle counts as well as the appearance of polymer or elastomer fragments is an obvious indicator that seal material is deteriorating internally. ISO clean code trending can be among the most reliable early warning tools that are available, as it will detect seal degradation long before any visible signs.

Early warning sign 5: Heat or noise at the seal's location

A deteriorated seal will increase friction because its geometry is deformed or when debris becomes trapped within its sealing surface. This is evident in:

• A localized area of heat around the gland or the cylinder head, significantly warmer than other components following a work cycle
• A squealing or grinding or chattering sound that occurs in the course of rod travel
• The jerky or vibrations that occur when you are supposed to have smooth strokes, typically caused by stick-slip friction. A worn seal holds and releases the rod's surface

Infrared thermography in routine inspections can detect this pattern before it's apparent through touch, particularly for equipment that has limited access.

Establishing a routine for seal inspection

To recognize these signs repeatedly requires structure, not only vigilance during major inspections. An effective routine includes:

1. A visual inspection is conducted at the beginning of every shift or during daily checks rod condition, evident leakage, fluid level and trends
2. The testing of drifts on load-holding cylinders, at predetermined intervals
3. Routine oil sampling using moisture and particle count Not just an annual analysis
4. Logging of cycle-time and pressure in existing monitoring of condition when there is
5. The thermal spot checks are performed on high-duty-cycle valve bodies and cylinders

Recording baseline readings whenever equipment is new or recently serviced makes each subsequent reading more relevant by comparison; any measurement taken by itself is much less valuable than an overall trend line.

What to replace when replacing. monitor

There are not all early signs that require the immediate removal of the rod. Weeping on a rod that disappears after a complete cycle might indicate normal running in of the new seal. But replacing it should be moved higher on the priority list if drift rates rise in a row and when particle counts tend to trend upwards without a known external reason or when multiple warning signs are observed in conjunction. Combination symptoms are a greater signal than a single indicator by itself.

1. What's the first indicator that a seal on a hydraulic system is beginning to fail?

External weeping of the rod during retraction and extension is typically the first visible indicator; however, internal indicators such as a gradual increase in the amount of particles found when oil analysis is performed can be seen much earlier.

2. Does a hydraulic cylinder function if the seal is failing?

Sometimes, for a short period of time. A cylinder with a weakening seal will typically show lower efficiency—slower cycles, shifting when under stress, or a lower output of force—until it completely fails.

3. How often should the seals on hydraulics be checked?

Visual checks should be conducted during every shift, while oil testing and drift analysis are usually scheduled from monthly to quarterly, depending on the workload and criticality of the application.

4. Do discolored hydraulic fluids always indicate that a seal is failing?

It's not always the case. The cause of discoloration could be the process of oxidation, overheating, or contamination that is not related to seals. However, it should be a reason to conduct an inspection due to the fact that seal-related heat and dirt are the main causes.

5. What is the cause of hydraulic seals that fail before their time?

Common causes are contamination, insufficient seal material to operate at temperature or fluid as well as rod surface or alignment damage, high pressure spikes, and prolonged operation beyond the sealing's warranty.
