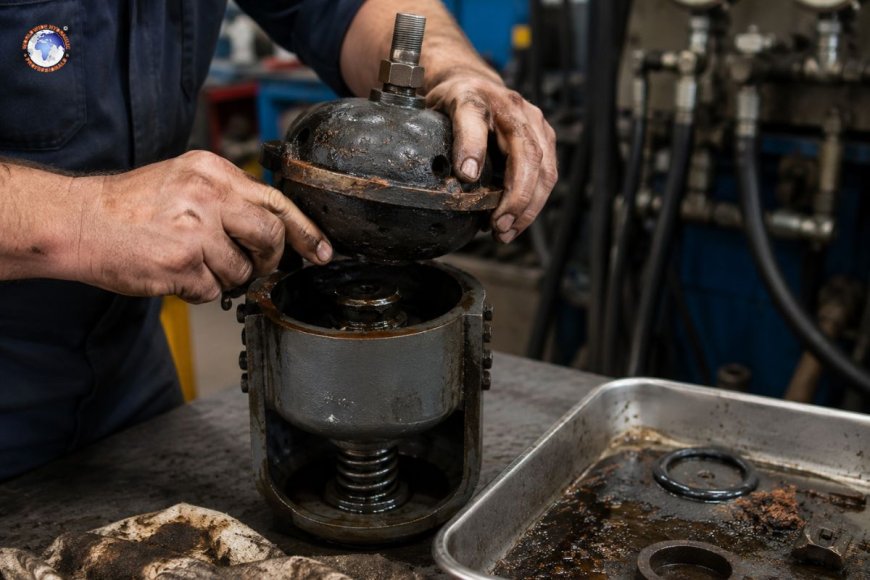

How does contamination affect Pulsation Dampeners?

The effects of contamination on pulsation dampeners are blocking internal orifices, causing damage to diaphragm or bladder seals, which accelerates wear on moving components, and affecting the gas precharge pressure, which makes the damper able to withstand pressure surges. Small quantities of particulate, air, or water contamination can affect the dampener's performance and cause pressure pulsations to travel downstream undetected, putting excessive strain on valves, pumps, and fittings. Left unaddressed, contamination-related dampener failure often shows up first as increased system noise and vibration, followed by premature failure of seemingly unrelated components.

Pulsation dampeners are among those parts that quietly perform their job until they stop. If one of them is damaged, the effects are not always unaffected. They can be seen affecting every part of the hydraulic system.

Why are pulsation dampeners especially susceptible to contamination?

A pulsation dampener operates by absorbing the pressure spikes that are caused by pump strokes, typically by using a gas-charged cylinder diaphragm, piston, or diaphragm that expands and contracts in response to irregularities in flow. The constant cycle means that the internal components of the damper are constantly moving; that makes them more vulnerable to contamination than other static hydraulic components.

Three aspects make dampeners especially vulnerable:

• Fine clearances. A lot of dampener designs depend on small metering holes or orifices to adjust damping responses. These passageways can be blocked by particles.
• The elements of a flexible seal. Diaphragms and bladders are usually elastomeric. Abrasive particles or incompatible fluid chemistry could be degraded more quickly than metal parts that are rigid elsewhere within the system.
• Pressure-dependent function. The dampening effect is dependent on the exact precharge gas's pressure. Anything that can alter the balance of this equation—such as moisture intrusion—directly interferes with the primary function of the component.

The types of contamination they can cause and their consequences

Particulate contamination

Particles of solid—mainly metal particles from wear on pumps and dirt that gets introduced during maintenance or the degrading of seals and hoses within the system—are the most prevalent pollutant source. For a pulsation dampener particulate pollution is a common cause of

• Perforate or puncture bladders and diaphragm surfaces, which can lead to gas-side leakage
• Block small internal orifices, changing the damping response, and decreasing effectiveness
• Affect the bottom of dampeners that resemble pistons, thereby limiting the free movement of pistons

Even the levels of contamination in an ISO cleanliness norm that would be considered acceptable for most system components could still result in premature wear and tear in dampeners due to the fact that its clearances inside are typical.

Water contamination

The presence of water in hydraulic fluid—either from condensation, seal degradation, or a damaged breathing system in the reservoir—can cause various issues that are specific to dampeners.

• Elastomer degradation. Water speeds up the breakdown of various diaphragm and bladder materials, including NBR compounds, which leads to swelling, softening, or cracking.
• Internal metal parts can be damaged by corrosion, such as piston dampener bores, as well as shell components, which can result in surface imperfections that can further hold in contaminants.
• A lower fluid bulk modulus, which alters the way pressure waves are propagated through the system. It could make the dampener's calibrated response less reliable.

Gas and air pollution

The presence of air in the system is often overlooked as a type of contamination, but it is actually a problem with the dampener's primary operation principle. Air in the hydraulic fluid

• Similar to the dampener's gasoline charge. This is effectively bringing an uncontrollable and unpredictable second "spring" to the system
• Reduces the stiffness of the column of fluid, which makes pressure spikes more difficult to predict and lessen regularly
• Accelerate erosion due to cavitation on internal dampener surfaces resulting from the rapid cycle of pressure

Chemical contamination

Cross-contamination among incompatible fluids, for instance, mixing mineral-based hydraulic oils with a biodegradable or fire-resistant fluid in the course of a switch -- could cause chemical damage to elastomeric bladders and seal materials, even if the water and particulate levels are controlled. This kind of contamination usually results in symptoms that are similar to the signs of aging-related seal degrading that can make root-cause identification more difficult.

How contamination-related dampener failure shows up in the field

The signs of contamination are rarely obvious. It is more likely to show up by presenting symptoms that are secondary to the primary one:

• Louder or squealing when pressure pulses that are not absorbed pass through rigid pipe
• The readings of vibrations are elevated at pumps or downstream fittings
• Rapid wear of downstream components, such as gauges, valves and fitting connections, which would otherwise have the longest service life
• Uncongruous pressure gauge readings, particularly those that appear insignificant to the actual changes in load
• Gas precharge losses, which can be detected through routine precharge check-ups, are usually is traced back to a degraded or punctured bladder

Since these signs are similar to other common hydraulic problems that are caused by contamination, damper problems can be often missed until the damper is examined directly.

Strategies for prevention and diagnostics

The analysis of fluids as an early warning system

Routine oil analysis is the most reliable method to detect trends in contamination prior to causing dampener damage. Particle testing against ISO cleanliness standards, testing the water content (via Karl Fischer titration or crackle test), and periodic examinations for issues with chemical compatibility after any fluid changeover give early indications of damper health.

Sizing and placement of filters

Since dampeners are sensitive to fine particles, the strategy for filtration is more important than in other areas of the circuit. The best practice is generally the following:

• The filtration should be positioned upstream of the dampener in any location where the design of the system allows
• The selection of the appropriate micron rating for your filter is based on with the company's cleaning requirements that are usually more stringent than the general specifications for systems
• Monitoring differential pressure indicators for filter monitoring to identify trends in loading prior to bypassing occurs.

Schedules for seal and precharge inspections

Regularly checking the pressure of precharge—usually at intervals that are recommended by the manufacturer of the dampener—can help detect diaphragm or bladder leakage in the early stages prior to degradation caused by contamination advancing to complete component failure. Inspection of the visuals when scheduled maintenance is required to check for swelling of the elastomer, discoloration, or pitting on the surface, which could be indicators of contamination exposure before symptoms of performance appear.

Material selection in environments that are susceptible to contamination

In the case of applications where control of contamination isn't always guaranteed, such as mobile equipment, agricultural machinery, or older systems with dated components, choosing dampener elastomers that have greater chemical and abrasion resistance (such as FKM compounds) can prolong service life even when levels of contamination occasionally surpass thresholds set by the manufacturer.

Bottom line

Pulsation dampeners can be described as precision parts working in a highly demanding cycle, environment, and contamination—be it particulate or air, water, or chemical challenges. The elements that make them effective are secure sealing, flexible clearances, and a well-maintained gas charge. Because the signs of failure often show up within the system before they appear elsewhere, the control of contamination for dampeners requires the same careful focus as valves and pumps and is not something that is added when the issue is obvious.

1. Could a pulsation dampener contaminated with rust cause harm or damage to hydraulic parts?

Yes. If a dampener is unable to more effectively absorb pressure spikes, the pulsations propagate downstream, accelerating wear on fittings, valves, pumps, and gauges, which weren't made to withstand the additional stress.

2. How often should the pulsation precharge pressure of dampeners be monitored in systems prone to contamination?

The frequency of checks should be in line with the manufacturer's guidelines; however, systems that operate in more soiled areas or with a history of water intrusion generally require more frequent check-ups in comparison to the normal intervals because bladder damage could accelerate the loss of precharge.

3. Is entrained air considered pollution for purposes of pulsation dampeners?

Yes. Free air behaves as an uncontrolled gas spring inside the system, causing interference with the dampener's calibration response, even when water and particulate matter are managed.

4. What's the earliest warning sign of contamination-related dampener failure?

The increase in system noise or vibration, especially around pump outlets, is often the first noticeable symptom. Typically, it manifests before any noticeable pressure anomaly appears on standard gauges.

5. Are there any dangers to switching between different types of hydraulic fluid? cause damage to a pulsation dampener, even in the event that it is clear?

Yes. Incompatibility of the chemical components between different fluids even if both are clean individually can result in degradation of diaphragm and bladder elastomers, causing signs similar to wear and tear caused by age.
