What is the difference between dynamic and static hydraulic seals?

Hydraulic systems form the basis of much industrial equipment, ranging from manufacturing equipment and construction presses to aerospace and agricultural machinery systems. These systems depend on a pressurized fluid to transfer motion and force effectively. However, the efficiency in any system is dependent in large part on one crucial element: the seals for hydraulics.

Seals for hydraulics play an essential function in preventing leakage of fluid as well as maintaining pressure and ensuring smooth operation of the system. If the seals are not functioning properly, hydraulic systems could suffer pressure loss and contamination, wear on equipment, or even total failure.

There are a variety of hydraulic seals available; two primary types can be distinguished in the form of dynamic seals and static seals. Knowing the distinction between these two types of seals is crucial to select the correct seal for your specific needs, increasing the reliability of equipment and decreasing the cost of maintenance.

This article will explain the distinctions between static and dynamic hydraulic seals, their roles, applications, benefits, and how to pick the appropriate one for your hydraulic system.

Understanding hydraulic seals

The hydraulic seal can be described as a specifically constructed component that is made of thermoplastic, elastomeric, or composite materials to stop the hydraulic fluid from flowing between the system components. Seals also help keep harmful substances such as dust, dirt, and moisture from the hydraulic system.

Hydraulic seals are typically classified according to the type of surfaces they seal, which are either moving or stationary.

The two categories are the following:

• Dynamic seals

• Static seals

The most important difference is the extent of relative motion that exists between the surfaces of seals.

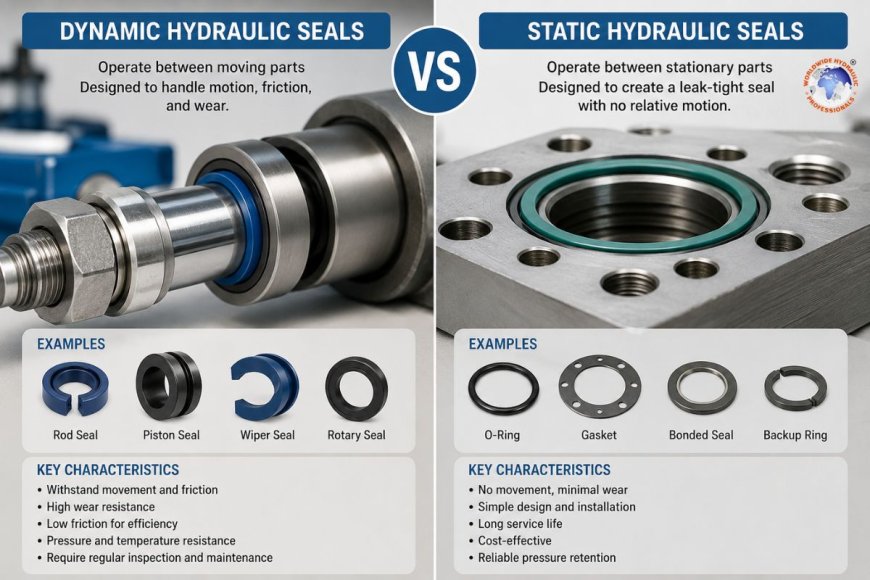

What are dynamic hydraulic seals?

Dynamic hydraulic seals are utilized for applications that require the possibility of relative motion between surfaces. They are made to keep a tight seal while accommodating movements like rotating, reciprocating, or oscillating motion.

The dynamic seal is among the more difficult components of hydraulics to develop, as they have to withstand constant friction as well as temperature and pressure variations as well as wear.

How do dynamic seals work?

Dynamic seals provide a seal between moving parts by ensuring constant contact pressure against their mating surfaces. The contact pressure stops the leakage of hydraulic fluid while still permitting movement.

The seal has to be able to strike a delicate balance:

• Insufficient sealing force leads to excessive friction and wear.

• A lack of sealing force leads to leakage

To attain this equilibrium and achieve this balance, dynamic seals are usually constructed using particular lip geometries, profiles, and materials.

Common types of dynamic hydraulic seals

Rod seals

Rod seals are fitted in hydraulic cylinders and are used to seal the piston rod when it expands and retracts.

They are designed to stop leakage of fluid from the inside of the cylinder to the external surrounding.

Applications can include:

• Excavators

• Cranes

• Hydraulic presses

• Industrial lifting systems

Piston seals

Piston seals are affixed to the piston and stop the flow of fluid from escaping between two chambers of pressure within the hydraulic piston.

They are vital to ensure the pressure separation.

Wiper seals

Wiper seals are typically used in conjunction with rod seals to clean dust, dirt, and other contaminants off the rod's surface while in operation.

They can extend the life of seals by keeping seals free of contamination.

Rotary seals

Rotary seals are employed when shafts rotate, for example, pumps and motors that use hydraulics.

The seals stop fluid leakage and also allow rotational motion.

Key characteristics of dynamic seals

Dynamic seals should have:

High wear resistance

As they move constantly under constant pressure, dynamic seals need to resist scratching and wear.

Low friction

Reducing friction increases efficiency and decreases heat production.

Pressure resistance

Dynamic seals have to be able to handle the fluctuating pressures of hydraulic fluid.

Flexibility

The seal needs to adjust to change while maintaining contact.

Temperature stability

Hydraulic systems are often operating in extreme temperatures, which requires sturdy materials.

Materials used for dynamic seals

Common materials are:

• Polyurethane (PU): Excellent wear resistance

• Nitrile Rubber (NBR): Good oil resistance

• PTFE: Low friction and chemical resistance

• Fluoroelastomers (FKM): High-temperature performance

Material selection is contingent on the operating conditions like temperature, speed, pressure, and compatibility with fluids.

What are static hydraulic seals?

The static hydraulic seal is used in cases in which the seals have no movement on the seals' surfaces.

The seals are pressed between stationary components to form an impervious barrier to leaks.

Since static seals don't have wear caused by movement They generally last longer than dynamic seals.

How do static seals work?

Static seals function because they are stretched between two fixed surfaces.

The seal material is to stretch a little, filling any gaps or cracks between mating surfaces, forming the perfect seal.

The efficiency that a seal can provide relies on the following:

• Proper compression

• Correct groove design

• Material elasticity

• Surface finish

Common types of static hydraulic seals

O-rings

O-rings are among the most commonly employed static seals.

They are circular elastomer rings, compressed into grooves in stationary components.

Applications comprise:

• Hydraulic manifolds

• Valve bodies

• Pump housings

Gaskets

Gaskets are flat sealants that are placed between mating surfaces.

They are typically used to connect flanges.

Bonded seals

Bonded seals blend the metal washer and an elastomer sealing component.

They are typically employed for threaded fittings in hydraulic systems.

Backup rings

Though they're often combined with O-rings, backup rings are a good way to maintain static seals when used in high-pressure applications.

Key characteristics of static seals

Static seals are valued because of the following:

Simplicity

They come with simple designs and are easy to put in.

Long service life

In the absence of motion, the wear and tear is greatly diminished.

Cost-effectiveness

Static seals are generally cheaper than dynamic seals.

Reliable pressure retention

They offer dependable sealing under constant pressure.

Materials used for static seals

Common materials are:

• Nitrile Rubber (NBR)

• EPDM

• Silicone

• PTFE

• Viton (FKM)

The material selection is based on the compatibility of the fluid pressure, material, and exposure.

The main differences between dynamic and static hydraulic seals

Understanding the differences between these seal types will help you to ensure the proper application.

1. Movement

Dynamic seals: seals between moving components.

Static seals:
The seal between the stationary parts.

This is the biggest distinction.

2. Wear and tear

Dynamic seals:
The wear and friction of the body because of the movement.

Static seals:
Wear is minimal.

Seals with dynamic properties typically require regular replacement.

3. Design complexity

Dynamic seals:
Advanced engineering is required to control the force of sealing and friction.

Static seals:
Simpler designs that focus on compression.

4. Maintenance requirements

Dynamic seals:
Regular inspections and replacements are required.

Static seals:
In general, they require less maintenance.

5. Cost

Dynamic seals:
The cost of design is often higher due to design and material complexity.

Static seals:
Usually, they are less expensive.

6. Performance challenges

Seals with dynamic properties must be able to handle:

• Friction

• Heat generation

• Wear

• Stress caused by motion

Static seals are primarily concerned with:

• Compression set

• Pressure retention

• Material degradation over time

Choosing between dynamic and static hydraulic seals

The choice of the right seal is contingent on the specifications of your application.

Think about the following points:

Motion type

If there is any movement, then a seal that is dynamic is needed.

If the surfaces are not stationary, apply the static seal.

Operating pressure

High-pressure systems may require reinforced seal designs.

Temperature range

Select materials that are suitable for the operating temperature.

Fluid compatibility

The seal material has to resist degrading in the presence of hydraulic fluids.

Speed of operation

High-speed applications require low-friction seals.

Environmental conditions

Moisture, dust, and other pollutants affect sealing choice.

Common failure modes

Dynamic seal failures

Dynamic seals could fail because of:

• Abrasion

• Extrusion

• Heat damage

• Improper lubrication

• Misalignment

Static seal failures

Seals that are static often fail due to:

• Compression set

• Incorrect installation

• Chemical degradation

• Surface damage

Understanding the causes of failure can help to improve the maintenance plan.

Best practices for seal performance

To prolong the life of the hydraulic seal:

Ensure proper installation

Improper installation can cause damage to both dynamic and static seals.

Use correct materials

Always match seal materials with requirements for temperature and fluid.

Monitor operating conditions

The excess pressure or heat can shorten sealing life.

Maintain surface quality

Smooth sealing surfaces minimize the risk of leaks and wear.

Conduct regular inspections

Early detection can save you from expensive downtime.

Why does understanding the difference matter?

Selecting the wrong seal may cause:

• Fluids from hydraulic leaks

• Pressure loss

• Equipment inefficiency

• More expensive maintenance costs

• Unexpected equipment failure

When they understand the distinction between static and dynamic hydraulic seals, engineers as well as maintenance specialists are able to make better decisions to improve the performance of the system and dependability.

Hydraulic seals that are static and dynamic could serve the same primary function of preventing leakage, but they are made to work in completely different environments.

Dynamic seals are designed for moving parts and have to deal with wear, friction, and constant motion. They are more complicated and require careful selection of the material and regular maintenance.

Static seals, on the other hand, are utilized to seal stationary parts. They utilize compression to form an encapsulated seal. They generally provide longer service life with less maintenance.

Knowing these distinctions is crucial to select the correct hydraulic seal to improve the efficiency of the system, minimizing time to repair, and ensuring the longevity of the equipment.

When you're planning an hydraulic system, carrying out maintenance or replacing worn parts, knowing the difference between dynamic and static seals is an important element of the hydraulic system's success.
