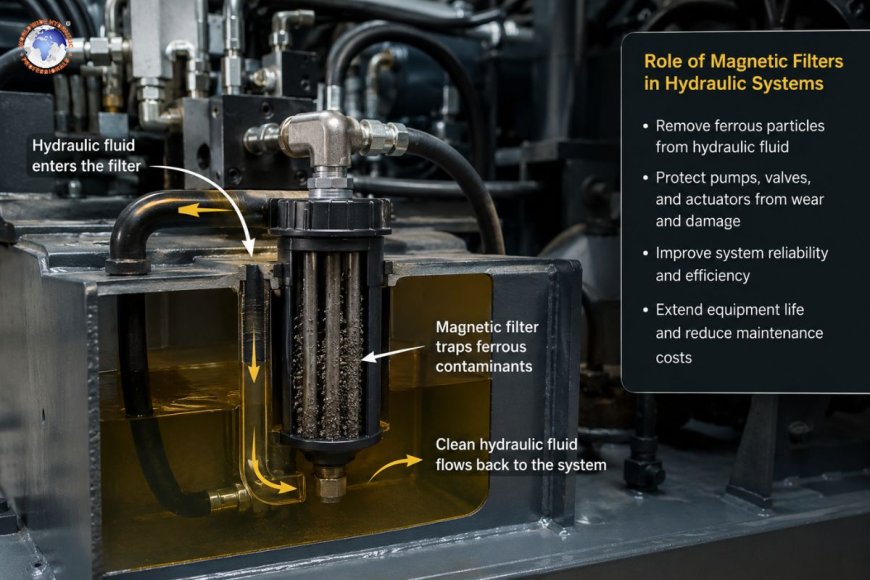

What is the role of magnetic filters in hydraulic systems?

Hydraulic systems form the foundation for modern machinery. From manufacturing equipment and construction facilities to industrial machinery for agriculture and aerospace application, the hydraulic system give the power and accuracy required to tackle the most demanding jobs. However, the performance and life span of these systems largely depend on a single crucial element that is fluid cleanliness.

Contamination of hydraulic oil is one the main causes for equipment failure. Metal particles that are tiny dust, dirt, and other debris are able to circulate throughout the system, leading to wear, decreasing efficiency, and eventually leading to lengthy downtime. Magnetic filters play an important function. They are specialized devices that aid in the removal of ferrous contaminants prior to they cause damage to sensitive hydraulic components.

We'll look at the nature of magnetic filters and how they function and what they can do, their advantages, kinds, applications and the reasons they are crucial for maintaining hydraulic systems.

Understanding hydraulic system contamination

Hydraulic systems depend on fluid to carry power. In ideal circumstances, the fluid must remain free of contamination. But, it is inevitable.

The most common sources of contamination include:

• Wear particles are created by the movement of metal components

• Dirt leaking through vents and seals

• Residues from manufacturing or maintenance

• Corrosion inside system components

• Metal shavings that are created during operations

In the list of contaminants that are harmful to the environment, ferrous particles are particularly hazardous due to their abrasive properties and circulate continuously throughout the system. As time passes, they could harm valves, pumps and cylinders, as well as bearings.

The results of studies in industrial maintenance show that contamination causes an extensive proportion of hydraulic system failures. Even tiny particles can cause serious operational problems if not properly controlled.

What are magnetic filters?

They are tools specifically designed to eliminate ferrous (iron-based) particles from hydraulic fluids by using magnetic force. Contrary to traditional filters, which rely on mesh screens or physical barriers magnetic filters draw and entrap metal contaminants by using powerful magnets.

These filters are usually used in hydraulic reservoirs, returning lines and suction lines or inline filtering systems. The primary function of these filters is to collect metallic debris prior to it can reach delicate components.

Magnetic filters are particularly efficient in removing very small metal particles that traditional filters might leave out. Since a lot of wear particles found within hydraulic equipment are iron, magnet filters provide an extra shield.

How magnetic filters work?

The basic principle of magnetic filters is straightforward, yet extremely effective.

In the housing of the filter the strong magnets, or electromagnetism elements produce an electric field. When hydraulic fluid flows through the filter ferrous particles are drawn towards the surface of magnetic attraction, and then held solidly in the correct position.

The clean hydraulic fluid moves through the system as the contaminants remain in place.

Key steps in the process

1. The hydraulic fluid is injected into the filter housing.

2. The magnetic field draws steel and iron particles.

3. The contaminants stick to magnets, or rods.

4. Clean water exits the filter and circulates throughout the system.

5. During maintenance, the accumulated dirt is cleared from the magnet.

One of the biggest benefits of magnetic filtering is the fact that it can catch tiny particles, usually smaller than the microns that are handled by conventional filters.

Why magnetic filters are important in hydraulic systems?

1. Protecting critical components

Hydraulic systems have expensive and precisely-engineered parts, such as:

• Pumps

• Valve servos

• Pistons

• Cylinders

• Bearings

The metal particles could scratch the surface or block passageways, which can increase wear. Magnetic filters can reduce the danger by removing the particles before they cause harm to.

2. Extending equipment lifespan

Contaminated hydraulic oil can accelerate the deterioration of components. Through the continuous removal of ferrous particles magnetic filters aid in reducing wear and extend the operational longevity of the machine.

This is the reason:

• Lower cost of replacement

• Less breakdowns

• Greater reliability

3. Reducing maintenance costs

Unexpected equipment failures could be expensive. The downtime impacts productivity, labor efficiency, as well as repair costs.

Magnetic filters help minimize maintenance needs by preventing contamination-related issues. Because the filters themselves are reused in many instances they also help reduce the need for cost of replacement for filters.

4. Improving system efficiency

The clean fluid in the hydraulic system allows parts to function efficiently with little friction. The reduction in contamination can improve:

• Congruity in the flow

• Stability of pressure

• Efficiency in energy use

This improves overall performance of the hydraulic system.

5. Supporting predictive maintenance

The particles gathered by magnetic filters could provide valuable information on system state.

For instance:

• The presence of excessive steel particles could indicate an abnormal wear on the gear.

• Fine metallic sludge can indicate the deterioration of bearings.

• Large cracks could indicate severe mechanical damage.

Maintenance teams are able to inspect the particles that are trapped and spot issues before catastrophic failure happens.

Types of magnetic filters used in hydraulic systems

Magnetic filtration systems come in several designs depending on application requirements.

Inline magnetic filters

The filters are placed directly inside the hydraulic lines. The fluid flows through the magnetic chamber, where contaminants are absorbed.

They are frequently employed in:

• Return lines

• Pressure lines

• Lubrication systems for Lubrication

Magnetic rod filters

Bars and magnetic rods are positioned inside reservoirs or tanks. When fluid flows through these rods, the metal particles adhere to the surface of the rod.

These are cost-effective, simple solutions to protect reservoirs.

Magnetic suction strainers

They are located on the side that is suction on hydraulic pump, the filters block large ferrous particles from getting into the pump.

They are a layer of protection from harmful debris.

Drum and tank magnetic filters

Utilized in industrial systems with large volumes These filters can handle large volume of fluids and offer constant pollution control.

Electromagnetic filters

In contrast to permanent magnetic filters electromagnetic filters utilize electromagnetic fields generated by electricity. These filters can offer greater and more flexible magnetic forces that are suited to specific applications.

Magnetic filters vs conventional filters

Both conventional and magnetic filters are both essential to hydraulic systems, however they serve distinct purposes.

The most efficient method is typically an amalgamation of both methods. Conventional filters are used to remove dust, dirt, and other non-metallic pollutants, whereas magnetic filters focus on metallic wear particles.

Together, they offer complete cleanliness of the fluid.

Applications of magnetic filters in hydraulic systems

Magnetic filtration is extensively used in a variety of industries.

Manufacturing industry

Factories employ hydraulic presses and injection molding machines and CNC equipment that need pure hydraulic oil to ensure precision performance.

Construction equipment

Excavators, loaders and cranes and bulldozers work in extreme environments in which contamination is a common occurrence. Magnetic filters safeguard these hydraulic systems that are heavy-duty.

Agriculture

Tractors, harvesters and irrigation equipment rely on hydraulic systems that are exposed to dirt and dust. Magnetic filtration increases the reliability of crucial farming operations.

Aerospace

Aircraft hydraulic systems need extreme levels of reliability and cleanliness. Magnetic filters can help ensure the safety and performance standards.

Marine industry

Offshore equipment and ships utilize hydraulic systems in extreme operating conditions. Magnetic filters help reduce wear and increase the life of components.

Mining operations

Mining equipment faces a number of pollution issues because of dust and harsh conditions. Magnetic filtering helps to decrease downtime and maintenance costs.

Benefits of using magnetic filters

Increased reliability

Hydraulic systems function more effectively when the fluid is clear.

Reduced downtime

Fewer contamination-related failures mean less unplanned maintenance.

Cost savings

Businesses save money through:

• Reduced repair costs

• Lower cost of replacement

• Oil life longer

• Energy efficiency improvements

Environmentally friendly

Reusable magnetic filters help reduce filters and extend the life of hydraulic fluids, while reducing the environmental impact.

Better oil quality

In the process of continuously removing metal contaminants magnetic filters can help maintain their chemical integrity of the hydraulic fluid.

Limitations of magnetic filters

Although magnetic filters have numerous advantages, they do have their limitations.

They only remove ferrous particles

Magnetic filters are not able to capture:

• Dust

• Sand

• Water

• Plastic debris

• Non-ferrous metals such as aluminum or copper

This is the reason they are often used in conjunction with traditional filters.

Maintenance is still required

The magnetic elements need to be regularly cleaned to maintain the effectiveness.

Initial installation costs

High-performance magnetic filters may require a larger initial investment, but the they can save you money over the long term. expense.

Best practices for using magnetic filters

To maximize the efficiency of magnetic filters used in hydraulic systems, take into consideration the following guidelines:

Select the right filter strength

Choose magnetic filters specifically designed for the conditions in which your system operates and levels of contamination.

Combination with standard filtering

Utilize magnetic filters in conjunction with conventional filters for total control of contamination.

Monitor contamination levels

Examine the collected debris frequently to detect early indications of wear on the equipment.

Follow maintenance schedules

Cleanse magnetic elements in accordance with the manufacturer's recommendations.

Install filters strategically

Install filters in areas in which contamination control is important, like the return line or outlet for reservoirs.

Future trends in magnetic filtration

As companies shift towards better maintenance strategies and Industry 4.0 technology Magnetic filters are changing.

Innovative innovations that are emerging include:

• Smart sensors for monitoring contamination

• Automated cleaning systems for automated cleaning

• Rare-earth magnets with high-strength

• Innovative predictive maintenance solutions for integrated systems

These advances are helping businesses improve the reliability of equipment and reduce the cost of maintenance and reducing downtime.

Magnetic filters play an essential part in keeping the health and performance that hydraulic system. By eliminating harmful ferrous particles from the hydraulic fluid, they safeguard vital components, decrease wear, increase efficiency and prolong the life of equipment.

While they aren't an all-inclusive substitute for conventional filtering systems, they offer an important additional layer of security. The ability of magnetic filters to capture tiny metallic particles make them particularly important in areas where the reliability of hydraulics is essential.

As hydraulic systems advance and the demands on their operation rise the need for effective control of contamination will increase. Making the investment in magnetic filtration not just a good maintenance approach, but it is it is also an effective way to boost productivity, cut downtime and guarantee the long-term performance of equipment.
