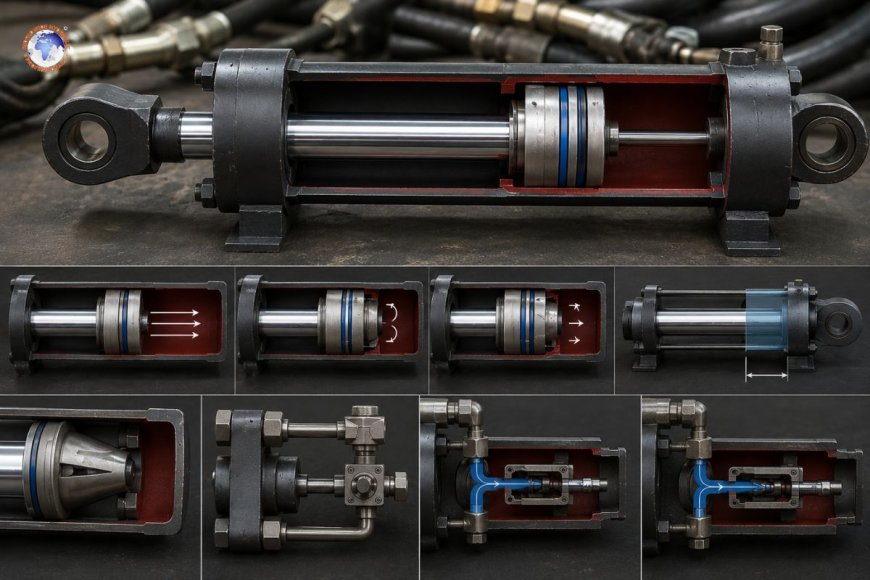

Cushioning in hydraulic cylinders: how end-of-stroke deceleration works

In hydraulic cylinders, cushioning has a built-in deceleration system that slows down the piston when it nears close to its stroke, thus avoiding the metal-on-metal impacts that would happen if the piston were traveling at full speed into the end cap of the cylinder. It is accomplished by preventing the escaping of fluid from the chamber of the cylinder in the final phase of travel. This is usually done by using a cushion sleeve, an elongated spear, or a needle valve, which produces an adjustable back-pressure that is able to absorb the energy of the kinetic force before contact takes place. Without cushioning, cylinders that operate at a high speed and load are subjected to shock loads that accelerate the wear of seals, break fasteners, fracture welds, and create the loud banging sound caused by poor maintenance of hydraulic equipment.

Why is end-of-stroke damage an issue?

Hydraulic cylinders convert pressure from fluid into motion and linear force. There are many uses for it, such as lifts, presses, mobile equipment, and material-handling arms. This piston is moving at a high speed all the way to the point where the stroke has ended. If nothing happens, the piston's energy is unable to move beyond a quick collision with the cap.

This impact isn't only loud. It's destructive. Repetition of hard stops causes the following:

• The piston's shock load is absorbed by the rod and gland as well as the mounting hardware
• Increased wear on seals, especially at the piston seal and rod seals' interfaces
• Cracks from fatigue in welded cylinder bodies with the course of
• Loss of tie rods bolts and mounting pins caused by vibrating cyclically
• Pressure spikes that may surpass the system's maximum working pressure for a short period of time

Cushioning is designed specifically to handle this energy transfer, turning an unreliable mechanical stop to a controlled, hydraulic acceleration.

The fundamental principle: trapping and measuring fluid

Every cushioning method is based on the same concept: as the piston reaches the end of its stroke, it blocks the main path of discharge and pushes the remaining fluid to exit through a smaller opening. This limitation creates localized back pressure within the chamber from which the piston is exiting, which presses against the piston and slows it down prior to coming into contact with the cap on the end.

The deceleration doesn't happen at the last minute; it begins with a specified distance prior to the end of the stroke, generally within the range of 0.5 up to 1.5 inches (12 to 38 millimeters) dependent on the cylinder bore size, rated speed, and the design of the cushion. This distance is engineered to ensure that the piston is able to let go of the majority of its speed gradually instead of being caught in an abrupt restriction that can increase system pressure.

Cushion sleeve (Spear) design

The most commonly used mechanical cushioning technique employs the cushion sleeve, also called a cushion spear or a plunger attached to the rod or piston. When the piston is close to its cap, the sleeve is inserted into an identical bore inside the cap's final section and seals from the primary port, also forcing the fluid to exit through a smaller annular clearance or a specifically designed cushion passageway.

Since the sleeve is typically an angled or tapered profile that restricts the sleeve, it tightens gradually as the piston moves further towards the cap. This creates an acceleration curve, not an abrupt stop. Speed drops sharply upon the initial contact point but then decreases more as the piston approaches its final position, thus reducing the pressure rise at any one location.

Fixed vs. Adjustable cushioning

• Fixed cushions are made using the size of an orifice that's machined into the cap's end and cushion bushing. They are less expensive and simpler, but they're only designed to work under one specific operating condition: the specific speed and load. They also have a specific viscosity of the fluid.
• Adjustable cushions include needle valves or metering screws outside of the cylinder, which let technicians fine-tune the limit. This is crucial for industrial and mobile equipment, where speed and load vary over time, as a cushion that is too tight could cause a stall in the cylinder prior to full stroke, whereas those with a looser setting do not do much to stop the cylinder from hitting.

Needle valve cushioning

Certain cylinder designs rely on an external needle valve rather than an inner cushion sphere. Once cushioning has begun, the flow is diverted via a check valve as well as an electronic needle valve. The needle valve monitors the flow that flows out, and the adjustment determines how fast the piston is decelerating. This is a common practice for cylinders in which the rod or bore configuration renders an encapsulated cushion sleeve that is machined unsuitable or when field adjustability is an important feature.

The purpose that the valve plays is to play the return stroke

The cushioning circuits usually include the check valve, which bypasses the limitation on a return cycle. This is important because the metered orifice, which slows the piston while it's going into the chamber, could also be able to restrict flow when it comes out, thereby depriving the chamber of fluid and slowing the return stroke unnecessarily. The check valve permits unlimited flow through the chamber when it is pulled back, and cushioning is only affecting the direction of the stroke when necessary.

The cushioning process and the system pressure spikes

The less apparent benefit of cushioning is that it protects the hydraulic system as a whole in general, not only the piston. If a piston is decelerating quickly without cushioning, the sudden stop causes the pressure to increase and travel across the lines of hydraulics. The pressure spike could exceed the relief valve's settings temporarily or stress hoses and fittings, as well as components of the fatigue pump over repeated cycles. A properly sized and tuned cushion can reduce this tension spike considerably as compared to an uncushioned stop. That is the reason why cushioning is considered an element of design at the system level and not just a cylinder-specific feature.

Selecting the right cushioning and sizing to be used

Cushion selection depends on several interacting variables:

1. Piston speed at the point of approach: greater speeds call for a longer lengths of cushion and more aggressive measuring
2. Load and moving mass: heavier loads are able to carry greater kinetic energy, which must be emitted
3. Viscosity of fluids—more dense fluids limit flow in different ways over a wide temperature range that affects the cushioning quality when starting cold.
4. Variation in the cycle of duty Applications that have constant load and speed may utilize fixed cushions, while variable-duty applications can benefit from the flexibility of designs.
5. Modifications to the cylinder's inclination and mounting, the side loading or the an angled mounting may affect the degree to which a cushion sleeve engages with its bore

Manufacturers generally provide deceleration charts or maximum allowed velocity charts for cylinders with cushioning, and comparing the actual speed to these values is a typical process in selecting a cylinder, in addition to bore length, stroke length, and the rod's diameter.

Common cushioning issues in the field

• A cushion that is not tight enough: the cylinder fails to complete its cycle, or the return speed may be affected in the event that the check valve has become damaged.
• Too loose cushion: no deceleration effect, but sound and impact still evident at the end of the stroke
• Wearing or damaged bushings or cushion sleeves The increased clearance decreases the effect of metering as it gradually decreases cushioning performance
• The accumulation of debris in the metering orifice's small size could cause irregular or erratic cushioning
• A wrong needle valve adjustment following maintenance: a common mistake after rebuilding cylinders, in which it is either left completely open or completely closed

Regular inspection of the cushioning's performance by listening for any impacts, looking for an even deceleration, and checking that the stroke is completed is a valuable inexpensive diagnostic to be performed during routine maintenance on the hydraulic system.

What is the purpose of cushioning in a hydraulic piston?

The cushioning mechanism is built-in and slows the piston towards close to the finish of its cylinder by stopping the flow of fluid, thus stopping a mechanical strike against the cap at the end.

How long before the end of stroke will cushioning begin to work?

The cushioning process typically starts to engage between 0.5 and 1.5 inches (12 and 38 millimeters) before the full stroke, based on the diameter of the cylinder and the cushion's design.

Does every hydraulic cylinder come with cushioning?

No. Cushioning is an option that is added when the speed of application and load or cycle increase the chance of the end of the stroke being struck; however, cylinders with low speeds or loads generally work without it.

The cushioning can be changed on the fly?

Yes, provided that the cylinder is equipped with adjustable cushioning that is controlled by the use of an external needle valve. Cushioning that is fixed cannot be adjusted without machining changes.

What can happen if the cushion is set too tight?

A too tight cushion could cause the piston to stop before it has reached full stroke, as the metering limit can be too much for the system pressure to override.
