What causes hydraulic cylinder drift?

Hydraulic systems are extensively used in various industries like manufacturing, construction, and handling of materials due to their strength, precision, and dependability. The heart of a lot of these systems is the hydraulic cylinder, which is responsible for turning pressure into linear movement. One problem that maintenance specialists often confront is drift in the hydraulic cylinder.

Hydraulic cylinder drift is the unintentional motion of a cylinder even though it is meant to be stationary. This issue can result in dangers to safety, lower efficiency, and possibly even permanent injury to the equipment. Knowing the root causes of the cylinder's drift is crucial for diagnosing the problem and then implementing efficient solutions.

In this article, we'll examine the primary causes of a cylinder's hydraulic drift, the best way to recognize these, and the most effective methods to avoid and correct this problem.

What is hydraulic cylinder drift?

Hydraulic cylinder drift is when a cylinder moves slowly or retracts/extends with no input. Ideally, when a valve is in a neutral state, the cylinder will remain in its place with a firm grip. However, if there are external or internal causes, the cylinder could begin to shift slowly.

This motion may be subtle and slow initially; however, over time, it could impact the machine's performance and pose a safety risk, particularly when it comes to load-holding equipment such as lifting or cranes.

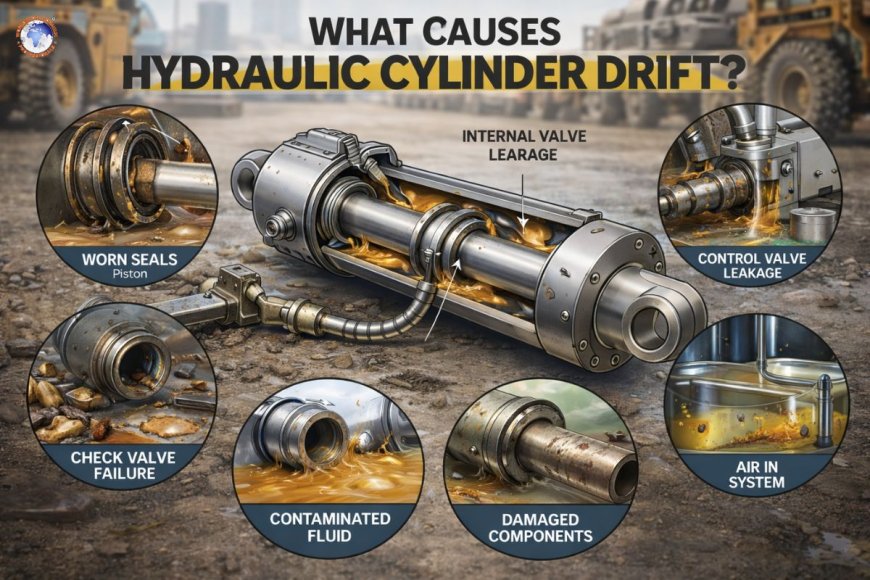

Major causes of hydraulic cylinder drift

1. Internal seal leakage

One of the primary reasons for the cylinder's drift is internal leakage that goes past the seals on the piston. Within the hydraulic cylinder, piston seals are used to separate the chambers of pressure. When these seals fail, crack, or become damaged over time, the hydraulic fluid could leak from one end of the piston onto the other.

What causes it to happen:

• Wear and tear from normal wear
• Materials for sealing that are not of high-quality
• High operating temperatures
• Hydraulic fluids contaminated with toxins

Impact:

Internal leakage lowers the pressure that holds the piston in its place, which causes it to sway slowly. This is particularly evident while the piston is being used.

2. Control valve leakage

Hydraulic systems depend on directional control valves to regulate the flow of liquid. If the valve control fails to seal correctly in the neutral position and fluid continues to flow slightly, it can lead to unintentional movement of the cylinder.

The causes of valve leakage are:

• Spools of valves that are damaged
• Dirt or debris can build up in the valve
• Improper valve design or sizing
• Manufacturing defects

Result:

Even a tiny amount of leakage from the valve could cause a gradual shift, especially in applications that require precision.

3. Check valve failure

Check valves are constructed to let the flow of fluid in one direction but stop it in the other direction. When a check valve malfunctions, it could let fluid flow backwards, which can cause drift in the cylinder.

Common problems:

• Debris is lodged inside the valve seat
• Broken or weak springs
• Improper installation

Outcome:

The loss of capacity to hold loads, particularly when systems rely on check valves to ensure security.

4. Worn or damaged cylinder components

As time passes, different internal components inside the hydraulic cylinder could be damaged or worn out. This includes:

• Cylinder barrel
• Piston rod
• End caps

Damage causes:

• Misalignment during operation
• Excessive loads
• Corrosion
• Poor maintenance

Effect:

Injuries to these parts can cause internal clearances, which permit fluid to flow through seals, which can cause drift.

5. External leakage

While internal leakage is often connected with movement, outside leakage could be a contributing factor. When hydraulic fluid is leaking out of this system, it may decrease system pressure and alter the ability of the cylinder to maintain the position.

Signs:

• The oil stains on fittings and seals
• The reservoir has seen a decrease in fluid levels. reservoir
• The visible drips or leaks are evident.

Consequence:

Lower pressure levels can result in inadequate load retention and slow movement of the cylinder.

6. Temperature variations

Systems for hydraulics are sensitive to temperature variations. The viscosity of fluids alters with temperature, which may affect sealing performance and leakage rates.

The effect of temperature on drift

• High temperatures reduce fluid viscosity, increasing leakage
• Seals can be damaged by low temperatures, causing them to become stiffer and lose flexibility.

Result:

Inconsistent cylinder performance and the possibility of drift in different environmental conditions.

7. Air in the hydraulic system

The air that is trapped within the hydraulic system may be compressed under pressure, but not like the hydraulic fluid. This compression can result in unpredictable cylinder behavior and drift.

Air ingress causes:

• Loose fittings
• Low levels of fluids
• Improper bleeding during maintenance

Symptoms:

• Cylinder movement that is jerky or splashy
• Unstable positioning

8. Improper system design

In some instances, it is possible that cylinder movement is not caused by component failure, but due to poor design of the system.

Design flaws can be a result of:

• Insufficient load-holding valves
• A wrong selection of valves
• Inadequate seal systems

Impact:

Even a system that is perfectly functional can be susceptible to drift when it isn't equipped with the right elements to stay in place under stress.

9. Contaminated hydraulic fluid

Contamination is the biggest enemy of hydraulic equipment. Metal particles, dirt, and water can cause damage to valves and seals, which can lead to drift and leakage.

The sources of contamination

• Poor filtration
• Improper fluid handling
• Worn components shedding particles

Effects:

• Increased wear on seals and valves
• Leakage from the internal lining of the lungs is growing
• System efficiency is reduced

How to diagnose hydraulic cylinder drift?

A proper diagnosis is essential for resolving cylinder drift efficiently. Here are some of the most common ways to fix drift:

1. Load holding test

Put a weight on the cylinder, and then observe if it stays in place over the course of time. If it shifts, it is most likely due to leakage inside the cylinder.

2. Isolation test

Remove the cylinder from the system, and then check whether drift continues to occur. This will help determine if the problem is with the cylinder or in the control valve.

3. Pressure testing

Monitor the pressure in the system to detect the signs of leakage.

4. Visual inspection

Be on the lookout for indications of leakage from the outside or worn parts, or signs of contamination.

Preventing hydraulic cylinder drift

Prevention is always more effective than fixing. Here are some good techniques:

1. Regular maintenance

• Make sure to inspect seals and components on a regular basis.
• Replace damaged parts immediately
• Maintain the system in good order

2. Use high-quality components

Make sure you invest in seals of the highest quality, as well as valves and cylinders for longer-lasting performance and durability.

3. Maintain clean hydraulic fluid

• Make sure you use filtration systems that are appropriate.
• Replace the fluid as recommended.
• Avoid contamination during refilling

4. Proper system design

Check that the system is:

• Load-holding valves
• The right-sized components
• Reliable safety features in the event of need.

5. Monitor operating conditions

• Beware of loads that are too heavy
• Maintain proper temperature ranges
• Make sure that components are aligned correctly

Solutions for fixing cylinder drift

When the root of the drift is discovered, appropriate corrective steps are taken to correct the issue:

• Replace damaged seals to prevent internal leakage
• Replace or repair damaged control valves
• Check valves should be cleaned or replaced
• Refill and flush the contaminated hydraulic fluid
• Air was sucked out of the system
• Repair damaged components of cylinders

In certain situations, it is necessary to conduct a complete overhaul of the cylinder. might be necessary to restore normal operation.

Hydraulic drift of the cylinder is a frequent but solvable issue for hydraulic systems. It usually results from internal leakage, damaged valves, worn components, or system contamination. While the issue might appear with a small amount of damage, it can escalate to serious security risks and performance issues when left unaddressed.

Understanding the root causes of cylinder drift and implementing the correct maintenance and design procedures, operators can guarantee reliable and efficient performance of the system. Regular inspections and clean hydraulic fluid and components of high-quality are essential in keeping the cylinder from drifting and extending the lifespan of the hydraulic system.

In the end, a proactive approach to troubleshooting and maintenance is the most effective way to ensure that the hydraulic cylinders run without a hitch and in a safe manner.
