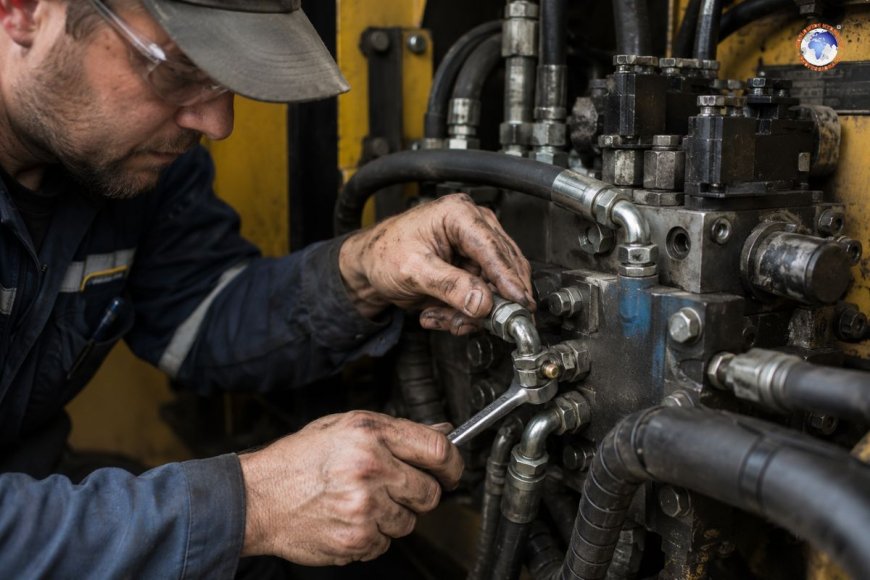

How Hydraulic Banjo Fittings Improve Fluid Routing in Tight Spaces?

Hydraulic banjo fittings make use of an open, perforated bolt with an elongated "banjo" eye to allow fluid to flow at any angle via an unidirectional threaded connection. This innovative design allows engineers to connect hydraulic lines within restricted equipment bays, through obstructions, and even in multi-port manifolds without having to bend hoses in sharp angles or put on additional elbow fittings.

What is an appropriate banjo fit?

The name of the fitting says it all. A banjo fitting is comprised of two primary elements: the hollow bolt (sometimes known as "the banjo bolt") as well as a round circular end piece—the banjo eye—which is affixed to the bolt. The eye is fitted with an incision through its center and also radial holes around its circumference, which permit hydraulic fluid to flow through the core of the bolt into the port or hose to the opposite side.

As the bolt's threads are inserted through a manifold or port, the fluid flows through the shank's hollow and enters the eye-shaped ring by way of radial drillings and then exits through the tube or hose. Two aluminum and copper, as well as bonded seal washers, one on each side, ensure a leak-free seal.

This results in a fitting that is able to rotate 360 degrees about the bolt's axis before being torqued down. This one feature of unrestricted freedom to rotate before tightening is the reason banjo fittings are uniquely suitable for hydraulic installations that are restricted.

The root issue is why narrow spaces cause problems for fittings that are not conventional.

Standard fittings for hydraulics Standard fittings for hydraulics—JIC flares, NPT pipe threads, as well as straight ORFS connectors—suppose that the hose or tube is able to enter the port in a predetermined direction. For open machinery frames that have ample clearances, this shouldn't be an issue. But modern hydraulics are far from spacious.

Agriculture tractors pack a variety of hydraulic circuits within the crowded side panels. Compact excavators run circuits around the swing bearings as well as through the narrow booms. Industrial injection molding machines are able to connect a variety of circuits in manifold blocks. In any of these situations, forcing a straight or even 45-degree fitting to align with the closest port can result in excessive hose bends, tight-radius knots, and a premature hose failure or simply an unworkable assembly that can't be made to be torqued without a customized tool.

Elbow fittings address a portion of the issue by redirecting the flow at fixed angles, typically either 45 degrees or 90 degrees. However, each elbow can create an entry point for leaks, add to the system's weight, cause an opportunity for snag points, and fix the angle of the hose's exit for a long time. If the hose has to exit at a 75-degree angle or if the layout changes in the course of a redesign of a machine, the standard elbows will force the complete fitting modification.

How do banjo fittings resolve the issue of space?

360-Degree Rotational Freedom

When the banjo bolt is tightened, the hose's end is able to be set at any angle of rotation with respect to the port. The installer will route the hose back to its location—by avoiding frame rails, other hoses, or actuators—and then tighten the fitting without affecting the route. The hose is not bent to fit; there is no battling with a stiff elbow, and there is no need for a second person to support the line.

Ultra-low profile connection

Because the eye of the banjo is flat and rests directly against the port surface and the fitting has almost no protrusions in the direction that is perpendicular to the port's surface. In a manifold block that is cluttered in which a standard elbow might be in conflict with an adjacent fitting or a boss machined, the banjo fitting can usually be used without any clearance issues.

Multi-port stacking

Banjo fittings are able to be placed in a stack—many banjo eyes can be joined by one bolt, in the event that the bolt is sufficiently long and spacer washers that are suitable for the job are utilized between them. This permits two hydraulic lines to join to one port in different rotation directions and through a threaded hole. When using a manifold the stacking feature will decrease the amount of ports needed making the block simpler and reduces costs.

Simplified hose assembly

Because the hose's end can move during the installation process and the installer doesn't have to rotate the hose assembly in a precise location prior to making the thread. This speeds up assembly time and reduces the tension that can build up in hose assemblies once they are pushed into alignment.

Materials and pressure ratings for materials and pressure

Banjo fittings are made from various materials based on the purpose:

Carbon steel fittings and steel are the most commonly used selections for high-pressure industrial or portable hydraulic systems. Pressures of between 3,000 and 6,000 PSI are common, but there are some forged models that are heavy-duty and rated higher than that.

The stainless steel versions are resistant to corrosion and are utilized in agricultural equipment exposed to chemical fertilizers, marine hydraulics, and food processing equipment where corrosion is a problem.

Aluminum banjo fittings are light and are suitable for circuits with lower pressure in ground support equipment for aerospace or mobile platforms that are weight-sensitive.

Brass fittings are used in applications with low pressure, such as pneumatic circuits or lubrication systems in which compatibility with soft sealing materials is essential.

The washers that seal—which are the consumable part in every connection to a banjo—are equally crucial. They are also the most common option and ensure a secure seal by regulating deformation. Crush washers made of aluminum are less heavy and are commonly used on automobiles and agricultural machinery. Seal washers that are bonded (a metal ring that has an insert of bonded rubber) offer a stronger seal and have lower demands on torque and are best when the finish of the port is not controlled to perfection.

Common applications for hydraulic systems

Mobile machines: Banjo fittings are common for the brake caliper as well as the steering cylinder lines of combine harvesters and agricultural tractors and combine harvesters, where lines have to be connected to pivoting or moving components without impeding directional rigidity.

Mini-excavators for construction and skid-steer loaders utilize banjo connections at pivot points of cylinders, and the hose routing is altered when the boom or arm shifts.

Manifolds for hydraulics and valve blocks Systems designers employ banjo fittings on manifold ports in which multiple circuits are required to exit from one face, with no elbow fittings encroaching on the block.

Systems for power steering: Mobile equipment and industrial vehicles have banjo connections on the inlet of the steering gear as well as return ports, in which space between the driver's seat and within the engine compartment is terribly limited.

Hydraulic braking circuits: A connection with a flat profile and leak-proof design makes banjo fittings the preferred option for hydraulic brake caliper connections between off-highway vehicles.

Installation best practices

The process of fitting a banjo to ensure a reliable seal is a matter of an easy list:

Always change the crush washers. The aluminum and copper washers are used for one purpose only. Re-torquing the fittings with old washers is the most efficient way to stop a leaky weep. Every time, new washers are used.

Examine the condition of the port face. Banjo fittings are sealed against the face of the port but not against the thread. Any burr, nick, or corrosion that occurs on the surface of the seat will stop full washer deformation and may cause leaks. Check and polish the face prior to installation.

Torque to specification—do not over-torque. The banjo bolts have a hollow surface and are thin-walled. A high amount of torque can break the shank of the bolt or split the eye of a banjo or tear the thread on the port. Always consult the fitting manufacturer's torque table. It can be affected by the diameter of the bolt, the material used, as well as the washer type.

Run the hose through the fitting prior to the final tightening. The primary benefit of the banjo fitting is its freedom of rotation. Utilize it to hold the hose in the intended routing position, then tighten the bolt while making sure the hose is steady.

Examine radial drills prior to the assembly. The tiny cross-holes inside the banjo bolt shank may occasionally contain manufacturing burrs, or even contamination. A quick visual check and blow-out with clean, dry air before assembly prevents contamination-induced flow restriction.

Selecting the best banjo to your needs

The process of selecting a banjo fitting requires the matching of five criteria such as thread size and type (metric BSP, metric, or UNF); measuring pressure at work; hose's end arrangement (hose barb JIC, ORFS, or push-to-connect); materials; and washer type. The majority of manufacturers provide the complete pressure rating and dimension information. Cross-reference tables help you connect fittings to typical hose assemblies.

If a single-entry banjo fitting is not able to offer enough flow space for the highest flow rate, dual banjo configurations—with two eyes stacked—can double the flow path of one bolt. It is a good idea to consider for high-flow return lines or circuits with case drains in which there is a drop in pressure through the fitting that needs to be reduced.

Hydraulic banjo fittings resolve one of the most enduring issues in the design of hydraulic systems How to create an effective, leak-free fitting in confined spaces and hose routing can't be followed in a unidirectional line. The ability to adjust 360 degrees before tightening, low-profile geometry ability to stack, and broad material options make them an ideal tool for any hydraulic engineer working with tight installations. Make sure you respect the crush washers, and the torque should be within specifications, and a well-fitted banjo connection will provide unrepaired service for the entire life of your machine.
