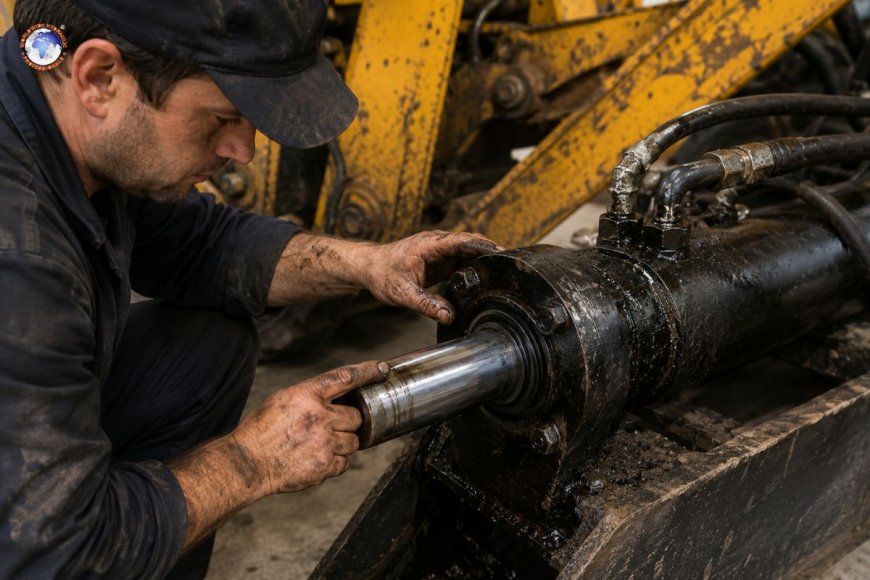

Why do hydraulic cylinders lose pressure over time?

Hydraulic cylinders are a crucial component in construction machinery, industrial equipment, agricultural production lines, and other heavy-duty applications. They transform the hydraulic force into mechanical power, which allows machines to lift or pull, push, and move heavy loads effectively.

One of the main issues maintenance and operators face is that hydraulic cylinders lose pressure as time passes. A cylinder that loses pressure may affect the performance of equipment and cause slow operation as well as increase energy consumption and can even pose safety hazards.

Understanding the reasons why the hydraulic cylinders fail to maintain pressure is crucial to avoid downtime, decreasing repair costs, and increasing the lifespan of equipment. This article examines the most frequent causes, warning signs, and efficient prevention strategies.

Understanding pressure loss of hydraulic cylinders

The hydraulic pressure is generated as hydraulic fluid gets compressed and transferred through an enclosed system. A hydraulic cylinder is dependent on a steady pressure to ensure the cylinder's movement, force of holding, and precision of positioning.

If pressure starts to decrease, the cylinder might:

• Do not hold or drift out of the correct position.

• The ability to lift is reduced.

• Be slow or inconsistent

• Needs more energy to operate

• Show lower overall efficiency

Pressure loss is not a typical thing to occur suddenly. In many instances it occurs slowly due to wear, leakage, contamination, or even component degradation.

Recognizing the root of the problem early will help prevent costly failures.

Leakage and wear of seals in the internal seal

One of the primary reasons why hydraulic cylinders drop pressure with time is the internal wear and tear on the seals.

Hydraulic cylinders use seals to divide pressure zones and stop fluid from escaping the piston. As time passes, the seals are subject to the following:

• Friction

• Heat exposure

• Pressure cycling

• Chemical degradation

• Material fatigue

If the seals on the piston wear out, the hydraulic fluid may leak into the interior of the piston to others. This phenomenon, referred to as internal bypassing, lowers effective pressure within the cylinder.

In contrast to external leaks, internal leaks aren't always obvious. However, it can impact the performance of yours.

The signs of a failed internal seal

Common symptoms are:

• Cylinder drift under load

• Reduction in capacity of holding

• Slow or no movement

• Inconsistent pressure readings

• Temperatures of operation increased

Regular inspection of seals and prompt replacement are essential for maintaining the efficiency of the cylinder.

Leaks in hydraulic fluid from the outside

External leaks are yet another important factor in the loss of pressure.

Hydraulic systems rely on maintaining an enclosed, pressure-controlled environment. If fluid from hydraulic systems escapes through damaged components, the pressure of the system naturally drops.

Leaks can occur in:

• Rod seals

• Connections to hoses

• Pipe fittings

• Cylinder End caps

• Valve assemblies

Even tiny leaks can be significant issues over time.

A small issue with seepage may initially seem harmless, but slow down pressure, and contaminate equipment and cause serious operational issues.

Common causes of leakage outside

External leaks can be caused by:

• Seals damaged by damage

• Loose fittings

• Cracked hoses

• Corrosion

• Improper installation

• Excessive vibration

Regular visual inspections are a great way to identify leaks before they become serious.

Hydraulic fluid contamination

The contamination of hydraulic fluids is one of the main causes of problems with hydraulic systems, which includes pressure loss.

Dirt or metal particles, water, and air can affect the system's performance and speed up wear and tear on components.

In the event that contaminants get into the body, they could cause the following:

• Cylinder seals

• Valves

• Pumps

• Bearings

• Surfaces inside the cylinder

Contaminated fluid decreases the effectiveness of sealing and can cause internal leakage to increase and eventually contributes to the decline in pressure.

The types of contamination in hydraulic systems

Common contaminants are:

Particles of solid

Metal fragments and debris could cause damage to seals and scratching on surfaces.

Water contamination

The presence of moisture in hydraulic fluids can lead to corrosion, oxidation, and diminished lubrication performance.

Air entrapment

Air bubbles may compress differently than hydraulic fluids, which can result in instability in pressure and decreased cylinder response.

Cleaning the hydraulic fluid regularly is crucial for safe hydraulic cylinder operation.

Damaged or worn out cylinder components

Hydraulic cylinders have a variety of mechanical components that wear out over time.

Components like:

• Cylinder rods

• Pistons

• Barrel surfaces

• Bearings

• Bushings

will degrade after long use.

Damaged rods or a barrel surface that is scratched could compromise the integrity of sealing and lead to pressure leakage within the cylinder.

Wear can develop gradually because of the following:

• Heavy operating loads

• Misalignment

• Side loading

• Abrasive contamination

• Insufficient lubrication

When clearances within the system rise, the system is unable to keep pressure in check.

Rod damage and loss of pressure

Cylinder rods are especially vulnerable to:

• Scratches

• Pitting

• Corrosion

• Bending

A rod that is damaged can cause damage to seals quickly, causing external and internal leakage issues.

Proper rod protection and regular maintenance are essential for preventing the possibility of pressure-related failures.

The valves in the hydraulic system are faulty.

Hydraulic cylinders are not operating independently. Their performance is heavily influenced by hydraulic valves that control fluid flow and pressure control.

If valves fail and cylinders fail, they may be affected by pressure instability.

Common valve-related problems include:

• Valve seats that are worn

• Internal leakage

• Sticking valves

• Incorrect pressure settings

• Contamination buildup

If a valve for pressure relief is opened prematurely or a directional valve leaks inside, the cylinder could be unable to hold pressure, even though the cylinder is structurally solid.

Problems with the valve for pressure relief

Pressure relief valves safeguard systems from pressure that is too high.

But if there is a relief valve used:

• Is the system not correctly adjusted?

• Have worn out springs

• It contains contamination

• Suffers mechanical injury

It could let pressure out too soon.

This causes a reduction in performance of the cylinder and continuous loss of pressure.

Valve diagnostics should be a part of the routine troubleshooting for hydraulics.

The effects of temperature on the hydraulic pressure

The changes in temperature significantly affect the hydraulic system's behavior.

The combination of extreme heat and cold temperatures can impact the stability of pressure.

High operating temperatures

If the temperature of hydraulic fluid is too high, the viscosity drops.

The fluid's viscosity decreases, meaning it gets thinner and is able to flow much more smoothly through the internal clearings. This may cause the leakage rate and decrease the effectiveness of the pressure.

The high temperatures can also speed up:

• Seal degradation

• Fluid oxidation

• Component wear

Common causes of overheating are:

• Poor cooling systems

• Heavy loads that continue to be piled on

• Fluid flow restriction

• Low levels of fluids

Challenges with cold temperatures

Cold environments can lead to a myriad of issues.

If the fluid is too thick, it moves less efficiently, which causes resistance and decreasing system ability to respond.

The ability to manage temperature is therefore an important aspect of the hydraulic reliability of cylinders.

Air is a component of the hydraulic system.

The trapped air inside the hydraulic system could cause instability in pressure and reduce the performance of cylinders.

Like hydraulic fluid, air is a compressible fluid.

If air is introduced through the pipe, the cylinder could be unpredictable because the pressure transmission can become irregular.

Signs of air pollution are

• Spongy movement of a cylinder

• Jerky operation

• A delay in response

• Pressure changes

• Noise levels have increased

Air can get in through the following:

• Loose fittings

• Seals damaged by damage

• Low reservoir levels

• Incorrect maintenance procedures

The hydraulic system can be bled, and fixing the entry points may aid in restoring pressure.

Unsafe maintenance methods

A lot of instances of pressure loss in hydraulic systems result from poor maintenance.

Hydraulic systems need regular inspection, maintenance, and preventive maintenance.

Inattention to maintenance could cause small problems to become big performance issues.

Common maintenance errors can be a result of:

• Seal replacement with delay

• Ignoring fluid contamination

• The filtering process is not being updated.

• Making use of the wrong hydraulic fluid

• In the process of ignoring leaks that are minor

• Failure to keep track of operating temperatures

The preventive maintenance programs can detect wear early and help prevent sudden failures.

How to avoid the loss of hydraulic pressure on cylinders

To prevent pressure loss, it is necessary to take an approach that is proactive to care for the hydraulic system.

A few best practices can dramatically enhance the performance of cylinders and prolong their life.

Conduct regular inspections

Check the hydraulic cylinders regularly for:

• Leaks of fluid

• Rods damaged

• Wear and tear on seals

• Loose fittings

• Abnormal noise

The early detection of minor problems can prevent them from turning into major issues.

Maintain clean hydraulic fluid

The cleanliness of fluids is crucial.

Use:

• High-quality filtration systems

• Proper storage practices

• The scheduled fluid analysis

• Recommendations for intervals of fluid replacement

Contamination control significantly reduces wear on component components.

Replace damaged seals immediately

Do not wait for a complete seal failure.

The replacement of seals at scheduled maintenance can stop leaks from inside and help maintain the integrity of the pressure.

Be aware of the operating conditions

Important performance factors to track, like

• Pressure readings

• Temperature of the fluid

• Cylinder speed

• Loading behavior

The unusual patterns often signal the onset of issues.

Use correct components

Always use manufacturer-approved

• Hydraulic fluids

• Sealing materials

• Replacement parts

• Pressure settings

Uncorrected components can affect the system's reliability.

Hydraulic cylinders lose pressure with time due to many reasons, such as the wear of seals and contamination of the fluid, damage to components, and valve issues as well as temperatures, air intrusion, and inadequate maintenance procedures.

Pressure loss isn't just an issue. It can decrease productivity, raise the cost of operating, reduce the life of equipment, and cause issues with safety.

The good news is that the majority of issues with hydraulic pressure are easily fixed.

By conducting regular inspections, ensuring the cleanliness of hydraulic fluids, observing the condition of the system, and dealing with wear early, operators are able to dramatically improve the performance of hydraulic cylinders and ensure reliability.

Well-maintained hydraulic systems provide constant power, more long-lasting service, and lower time to repair—ensuring that industrial operations run efficiently in the long run.
