How does poor filtration affect hydraulic pump performance?

Poor filtration lets abrasive particles, water, and degraded oil circulate through the system, wearing the tight clearances inside the pump. The result is falling volumetric efficiency, rising heat, noisy operation, slower actuators, and eventually premature pump failure. Since the pump is the heart of any hydraulic system, even modest contamination can quietly shorten its life and raise operating costs long before an obvious breakdown appears. Hydraulic pumps are precision machines. Whether you run a gear, vane, or piston pump, the internal parts move with clearances measured in microns. Those clearances seal high-pressure oil from low-pressure oil, and they depend entirely on the oil being clean. When filtration falls short, the pump becomes the first and most expensive casualty.

Why are hydraulic pumps so sensitive to contamination?

A typical piston pump may have clearances of just 5 to 15 microns between pistons and bores and between the valve plate and cylinder block. A human hair is roughly 70 microns thick, and the particles most damaging to a pump are far smaller than anything you can see. Particles close in size to these clearances are the most destructive because they get dragged into the gap and grind both surfaces.

This is why filtration is not just a maintenance chore. It is the main defense that keeps the pump's sealing gaps intact.

Where contamination comes from

Understanding the sources explains why filtration must work continuously:

• Built-in contamination: Machining debris, casting sand, weld spatter, and assembly dirt left in new components, hoses, and reservoirs.
• Ingressed contamination: Dust and moisture drawn in through reservoir breathers, worn rod seals, and open fill ports.
• Generated contamination: Wear particles produced by the system itself, which then trigger more wear in a chain reaction.
• Chemical contamination: Oxidation by-products, varnish, and sludge formed as the oil ages and overheats.

A filter that is undersized, poorly rated, clogged, or bypassed cannot keep pace with these sources.

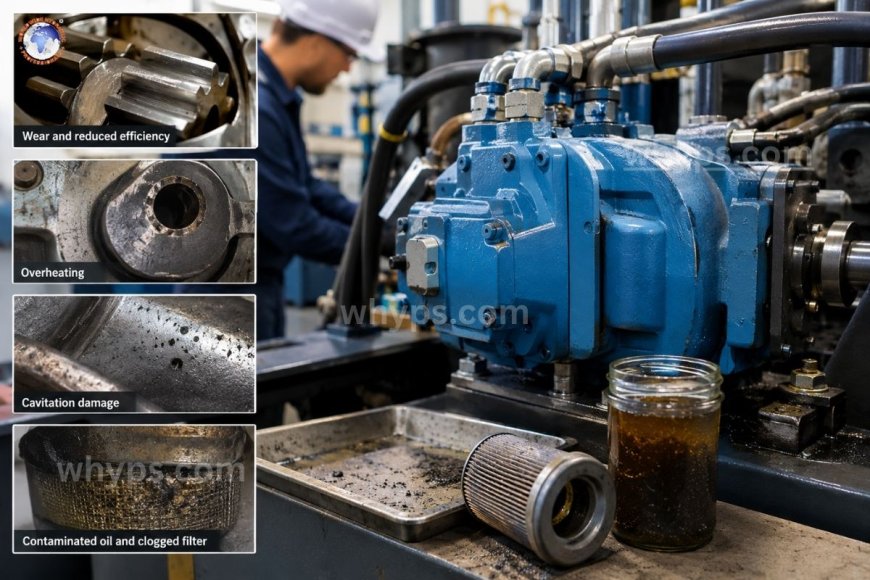

How does poor filtration damage pump performance?

1. Abrasive wear and loss of volumetric efficiency

Hard particles act like grinding paste between moving surfaces. In gear pumps, they wear the gear faces and side plates. In vane pumps, they score the vane tips and cam ring. In piston pumps, they erode pistons, bores, slippers, and the valve plate.

As clearances open up, more oil leaks internally from the high-pressure side to the low-pressure side. This internal leakage, often called slip, reduces the pump's volumetric efficiency. The pump still turns at full speed but delivers less usable flow, so actuators move more slowly and pressure is harder to hold.

2. Excess heat generation

Internal leakage is not harmless. When high-pressure oil escapes through a worn gap, its pressure energy converts directly into heat. A pump with growing wear therefore runs hotter, which thins the oil, speeds up oxidation, and degrades seals. Hotter, thinner oil leaks even more, creating a downward spiral that is difficult to reverse without addressing the root cause.

3. Cavitation from clogged suction filters

Not every filtration problem involves dirty oil reaching the pump. A suction strainer or suction filter that is blocked starves the pump of oil. The resulting low pressure at the inlet causes dissolved air and vapor to form bubbles that collapse violently inside the pump. This cavitation pits metal surfaces, creates a distinctive whining or gravel-like noise, and can destroy a pump in a surprisingly short time.

4. Silt lock and sticking components

Very fine particles, often called silt, accumulate in clearances and make components sluggish or cause them to stick. In pumps with pressure or displacement compensators, silt can cause erratic control behavior, slow response, or failure to de-stroke properly. Because the particles are too small to see, the problem is often misdiagnosed as a controller or electrical fault.

5. Water and aeration effects

Poor filtration often goes hand in hand with poor breath protection and moisture control. Water in the oil reduces lubricity, promotes corrosion on pump internals, and encourages sludge. Air entrained in the oil causes foaming, spongy operation, and cavitation-like damage. Filtration that includes quality breathers and, where appropriate, water-absorbing elements protects the pump from these secondary threats.

6. Filter bypass and unfiltered oil

Most filters have a bypass valve that opens when the element becomes too restrictive, for example, during cold starts or when the element is clogged. Once the bypass opens, unfiltered oil flows straight to the pump and the rest of the system. A neglected filter can therefore be as bad as having no filter at all while giving everyone the false impression that the system is protected.

Warning signs of filtration-related pump problems

Catching the problem early saves the pump. Watch for these symptoms:

• Slower cylinder or motor speeds under load
• Difficulty building or holding system pressure
• Rising oil temperature without a change in duty cycle
• Increased pump noise, such as whining, knocking, or growling
• Filter indicators showing high differential pressure or bypass
• Dark, cloudy, or gritty oil
• Metal particles found on magnetic plugs or in oil analysis reports
• Frequent need to replace seals, valves, or other components

Any one of these deserves investigation. Several together almost always point to a contamination problem.

Different pumps, different tolerances

Not all pumps tolerate dirt equally. Gear pumps are generally the most forgiving, though they still wear steadily. Vane pumps are more sensitive, particularly at the vane tips. Axial and radial piston pumps are the most demanding, and high-pressure piston pumps often require the cleanest oil in the system. Manufacturers publish recommended cleanliness levels, and following them is one of the simplest ways to protect warranty coverage and expected pump life.

The real cost of poor filtration

The expense of a failed pump goes well beyond the part itself. There is downtime, labor, and fluid replacement. A failing pump also sheds metal debris that contaminates the entire system, damaging valves, cylinders, and motors. In many cases, replacing the pump without flushing the system and fixing the filtration problem simply leads to a second failure. Investing in proper filtration is almost always cheaper than recovering from one catastrophic event.

How to protect your pump through better filtration?

Set a target cleanliness level

Use the ISO 4406 cleanliness code as your benchmark. It reports particle counts at three size ranges. Choose a target based on the most sensitive component in the system, typically the pump or servo valves, and then select filtration to achieve it.

Choose filters by beta ratio

Micron ratings alone can be misleading. The beta ratio, measured under the ISO 16889 multi-pass test, shows how efficiently a filter captures particles at a given size. Matching the beta ratio to your cleanliness target gives a far more reliable result than relying on a nominal rating.

Place filters strategically

• Pressure filters protect sensitive downstream components and catch pump-generated debris.
• Return line filters capture contamination before it re-enters the reservoir.
• Offline (kidney-loop) filtration polishes oil continuously, independent of system duty.
• Suction strainers protect the pump inlet but must be sized generously to avoid cavitation.

Monitor differential pressure

Fit visual or electrical differential pressure indicators and act on them. Replace elements based on condition and schedule, not only on the calendar. Be especially alert to bypass indicators.

Control ingress

Use high-quality desiccant or combination breathers, keep fill points capped, filter new oil before it enters the reservoir since fresh oil is not always clean, and maintain rod seals and wipers to keep dirt out.

Use oil analysis

Regular sampling reveals particle counts, wear metals, water content, and oil condition. Trends in the data often warn of pump wear well before performance drops, allowing planned maintenance instead of emergency repair.

Poor filtration steadily undermines a hydraulic pump from the inside, eroding efficiency, raising temperatures, and shortening service life. The damage is gradual and often invisible until a failure forces attention. By setting realistic cleanliness targets, choosing filters on proven efficiency, monitoring differential pressure, and controlling contamination at its sources, you protect the component that everything else in the system depends on.

1. What is the most common cause of hydraulic pump failure?

Contamination is widely considered the leading cause of hydraulic pump failure. Solid particles, water, and degraded oil accelerate wear, cause cavitation or aeration, and reduce lubrication, all of which are tied directly to filtration quality.

2. How can I tell if my hydraulic pump is wearing because of dirty oil?

Typical signs include slower actuator speeds, reduced pressure, rising oil temperature, increased pump noise, and metal particles in the oil or filters. An oil analysis showing high particle counts or wear metals confirms the diagnosis.

3. What micron rating should a hydraulic filter have to protect the pump?

It depends on the pump type and pressure. Many piston pumps need a cleanliness code around ISO 16/14/11 to 17/15/12, often requiring filters rated at 3 to 10 microns with a high beta ratio. Always follow the pump manufacturer's recommendation.

4. Can a clogged filter damage a hydraulic pump?

Yes. A clogged suction filter can cause cavitation by starving the pump of oil, while a clogged pressure or return filter may open its bypass valve and allow unfiltered oil to circulate. Both situations can damage the pump.

5. How often should hydraulic filters be changed to protect the pump?

There is no single interval. Replace filters when the differential pressure indicator reaches its limit, when oil analysis shows rising contamination, or at the manufacturer's scheduled interval, whichever comes first. Harsh or dusty environments call for more frequent checks.
