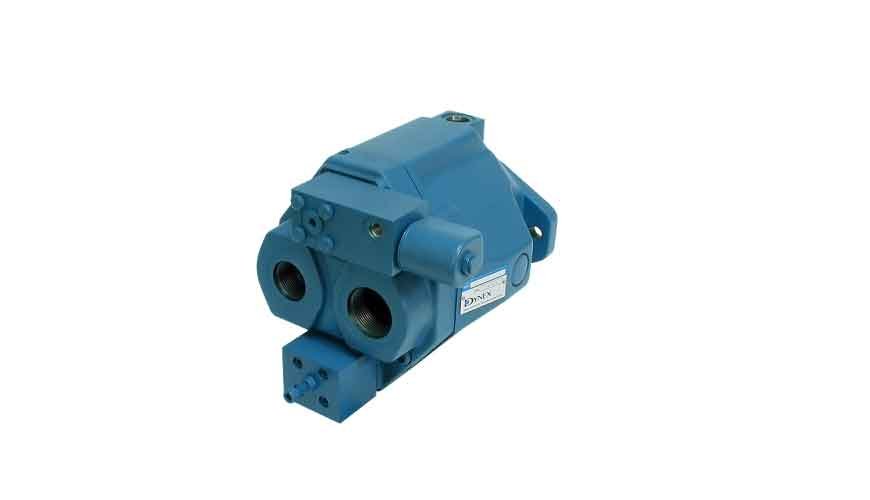

Dynex MV2000 Series Motors

Dynex MV2000 Series Motors
These medium-duty valve plate motors deliver high-torque for their compact size. These dual displacement motors provide two speeds. The cradle in these models is biased to full-stroke. Energizing the solenoid valve de-strokes the motor to its lower displacement, providing increased speed and lower torque. MV2000 comes with two shaft options Standard keyed andOptional spline.
Technical Specifications :
Motor Type : Dual speed, variable displacement.
Mounting: S.A.E. B 2-bolt pattern
Shaft Data Standard: S.A.E. B-B spline shaft:
1.000/.978 inch diameter standard
S.A.E. 15 tooth, 16/32 D.P. 30
involute spline;
Optional: S.A.E. B-B 1 inch keyed shaft,
or S.A.E. B-spline shaft
.875/.853 inch diameter standard
S.A.E. 13 tooth, 16/32 D.P. 30
involute spline.
Weight: (Mass) 57 lb (25,9 kg)
