Dynex PF500 LT Series

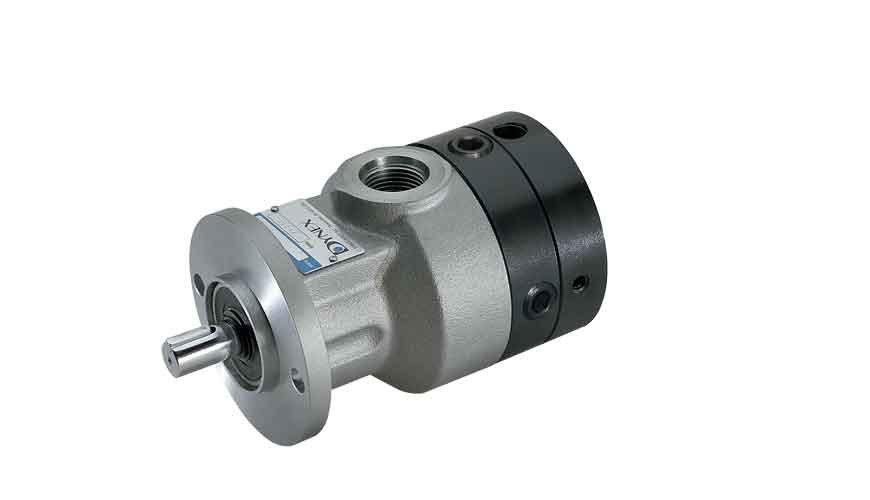

DYNEX PF500 LT SERIES
Dynex developes solutions for customers special requirements. Temperature extremes encountered in cold or high-altitude environments can pose big challenges to hydraulic systems. Low temperatures can cause hydraulic fluids to increase in viscosity and lead to damaging cavitation and seal problems. The unique checkball pump design is inherently resistant to cavitation. Dynex can configure these pumps with seal and bearing packages specifically tailored to fluid requirements and operating temperatures.
Operation down to -58ºF (-50ºc). Ideal for mineral oil based panel systems and aerospace fluids.
Used on wellhead control panel systems – Solar-powered systems – Power packs on high-torque service tools. Rated Pressure: 10 000 psi (700 bar), Maximum: 15 000 psi (1040 bar)
Rated flow: 0.21 to 0.69 gpm (0,79 to 2,59 L/min) at 1800 rpm
With high pressure capability and power requirements as low as 1.0HP at 10 000 psi (0,75kW at 700 bar), these compact & reliable pumps are ideal for wellhead control panel systems located in harsh environments.
