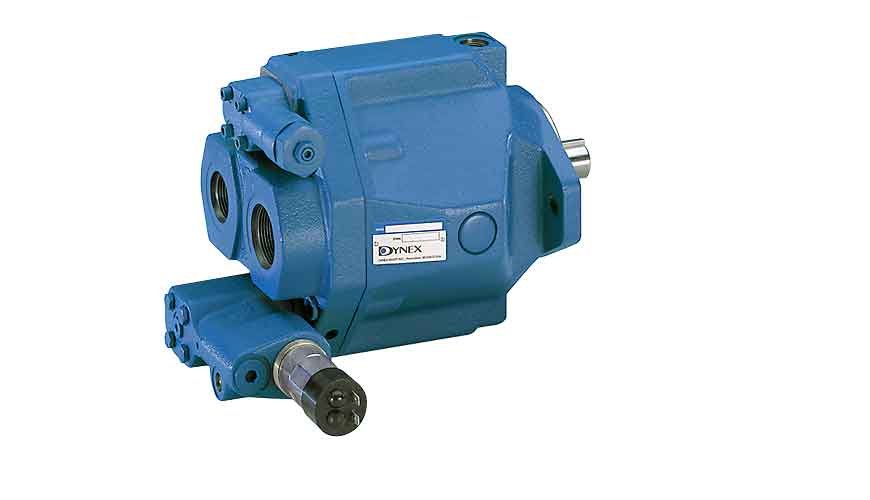

Dynex PV 2000 Series Pump

Dynex PV 2000 Series Pump
Dynex valveplate pumps and motors are used in demanding applications requiring accurate control, and resistance to dust, dirt, vibration and difficult duty cycles. PV2000 SERIES PUMPS – These pumps provide a perfect combination
of accurate electro-hydraulic control, long service life and high efficiency operation. PV2000 Series pumps, with their
durable construction yet simple electro-hydraulic design, provide long, reliable service life. Modulating pumps, with accurate output, feature a patented design requiring no additional electronic feedback. The rugged design provides dependable operation in adverse conditions including extreme heat, dirty environments and difficult duty cycles.
These pumps operate reliably in harsh operating conditions. Piston barrels treated with a special antigalling coating provide superior contamination tolerance.Internal shafts with 1 inch (25,4 mm) diameters and extra large inlet ports, for improved filling characteristics, enable these pumps to keep running under adverse conditions.

PUMP CONTROL OPTIONS
PV2000 Series pumps are available in three displacements, with a choice of controls:
Pressure Compensation
Maintains a preset maximum pressure, adjustable from 500 to 3500 psi (35 to 245 bar). These models include an integral stroke limiter for convenient adjustment of maximum pump output.

Load Sensing
Automatically provides the output required by the function at a pressure 150 to 300 psi (10,4 to 20,7 bar) higher than load pressure.

On/Off Contro
Brings pump on-stroke and off-stroke in response to an electrical signal. On/off models come with standard pressure compensator. Maximum output can be set using an integral stroke limiter control.

PUMP SPECIFICATION
Output at 1800 rpm, 3000 psi (210 bar)

Model PV2024: 17.7 U.S. gpm (67,0 L/min);
Model PV2029: 21.5 U.S. gpm (81,4 L/min);
Model PV2032: 24.5 U.S. gpm (92,7 L/min)pumps
