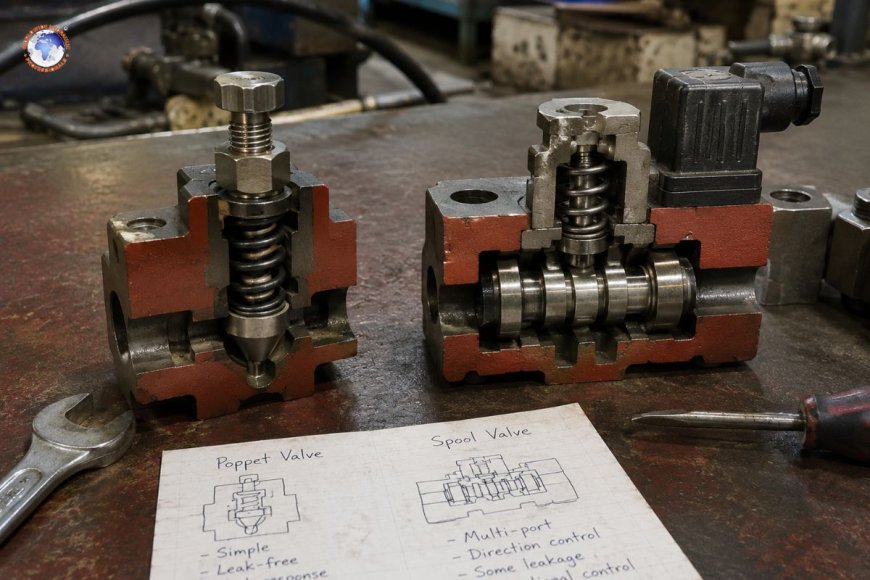

Poppet valves vs spool valves: construction and performance tradeoffs

Poppet valves utilize a ball, disc, or cone that sits directly on an orifice in order to stop the flow, providing a leak-free shutoff and fast response, and the flow path is not as complex, whereas the spool valve makes use of a spool that is cylindrical and slides inside an opening to allow and shut off multiple flow pathways simultaneously, providing the control of direction and proportion; however, there is some internal leakage through the spool's clearance. The best choice is based on the type of application, whether it's seals that are leak-proof as well as velocity (poppet) in addition to multi-port flow routing as well as metering accuracy (spool).

Hydraulic system designers have to make this issue constantly when deciding on the directional control valves and relief valves as well as the proportional valves. Both designs have years of field testing However, they are able to solve distinct issues. Understanding the differences in their construction explains how each design excels in certain situations.

How are poppet valves constructed?

A poppet valve is a moving element that is typically a cone, ball, or flat disc that sits against an orifice built into the body of the valve. When the valve is lifted from its position, water circulates around it. When it sits back down, flow ceases nearly immediately.

Mechanism to seal

The sealing in the poppet valve occurs along only one puncture point between the seat and the poppet. This line-contact geometry allows poppet valves to achieve absolute zero leakage shutoff because there's no clearance space for fluid to pass through. Manufacturers typically utilize a soft seat (PTFE, polyurethane, or an elastomer) that is pressed against a tempered metal poppet to enhance sealing under low pressures.

Action and flow path

Poppets are usually closed by spring pressure and open by the pilot pressure, a solenoid, or a direct mechanical force. Since the poppet is only required to travel a small distance before fully opening and closing, the response time is swift, typically in milliseconds of a single digit for smaller valves. But a single poppet element only controls one flow route (open/closed within two ports), and this makes poppet valves less efficient for checks or on/off functions in the event that multiple poppets are placed or incorporated into a single manifold of a cartridge.

What is the process of building spool valves?

A spool valve is a precisely ground cylindrical spool with machines for land (raised segments) and grooves within a bore that is matched to the body of the valve, with extremely precise clearances, often only several millimeters. As the spool moves in a lateral direction, the lands cover or reveal ports drilled into the wall of the bore and block or connect several flow paths at a time.

Mechanism for sealing

Spool valves depend on clearance sealing, not contact sealing. The lands aren't able to meet the bore wall; instead, the narrow clearance radial itself limits flow, which means that a tiny quantity of leakage over the land is a part of the design. This is a major compromise: the same clearance that permits smooth, low-friction sliding allows for some internal leakage, which is increased as clearances wear or the fluid's viscosity decreases in temperature.

The flow and the action

Because a single spool could contain multiple grooves and lands and grooves, one spool is able to simultaneously connect the pump port into a port for work while connecting the work port opposite to the tank—which is the foundation of the standard four-way directional control valves. This capability of multi-ports makes spool valves a preferred option for directional control as well as proportional flow metering. In this case, the spool's location (not only its closed or open state) determines the flow rate. The proportional and servo valves take advantage of this capability by making metering notches precisely contoured on the spool's land to establish a closely controlled relationship between the displacement of the spool and flow.

Performance tradeoffs in real-world situations

Efficiency and leakage

Poppet valves are the most effective in leakage control. A properly seated valve can maintain pressure for an indefinite period of time, with no internal bypass. This is crucial in situations like load-holding circuits, isolation of accumulators, or safety shutoffs, where any deviation is not acceptable. Spool valves, however, are always leaking fluid from the spool to bore clearance, even when in the closed position. For systems that have lengthy hold times when under load—for instance, a raised platform or a clamped fixture—this leakage could cause the system to drift in a way that logic elements are unable to prevent completely.

Cycling and response time

Poppet valves usually respond faster because they travel only a few inches and aren't trying to overcome friction over a long sealing land. This makes poppet designs appealing for high-cycle applications, such as pilot valves or check valves that operate in circuits that are fast-acting, as well as cartridge logic elements for mobile hydraulics. Spool valves have greater sliding friction as well as a more extended stroke time to shift fully, which can cause some delay, but properly designed spools that have balancers that are hydrostatic can still produce acceptable switching speeds to control directional flow.

Complexity and flow capacity

Spool valves manage complex, multi-port flow routing much more effectively than poppets. A single 3-way, 4-way spool valve is able to replace the need for several poppet components that are wired together using pilot logic. To control directional movement for industrial and mobile hydraulic systems, such as control circuits for steering, cylinder actuation, and motor reverse, spool valves are the most practical standard due to their compactness.

Contamination sensitivity

The valves for spools can be more vulnerable to fluid contamination due to the fact that particles can get stuck within the narrow radial space between the bore and spool, which can cause sticking or scoring. Poppet valves are able to handle contamination better because the contact area of seating is tiny and self-cleaning after each cycle, even though the hard particles that get trapped on the seat could cause damage to the sealing surfaces as time passes. This is the reason ISO cleaning standards are typically more stringent for systems that are built around proportional and servo spools.

Metering precision

For proportional flow control, spool valves offer more predictable and repeatable metering because the notch geometry on the spool land can be engineered for a specific flow-versus-displacement curve. Poppet valves can be used to control proportional throttling; however, getting the same level of metering accuracy usually requires more complicated seating and poppet profilers and results that are more difficult to maintain consistency throughout a production run.

The choice between poppet and spool designs

In reality the majority of hydraulic systems utilize both types of valves, each one performing its best. Cartridge logic elements as well as pilot-operated check valves depend on the construction of poppets for their leak-proof shutoffs, while the majority of proportional and directional control functions operate through spool valves for their flexibility across ports and the precision of metering. When deciding on a valve, the most important factors typically boil down to how crucial the holding of zero leakage is and how many flow paths require control simultaneously, the expected cycle rates, and the purity level that the system can be able to keep within the operating environment.

Poppet valves can be used to achieve the control of flow proportionally.

It's true, but it's not as popular. Proportional poppet valves utilize an elongated seat or a poppet profile to establish an inverse flow-to-lift relationship that is controlled; however, to achieve the same level of linearity and consistency as a spool valve requires more precise manufacturing tolerances.

How come spool valves let go even when they are closed completely?

Spool valves secure themselves by using an extremely tight radial clearance, not direct contact between the mating surfaces. This clearance is essential for the spool's ability to slide without restriction, but it also causes a slight flow of leakage that grows when the clearance gets worn out or the fluid's viscosity decreases.

Which type of valve is best suited for hydraulic circuits with high pressure?

Poppet valves are typically used for sealing applications that require high pressure, like relief valves and load-holding tests, due to their contact-seal design keeping pressure with no drift. Spool valves can be found in high-pressure circuits, too, but mostly to control directional and proportional controls instead of static sealing.

What is the effect of fluid contamination? influence the spool valve's reliability?

Spool valves are more susceptible to contamination due to the fact that particles could be trapped in the radial clearance, causing scoring or sticking to the bore. Poppet valves are a bit more resistant to contamination because their seating area is tiny and it is replaced on every cycle, even though hard particles may still harm the seat.

Are valves for cartridges poppet or spool types?

The majority of hydraulic cartridge valves utilize poppet-style valves because they provide quick response and reliable leakage shut-off in a compact screw-in box, which makes it ideal for logic applications such as check, relief, or sequence valves.
