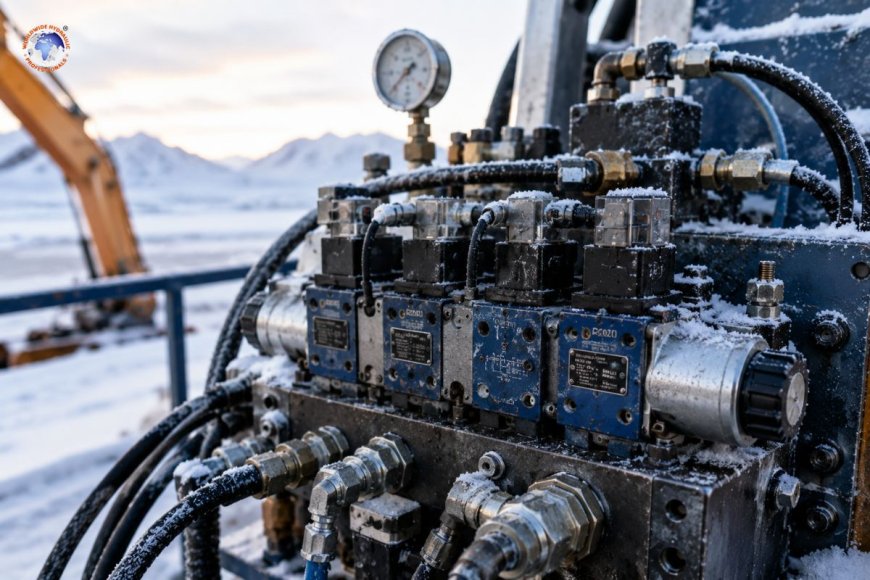

Valve selection for cold-climate and arctic hydraulic systems

Selecting the right hydraulic valves for cold climates and arctic operations will require prioritizing low-temperature seals (FKM low-temp grades, HNBR, PTFE, or PTFE) as well as confirming the clearances of spools and poppets for cold-start viscosity, selecting valves that are rated for temperature shock, and making sure that the actuation system (solenoids or pilots) can function with a high degree of reliability under temperatures of -40°C or less. Standard industrial valves designed for normal ambient ranges could fail, leak, or completely fail in arctic conditions, which makes the materials and clearance specifications the primary factor in determining performance.

Hydraulic systems that operate in Arctic Canada, Siberia, Scandinavia, or high-altitude mining areas face an entirely different problem in engineering than systems operating in temperate climates. Valves are usually one of the components that fail first in extremely cold temperatures, not because of a catastrophic injury; however, they are prone to subtle variations in the seal's elasticity, the viscosity of the fluid, and also material tolerances that result in adhesion, leakage, or even complete loss of functionality. This article outlines the fundamental selection criteria for directional proportional or pressure control valves used in subzero and Arctic-rated hydraulic systems.

Why do colder climates violate the standard valve theories?

The majority of industrial valves are designed and tested using an operating temperature range of 20°C to 80°C. Arctic and cold-climate systems typically have ambient temperatures of between -40 and -55 degrees Celsius The cold-starting conditions can be falling even further before the valve generates operational heat. In these conditions three failure mechanisms control the valve's performance:

• Seal embrittlement: Elastomers lose their flexibility and are susceptible to cracking or losing the force of sealing as they reach the glass-to-glass transition temperatures.
• Viscosity-driven sticking at -40°C may be a thousand centistokes thicker than operating temperature and dramatically increase the force needed to move the spool or lift the poppet.
• Differential contraction: Materials that are not identical (steel bodies, aluminum housings, seals made of elastomer) expand at varying rates. This can either cause seal preload to be loosened or cause binding in close tolerance moving components.

The valve you choose for Arctic duty must be assessed against all three failure scenarios, not just one.

Seal Material Selection: The First final decision point

The choice of seal compound is the only major option in the cold-climate valve selection.

FKM (Fluorocarbon) Low-temperature grades

Standard FKM is not able to perform well below -20°C. However, the special low-temperature FKM formulations allow us to operate at a temperature of -40°C while keeping the resistant chemical properties FKM is well-known for. They are a good middle option when compatibility with conventional hydraulic oils is an important consideration in addition to cold performance.

HNBR (Hydrogenated nitrile)

HNBR provides a great balance of low-temperature flexibility, usually at -40°C. It is paired with an extremely strong resistance to the compression setting and excellent mechanical strength under cyclic loads. It's the most popular option for valves on mobile equipment that operate within northern latitudes.

FFKM and other low-temp elastomers that are specially designed for use in the field.

For the most extreme conditions at temperatures below -50°C perfluoroelastomer blends and silicone-based compounds could be required, but they typically compromise the chemical or mechanical resistance. Silicone seals, in particular, provide excellent flexibility at low temperatures; however, they are not able to provide extrusion or abrasion resistance at high pressure.

Seals made of PTFE or PTFE-composite

PTFE-based seals are particularly useful in spool and cylinder applications, provide dimensional stability, have low friction over an extremely broad temperature range, and do not have the same embrittlement curves as elastomers. Many valve packages that are rated for Arctic use include a PTFE backup wear ring, along with an elastomeric energizer seal that is rated to the temperature of the intended application.

Poppet and Spool clearance issues

Viscosity at cold start is often the least-known aspect of arctic valve selection. A valve may have appropriate seals, but it will fail to change if the clearances weren't made with cold-start fluid performance in mind.

• The increased spool-to-bore clearance is often used for arctic systems to decrease the risk of a hydraulic lock or drag in cold start-ups, but this has to be balanced against the possibility of increased internal leakage after the system has reached operating temperature.
• Poppet-style valves typically manage cold-start viscosity better than spool valves with tight fittings due to their seating force, not tight sliding tolerances, which makes them the most popular option for primary checks and relief functions within Arctic systems.
• Pilot-operated valves are particularly to be scrutinized, as the flow of pilots at high viscosity might not be enough to move the main stage rapidly, which can result in slow or no actuation in the first few minutes of operation.

Electrical and Actuation considerations

The directional valves operated by solenoid introduce further cold-climate risks that go beyond the seal for hydraulics and clearance concerns.

• Ratings for coils: Coils need to have a valid certification or performance rating that covers the desired low temperature range, as conventional coils may experience less pull force when temperatures are extremely cold, especially when greater forces are required to shift the spool, which is stiff and cold.
• Connector and wire materials The standard PVC-jacketed wire is brittle when exposed to cold in the arctic. Cables and connectors designed for service in arctic temperatures (often silicone or special thermoplastic jackets made of elastomer) protect against field failures that are not related to the valve.
• Manuel overrides Arctic valve requirements often call for a manual override to be used as a fallback option if the solenoid performance is impaired during extreme cold-starting conditions.

Material for the body of the valve and thermal resistance to shock

Rapid temperature fluctuations like the movement of a valve block from a heated room to the ambient air or arctic, or a hydraulic fluid that is heating up rapidly in the initial phase, cause thermal shocks that conventional cast iron or steel bodies of lower grade may not be able to handle over repeated cycles. Ductile iron and some alloy steel bodies have superior fracture strength at lower temperatures than standard casting iron in grey, which may be more brittle under cold environments. For applications that require extreme care, the body material testing data for impact tests at the temperature that is intended for operation is worth asking for directly from the maker.

System-level mitigations to support the valve selection

Valve selection doesn't happen in isolation. Many design choices at the system level reduce the pressure placed on valves individually:

• Fluid choice: Pairing arctic-rated valves with hydraulic fluid that is designed for service at low temperatures (high viscosity index and low pour point) helps reduce the likelihood of sticking caused by viscosity, as mentioned in the previous.
• Tank and case heaters Immersion or in-line heaters that increase fluid's viscosity to a minimum viscosity prior to full-pressure operation decrease the strain on valve components that cause cold starts.
• Staged startup processes A lot of arctic equipment operators employ low-flow, lower-pressure warm-up cycles prior to granting full authority to the valve, allowing seals and fluids to reach an easier operating state slowly.

Selecting between standard and arctic-rated valve packages

Certain applications in cold climates do not require the full-arctic-rated equipment. In general, you should:

• -20°C to 30°C Standard valves that have the low temperature FKM as well as HNBR seals are usually sufficient for the application, especially if it includes heaters for tanks or staged start.
• 30°C to -45°C: Designed-for-use cold-climate valves with HNBR or PTFE-composite seals. Larger spool clearances and solenoid coils that are cold-rated are typically warranted.
• Below -45°C: Full-arctic-certified assemblies using special elastomers, documents of low-temperature body material testing, and arctic-rated wire should be outlined, along with warming-up procedures at the system level as a requirement for standard operation.

Which is the smallest temperature that a standard valve can function at?

The majority of industrial valves that have standard NBR as well as FKM seals lose the seal's reliability between -20°C and -25°C, but the exact limit is dependent upon the particular elastomer and the valve's design.

What type of seal is ideal for arcing the valves of hydraulics?

The HNBR, as well as the low-temperature FKM, are the most common options for temperatures up to around -40°C. In contrast, PTFE-composite seals and special elastomers such as silicon or FFKM blends are employed in more extreme temperatures below -50°C.

Can solenoid valves operate effectively in cold temperatures?

Solenoid valves are able to function reliably under arctic conditions, provided that the wiring, coil, and connectors are rated with a low-temperature certification, as conventional coils can have a lower pull force, and wiring can be brittle in extreme cold.

Why do valves for hydraulics remain stuck in cold starts?

Cold starts can increase the viscosity of hydraulic fluids dramatically and increase the amount of force required to move the spool or raise poppets. It can also cause an insufficiency or slow actuation of the valve until the system has reached an operating temperature that is more accommodating.

Are poppet valves superior to spool valves in colder climates?

Poppet valves typically tolerate cold-start viscosity much better than spool valves since they depend on seating force instead of close sliding tolerances. This makes them an ideal option for check and relief features in arctic-rated systems.
