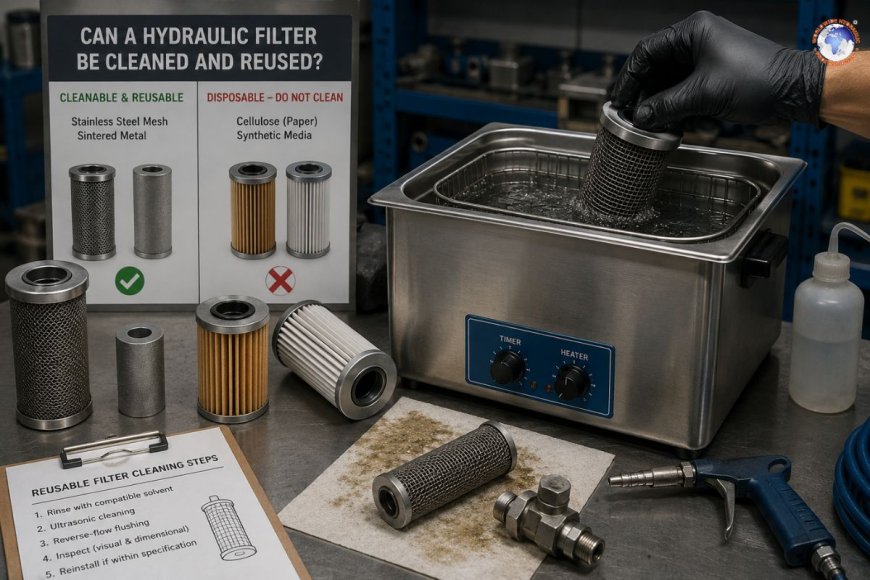

Can a hydraulic filter be cleaned and reused?

The majority of filters for hydraulics are created to be used only once and then disposed of; that is not for cleaning or reuse. Synthetic and cellulose filters lose their structural integrity as well as their efficiency in filtration once they are contaminated; cleaning them can damage the media or deposit particulate matter within the pleats. But certain types of filters, such as stainless steel wire meshes and a few sintered metal cartridges, are specifically designed for cleaning and frequent use. The correct answer is based on the type of filter media and not on the general practices throughout the hydraulic industry.

This distinction is more important than it may appear. Removing a filter that is reusable unnecessarily costs money, whereas cleaning and reinstalling a disposable component could cause catastrophic contamination to the system, resulting in problems with the pump or valve sticking or the cylinder scoring. The classification a filter is placed in is an essential but crucial maintenance choice.

Why are the majority of hydraulic filters only used once?

A majority of the hydraulic filters used in circulation, regardless of whether they're suction strainers or return line filters or high-pressure filters inline, make use of disposable media. The two most popular types are the cellulose (paper) media and synthesized materials (typically glass fibers or a glass-synthetic mix).

Cellulose media filters are affordable and effective in capturing particles, but the structure of the fiber is not abrasive mechanically. When contaminants and oil enter the fibers of cellulose, the material expands slightly and the pore shape changes to become irregular. The attempt to backflush or solvent wash the cellulose structure is rarely able to restore the original pore shape, and the process often forces trapped particles further into the medium rather than taking them out. There is also the chance of fiber degradation, in which tiny pieces of cellulose are released to the water stream while cleaning and can contaminate the system that you are trying to safeguard.

Synthetic media filters are more resistant to chemical attack than cellulose; however, they have the same fundamental issue: the fine-fiber matrix that provides synthetic media with their high dirt-holding capacity and the tight micron rating is not designed to withstand mechanical cleaning. Solvent baths, compressed air, or ultrasonic cleansing can remove embedded particles for a short time, but they also alter the fiber lay-down, resulting in small spots or channels in which the filtering efficiency decreases below the initial beta rating. A filter damaged in this manner may appear good, but it will not function as it should according to its rated microns, which is not the point of including it inside the circuit in any way.

For both synthetic and cellulose elements that are disposable, the expense of cleaning work along with the solvent and danger of insufficient removal of contaminants usually exceeds the cost of purchasing a new component. This is the reason OEMs and filter makers almost all the time specify disposable elements as single-use, non-cleanable components.

Filter types made for cleaning

Reusability is now a viable option when you have two distinct media types.

Wire mesh made of stainless steel filters employs a sintered or woven mesh structure that is strong enough to stand up to multiple cleaning cycles. These filters are typically found in suction strainers, low-pressure return filters, and other hydraulic systems where coarse filtering (typically 60-200 microns) is enough. Since the mesh structure does not dissolve in the presence of solvents or ultrasonic agitation, these components are able to be cleaned dozens, perhaps hundreds, of times without losing their pore size. insofar as the cleaning procedure does not physically alter the mesh.

Sintered metal (powder metal) filters are created using the process of fusing metallic particles together to form an impermeable structure. They are utilized in high-pressure applications in which finer filtration is required along with mechanical strength. Sintered materials can withstand extreme cleaning techniques, like reverse-flow flushing and ultrasonic baths, since the sintered bond keeps the structure in place even when subjected to repeated mechanical and thermal stress.

Both types of media are explicitly promoted by manufacturers as being cleanable, and their datasheets often contain a cleaning guideline and a maximum count of cycles or a condition-based replacement guideline.

How do you properly clean an element of a filter that can be reused?

When a filter has been confirmed to be as cleanable, the procedure follows a couple of consistent steps:

The element must first be rinsed in a solvent that is compatible to get rid of the bulk surface contaminants prior to any intensive cleaning. Utilizing a solvent that's compatible with the substrate of the metal as well as any residual hydraulic fluid will prevent chemical reactions that can damage or discolor the mesh.

The second is that ultrasonic cleansing is the best and most efficient method of removing particles that are embedded within the weave or pore structure. High-frequency cavitation damages the bond between the contaminant and the metal surface without needing contact with an abrasive. Cleaning time varies based on the severity of contamination; however, excessive cleaning reduces return and could cause wear that is not needed.

Third reverse-flow flushing, which pushes compressed air or clean fluid through the mesh in a direction that is opposite from normal flow, can help clean particles that ultrasonic cleansing alone may not remove, especially in deeply pleated or multi-layer mesh designs.

Fourth, which is often left out, is a visual as well as dimension-based inspection with magnification or using a pore size verification technique. Even filters that are mechanically strong are prone to degradation over a number of cleaning cycles. Mesh may stretch a bit, sintered structures may develop micro-cracks, and the seal surfaces may wear. Clean filters that have been checked visually and verified to be in compliance are safe to put back in place, but one that's not examined is a risk.

What happens if you reuse the same filter?

In the field, especially when working in remote areas such as construction sites, agricultural equipment or mobile hydraulic equipment There is a possibility of cleaning and reusing the cellulose or synthetic filter, which is common, mainly because the replacement won't be readily available. The potential risks associated with this are real, not theoretical. A damaged filter that has tiny areas of damaged media permits unfiltered oil to flow through the system. Because of how tightly the clearances of modern hydraulic components' proportional valve spools usually run, clearances are measured in single-digit microns. Even a short period of flow that isn't filtered could introduce particles that could cause valve sticking, higher hysteresis, or accelerated wear on the surfaces of the cylinder and pump.

If a filter that is disposable has to be reused for a period of time because of logistical reasons, the filter should be used as a temporary measure and with a plan to replace it as soon as possible and, ideally, with a more frequent inspection of the cleanliness of the system and frequency, for instance, frequent oil samples against ISO 4406 cleanliness targets.

How do you know which type you're dealing with?

Filter housings or labels are the most trustworthy sources. Manufacturers usually place the media's type directly on the element's end cap or in the datasheet. Visually, cellulose is paper-like and is often pleated in the off-white or tan colors. Synthetic media offers a smoother pleated look, with a more uniform pleated appearance, typically either light or white. The mesh of stainless steel is clearly metallic and woven. Sintered metal pieces have a sturdier, more porous metallic surface that are not pleated structures.

If there's any doubt, then comparing the part's number against the catalog of the manufacturer is the most reliable way to go. Cross-referencing can also verify the rated number of microns and the beta value, data that is required for maintenance of the system.

Reusing and cleaning the hydraulic filter is suitable if the type of media explicitly allows it. Sintered and stainless steel mesh metal components are able to be cleaned and reused numerous times, provided that proper methods, such as ultrasonic cleaning and reverse-flow flushing, as well as post-clean inspections, are adhered to. Synthetic disposable and cellulose elements shouldn't be cleaned or reinstalled in normal conditions. The financial savings are small in comparison to the risk of contamination they create. The main factor that determines the decision isn't ease of use or cost at the present, but rather the chemical and structural properties that the media filters.

Can I clean the paper hydraulic filter using solvent and then reuse it?

No. Cellulose media deteriorates in structural integrity when it is exposed to solvents or mechanical cleaning. Washing usually pushes the contaminant deeper into the fibers than eliminating it.

The number of times that the stainless steel filter mesh is washed?

It varies based on the manufacturing company and operating conditions; however, many mesh components are able to be cleaned several times by regularly checking for deformation or stretching. Look up the datasheet of the manufacturer for the specific cycle recommendations.

Ultrasonic cleaning is completely safe for all filters?

It's generally safe to use sintered steel and sintered metal mesh; however, the time for cleaning and compatibility with solvents should be in line with the instructions of the manufacturer to avoid damaging or pitting the structure.
