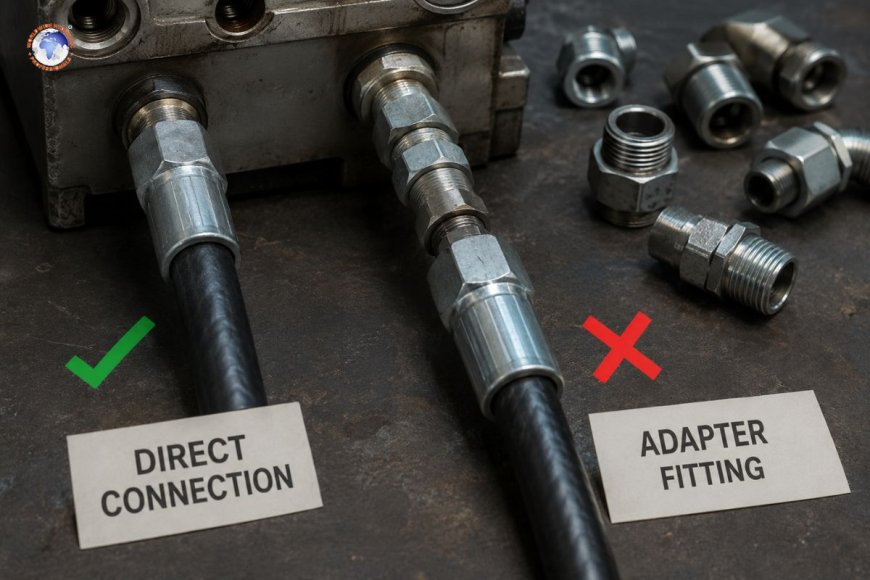

Adapter fittings vs direct connections: when adapters are the right choice

Utilize direct connections (matched thread-to -thread or port to hose fitting) in the event that the system design permits it, since it reduces loss points as well as pressure drop. Use an adapter fitting when you require a connection between dissimilar thread specifications (e.g., BSPP to NPT, JIC to ORFS) to correct an error or retrofit new components to the existing structure, or alter port sizes without redesigning the manifold or the cylinder. Adapters are a compromise to design that trades a tiny amount of leak risk and loss of pressure for ease of repair and speed of repair and cross-standard compatibility. the ideal choice when constraints, not preferences is the primary factor driving the choice.

Why is this question more important than it appears?

The hydraulic circuits are a string of connections. Every connection can be a potential leak point. Selection of the fitting is usually treated as a last resort after it is "real" engineering—size of the cylinder and valve selection, calculation of flow—are completed. However, in the field an overwhelming majority of hydraulic malfunctions are due to connections and not components that fail. Making the choice between a direct connection and an adapter is one of the most crucial "small" decisions in a system's reliability profile.

The confusion typically begins because both choices are technical "work." Direct connections as well as an adapter-based connector can both hold pressure and allow flow to pass. The difference is evident in long-term maintenance costs as well as the frequency of leaks and the ease with which the system can be repaired or modified in the future.

What is an actual connection?

Direct connections join two parts using thread shapes and sealing techniques without an intermediary piece. Examples include:

• A hose's end is crimped directly to match the SAE port thread
• A tube fitting is either welded in straight or brazed into manifold
• A cylinder port threaded fit the exact style as specified by the OEM. OEM

Direct connections limit the number of sealing surfaces within the joint. Fewer surfaces mean fewer chances for damage to the thread and seal degradation or leaks resulting from torque. They also have a smaller total fitting stack that minimizes pressure drop and makes the whole assembly smaller—an important aspect in mobile equipment in which space around cylinders and valve blocks is limited.

What is considered to be the fitting of an adapter?

The adapter fitting is placed between two components to make a reversal, for example, of thread standard size, gender, or the direction of. The most common types of adapters are:

• Thread converters: BSPP-to-NPT, JIC-to-ORFS, metric-to-SAE

• Expanders and reducers: Stepping up a 3" port down to a 1/2" hose line

• Tees and elbows are utilized solely for routing and not for flow control

• Swivel adapters which allow the hose to rotate, easing twists during installation

Adapters are used to join the system. The joint is functional, but it's by definition another area where seals can fail, a thread could be swollen or an installer may overload or under-torque a connection.

If direct connections are the preferred option?

If each side of the connection is using identical thread standards, direct connection is the default. This is especially true in the following:

New system builds. When you design an entire new circuit, make sure you specify that the threads are compatible across valves, cylinders, and hose ends as often as you can. This is the one area in your project where the choice of not using adapters completely is totally in your hands.

High-pressure, high-cycle applications. Press hydraulics, presses, injection molding presses, as well as other systems operating at constant high pressure and frequent cycling, benefit from having fewer joints. Each seal added is an additional stress exposure.

Mobile equipment that is space-constrained. Adapters add length and occasionally weight to connections. In manifolds for valves that are compact or tight cylinder rod-end zones the stack-up may create clearance issues or awkward angles for hose routing.

Vibration-heavy environments. More joints means more potential places for vibrations to cause a connection to break in time. The agricultural and off-highway equipment particularly benefits from the smallest possible connections between the actuator and the pump.

Are adapters the best option?

Adapters are able to be part of the system due to particular, consistent reasons, and they are not a standard behavior.

Conciliating thread standards that are not compatible

Hydraulic systems constructed using components from different regions or by manufacturers typically combine thread standards. A European-designed power unit coupled with North American-built cylinders could mix BSPP ports and JIC end hoses. Re-tapping or replacing a complete component in order to not require an adapter's cost is rarely feasible. An adapter in this case isn't a compromise; it's the only option.

Retrofits and system upgrades

If you are adding a valve or sensor into an existing system the thread specification of the new component might not be compatible with the one already installed. Adapters allow you to connect new components without affecting the original manifold, or replacement of components that are operating perfectly. This is among the most commonly used and legal uses for adapter fittings.

Field repairs are awaited under pressure.

If a fitting fails in the field and the exact replacement component isn't readily available, an adapter paired with a stock, more regular fitting can bring back uptime instantly. This is a feasible short-term (and usually longer-term) alternative if the adapter is designed for the system's working pressure and installed properly.

Port size changes

Moving from a bigger manifold port to a smaller diameter hose or vice versa is a common practice in circuit design, particularly when a single high-flow supply line splits into smaller lines for actuators. Reducer adapters can handle this step without hassle and does not require customized components.

Correction of orientation and routing limitations

Adjusters for elbows and swivels solve the real issues of installation: reducing twist in hoses, routing through obstructions, or creating an angle that a rigid connection can't allow. When used in this manner, an adapter doesn't conceal a design flaw; it's actually preventing one (hose stretching or premature fatigue due to a bend).

Taking the correct adapter choice

All adapters are not made in the same way. The distinction between an adapter that can solve an issue and one that causes the possibility of a leaky point that is persistent usually boils down to three elements:

1. Pressure rating matches. The adapter has to be rated according to the maximum pressure that it can work at not just what is the pressure nominally of the better-rated side.
2. Checking thread compatibility. Threads that look similar (like BSPP and NPT) are not interchangeable. Utilizing the wrong adapter or forcing a thread that is not compatible is the most common reason for adapter-related problems.
3. The proper sealing technique and torque. The adapters that combine different seal philosophies (face seal vs. tapered thread) require the appropriate sealant washer, O-ring, or washer to be used for the particular combination, not a generic approach derived from a different type of fitting.

If these three aspects are taken care of, the adapter fitting can function effectively for the duration of the equipment. If they're not addressed, adapted fittings become the primary source of hydraulic leaks that are preventable within the system.

Direct connections ought to be the standard when compatibility with components allows it. They reduce joints, minimize leak risks, and make it easier to perform maintenance. Adapters aren't a less desirable option, they're the right option for engineering when thread standards are different for retrofitting existing systems, responding to repairs in the field or when routing or port size constraints require that it. It's not about avoiding adapters entirely, but to be careful when using them ensure compatibility thoroughly, and treat every adapter connection with the same care to the pressure rating and sealing technique like any other connector within the circuit.

Do fittings for adapters lower the hydraulic system's maximum working pressure?

The adapter's rating for pressure is determined by its lowest-rated component, not by the fittings in the system. Always choose an adapter with a rating over or equal to the maximum working pressure of the system and not only the nominal pressure of the higher-pressure part of the connection.

Can I connect an BSPP adapter with an NPT port or reverse the process?

No. BSPP as well as NPT threads have different dimensions even though they look similar. Forcing one to the other causes damage to threads and can cause leaks. Make sure you use an adapter made to switch to the other standard.

Are fittings for adapters more susceptible to leaks than direct connections?

It's not a necessity, but every adapter provides an additional sealing surface, and the more adapters you have in your stack will increase the chance for leaks. When properly rated and torqued, adapters are as reliable in direct connection.

What is the best time to stop making use of an adapter and try re-engineering to connect instead?

In high-pressure, high-cycle applications such as press hydraulics or in mobile equipment with limited space where stack-ups can cause difficulties with the clearance of components, it's typically recommended to select components that match instead of relying on adapters for the long term.

Do swivel adapters affect hose life?

Swivel adapters are used to prolong the lifespan of hoses by eliminating twisting caused by installation. This is the most common reason for premature fatigue of hoses and cracking in the cover.
