What testing methods verify hydraulic fitting pressure integrity?

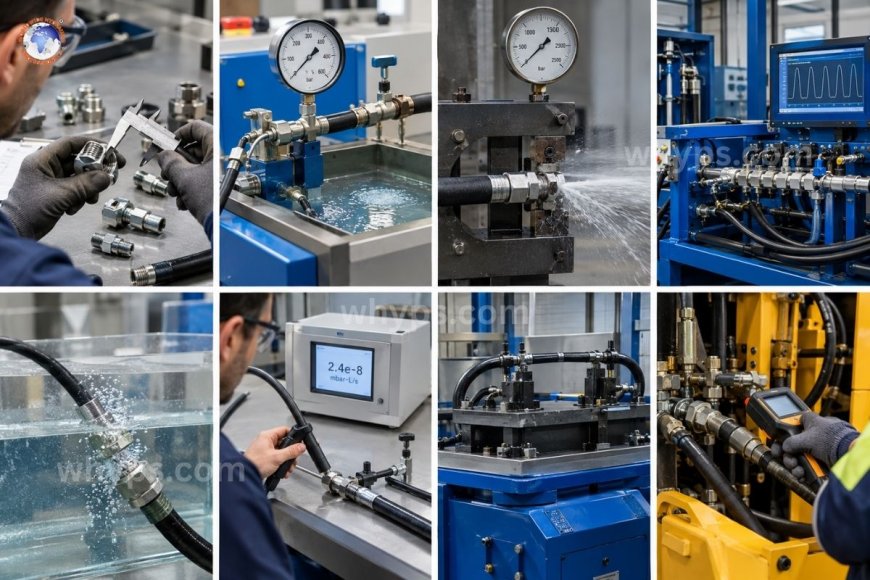

Hydraulic fitting pressure integrity is verified through a combination of visual and dimensional inspection, hydrostatic proof pressure testing, burst testing, pressure cycling (impulse) testing, leak detection (pressure decay, bubble, and helium methods), and vibration testing. Proof and leak tests confirm that every assembly holds pressure without leaking, while burst and impulse tests confirm that the design carries an adequate safety margin and fatigue life. A hydraulic fitting is a small part carrying a large responsibility. A single weak connection can cause fluid loss, contamination ingress, unplanned downtime, or a high-pressure injection injury. Because failures rarely announce themselves in advance, engineers rely on structured testing to prove that fittings, tube connectors, and hose assemblies can handle the pressures they will actually see. This guide explains the main testing methods, what each one proves, and how to choose the right combination for your application.

Why pressure integrity testing matters?

Hydraulic systems routinely operate at hundreds of bar, and pressure spikes from valve switching, cylinder deceleration, or pump pulsation can push momentary pressure well above the nominal setting. A fitting that looks perfect can still hide a thread defect, a damaged seal, a poor crimp, or a material flaw.

Testing serves three distinct purposes:

• Design validation: proving a fitting design meets its rated working pressure and safety factor.
• Production quality control: confirming that each manufactured or assembled unit is leak-free.
• In-service verification: checking installed fittings after installation, repair, or maintenance.

Understanding which purpose a test serves helps you avoid relying on the wrong test for the wrong question.

1. Visual and dimensional inspection

Before any pressure is applied, fittings should be inspected. This is not a pressure test, but it prevents many failures that pressure testing would otherwise have to catch.

What inspectors check

• Thread form, damage, and burrs using thread gauges
• Sealing surfaces such as cone seats, O-ring grooves, and face-seal flats for scratches or nicks
• Plating condition and signs of corrosion
• Correct material, size, and thread type markings
• Crimp diameter on hose assemblies, measured against the manufacturer's specification

A scratched sealing face or a mismatched thread type (for example, forcing a BSPP fitting into an NPT port) will often fail a pressure test, so catching these issues early saves time and prevents damaged equipment.

2. Hydrostatic proof pressure testing

Proof testing is the most widely used production test. The assembly is filled with liquid, usually water-based fluid or hydraulic oil, purged of air, and pressurized to a defined multiple of its rated working pressure. For many hose assemblies and fittings this proof level is commonly twice the working pressure, although the exact value depends on the governing standard and the product.

How it works

1. Connect the assembly to the test stand and fill it completely, venting all trapped air.
2. Raise pressure gradually to the specified proof level.
3. Hold for a defined dwell time, often 30 to 60 seconds or longer.
4. Inspect for leaks, weeping, swelling, or movement of the fitting on the hose or tube.
5. Release pressure slowly and record the result.

Why liquid is preferred

Liquids are nearly incompressible, so they store very little energy. If a fitting fails during a hydrostatic test, the release is relatively contained. This makes hydrostatic testing far safer than testing with compressed gas at similar pressures.

3. Burst pressure testing

Burst testing is a destructive test used to verify design margin. Pressure is increased steadily until the fitting, hose, or connection fails. The burst pressure is then compared with the rated working pressure.

Many fluid power products are designed with a safety factor of around 4:1 between working and minimum burst pressure, though this varies by product type and standard. Burst testing is typically performed on sample units from a production batch or during design qualification, not on every unit, because the test destroys the part.

What burst tests reveal

• The actual failure mode: thread stripping, body rupture, or fitting blow-off from the hose
• Whether material and wall thickness match the design intent
• Consistency between production lots

The failure location matters as much as the number. A fitting that blows off a hose at a lower-than-expected pressure points to a crimping or ferrule problem rather than a body-strength problem.

4. Pressure cycling and impulse testing

Static pressure does not reflect real operating conditions. Hydraulic systems pulse constantly, and repeated pressure cycles cause metal fatigue, seal wear, and gradual loosening. Impulse testing addresses this by cycling pressure between low and high values thousands or hundreds of thousands of times, often at elevated fluid temperature.

Standards such as SAE J343 for hose assemblies and ISO 19879 for metallic tube connections specify cycling profiles, pressure levels, and pass criteria. A fitting that passes a proof test can still fail an impulse test, which is why fatigue life should be validated separately for demanding applications such as mobile equipment, presses, and injection molding machines.

Typical failure modes found

• Fatigue cracks at thread roots or tube flares
• Seal extrusion or compression set
• Progressive leakage after thousands of cycles
• Hose wire fatigue near the fitting collar

5. Leak detection methods

A fitting can hold proof pressure without visible dripping yet still have a small leak that matters in sensitive systems. Several methods detect leakage with increasing sensitivity.

Pressure decay testing

The assembly is pressurized, isolated, and monitored. Any drop in pressure over a set time indicates leakage. This method is easy to automate and widely used in production, but temperature changes can mimic small leaks, so test conditions must be stable.

Bubble (immersion) testing

A low-pressure air or nitrogen test is performed with the fitting submerged in water or coated with leak-detection solution. Streams of bubbles reveal the leak location precisely. Because compressed gas stores significant energy, pressures are kept low and safety shielding is essential.

Helium mass spectrometer testing

For critical applications, the assembly is filled with helium and scanned with a mass spectrometer. Helium atoms are tiny, so this method detects leak rates far below what oil or bubbles can reveal. It is more common in aerospace, semiconductor, and precision industrial applications than in general hydraulic maintenance.

Ultrasonic leak detection

Escaping fluid or gas produces high-frequency sound. Handheld ultrasonic detectors can locate leaks on installed systems without shutting down, which makes them useful for in-service checks.

6. Vibration and mechanical testing

Fittings on mobile machinery and pump-driven systems experience constant vibration. Vibration testing mounts the assembly on a shaker while pressurized, checking for loosening, fretting, or leakage. Related mechanical tests include torque verification, pull-out or tensile testing of crimped connections, and bend or flex tests where hose movement is expected.

7. In-service verification after installation

Factory testing does not guarantee a correct installation. After fitting a new connection or repairing a circuit, technicians should confirm integrity before returning the system to full duty.

Recommended practical steps

• Verify the fitting type, thread, and rating match the port and system pressure.
• Tighten using the manufacturer's torque values or flats-from-wrench-tight method rather than guesswork.
• Bring the system up to pressure gradually.
• Inspect connections while the system is pressurized, using cardboard or a leak-detection tool rather than bare hands, since pinhole leaks can inject fluid through skin.
• Re-check after the first operating cycles and after thermal stabilization.

Choosing the right testing combination

No single test answers every question. A practical approach matches the test to the risk.

• General industrial hydraulics: visual inspection, proof testing, and an in-service leak check.
• Mobile and heavy equipment: add impulse and vibration validation for fatigue life.
• High-pressure or safety-critical systems: add burst sampling, pressure decay, and documented traceability.
• Ultra-low leakage requirements: include helium or similarly sensitive methods.

Whatever the combination, document results. Test records support warranty claims, audits, and root-cause analysis if a failure later occurs.

Safety precautions during testing

Pressure testing is hazardous if handled carelessly. Always use rated test equipment, shielding, and calibrated gauges. Never test with unsecured assemblies, and never use compressed gas at high pressure for convenience. Keep personnel clear of the assembly during pressurization, and depressurize fully before adjusting any connection.

Verifying hydraulic fitting pressure integrity is a layered process. Inspection prevents obvious defects, proof testing confirms leak-free performance, burst testing validates safety margin, impulse testing proves fatigue life, and leak detection and vibration tests reveal subtler weaknesses. Matching these methods to your operating conditions, and following recognized standards, is the most reliable way to keep hydraulic connections safe, dry, and dependable.

1. What is the most common test for hydraulic fitting pressure integrity?

Hydrostatic proof pressure testing is the most common. The assembly is filled with liquid and pressurized above its working pressure, then checked for leaks or deformation.

2. What is the difference between proof pressure and burst pressure?

Proof pressure is a non-destructive test level that the fitting must withstand without leaking or deforming. Burst pressure is the level at which the fitting actually fails and is tested destructively on samples to confirm the safety factor.

3. Why is hydrostatic testing safer than pneumatic testing?

Liquids are nearly incompressible and store little energy, so a failure releases far less force than a failure with compressed gas. This is why hydrostatic testing is preferred at high pressures.

4. How does impulse testing differ from static pressure testing?

Impulse testing repeatedly cycles pressure to simulate real operating pulses and reveal fatigue failures. Static testing only confirms the part holds a steady pressure for a short time.

5. Should hydraulic fittings be tested after installation?

Yes. Even factory-tested fittings can leak if installed incorrectly. Bring the system up to pressure gradually, inspect each connection safely, and re-check after the first operating cycles.
