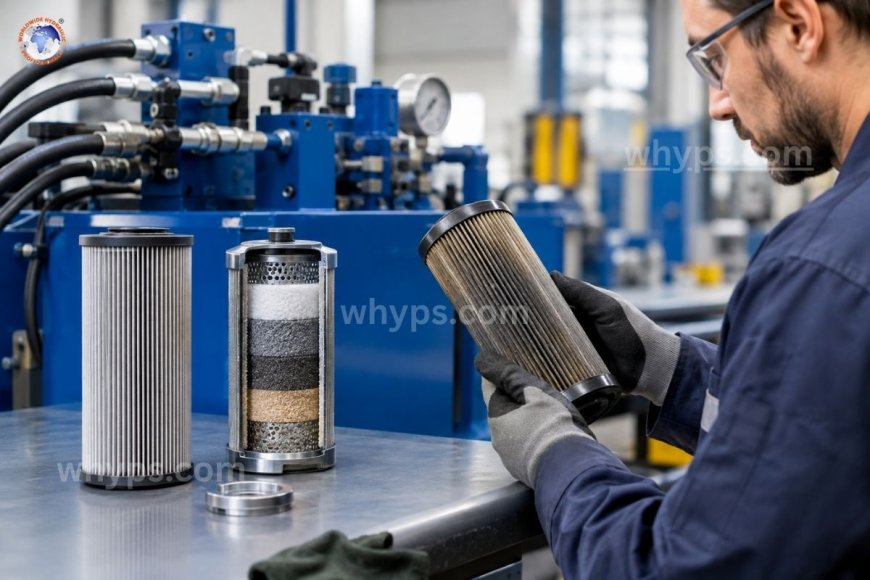

How do modern filter elements improve equipment reliability?

Modern hydraulic filter elements improve equipment reliability by removing finer and more varied contaminants, maintaining consistent flow and pressure differential over longer service intervals, and providing early warning of degradation before it causes component wear—protecting pumps, valves, cylinders, and seals from the abrasive particulate and moisture contamination that account for the majority of hydraulic system failures. Contamination control has always been central to hydraulic system health, but the filter elements used to achieve it have changed substantially. Advances in media construction, multi-layer design, and monitoring integration mean that today's filters do more than trap debris—they actively extend component life, reduce unplanned downtime, and give maintenance teams visibility into system condition that older cellulose or single-layer wire mesh elements never provided.

Why is filtration central to reliability?

Hydraulic systems operate with extremely tight clearances between moving parts—pump gears, valve spools, and cylinder seals often function with tolerances measured in microns. Particulate contamination introduced during manufacturing, assembly, or through breather ports and worn seals is one of the leading causes of premature component wear. Even contamination invisible to the naked eye can score valve spools, erode pump surfaces, and accelerate seal degradation over time.

Because contamination-related wear is cumulative and often silent until failure occurs, filtration quality has a direct and measurable relationship to mean time between failures. Improving filter element design is one of the most cost-effective ways to extend equipment life without redesigning the system itself.

H2: Advances in filter media construction

H3: Multi-layer and graded density media

Older filter elements typically relied on a single layer of media with a uniform pore structure. Modern elements use graded density and multi-layer construction—coarser fibers on the upstream side capture larger particles first, while progressively finer layers downstream trap smaller contaminants. This layered approach increases dirt-holding capacity and extends element life compared to single-layer designs, because the filter doesn't rely on one layer to do all the work.

H3: Synthetic and microglass media

Cellulose media, once standard, has largely been supplanted by synthetic and microglass fiber media in demanding applications. These materials offer more consistent pore sizing, better resistance to moisture and chemical breakdown, and higher dirt-holding capacity per square inch of media. The result is a filter that maintains its rated efficiency for longer, rather than degrading in performance as it loads with contaminant.

H3: Nanofiber coatings

Some modern elements incorporate a thin nanofiber layer applied over a conventional substrate. This coating captures very fine particles—often in the single-digit micron range—while contributing minimal additional pressure drop. Because the coating layer intercepts fine contaminant before it reaches the coarser substrate, the element as a whole maintains a more stable pressure differential over its service life.

H2: Beta ratio improvements and filtration efficiency

Filter performance is commonly expressed using beta ratios, which describe how effectively an element removes particles of a given size. A higher beta ratio at a smaller micron rating indicates more consistent, more efficient filtration. Modern elements routinely achieve high beta ratios (often β≥1000) at micron ratings that older technology could not reach without unacceptable pressure drop or excessively short service life.

This matters for reliability because contamination sensitivity varies by component. Proportional and servo valves, for example, are especially vulnerable to fine particulate that would have passed through older filtration technology unimpeded. Matching filter efficiency to the most contamination-sensitive component in the circuit—rather than to the least sensitive—is now standard practice, and modern media makes that level of fine filtration achievable without excessive maintenance burden.

H2: Extended service life and consistent performance

H3: Greater dirt-holding capacity

Because modern elements distribute contaminant capture across multiple media layers rather than concentrating it at a single surface, they hold significantly more contaminant before reaching their terminal pressure differential. This translates directly into longer intervals between element changes, reducing both maintenance labor and the contamination risk introduced every time a system is opened for service.

H3: Stable pressure differential over time

A filter element that loads unevenly or degrades structurally as it collects contaminant will show a steadily worsening pressure differential, eventually triggering bypass and allowing unfiltered oil to circulate. Modern elements are engineered to maintain a flatter differential pressure curve across their service life, which keeps the system operating within its designed flow and pressure parameters for longer and delays the point at which bypass becomes a risk.

H3: Bypass valve design and contaminant suppression

Bypass valves remain a necessary safety feature to protect against pump cavitation if an element becomes fully blocked, but modern filter housings increasingly pair the bypass function with indicators that alert operators before bypass occurs, rather than after. Some designs also incorporate anti-drain-back or contaminant-suppression features that prevent settled particulate from re-entering the flow stream during shutdown and restart—a scenario that older designs often overlooked.

H2: Structural and material durability

Modern filter elements also benefit from improved structural design. Pleated media supported by rigid inner and outer cores resists collapse under high differential pressure or flow surges, which is particularly important in systems subject to cold-start conditions where oil viscosity—and therefore pressure drop across the filter—is temporarily much higher. End caps bonded with more robust adhesives and gaskets resistant to a wider range of fluid chemistries reduce the risk of bypass leakage around the element itself, which can otherwise undermine even a well-designed media pack.

H2: Smart filtration and condition monitoring

Perhaps the most significant shift in recent years is the integration of monitoring directly into the filtration function. Differential pressure indicators—mechanical or electronic—have long been available, but newer systems increasingly connect these readings to broader condition-monitoring platforms. Electronic sensors can log pressure trends over time, flagging gradual loading patterns rather than only the point of terminal bypass, which gives maintenance teams a data-driven basis for scheduling element changes proactively instead of reactively.

Some facilities pair this with particle counting sensors positioned downstream of the filter, verifying that actual fluid cleanliness matches the target ISO cleanliness code for the system rather than assuming it based on filter rating alone. This closes the loop between filtration design intent and real-world performance, catching issues like element bypass, seal failure at the housing, or an undersized element for the application before they cause downstream damage.

H2: The reliability payoff

The cumulative effect of these advances is straightforward: components exposed to consistently cleaner fluid, with fewer fine particles reaching sensitive clearances, experience less abrasive wear, less erosion at valve edges, and fewer seal failures caused by particulate-induced scoring. Systems maintain rated performance for longer between services, and the early-warning capability of modern monitoring reduces the frequency of unplanned downtime caused by contamination-related failures.

For operations managing large hydraulic fleets, the reliability gains from upgrading filtration technology often extend well beyond the filter itself, showing up as reduced valve and pump replacement rates, longer seal life, and more predictable maintenance budgets.

1. How often should hydraulic filter elements be replaced?

Replacement intervals depend on system duty cycle, contamination ingress rate, and the differential pressure indicator reading rather than a fixed calendar schedule. Most manufacturers recommend changing elements when the indicator shows approaching bypass, supplemented by scheduled oil analysis.

2. What is a beta ratio, and why does it matter?

The beta ratio measures how effectively a filter removes particles of a specific size, expressed as the ratio of particles upstream to particles downstream at that size. A higher beta ratio at a given micron rating indicates more consistent and reliable filtration efficiency.

3. Can a filter that's too fine damage a hydraulic system?

An overly fine filter can cause excessive pressure drop and premature bypass, especially during cold starts when oil viscosity is high. Filter selection should match the sensitivity of the most contamination-sensitive component without exceeding the system's flow and pressure tolerances.

4. Do smart filters require special infrastructure to use?

Basic electronic differential pressure sensors can operate as standalone indicators, but connecting them to a broader condition-monitoring or IoT platform typically requires compatible controllers or gateways already common in modern hydraulic power units.

5. How does filtration quality affect hydraulic seal life?

Fine particulate contamination is a leading cause of seal wear, as abrasive particles score dynamic sealing surfaces during rod or piston movement. Improved filtration reduces the concentration of these particles, directly extending seal service life.
