What is the difference between suction, return, and pressure filters?

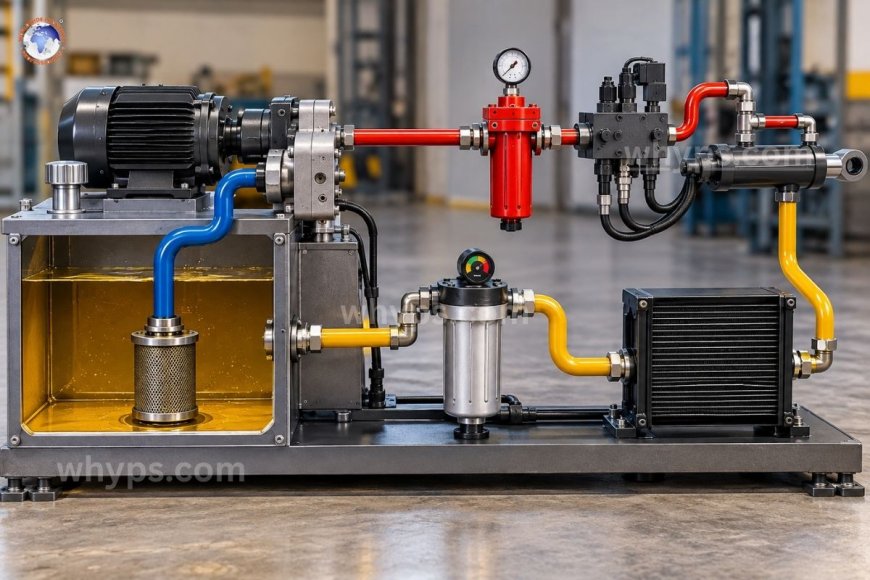

Suction, return, and pressure filters differ primarily by their location in the hydraulic circuit and the operating conditions they must withstand: suction filters protect the pump from large debris using coarse, low-restriction media before the fluid ever reaches the inlet; return filters catch fine contaminant picked up during the cycle as fluid flows back to the tank; and pressure filters, rated for full system pressure, provide the finest filtration to protect sensitive downstream components like servo and proportional valves. Every hydraulic system depends on clean oil, but not every filter in that system does the same job. Placement dictates pressure rating, micron rating, and the failure consequences if a filter is chosen incorrectly. Understanding the distinctions between these three filter types helps technicians and system designers avoid two common mistakes: starving the pump of flow or allowing damaging contamination to reach precision components.

Suction filters

Suction filters sit between the reservoir and the pump inlet, in the line where fluid is being pulled rather than pushed. This position creates a unique constraint: excessive restriction here can cause cavitation, a condition where dissolved air comes out of solution or vapor bubbles form due to low inlet pressure. Cavitation erodes pump components rapidly and is one of the most common causes of premature pump failure.

Because of this cavitation risk, suction filters are built with coarse micron ratings, typically in the 100 to 150 micron range, and a large surface area to minimize pressure drop. Their job is not to catch fine particulate but to stop large debris—metal shavings, seal fragments, or contamination introduced during maintenance—before it enters the pump.

Suction filters are also commonly equipped with a bypass valve. If the filter element becomes clogged, the bypass opens to maintain flow to the pump rather than risk starving it, since pump damage from cavitation is generally more expensive and more immediate than the damage caused by temporarily unfiltered oil.

Some systems use a suction strainer instead of a cartridge-style filter. A strainer is typically a mesh screen with no replaceable element, designed to be cleaned rather than swapped. This is common in mobile equipment and smaller power units where simplicity and low cost matter more than fine filtration at this stage.

Return filters

Return filters are installed in the line carrying fluid back to the reservoir after it has done its work in the actuators, valves, and other components. Because this line is on the low-pressure side of the system — fluid here is typically at or near atmospheric pressure, sometimes with brief pressure spikes from valve shifting or cylinder deceleration — return filters do not need to be rated for full system pressure. This makes them less expensive to build and easier to service than pressure line filters.

Return filters typically use finer media than suction filters, often in the 10 to 25 micron range, because their purpose is different: they capture wear debris generated by pumps, valves, and cylinders during operation before that contaminant can recirculate through the tank and back into the system. Over time, hydraulic components shed microscopic metal particles from normal wear, and if that debris isn't removed, it accelerates wear on every other component it passes through—a compounding cycle sometimes called "silting."

Return filters commonly include a bypass valve as well, along with a differential pressure indicator to alert operators when the element needs replacement. Because the return line often carries the full system flow at once (especially in systems with single-rod cylinders, where regeneration causes uneven flow rates), return filters must also be sized to handle flow surges without excessive pressure buildup that could push fluid past seals elsewhere in the return path.

Pressure filters

Pressure filters are installed downstream of the pump, on the high-pressure side of the system, often just before sensitive components like servo valves, proportional valves, or other precision-machined parts with tight internal clearances. Because they sit in the pressure line, these filters must be built with a housing rated for full system working pressure — sometimes several thousand PSI — making them structurally more robust and generally more expensive than suction or return filters of comparable flow capacity.

Pressure filters use the finest micron ratings in the system, frequently in the 3 to 10 micron range or lower for systems with highly sensitive components. This fine filtration is necessary because precision valves have extremely tight clearances between spools and bores; even small particulate contamination can cause sticking, erosion of critical edges, or complete valve failure.

Because pressure filters see full flow at full pressure, their housings and elements are engineered to handle both continuous operating pressure and pressure spikes from valve shifting without rupturing or collapsing the element. A collapsed pressure filter element is particularly dangerous because it can release a slug of previously captured contaminant directly into the downstream components it was meant to protect—the opposite of its intended function.

Pressure filters are typically placed at the point in the circuit where protection matters most, rather than protecting the entire system uniformly. In some designs, multiple pressure filters are used at different branch points to protect different sensitive components independently.

Why does the distinction matter?

Using the wrong filter type in the wrong location can cause serious problems. Installing a pressure-rated filter housing in a suction line wastes money on unnecessary pressure capability while potentially adding restriction that risks cavitation. Conversely, installing a suction-style low-pressure housing in a pressure line is a safety hazard, as the housing could rupture under system pressure.

Micron rating mismatches cause their own issues. A suction filter that is too fine will restrict flow and starve the pump; a return filter that is too coarse won't adequately protect the system from wear debris; and a pressure filter that is too coarse defeats the purpose of protecting precision valves. Matching filter type, micron rating, and pressure rating to its specific location in the circuit is fundamental to both system reliability and component longevity.

Many well-designed hydraulic systems use all three filter types together, each addressing contamination at a different stage: suction filters as a coarse first line of defense, pressure filters delivering fine protection right before critical components, and return filters cleaning up wear debris before it recirculates through the reservoir.

Can a single filter perform all three functions in a hydraulic system?

No. Each filter type is engineered for a specific pressure environment and contamination profile. Suction filters require low restriction and coarse media to protect the pump from cavitation, while pressure filters require pressure-rated housings and fine media, and return filters balance moderate filtration with flow surge handling. A single filter cannot meet all three sets of requirements simultaneously.

Which filter is most critical for overall system cleanliness?

All three play a role, but pressure filters typically have the greatest impact on protecting the most expensive and sensitive components, since they filter fluid immediately before it reaches precision valves. However, neglecting suction or return filtration allows contamination to build up throughout the system over time.

How often should hydraulic filters be replaced?

Replacement intervals depend on the application, fluid cleanliness targets, and differential pressure indicator readings rather than a fixed schedule. Most systems use a pressure differential gauge or indicator on return and pressure filters to signal when an element is loading up and needs replacement.

Why do suction filters use coarser media than return or pressure filters?

Suction filters must minimize flow restriction to prevent cavitation at the pump inlet, which requires coarse media and high surface area. Fine media at the suction side would create enough pressure drop to starve the pump of flow, causing far more damage than the coarse filtration allows through.

What happens if a pressure filter element collapses?

A collapsed element can release trapped contaminant downstream all at once, delivering a concentrated slug of debris directly to the precision components the filter was meant to protect. This is why pressure filter elements must be rated to withstand full system pressure and pressure spikes without structural failure.
