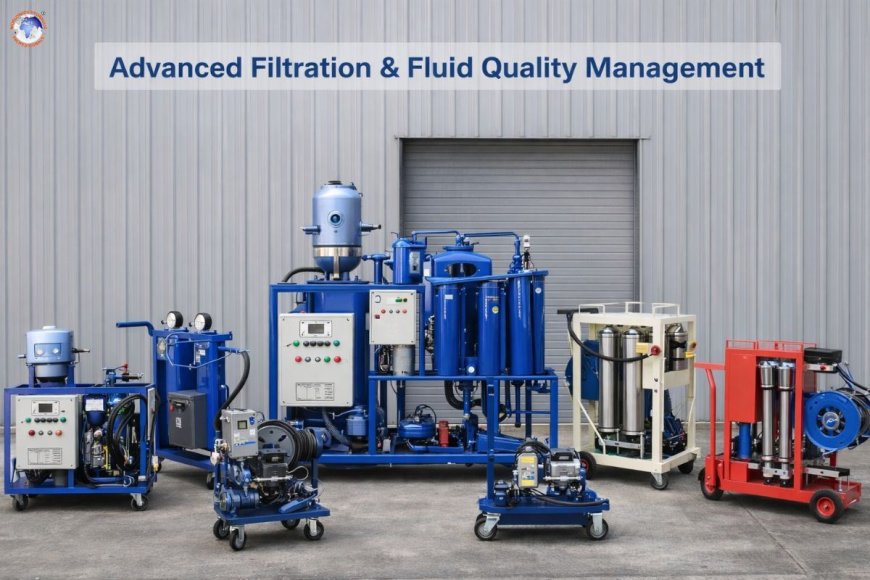

Advanced Hydraulic Filtration & Fluid Quality Management

Hydraulic systems constitute the core of modern manufacturing. From agricultural and construction tractors to precise manufacturing lines as well as offshore platforms, the power of hydraulics provides unparalleled power and control. But, underneath every highly efficient hydraulic system lies an important but often ignored aspect: fluid cleanliness.

Advanced hydraulic filtration, as well as fluid quality control, are no longer merely maintenance issues. They're strategic. With today's high-pressure, precision systems, even tiny contaminants can trigger catastrophic failures. This blog examines how modern technology for filtration and proactive fluid-management practices have transformed the reliability, efficiency, and life of equipment across all industries.

Why Fluid Cleanliness is More Important Than Ever

Hydraulic systems function under extreme conditions, including high tensions and tight tolerances as well as continuous cycles. Components such as pumps, proportional valves, servo valves, and actuators depend on ultra-clean fluids to operate properly.

In reality, studies conducted by organizations such as those of the National Fluid Power Association emphasize that contamination is among the most common causes of failures in hydraulic systems. Nanoparticles as small as a tiny micron can

• Inflict abrasive wear on the pump's surfaces

• Block orifices are used in servo valves.

• Accelerate seal degradation

• Internal leakage increases

• Reduce the overall efficiency of the system

As technology for hydraulics advances, with increased operating pressures as well as greater tolerances to components, the chance of contamination decreases drastically.

Understanding Hydraulic Contamination

Filtration is effective when you understand what you're trying remove. Hydraulic contamination typically falls in three types:

1. Solid Particles

• Metal shavings resulting from wear on components

• Dust and dirt enter through the air purifiers

• Slag or debris that is being welded from the installation

2. Water Contamination

• Condensation inside reservoirs

• Ingress of water through leaky seals

• The leaks of coolant can occur in certain systems.

3. Air Contamination

• Air that is dissolving

• Air bubbles that have been entrained

• Foam is caused by inadvertent fluid handling

Each kind of contaminant requires an appropriate strategy to remove it and prevent its spread.

Advanced Hydraulic Filtration Technologies

Traditional filtration was based on simple return line filters. Modern systems utilize multi-stage and smart methods of filtration to ensure the highest level of quality and cleanliness.

1. High-Efficiency Microglass Filters

Microglass filter media has become the standard in high-performance systems. As compared to traditional cellulose filters, microglass

• Offers a higher dirt-holding capacity

• Provides consistent filtration efficiency

• Resists collapsing under pressure

The filters are evaluated using Beta Ratios (bx), which indicate their effectiveness in the removal of particles of certain dimensions.

2. Off-Line (Kidney Loop) Filtration

Off-line filtration systems continually purify hydraulic fluids, regardless of the machine's operation. This technique:

• Maintains consistent fluid cleanliness

• Reduces downtime for the system

• Extends fluid life

Kidney loop systems can be particularly efficient in harsh environments such as marine and mining hydraulics.

3. Electrostatic Cleaning of Oil

Electrostatic oil cleaners eliminate sub-micron particles, varnish, and oxidation by-products, which conventional filters are unable to capture. This technology:

• Reduces varnish buildup

• Improves the reliability of servo valves

• Enhances fluid stability

It is especially useful for high-precision manufacturing systems.

4. Water Removal Systems

Water contamination speeds up the oxidation process and lowers the quality of lubrication. The most advanced methods of removing water include:

• Vacuum dehydration units

• Coalescing filters

• Water-absorbing filter elements

Keeping water levels under suggested limits greatly increases the component's longevity.

ISO Cleanliness Codes and Fluid Standards

Fluid cleanliness is measured by using ISO 4406 cleanliness codes. This standard is used to measure the amount of particles in a specific micron (typically the 4um and 6um levels as well as 14um).

For instance:

• The code 18/16/13 means decreasing particle counts.

• High-precision equipment may require 16/14/11 or better.

Monitoring and ensuring the right ISO code will ensure that hydraulic systems function within tolerances of the design.

Real-Time Fluid Condition Monitoring

Next-generation hydraulic filtration incorporates sensor-based condition monitoring. These systems are smart and evaluate:

• Particle counts

• Moisture content

• Temperature

• Viscosity

• The constant of dielectric

Top companies like Bosch Rexroth and Parker Hannifin have integrated smart sensors into hydraulic power units as well as filter assemblies, which allow for automated maintenance.

With real-time alerts, operators can:

• Replace filters prior to bypass events happening

• Be aware of spikes in contamination before they occur

• Stop catastrophic failures

A Look at the Economics of Advanced Filtration

The investment in advanced filtration might seem costly at first; however, the ROI on investment is significant.

Reduced Time to Downtime

Contamination-related failures often result in unplanned shutdowns. A better filtration system reduces breakdown risk.

Extended Component Life

Cleaner fluid decreases wear, thus extending the life of:

• Pumps

• Cylinders

• Valves

• Seals

Lower Fluid Replacement Costs

Through maintaining the quality of fluids, businesses can prolong the interval between oil changes.

Improved Efficiency of Energy Efficiency

In systems that have been contaminated, there is a risk of internal leakage, which can result in lower efficiency. Clean systems are more efficient and consume less energy.

Best Practices for Fluid Quality Management

Advanced filtration is best coupled with disciplined fluid management techniques.

1. Clean Oil Handling

It is not always fresh oil. Always filter the fluid before transferring it into reservoirs. Utilize transfer carts specifically designed for this purpose, equipped with high-efficiency filters.

2. Proper Storage Conditions

The storage of hydraulic fluids is essential:

• In sealed, clean containers that are sealed and clean.

• Stay clear of exposure to moisture

• In temperature-controlled environments

Desiccant breathing devices on storage drums are able to stop moisture from entering the drums.

3. Regular Oil Analysis

The routine oil sampling gives information about:

• Wear metals

• Oxidation levels

• Additive depletion

• Trends in Contamination

The analysis of oil helps maintenance teams act before any failures happen.

4. Filter Maintenance Strategy

Avoid reactive filter replacement. Instead:

• Monitor differential pressure indicators

• Utilize intervals for replacement based on the condition.

• Make sure spare filters are kept in clean storage

The role of filtering within Modern Smart Factories

Industries 4.0, as well as smart manufacturing, depend extensively on hydraulic systems that operate at the highest level of efficiency. Advanced filtration technology supports:

• Automated production lines

• CNC machines

• Hydraulic systems for robots

• Machines for injection molding controlled by servos

High-performance servo valves are especially vulnerable to contamination. Even tiny particles can cause a stick or an erratic performance.

Environmental and sustainability benefits

The management of fluid quality has also been proven to be effective. aids in the sustainability of

• Reduction of oil disposal

• Lower energy consumption

• Fewer replacement components

• Reduction of risk of environmental contamination

Cleaner systems result in fewer leaks and less waste, which is in line with the goals of global sustainability.

The challenges of implementing advanced filtering

Despite its advantages, companies might face difficulties:

• Initial investment costs

• The lack of qualified personnel

• Inconsistent sampling methods

• Resistance to a proactive culture of maintenance

To overcome these obstacles, management dedication and training programs that focus on reliability-focused maintenance.

The Future of Hydraulic Filtration

Hydraulic fluid management's future is smart and prescient. New trends are emerging, including:

• AI-driven contamination prediction

• Self-cleaning filter systems

• Dashboards of fluid health powered by IoT

• Nano-filtration technology

As pressures in hydraulics rise and system tolerances tighten, advanced filtration will shift from a function of maintenance into a fundamental operation strategy.

Modern hydraulic filtration technology and fluid quality control are essential to ensure reliability, efficacy, and long-term durability with modern-day hydraulic equipment. Contamination control isn't only about changing filters; it's about developing a comprehensive plan that incorporates smart monitoring, a disciplined approach to handling fluids, and constant improvement.

Organizations that are committed to ensuring the cleanliness of their fluids will benefit:

• Lower maintenance costs

• Reduced time to shut down

• Longer life of equipment

• System performance is improved

In a time of precision manufacturing, automation, and sustainability objectives Clean hydraulic fluid isn't only a routine maintenance item, it's an advantage in the market.

With the help of advanced filtration techniques and proactive management of fluids, businesses can ensure the security of their hydraulic investments and guarantee consistent performance in even the most demanding conditions.
