What two types of filters are used in a hydraulic system?

Hydraulic systems are the foundation of modern industry, supplying everything from construction equipment and agricultural tractors to production machines and aircraft systems. The core of the system is the hydraulic fluid that is used to transfer electricity, provides lubrication to moving components, disperses heat, and shields against corrosion. But none of these functions will be effectively performed when the fluid is dirty.

Contamination--whether in the form of dirt, metal particles, water, or air--is one of the leading causes of hydraulic system failure. This is the reason why filters are required. They are an essential component that keeps the hydraulic fluid clear and the system operating efficiently.

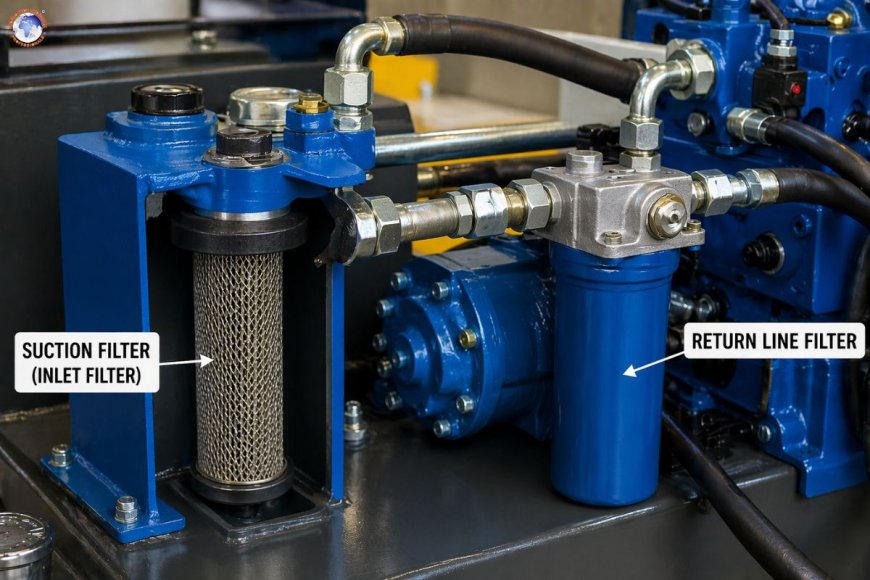

Although hydraulic systems could employ various filtration points, the two main types of filters utilized are:

1. Suction Filters (Inlet Filters)
2. Return Line Filters

Knowing the two filters and their roles, as well as their placement, their benefits, and limitations, is essential for all those working in the hydraulic system's maintenance or operation.

Why filtration matters in hydraulic systems?

Before we get into the two major filters, it's crucial to comprehend the reason why filtering is essential.

Hydraulic systems work under extreme pressure and with tight tolerances. Even microscopic contaminants may:

• Inflict wear and tear on components
• Stop small valves, passages, or even tiny channels.
• Improve efficiency and improve responsiveness
• This can lead to overheating.
• This can result in expensive repairs and downtime.

Research in the hydraulic industry frequently shows that a significant number of system failures can be directly related to contamination. Filtration isn't optional; it's vital.

1. Suction filters (inlet filters)

What is a suction filter?

Suction filters, sometimes referred to by the name of an inlet filter is located on the side that draws water from the pump. This is because it is placed between the reservoir (tank) and the pump.

Its main function is to safeguard the pump from damage by filtering out massive contaminants prior to the fluid is introduced into the pump.

How it works

When hydraulic fluid is pumped from the reservoir to the pump, it goes via the suction filter. The filter is designed to trap larger particles, such as:

• Dust and dirt
• Rust Flakes
• Metal shavings
• Wear and tear on components

Since the pump is one of the most vital and delicate parts of the hydraulic system, safeguarding it from contamination is crucial.

Key features of suction filters

• Low filtration rate (coarser removal): Typically 75-150 microns
• The low flow resistance is designed not to restrict the flow of fluid
• It is installed either in or out of the reservoir
• A simple construction. Most often, it includes screens or meshes

Advantages of suction filters

1. Pump Protection The primary benefit is that it protects the pump from massive pollutants that could cause instant damage.

2. Simple and Cost-Effective suction filters are usually cheap and simple to set up.

3. Protects against catastrophic Failures by preventing massive debris, they decrease the chance of a sudden pump failure.

Limitations of suction filters

1. Limited Filtration Capability: They are unable to remove fine particles with efficiency. Their sole purpose is to get rid of large particles.

2. The risk of cavitation. If the filter gets blocked, it may limit the flow of fluid into the pump, leading to cavitation, which is a condition wherein bubbles of vapor develop and then collapse, causing damage.

3. Not suitable for high-precision systems. All by themselves, they must be used in conjunction with higher-quality filters.

Best practices for suction filters

• Check and clean regularly, as well as replace the filter component
• Beware of using filters that are too fine on the suction side.
• Look for indications of blocked flow or clogging
• Be sure to use the correct size for the requirements of the system

2. Return line filters

What is a return line filter?

Return line filtering is installed in the line that returns to the system. That means it filters the fluid when it flows back through the component parts of the system back into the reservoir.

This kind of filter is crucial in keeping the system clean.

How it works

After the hydraulic fluid is circulated through valves, pumps, motors, and cylinders, it is contaminated by operations. They could include:

• Wear particles emitted by moving parts
• Contaminants introduced via seals or exposure to the outside
• Remains of degraded fluids

When the fluid is returned to its reservoir, it passes through the filter in return, which eliminates the contaminants.

Key features of return line filters

• Fine filtration capabilities: Typically 5-25 microns
• Higher dirt-holding capacity
• is designed to handle all system flow
• Most often, it is equipped with indicators and bypass valves

Advantages of return line filters

1. High-performance return line filters remove small particulates that suction filters are unable to capture, ensuring better fluid quality.

2. System-Wide Protections protect the components from contamination produced during operations.

3. Cleans up fluid before it is reintroduced into the reservoir. They assist in maintaining a constant quality of hygiene.

4. Better Component Performance Cleaner Fluid reduces wear and prolongs the life of valves, pumps, and actuators.

Limitations of return line filters

1. The pump is not protected from the initial Contamination. Since they are situated just behind the system components, they are not able to prevent contaminants already present in the reservoir from getting to the pump.

2. Pressure Drop Risk If they become blocked, the clogs can lead to increased pressure on return lines.

3. Monitors Regular maintenance is essential to ensure optimal performance.

Best practices for return line filters

• Make sure you use the appropriate micron rating that is based on the system's sensitivity
• Check for clogging indicators or pressure gauges
• Replace filters at the recommended intervals
• Check for proper installation to prevent any leaks or bypass problems

Comparing the two filter types

Why are both filters necessary?

An error that is common error is thinking that one kind of filter will suffice. In fact, both filter types, suction as well as return lines, have distinct but complementary functions.

• Suction filters are the first line of defense, shielding the pump from a wide range of contaminants.
• Filters for the return line make sure that any contaminants accumulated during operation are eliminated before the fluid returns to the system.

Together, they make an entire filtering system that:

• Reduces contamination levels
• Improves system efficiency
• Extends component lifespan
• Reduces maintenance costs

Additional filtration options (beyond the main two)

While return line and suction filters are the main kinds, a lot of systems comprise:

• High-pressure line filter: Installed after the pump to ensure high-pressure filtering.
• Offline (kidney loop) filters: Provide continuous filtration regardless of the system's operation
• Filters for the breath: Prevent contaminants from getting into the reservoir

These filters can further improve the system's cleanliness, particularly when used in critical or high-performance applications.

Common signs of filter problems

Even the most efficient filtration system needs to be maintained. Pay attention to these warning indicators:

• Noise from the system has increased
• Slower or less efficient performance
• Overheating
• Fluids with visible contamination
• Wear and tear on components is common, or even failure.

If you ignore these signs, it could result in severe system harm.

Maintenance tips for hydraulic filters

To ensure that your hydraulic system is in good working order:

1. Use a Maintenance Schedule to replace filters according to manufacturer guidelines or the operating time.

2. Monitor Indicators. A lot of filters have clogging indicators. Do not ignore them.

3. Make sure to use high-quality filters. Filters that are not of the highest quality might not offer adequate protection.

4. Maintain the Reservoir clean. A well-maintained tank eases the strain on the filters.

5. Conduct Fluid Analysis. Regularly testing for oil can help detect early signs of contamination.

Hydraulic systems are heavily dependent on clean fluids to operate effectively and safely. Two primary types of filters -- suction filters and return line filters--play different but complementary roles in ensuring this cleanliness.

Suction filters shield the pump from the impact of large particles at the point of entry, and return line filters ensure that the fine particles created during operation are eliminated before the fluid can be reused. Together, they form the basis of a highly effective filtering strategy for hydraulics.

The absence of either could result in wear and tear as well as lower efficiency and cost-intensive downtime. By understanding their roles and properly maintaining them, technicians and operators can greatly improve the performance of their systems and prolong their service.

In the realm of hydraulics, the filtration is not only a part of the system, but it's an essential protection for the whole system.
