How does common failure modes in hydraulic brakes impact hydraulic and fluid power systems?

In industrial machinery, heavy transportation, and aerospace applications too, hydraulic brakes are part of the circuits along with other subsystems powered by fluids. A brake line that is contaminated can cause damage to the steering actuator. A master cylinder that fails can pressurize a circuit, which is the source of power for a lifting mechanism. Understanding these failure mechanisms—not as isolated components, but as events that affect the entire system—is the foundation of safe hydraulic design and maintenance practices.

The design of the hydraulic brake circuit

Before looking at the causes of failure, it is important to base the discussion in the basic hydraulic principles that make brakes function and also determine how they propagate. The hydraulic brake system is guided through Pascal's Law: pressure applied to a closed fluid is equally distributed in all directions across the fluid. In reality this means that the force created at master cylinders is increased and divided among slave cylinders on each brake wheel.

In more complex systems such as aircraft, construction equipment, and industrial presses, the brake circuit isn't isolated. It shares reservoirs for hydraulic fluid filtering systems, as well as pump infrastructure, the steering system, actuators, and clutch control systems. The integration is cost-effective and functionally sophisticated. It's also the reason why brake failures are rarely in check.

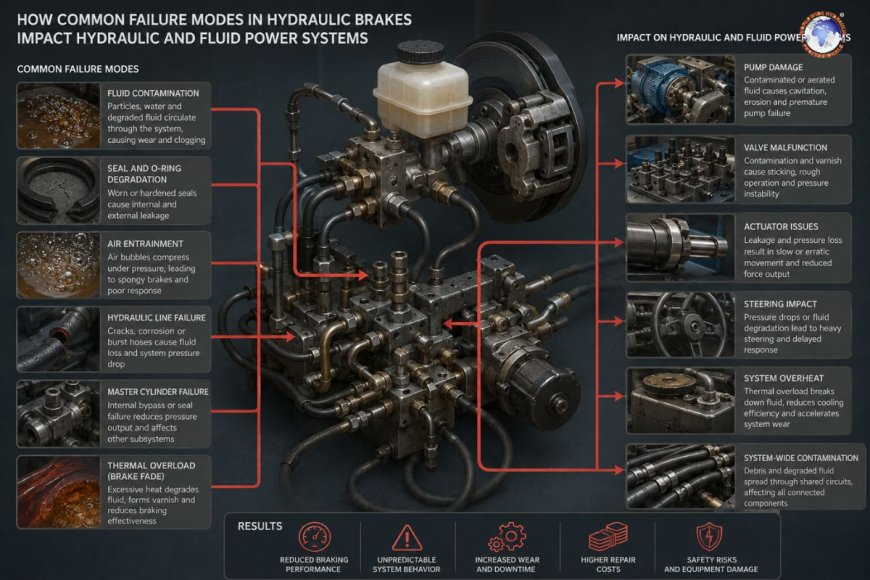

The six ways that hydraulic brakes fail

Failures of hydraulic brakes aren't randomly occurring. They are predictable processes, each with distinct consequences on system pressure and fluid integrity, as well as associated subsystems.

The contamination of the fluid is the one and only most frequent cause for the failure of hydraulic systems for brakes. Particulate matter, water intrusion, or the chemical degradation of the brake fluid results in abrasive wear to the pump's internals, which accelerates the degradation of seals and blocks orifices in control valves across the circuit. Because the contaminated fluid is circulated through shared filtration systems, the effects of contamination extend past the brake system.

Seal and O-ring degrading is caused by thermal cycling and chemical incompatibility between the fluid and elastomer, as well as mechanical wear as time passes. When seals become hard or crack, or even extrude under pressure, the leakage is increased. The system is unable to transmit and hold pressure consistently, as bypass flow produces heat, which accelerates the decline in a self-reinforcing manner.

The air entrainment process introduces a compressible medium into what is intended to be an unpressible structure. Gas bubbles can enter through the low levels of fluid-damaged seals or bleeding techniques that are not properly executed. The first sign is a soft pedal and a delayed brake response. In servo-controlled hydraulic systems, even tiny amounts of entrained air can cause the possibility of phase lag and instability in control that go far beyond the circuit for brakes.

Line failure in the hydraulic system is caused by fatigue, corrosion cracking, mechanical impact, or abrasion and can range from small weeping leaks up to major rupture. Hose degradation that is flexible is particularly dangerous because it can expand internally, limiting flow but appearing to be in good condition from the outside. A burst line that is connected to a reservoir shared with others will drain fluid quickly enough to trigger cavitation of the pump throughout all of the system.

Master cylinder failure eliminates the brake power at the root. The deterioration of piston seals and the corrosion of bores on cylinders or check valves that are bypassed mean the master cylinder is unable to produce enough pressure. In integrated systems, where the master cylinder is also contributing to the pre-charge pressure of the circuit, its malfunction can decrease operating pressure across several connected subsystems at the same time.

Thermal overload, also known by the name "brake fade," happens when repeated or sustained heavy braking causes the temperature of the fluid to go over its boiling point. The resulting vapor bubbles function similarly to air entrainment; however, they appear in a manner that is unpredictable and rapid. Beyond the immediate reduction in braking force, the oxidation byproducts of heat-degrading fluid—sludge and varnish—which coat the surfaces of heat exchangers, decrease the effectiveness of cooling and create feedback loops in which each subsequent overload event becomes more pronounced.

How do brake failures affect the larger hydraulic circuit?

Each failure comes with consequences that extend far past the assembly of brakes. For engineers who manage integrated power systems that use fluids, this cascading effect is the most risky aspect of maintaining hydraulic brakes.

In the case of contamination by fluids, it is the most obvious illustration of the system-wide impact. Particulate matter that is introduced by an unrepaired brake line seal circulates through filtration systems that are shared and is absorbed into the pump's internals and eventually damages seals for actuators across the machine. A single, contaminated brake circuit inside an excavator may cause failures of the travel and swing motors, motors, and boom cylinders, each of which share one hydraulic oil reservoir.

Seal failures can cause pressure loss. This can affect the pressure balance of the entire system in circuits in which brakes share a pressure rail along with other actuators. When a cylinder that is a slave to the brake seal is damaged internally, it results in the bypass path with a low resistance. Fluid travels more efficiently through this bypass path when braking, depriving other actuators of the pressure. In the case of mobile hydraulics, this may result in a slow steering response precisely at the time that emergency braking and the highest level of steering control are crucial.

Failure of the hydraulic line could cause rapid loss of pressure across the entire circuit when there are no check valves that isolate the circuit for brakes. In the worst-case scenario an overheated brake line can drain the reservoir shared by both parties until the point at which the pump can cause cavitation, which is a situation that causes the pump to draw both fluid and air at the same time, creating implosive micro-cavities that cause internal damage to the pump in a matter of minutes, even after prolonged operation. Repair costs for cavitation-related damage are typically higher than the price of a standard brake repair by a factor of 10 or more.

The thermal overload compounds in ways that make the post-incident diagnosis difficult. Hydraulic fluid degraded in heat has decreased viscosity, which means that every component that relies on clearance, including spool valves, motor pistons, and pump vanes, is more susceptible to internal leakage as well as accelerated wear. The varnish particles left behind by the oxidized fluid cover the surfaces of heat exchangers, diminishing their efficiency and rendering the entire system vulnerable to thermal overloads on each following duty cycle.

Systems that can fail safely

The response of engineers to the risk of failure of hydraulic brakes is based on two levels: the design of circuits that limit the possibility of cascades, as well as the monitoring of practices that detect problems before they escalate.

At the level of design at the design level, isolation of the circuit is the main defense. Circuits for brakes that are critical to safety must have master cylinders that are dedicated to the application and accumulators specifically designed for the storage of brake pressure and check valves to prevent backflow from the brake circuit to the hydraulic lines that are shared. This design assures that a seal problem does not turn into a lifting or steering failure.

Analysis and sampling of fluids is the most cost-effective method of monitoring in the field of maintenance of fluids. Regular analysis of oil reveals the levels of contamination as well as viscosity loss, water content, and wear metal concentrations, which collectively warn of imminent problems before they can become hazardous. Ferrous particle counts are reliable indicators of seal degradation and wear to internal components.

Pressure transducers in brake circuits offer real-time analysis of the integrity of circuits. A gradual decrease in pressure during the brake application and hold test is a sign of seal leakage. Unusual pressure spikes indicate a restriction on return lines or damaged check valves. Modern telematics platforms are able to trend these patterns over a number of cycles and identify any anomalies automatically.

Thermal management completes an overall preventive plan. Heat exchangers designed for the worst-case duty cycle, when combined with strict compliance to fluid specifications, significantly extend the life of seals and lower the risk of thermal degradation. In construction equipment and agricultural machines that are subject to continuous heavy-duty cycles, specialized brake cooling circuits are commonplace on top-of-the-line platforms.

The hydraulic brake isn't an unbounded subsystem; it is a point within a larger fluid power network. It has to be constructed and maintained in a manner that is consistent. The failure mechanisms described in this document are not risk-free to handle on their own. They are interconnected, accelerate each other, and expand their effects into the brake assembly and into the integrity of the fluid in the whole machine.

Engineers who know this respond differently to a bleeding brake line or stiff pedal. They don't see an issue with the brake as an isolated issue. They recognize that the system's fluid is under pressure and that an intervention that is timely at one time can stop the possibility of a chain reaction of failures in six other points. This is the reason for preventive maintenance over costly reactive repair.
