How do bypass valves work in hydraulic filters?

Hydraulic systems form the foundation of contemporary industrial equipment, driving a wide range of machinery, including excavators, tractors, production lines, and wind turbines. The core of these systems is hydraulic fluid, which is responsible for transferring power, lubricating parts, and removing heat. Maintaining the cleanliness of this fluid is essential, which is why hydraulic filters are so important.

Nevertheless, even the most effective filtration systems encounter a basic problem: what occurs when the filter becomes blocked or limits the flow of fluid? This is where bypass valves become useful. Although frequently ignored, bypass valves are crucial elements that safeguard hydraulic systems against severe breakdowns.

In this blog, we'll examine how bypass valves function in hydraulic filters, their importance, the different types available, and how they help improve the reliability and lifespan of the system.

Understanding hydraulic filtration

Before discussing bypass valves, it's essential to grasp the role of hydraulic filters. These filters eliminate impurities like dirt, metal debris, water, and sludge from the hydraulic fluid. Contamination can lead to:

• Greater mechanical wear
• Lower performance
• Equipment breakdown
• Excessive system heat

Filters are usually installed in various sections of a hydraulic circuit, such as:

• Suction filters (located before the pump)
• Pressure filters (placed after the pump)
• Return line filters (before the fluid goes back to the reservoir)

Each filter is built to capture particles of a certain size, making sure that the fluid flowing through the system remains clean.

The problem: filter restriction

As the filter carries out its function, it slowly builds up contaminants. As time passes, this accumulation leads to resistance against fluid movement, referred to as pressure drop across the filter.

Multiple factors can contribute to an increased pressure drop:

• Blocked filter elements
• Cold, thick oil
• High fluid flow rates
• Sudden increases in system demand

When the pressure drop becomes excessively high, it may result in:

• Decreased fluid supply to vital components
• Pump cavitation
• Excessive system heating
• Physical damage to equipment

This is when bypass valves play a crucial role.

What is a bypass valve?

A bypass valve functions as a safety feature either built into or attached to a hydraulic filter. Its main purpose is to enable fluid to flow around the filter element when the pressure difference surpasses a predetermined threshold.

In simple terms, when the filter becomes overly restrictive, the bypass valve opens to ensure fluid continues to flow, even if this means temporarily allowing unfiltered fluid to pass through the system.

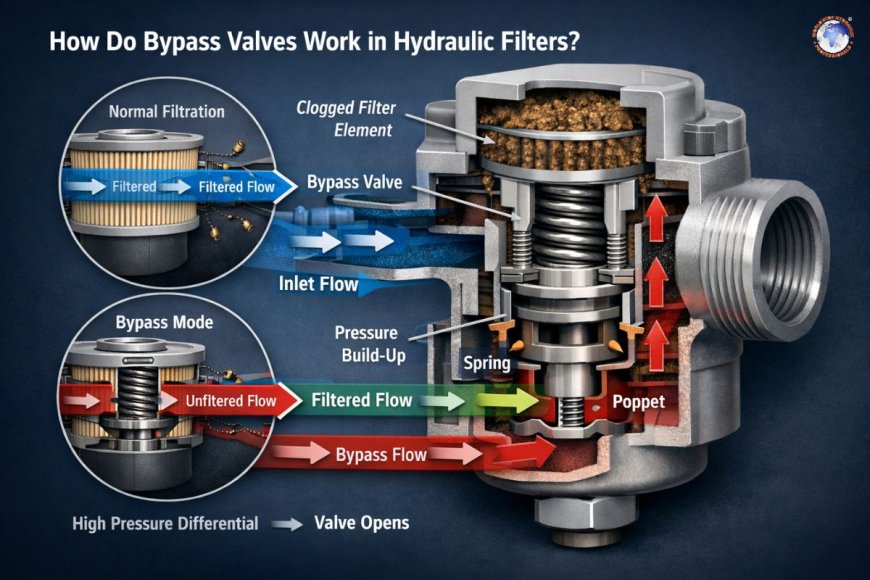

How do bypass valves work?

The operation of a bypass valve is based on pressure differential. Here’s a step-by-step explanation:

1. Normal operation

Under normal conditions:

• Hydraulic fluid flows through the filter media
• Contaminants are trapped
• Clean fluid exits the filter
• The bypass valve remains closed

The pressure difference between the inlet and outlet is minimal.

2. Increasing pressure drop

As contaminants accumulate:

• The filter becomes more restrictive
• The pressure upstream of the filter increases
• The pressure downstream remains lower

This creates a pressure differential across the filter.

3. Reaching the setpoint

Each bypass valve is calibrated to open at a specific pressure differential (e.g., 2 bar, 5 bar, or higher depending on the system).

When the pressure difference reaches this setpoint:

• The force acting on the valve exceeds the spring tension
• The valve begins to open

4. Bypass activation

Once open:

• Hydraulic fluid flows through the bypass path instead of the filter media
• The flow restriction is reduced
• System pressure stabilizes

Although the fluid is now unfiltered, the system continues to operate without interruption.

5. Returning to normal

When conditions improve (e.g., filter replaced or oil warms up):

• Pressure differential decreases
• Spring force pushes the valve closed
• Filtration resumes as normal

Key components of a bypass valve

A standard bypass valve typically includes the following components:

• Spring: Sets the pressure at which the valve opens
• Valve seat: Manages the seal and fluid flow
• Poppet or piston: Moves based on changes in pressure
• Housing: Protects and contains the internal parts

The interaction between the spring's force and the fluid pressure dictates when the valve will open.

Why are bypass valves important?

1. Preventing system starvation

Hydraulic systems rely on continuous fluid flow. A clogged filter can restrict flow to pumps and actuators, causing serious damage. The bypass valve ensures fluid continues to circulate.

2. Protecting pumps

Pumps are especially vulnerable to low fluid supply. Insufficient flow can lead to cavitation—a condition where vapor bubbles form and collapse, damaging internal components. Bypass valves help prevent this.

3. Maintaining system operation

In critical applications like construction or manufacturing, downtime is costly. Bypass valves allow the system to keep running even when filtration is compromised.

4. Handling cold starts

When hydraulic oil is cold, it becomes more viscous (thicker), increasing resistance to flow. This can temporarily raise the pressure drop across the filter. Bypass valves allow fluid to flow freely until the oil warms up.

The trade-off: protection vs cleanliness

Although bypass valves safeguard the system against damage caused by pressure, they create a compromise:

• Advantage: Ensures continuous fluid flow and avoids mechanical breakdown
• Disadvantage: Enables unfiltered fluid to enter the system

For this reason, the activation of a bypass valve should only be a short-term measure. Extended use in bypass mode may result in wear caused by contamination.

Types of bypass valve configurations

1. Built-in (integral) bypass valves

• Located inside the filter housing
• Common in compact systems
• Simple and cost-effective

2. External bypass valves

• Installed outside the filter assembly
• Easier to service and adjust
• Suitable for larger or more complex systems

3. Adjustable bypass valves

• Allow operators to set the opening pressure
• Provide flexibility for different operating conditions

4. Non-adjustable (fixed) valves

• Pre-set by manufacturers
• Reliable and maintenance-free
• Common in standard applications

Factors influencing bypass valve settings

Choosing the correct bypass valve setting is critical. Several factors must be considered:

1. System pressure requirements

High-pressure systems may require higher bypass settings to ensure proper filtration.

2. Filter media characteristics

Fine filters trap smaller particles but create higher resistance, requiring carefully calibrated bypass settings.

3. Fluid viscosity

Thicker fluids increase pressure drop, especially during cold starts.

4. Flow rate

Higher flow rates can increase the pressure differential across the filter.

5. Application sensitivity

Precision systems (e.g., aerospace or servo-controlled machinery) may tolerate less contamination and require stricter bypass control.

Signs that a bypass valve is activating

Operators should be mindful of signs that indicate the bypass valve is active:

• A sudden decrease in filtration efficiency
• Rising levels of system contamination
• Warning signals on filter housings
• Abnormal system performance

Certain systems are equipped with clogging indicators or sensors that notify operators when the filter is approaching its capacity.

Maintenance and best practices

To ensure bypass valves function effectively, proper maintenance is essential:

1. Regular filter replacement

Replace filters based on manufacturer recommendations or condition monitoring.

2. Monitor pressure differential

Use gauges or sensors to track pressure drop across filters.

3. Use quality filters

High-quality filter media reduces clogging and improves system performance.

4. Check valve functionality

Inspect bypass valves periodically to ensure they open and close correctly.

5. Maintain clean fluid

Prevent contamination at the source by using clean storage and handling practices.

Common misconceptions

“Bypass Valves Are a Sign of Failure”

Not necessarily. They are designed to activate under certain conditions and are a normal part of system operation.

“Higher Bypass Settings Are Always Better”

Incorrect. Setting the bypass pressure too high can lead to filter collapse or system damage.

“Bypass Valves Eliminate the Need for Maintenance”

No. They are a backup mechanism, not a substitute for proper filtration and maintenance.

Real-world applications

Bypass valves are used across a wide range of industries:

• Construction equipment: Excavators, loaders, cranes
• Agriculture: Tractors, harvesters
• Manufacturing: Presses, injection molding machines
• Energy: Wind turbines, hydraulic power units
• Mining: Heavy-duty hydraulic systems in harsh environments

In all these applications, maintaining fluid flow while protecting system components is crucial.

Future trends in hydraulic filtration

Advancements in hydraulic technology are improving how bypass valves and filters operate:

• Smart sensors: Real-time monitoring of pressure and contamination
• Predictive maintenance: AI-driven analysis to schedule filter changes
• Advanced materials: Longer-lasting filter media with lower resistance
• Integrated systems: Combining filtration, monitoring, and control

These innovations aim to reduce the need for bypass activation while enhancing system reliability.

Bypass valves in hydraulic filters are essential safety elements that guarantee the continuous functioning of hydraulic systems. By letting the fluid go around the filter when pressure gets too high, they safeguard the pumps, keep the flow going, and avoid expensive damage.

However, this protection involves a trade-off: a temporary loss of filtration. This is why proper system design, accurate bypass configurations, and routine maintenance are crucial for achieving the right balance between performance and cleanliness.

In short, bypass valves serve as a "pressure relief path" for filtration systems, guaranteeing that hydraulic equipment operates safely and effectively even in difficult situations.

Knowing how they function is not only helpful for maintaining equipment but also for creating more durable and dependable hydraulic systems in the future.
