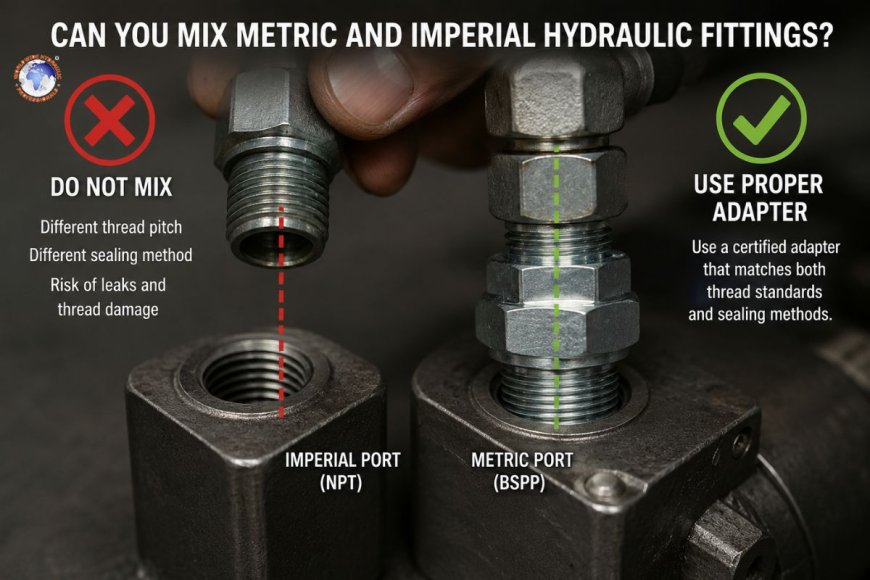

Can you mix metric and imperial hydraulic fittings?

The answer is no, imperial and metric fittings for hydraulics should not be used together. Even when the threads appear to engage, the differences in depth, pitch, and sealing method used between the metric (BSPP, DIN, BSPT) as well as imperial (NPT or JIC ORFS) standards can cause false engagements that leak or cross threads or break under pressure. Make sure that you match the appropriate standards on both sides of a connection and utilize an approved adapter when the need to change is inevitable.

Hydraulic systems constructed with components that are sourced from various regions or companies often result in a mixture of thread standards available. There is a temptation to connect a fitting in metric through an imperial port due to the fact that the fitting "goes in a few turns." This is among the most frequently made—and potentially dangerous—mistakes made within hydraulic assembly.

What makes this question come frequently?

Global supply chains mean that a single machine may carry parts that come from European, American, and Asian manufacturers. A cylinder made according to DIN standards could be delivered to an outlet that stocks mainly JIC or NPT fittings. Under pressure the technician could try to create a metric port with an imperial fitting and vice versa since the thread sizes appear similar to the caliper.

The issue lies in the fact that "close" is not the equivalent of "compatible." Hydraulic fittings depend on precise thread design and sealing mechanisms to maintain pressures that can be as high as the range of 3,000 to 6,000 PSI. A small snag that seems small in the moment can be an extremely high-pressure leak path or blown seal after the system is pressured.

The fundamental differences between metric and imperial standards

Angle and pitch of the thread

Metric threads measure millimeters for each thread pitch, whereas imperial threads (like NPT and UN/UNF) are measured in threads per inch. The fittings very close to the outer diameter may have different spacing between pitches, which means that threads could begin to bind, but they may bind, gall, or even strip prior to achieving the proper seal.

Thread angles can also differ. Metric threads generally have 60 degrees, which is that is similar to imperial. However, the flank contact and major/minor tolerances for diameter are calculated in a different way which means that the crest and the root of the threads aren't aligned exactly the way they would in the same standard.

Method for sealing

This is the most crucial problem. Different standards are able to seal in fundamentally different ways

• NPT (National Pipe Tapered) seals through thread interference and typically requires a thread sealant.
• BSPP (British Standard Pipe Parallel) seals using the O-ring or bond washer that is located at the bottom of the fitting. It does not seal in the threads.
• BSPT (British Standard Pipe Tapered) seals are similar to NPT by using the interference of tapered threads.
• JIC (Joint Industry Council) and SAE 37-degree flare seal using flare cones made of metal-to-metal.
• ORFS (O-Ring Face Seal) seals by capturing an O-ring, which is compressed between flat faces.
• DIN fittings that are metric typically make use of a 24-degree cone, without or with O-rings, based on the heavy-duty or light-duty series.

Threading a threaded fitting (BSPP) into an adapter specifically designed to seal against interference (NPT) might appear to be connected, but it does not provide a reliable sealing surface. However, the reverse can be equally dangerous when you force an untidy fitting to a port that is parallel and may end up damaging the threads on the port permanently.

What happens when you create a mismatch?

1. The thread may not be engaged properly. The fitting can thread two or three turns prior to the fitting being able to be bound, creating a false impression of a secure connection.
2. Thread damage. Continuous tightening past that point at which resistance is reached could make the threads of the port, which can be costly to repair, particularly on manifolds or cylinders. block.
3. There is no reliable seal. Even if the threads of the fitting fit in completely, any sealing edges (flare angle or O-ring groove thread taper) aren't positioned properly, which can lead to tears or even catastrophic leaks when under pressure.
4. Vibration loosening. An unmatched connection is not equipped with the proper clamping force distribution and is therefore more susceptible to loosening under the loads of vibrations that are typical of industrial and mobile equipment.
5. Issues with warranty and compliance. Many standards bodies and OEMs (ISO 4413 is one example) have the fitting standards that are approved for a particular system. Combining standards without an approved adapter could void the warranty of equipment.

What are you doing?

Before assuming that an installation is compatible, check the following standards:

• Determine the outer diameter and thread pitch using the help of a thread pitch gauge or the caliper. Then, compare it with a standard chart (NPT, BSPP, JIC, ORFS, and metric DIN).
• Make sure the port is in good condition and that it has the correct fit angle. A 37-degree angle (JIC) is similar to a 24-degree cone (DIN) at first glance but may not fit properly against the correct mating angle.
• Find identifying marks. A lot of fittings are stamped with the size of the fitting and standard codes.
• Make sure the surface is sealed. A flat surface that has an O-ring groove suggests ORFS. A cone-shaped mating surface suggests DIN or JIC; a smooth taper that lacks an obvious sealing mark indicates that it is NPT or BSPT.

The most effective method to move between standards

If a system really needs to connect imperial and metric components, for instance, retrofitting a European cylinder to an American-standard hydraulic power unit -- the answer is a transition adapter that has been certified, not a forced fitting.

• Make sure to use adapters that are rated specifically for the type of pressure in the line and not only their thread diameter. An adapter that is rated for a return line with low pressure shouldn't be used with the supply line with high pressure.
• Match the adapter's sealing method to each side correctly—for example, an adapter with BSPP threads and an O-ring on one end and a JIC 37-degree flare on the other.
• Find adapters from trusted hydraulic component makers and not generic hardware manufacturers, as dimensional tolerances can be a factor in the pressure of hydraulics.
• Note the transition point in the maintenance records to ensure that future technicians are aware that a regular change is in place in the area, decreasing the possibility of mismatching in future repairs.

Best methods for multi-standard fleets

Facilities that keep equipment from several regions or OEMs can benefit from some standard practices:

• Make sure you have separate bins clearly marked for imperial and metric fittings to prevent confusion on the shop floor.
• Standardize using the single thread pitch gauge, which covers the metric and imperial ranges.
• Train technicians to ensure the standard compatibility prior to assembly, not simply visually estimate the fit.
• Maintain a supply of certified adapters to be used at transition points in your fleet, rather than purchasing them in case of breakdown.
• If possible, make the purchase of new equipment on one fitting standard in order to minimize long-term complexity.

Imperial and Metric hydraulic fittings cannot be interchanged even though they appear to connect. The variations in the thread pitch or angle and the sealing methods mean that an unmatched connection could be the perfect opportunity for a leak or failure to occur, especially when it comes to high-pressure systems. When a switch between standards is inevitable, make sure you use an adapter that is correctly matched with both sides and avoid using a connector that isn't properly fitting.

1. Does a metric fitting connect to an imperial port in a safe manner?

No. Even if the thread of a metric fitting is in a part of an imperial port, the sealing and pitch surfaces will not align properly and result in a weak connection that may rupture or fail under pressure.

2. What can I do to determine whether my hydraulic fitting is imperial or metric without the proper documentation?

Make use of a thread pitch gauge or caliper to determine the diameter of the outside and pitch before comparing the results with a chart of reference that is used for NPT, BSPP, JIC, ORFS, and metric DIN fittings.

3. Does thread sealing provide a secure method to make up for an unmatched fitting?

No. Thread sealant compensates for small tolerance differences within one standard, but it is not able to correct for the fact that there is a fundamentally different angle of thread or sealing geometry among standards.

4. What's the most secure method to connect a European cylinder in the American hydraulic system?

Make sure you use a transition adapter that is certified and rated to the pressure class of the system, using the appropriate standards for threads and the sealing technique to be matched on both sides of the adapter.

5. Does mixing different standards void the manufacturer's warranty on equipment?

Often, yes. A lot of OEMs provide approved fitting specifications as well as adapters that are not approved or forced mismatches could void warranty coverage, in addition to risking safety.
