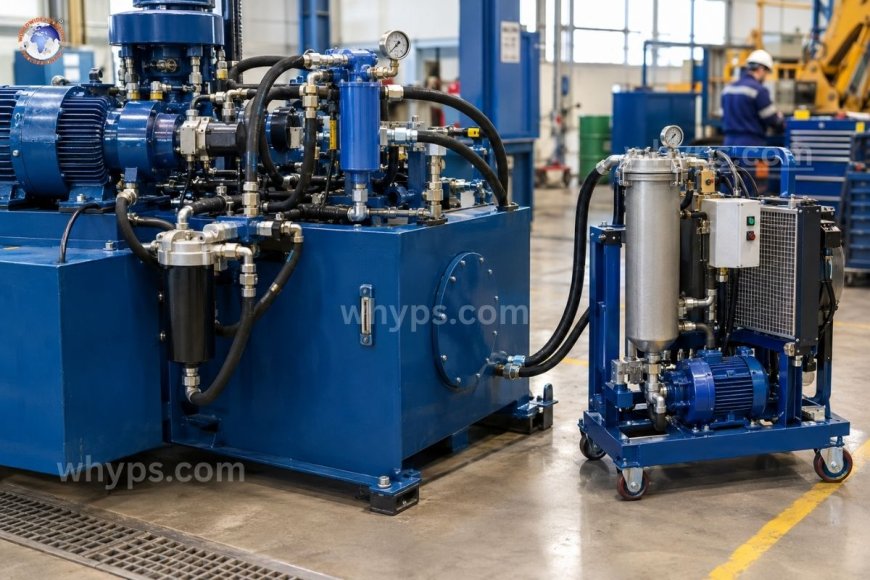

Offline vs In-line hydraulic filtration: benefits and applications

In-line hydraulic filtration cleans oil as it flows through the working circuit (pressure, return, or suction lines), protecting components in real time. Offline filtration, also called kidney-loop filtration, uses a separate pump and filter to continuously clean the reservoir oil, independent of machine operation. In-line filters defend against contamination generated and ingested during operation, while offline filters deliver finer filtration, water removal, and cleanliness recovery. For most industrial and mobile systems, the most reliable approach is to use both.

Why the filtration strategy matters?

Contamination is widely regarded as the leading cause of hydraulic system failure. Particles as small as a few microns can score valve spools, erode pump components, jam servo valves, and accelerate seal wear. Water and oxidation by-products add to the damage by degrading the oil and promoting varnish formation.

Choosing where and how to filter is therefore as important as choosing the filter itself. The two main approaches, in-line and offline, solve different problems. Understanding what each does well helps you build a contamination control plan that protects equipment, reduces downtime, and meets your target ISO 4406 cleanliness code.

What is in-line hydraulic filtration?

In-line filtration places the filter directly in the main hydraulic circuit, so all (full-flow) or part of the working oil passes through it during normal operation. It is the standard approach on nearly every hydraulic machine.

Common in-line filter locations

• Suction filters (strainers): Installed ahead of the pump to block large particles. They protect the pump but must be sized generously, since restriction can cause cavitation.
• Pressure filters: Placed downstream of the pump to protect sensitive components such as proportional and servo valves. They must be built to withstand full system pressure.
• Return-line filters: Installed before the oil returns to the reservoir. They capture wear debris and ingress contamination before it re-enters the tank and are the most common choice on mobile equipment.

Benefits of in-line filtration

• Real-time protection: Contaminants are removed as they circulate, which is essential for components with tight clearances.
• Guards critical components: A pressure filter directly upstream of a servo valve acts as a last line of defense.
• Simple and compact: Filters integrate into the circuit and need no extra pump, motor, or plumbing.
• Built-in monitoring: Differential pressure indicators and bypass valves signal when elements need changing.

Limitations of in-line filtration

In-line filters work only while the machine runs, and their performance is tied to system flow and pressure. Practical constraints on pressure drop, flow capacity, and bypass valve cracking pressure often limit how fine the filtration can be. Under cold starts or high viscosity, the bypass valve can open, sending unfiltered oil downstream. In-line filters also have limited ability to remove free water.

What is offline hydraulic filtration?

Offline filtration, often called kidney-loop or off-line recirculation, draws oil from the reservoir using an independent pump, passes it through a high-efficiency filter (and sometimes a water-removal or cooling element), and then returns it to the tank. Because it is separate from the working circuit, it operates at low, steady pressure and flow.

Benefits of offline filtration

• Finer, more consistent filtration: With constant low flow, the system can use very fine media, often 3 microns or better, without worrying about pressure drop or bypass events.
• Runs independently: It can operate while the machine is idle, overnight or on standby, continuing to polish oil when in-line filters are inactive.
• Greater dirt-holding capacity: Larger housings and slower flow rates extend element life.
• Water and varnish control: Dedicated water-absorbing elements or vacuum dehydration units can be added to the loop. Cooling can be integrated as well, since lower oil temperatures slow oxidation.
• Cleanliness recovery: After a component failure, maintenance event, or oil top-off, an offline unit can bring contaminated oil back to target cleanliness quickly.

Limitations of offline filtration

Offline systems add cost, space requirements, and another pump to maintain. They do not protect components in real time, because oil must first circulate back to the reservoir before it is cleaned. A kidney loop cannot replace in-line filters on a system with high contamination ingress or fast-wearing components.

Offline vs. in-line filtration: Side-by-side comparison

Typical applications

Where in-line filtration is essential

• Mobile equipment: Excavators, loaders, and cranes rely on return-line filters to manage contamination from harsh environments.
• Servo and proportional systems: Injection molding machines and test rigs need pressure filters upstream of sensitive valves.
• Closed-loop hydrostatic drives: Charge-pump filtration protects the main pump and motor.

Where offline filtration adds the most value

• Large reservoir systems: Steel mills, hydroelectric plants, and heavy presses benefit from continuous polishing of large oil volumes.
• Critical continuous processes: Plants where unplanned downtime is very costly use kidney loops to hold tight cleanliness targets.
• Marine and offshore equipment: Water ingression is a constant concern, making offline water removal especially valuable.
• Oil conditioning after service: New oil is often not clean enough straight from the drum, and offline filtering can bring it to specification before it enters the system.
• Portable filter carts: A filter cart works as a temporary offline unit for cleanup, transfers, and flushing.

How to choose the right approach?

Consider component sensitivity

Systems with servo valves or tight-tolerance pumps need robust in-line protection, ideally with pressure filtration, and typically benefit from an offline loop to keep baseline cleanliness low.

Evaluate the operating environment

Dusty, wet, or high-ignition environments call for strong return-line filtration plus quality breathers. Where water is a regular problem, add offline water removal.

Factor in duty cycle and downtime cost

Equipment that runs intermittently misses filtration time with in-line filters alone. An offline unit keeps working during idle periods. For critical assets, the cost of a kidney loop is typically small compared with one unplanned failure.

Set a target cleanliness code

Define a target ISO 4406 code based on your most sensitive component and oil type, then verify with regular oil analysis or particle counting. If in-line filtration alone cannot reach the target, offline filtration is the logical next step.

Why combining both delivers the best results?

In-line and offline filtration are complementary rather than competing. In-line filters stop contaminants quickly as they are generated or enter the circuit. Offline filtration then removes finer particles, water, and degradation products that in-line filters miss, which lowers the contamination load the in-line filters must handle and helps extend element life. Together they provide both immediate protection and long-term fluid health.

Common mistakes to avoid

• Undersizing the offline pump or filter, which reduces the turnover rate of the reservoir. A common guideline is to circulate the full reservoir volume through the loop several times per hour.
• Returning oil near the suction line, which can recirculate the same oil without properly mixing the tank.
• Ignoring differential pressure indicators, allowing filters to clog and bypass.
• Skipping oil analysis, which makes it impossible to confirm whether either strategy is working.
• Relying on filtration alone without sealed reservoirs, quality breathers, and clean handling practices.

In-line filtration protects components in real time, while offline filtration maintains fluid cleanliness, removes water, and restores oil quality. Each has a role, and the right balance depends on your equipment, environment, and downtime tolerance. For critical or high-value systems, pairing the two is one of the most cost-effective ways to extend component life and keep hydraulic systems running reliably.

1. What is the main difference between offline and in-line hydraulic filtration?

In-line filtration cleans oil inside the main circuit while the machine operates. Offline filtration cleans reservoir oil using a separate pump and filter, independent of machine operation.

2. Can offline filtration replace in-line filters?

No. Offline filtration does not protect components in real time, so in-line filters are still needed to catch contamination as it circulates through the circuit.

3. Does offline filtration remove water from hydraulic oil?

Yes, when equipped with water-absorbing elements or vacuum dehydration. Standard particulate filters remove little or no free water.

4. How fine should an offline hydraulic filter be?

It depends on your cleanliness target and component sensitivity. Offline filters commonly use fine media, often in the 3 to 10 micron range, and are chosen to meet a defined ISO 4406 code.

5. When is a kidney-loop system worth the investment?

It is most valuable for large reservoirs, critical or continuous processes, water-prone environments, and systems with sensitive components where downtime and component replacement are costly.
