What are the mid-center testing methods for hydraulic cylinders?

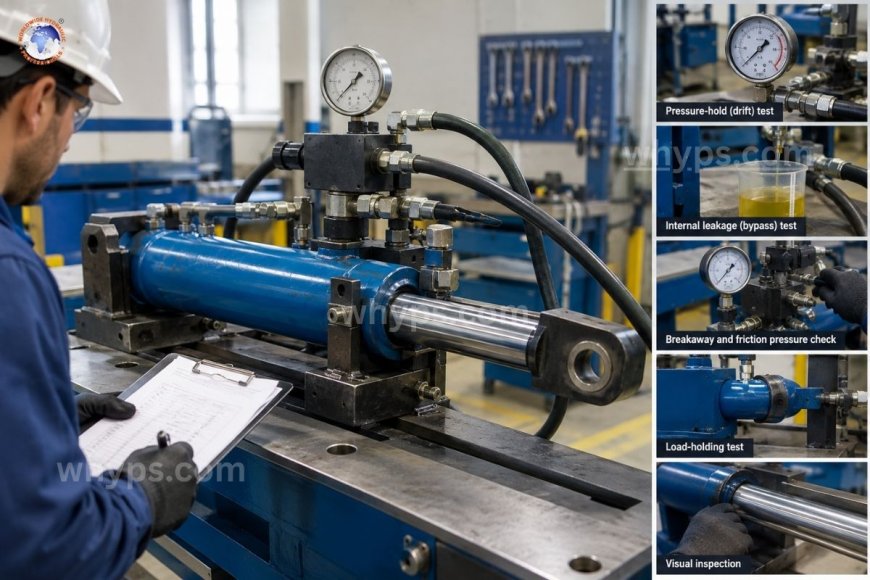

Mid-center testing evaluates a hydraulic cylinder with its piston parked at or near the middle of the stroke, where seals and bore surfaces see the most wear. The core methods are a pressure-hold (drift) test, an internal leakage (bypass) flow test, a breakaway and friction pressure check, a load-holding test, and a visual inspection of the rod and external seals. Used together, they reveal worn piston seals, scored barrels, and leaking valves before they cause unplanned downtime. Hydraulic cylinders rarely fail all at once. They fade: a slow drift under load, a slightly slower cycle, and a film of oil on the rod. Because most cylinders spend their working life in the middle of their stroke, that is where damage accumulates first and where testing gives the most useful picture. This guide explains what mid-center testing means, how each method works, and how to interpret what you find.

What does "mid-center testing" mean?

In practice, "mid-center" refers to testing the cylinder with the piston positioned roughly halfway through its travel, away from both end caps. This matters for one simple reason: at full extension or full retraction, the piston bottoms out against the cap or gland, and that mechanical stop can mask leakage. Fluid has nowhere to go, so a worn piston seal may appear to hold perfectly.

At mid-stroke the piston is free in the bore, so any bypass across the piston seal shows up as movement, pressure loss, or flow. The test also loads the section of the barrel that sees the most cycles, which is exactly where scoring, ovality, and seal wear tend to appear.

Why test at mid-stroke?

There are three practical reasons to test away from the end positions:

• True seal condition: The piston seal must hold pressure on its own, without help from a mechanical stop.
• Representative bore wear: The center of the barrel is where the seal travels most often, so it reveals real-world wear.
• Realistic load-holding: Many applications, such as lifts, presses, and booms, hold loads mid-stroke, not at the ends.

Preparation and safety

Hydraulic testing involves stored energy, so preparation comes first.

1. Secure the load. Mechanically support or lower any load with blocks or stands. Never rely on hydraulic pressure alone while working near the cylinder.
2. Warm the oil. Bring the fluid to normal operating temperature. Cold oil is more viscous and can hide leakage.
3. Install calibrated gauges. Use test points or tees with gauges rated well above the maximum test pressure.
4. Review the specification. Know the rated working pressure and the manufacturer's allowable leakage and drift figures before you start.
5. Bleed air. Trapped air gives false drift and spongy movement, so cycle the cylinder several times first.

Always wear eye protection and keep hands clear of pinch points. Never check for leaks by hand; pinhole leaks can inject oil through skin.

Method 1: Pressure-hold (drift) test

The pressure-hold test is the simplest and most common mid-center check.

How to perform it

1. Position the piston at mid-stroke and mark the rod position with a scribe line or dial indicator.
2. Apply a defined test pressure to the cap or rod side, depending on which seal you are checking.
3. Close the directional valve or isolate the cylinder with a test block so the circuit is blocked.
4. Monitor pressure decay on the gauge and rod movement over a fixed period, commonly several minutes.

What the results tell you

A steady pressure drop or measurable rod creep points to leakage. The tricky part is that the leak could be in the piston seal, a pilot-operated check valve, a load-holding valve, or the directional valve itself. That is why the test should be repeated with the circuit isolated, as described later. Thermal contraction of the oil can also cause a small pressure drop, so allow temperatures to stabilize before drawing conclusions.

Method 2: Internal leakage (bypass) low test

Where the pressure-hold test shows that something leaks, the bypass test measures how much.

How to perform it

1. Position the piston at mid-stroke and block the rod mechanically so it cannot move.
2. Disconnect the line from the unpressurized side of the cylinder and direct it into a measuring container or flow meter.
3. Apply test pressure to the opposite port.
4. Collect or measure the oil that passes the piston seal over a set time.

Reading the numbers

Some seepage is normal, and acceptable bypass depends on cylinder size, seal type, and pressure. Compare results against the manufacturer's limits and against previous readings on the same cylinder. A flow rate that climbs over successive tests is a reliable sign of progressive seal or bore wear, even if each individual reading is still within limits.

Method 3: Breakaway and friction pressure check

This test measures how much pressure it takes to start the cylinder moving and to keep it moving smoothly at mid-stroke.

How to perform it

1. Unload the cylinder so it moves only against its own friction.
2. Slowly raise pressure on one side until the piston begins to move; record that breakaway pressure.
3. Continue the stroke at a steady, low speed and note the pressure needed to keep moving.

What it reveals

High or uneven breakaway pressure may indicate seal swelling, rod misalignment, a bent rod, contamination, or a scored bore. Pressure that surges and drops during travel suggests stick-slip, often caused by tight seals, poor lubrication, or side loading. A very low breakaway pressure combined with poor load-holding can point to the opposite problem: seals that no longer press firmly against the bore.

Method 4: Load-holding test

Many cylinders must hold a load without drifting, whether a lift, clamp, or boom. The load-holding test confirms this under realistic conditions.

How to perform it

1. Raise the rated or representative load to mid-stroke.
2. Close the control valve and let the system settle.
3. Measure rod drift or load descent over a defined time, typically with a dial indicator or marked rod.
4. Compare against the allowable drift in the specification.

Isolating the source

If drift is present, isolate each component in turn. Install a blocking plate or cap the cylinder port to see whether drift stops. If it does, the leak is upstream in a valve. If drift continues, the piston seal or barrel is the likely culprit. This step saves money because it prevents rebuilding a cylinder when a worn check valve is the real problem.

Method 5: Visual, rod, and external leak inspection

Testing is not only about pressure. With the cylinder at mid-stroke and under pressure, inspect the visible components carefully:

• Rod surface: Look for scoring, pitting, flaking chrome, or corrosion that can cut wiper and rod seals.
• Rod straightness: Check for bending, which causes uneven wear and side loading.
• Gland and rod seal area: Look for weeping oil, dust build-up, or a wet film that returns quickly after wiping.
• Mounting hardware: Check clevises, pins, bushings, and trunnions for play or misalignment.
• Barrel exterior: Look for dents, bulges, heat discoloration, or leaks at port and end-cap joints.

External leaks are often the first visible warning of deeper wear, so record them even when they seem minor.

Supporting diagnostic tools

Several instruments strengthen mid-center test results:

• Thermal imaging: A warm spot on the barrel or valve can reveal internal bypass, because leaking oil generates heat as it expands across a restriction.
• Ultrasonic detection: Handheld sensors can pick up the high-frequency noise of fluid passing through a worn seal.
• Position sensors and data loggers: These record drift and cycle time precisely, making trends easier to spot.
• Oil analysis: Wear metals and particle counts show whether the cylinder is shedding material internally.

Interpreting results and deciding next steps

A single reading means little on its own. The value comes from comparing results with specifications and with the cylinder's own history.

• Within limits and stable: Continue normal inspection intervals.
• Within limits but trending worse: Shorten the inspection interval and plan a rebuild window.
• Outside limits, source isolated to valves: Repair or replace the valve first.
• Outside limits, source in the cylinder: Plan a reseal or rebuild, and inspect the barrel and rod for damage that would justify replacement instead.

Common mistakes to avoid

• Testing only at full stroke, where mechanical stops mask leakage.
• Skipping the warm-up, which hides leakage in cold, thick oil.
• Ignoring trapped air, which produces false drift.
• Overlooking valves as the source of drift.
• Exceeding the cylinder's rated pressure during testing.
• Failing to record readings, which removes the chance to see trends.

Recordkeeping best practices

Log the date, oil temperature, test pressure, hold time, drift or leakage measurement, and the technician's notes for every test. Repeating the same procedure under the same conditions each time makes trends clear and lets maintenance teams predict failures instead of reacting to them.

Mid-center testing gives a realistic view of hydraulic cylinder health by checking the seals, bore, and holding circuit, where they work hardest. Combine the pressure-hold test, bypass flow measurement, breakaway pressure check, load-holding test, and careful visual inspection, and you can separate cylinder faults from valve faults, catch wear early, and schedule repairs on your terms. Always work within the manufacturer's specifications and follow site safety procedures.

1. What is mid-center testing on a hydraulic cylinder?

It is testing the cylinder with the piston positioned around the middle of its stroke, away from the end caps, so that seal leakage and bore wear are not hidden by a mechanical stop.

2. Why not test at the end of the stroke?

At full extension or retraction, the piston bottoms out and blocks fluid movement. A worn piston seal can appear to hold pressure, giving a false pass.

3. How do I know whether drift comes from the cylinder or a valve?

Isolate the cylinder with a blocking plate or capped port and repeat the test. If drift stops, a valve upstream is leaking. If it continues, the piston seal or barrel is the likely source.

4. How often should mid-center tests be performed?

It depends on duty cycle, load and operating environment. Many teams include them in scheduled inspections and after major repairs, and increase the frequency when readings begin trending worse.

5. How much internal leakage is acceptable?

There is no universal figure. Acceptable bypass depends on cylinder size, seal design and pressure, so follow the manufacturer's limits and compare against the cylinder's own baseline readings.
