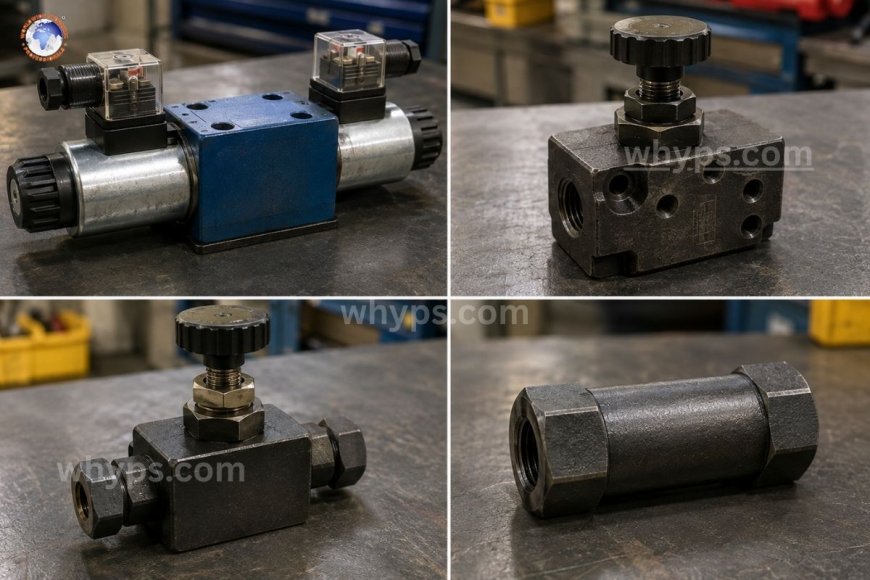

What are the 4 main types of hydraulic valves?

The four major types of hydraulic valves include directionally controlled valves and pressure control valves. They also include flow control valves as well as check valves. Together these four categories determine where fluid flows where it goes, the force an actuator generates, as well as how quickly an actuator is moving and if fluid can flow in reverse, making them the base of nearly every hydraulic circuit, including a backhoe-boom or an injection mold press.

If you're new to the world of fluid power or are trying to improve your knowledge of the design of circuits, this is the first step to learning to. Each valve you encounter, such as proportional, servo, or spool -- is in reality an extra-specialized variant that's built around the four main purposes. Knowing the classification will help you understand the reason the valve exists within the circuit before you explore how it's built.

What is the significance of valve classification?

The hydraulics system functions as, at its heart, an infrastructure for plumbing high-pressure fluid. Pumps create flow, actuators (cylinders and motors) transform the flow into mechanical work, and valves reside between them, regulating the behavior that the liquid exhibits as it flows across the network. In the absence of valves, any hydraulic system could be nothing more than a wildly accelerated flow of oil. It's strong but ineffective and potentially dangerous.

The four types of valve respond to each one of the following questions:

• Directional control valves What is their location? be directed to?
• Pressure control valves How much pressure or force is permitted to build?
• Control valves for flow What speed should the actuator be moving?
• Check valves—Does the fluid have permission to flow this way in any way?

The majority of mobile and industrial hydraulic circuits make use of the four types in a common manifold or stack of valves.

1. DCVs are directional control valves (DCVs).

Directional control valves distribute the flow of pressurized liquid to various components of a circuit and determine the actuator that receives flow and which direction it is moving. If you've ever used the joystick to extend or retract a cylinder, you've been controlling the directed control valve.

How are they classified?

DCVs are generally described by:

• Ports number that are 2-way, 3-way, 4-way, or more refers to the number of connecting locations on the valve's body.
• The number of positions (2-position or 3-position) in reference to the distinct flow pathways that the internal spool, or poppet, may create.
• Method of operation—manual lever, solenoid, pilot-operated, or hydraulic.
• Condition of center (for 3 position valves) - Open center, closed center, center, or float center. This will determine what happens to the flows when the valve is placed into the neutral position.

The most common configuration for mobile devices is the four-way three-position solenoid valve, which permits a cylinder to extend, retract, or remain in place at the flick of a button.

Where are they used?

DCVs can be found in virtually every single application, including excavator boom control and bucket control. Injection molding gate control as well as press ram position, as well as conveyor diverter system. Anytime an operator has to select the flow direction or route, the DCV will be doing the job.

2. Control valves for pressure

Pressure control valves safeguard the system and control the output of force by controlling the amount of pressure that builds up within an electrical circuit. In the absence of them, pumps could continue to produce pressure until a hose bursts or seal bursts or a part catastrophically failed.

Common subtypes

• Relief valves -Open when the system's pressure is greater than an established limit, diverting any excess flow back into the tank in order to shield parts from excessive pressure. Every hydraulic circuit must contain at minimum one.
• Reducing valves—Reduce the pressure that is supplied to a particular section of the circuit, making it possible for one pump to service several actuators that require different levels of pressure.
• Sequence valves—Ensure one actuator completes its motion before a second actuator begins, useful in clamping-then-cutting or lifting-then-tilting operations.
• Counterbalance valves: Keep back-pressure in the outlet of vertical cylinders in order to keep an overrunning load like a raised boom from falling free.
• Unloading valves—Divert the flow of water to tanks at low pressure after equipment reaches an agreed-upon level, thereby cutting down on heat generation and energy consumption during idle time.

Why are they important for the long-term viability of your system?

Pressure spikes are among the main causes of premature wear on components and catastrophic failure of hoses. A properly set relief valve isn't just a security device, but it's also directly affecting seal life, hose longevity, and also the life of the pump. Technicians should check the settings of the relief valve during regular maintenance, and not only when a problem occurs.

3. Valves to control flow

Flow control valves regulate the rate that hydraulic actuators move through by controlling the amount of fluid that is delivered over time. Because the speed of actuators is directly related to the flow speed (not pressure), the valves are crucial wherever precise, controlled movement is required.

Common subtypes

• Needle valves—simple manually adjustable orifices that limit the flow of a fine-threaded stem that provide precise but un-compensated control.
• Pressure-compensated flow controllers maintain an unvarying flow rate, regardless of the pressure changes upstream, which is essential in the case of applications that have loads that change over the course of a.
• Dividers for flow—Split one flow source into two or more pathways commonly used to synchronize the movement of several cylinders.
• Deceleration valves gradually reduce the flow when an actuator nears the close of its stroke, stopping mechanical shock and hard stops.

Practical applications

Flow control is what permits the hydraulic press to close at a slow pace to ensure safety, only to increase speed once contact is established. It's also the reason why lift cylinders that are synchronized on platforms moving in a uniform manner and prevent one side from being in front of another result in a risky mechanical strain.

4. Check valves

Check valves are among the simplest of the four types; however, they are not less important. They let fluid circulate freely in one direction but stop the flow in the reverse direction. They function similarly to a one-way valve within the plumbing system.

Common subtypes

• The simplest (ball or poppet) check valve spring-loaded designs are opened when pressure is applied to the forward flow and then close the seat to block reverse flow.
• Pilot-operated check valves normally closed to reverse flow; they can be opened with an outside pilot's signal, often used to keep the load until the load is let go.
• Check valves that restrict flow—combining flowing freely in one direction and metered and limited flow in the opposite direction, effectively combining the functions of flow control and check into one unit.

Why are check valves so often not considered?

Since they do not have external actuation and do not require operator input, they are often neglected in circuit design reviews; however, a faulty or malfunctioning check valve can be a frequent reason for loads drifting, creep of cylinders, and unintentional reverse flow in circuits that are otherwise designed. Check valves operated by pilots are crucial when the load has to be secured safely against gravity, for example, in the vertical press or lift platform.

How are these four types interconnected?

In a real circuit these two categories are rarely independent. An ideal mobile system could comprise a directional control valve that controls an piston and a relief valve that is used to limit the pressure of the system as well as the flow control valve used to control the speed of the cylinder, and a check valve operated by a pilot to secure the load at the moment that the valve's directional is set. Understanding the role of each valve—instead of thinking of hydraulics as a distinct "valve" category—is what differentiates the most effective troubleshooting from speculation.

If you are trying to identify a problem with your hydraulic system, the first thing to ask should not be "Which valve is broken?" But "Which of the four functions is failing—direction, pressure, flow, or backflow prevention?" The framing of the question is the only thing that narrows the diagnostic pathway quite a bit.

Which are the four most common kinds of valves for hydraulics?

The four primary kinds are directional control valves and pressure control valves. They are also flow control valves as well as check valves. Each one regulates a specific element of fluid behavior, namely flow and pressure, speed and flow direction.

What's the main difference between the directional control valve and the flow valve?

A directional control valve decides the direction that the fluid will go and routes it through different ports or actuators, while flow control valves determine the speed at which fluid travels when it's already moving in a particular direction.

Relief valves are regarded as essential security components?

Relief valves keep the pressure of the system from going over the safe limit by redirecting the excess flow into tanks once the threshold is reached and thereby protecting seals, hoses, and pump parts from a catastrophic failure due to overpressure.

What is the difference between the check valve and the one-way check valve that is operated by the pilot?

A standard check valve permits flow only in one direction and cannot be reversible with a pilot-operated check valve that may be closed through the pilot's signal in reverse flow, which would normally be blocked.

Does one valve have the ability to perform more than these four functions?

Yes. Certain valves, like restrictor check valves as well as certain proportional valves, perform multiple functions, for instance, offering flow control in one direction and metered restriction in the opposite direction, mixing check valve and flow control actions into one component.
