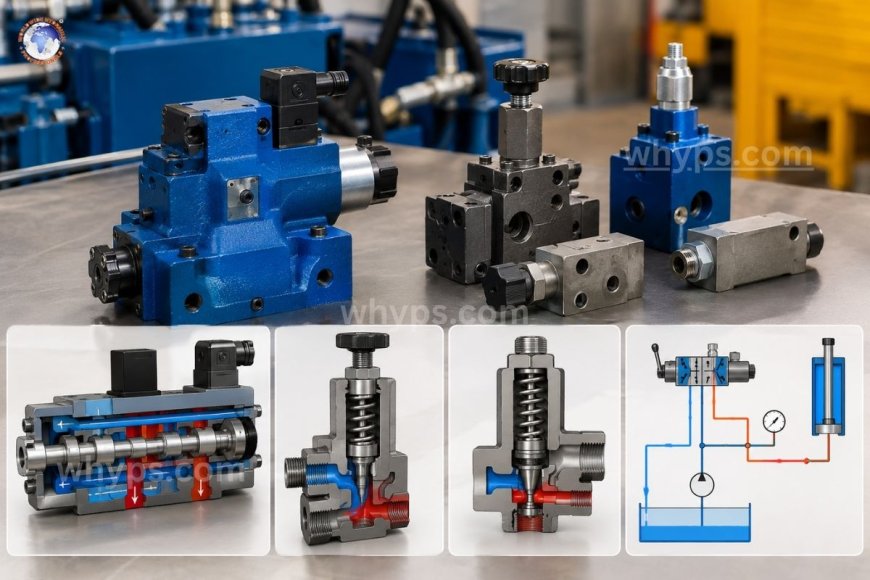

How hydraulic valves work: functions, types & internal mechanisms explained

How hydraulic valves work: functions, types & internal mechanisms explained

Hydraulic valves control the direction, pressure, and flow rate of fluid in a hydraulic system. Inside each valve, a moving element, such as a spool, poppet, or ball, opens, blocks, or restricts internal passages in response to a solenoid, pilot pressure, spring, or manual lever. By managing where oil goes, how hard it pushes, and how fast it moves, valves determine how every cylinder, motor, and actuator behaves.

If the pump is the heart of a hydraulic system, valves are the brain and nervous system. Understanding how they work helps engineers select the right component, helps technicians troubleshoot faster, and helps buyers avoid costly mismatches.

What do hydraulic valves do?

Every hydraulic valve performs one or more of three core jobs:

  • Directing flow: deciding which path oil takes, such as extending or retracting a cylinder.
  • Controlling pressure: limiting, reducing, or sequencing pressure to protect components and manage force.
  • Regulating flow rate: setting how much oil reaches an actuator, which controls speed.

Because force depends on pressure and speed depends on flow, these three functions give an operator complete control over a machine's work output.

Core components inside a hydraulic valve

Despite their variety, most valves share the same basic parts:

  • Valve body (housing): a cast or machined block, usually iron, steel, or aluminum, containing ports and internal passages.
  • Spool, poppet, or ball: the moving element that opens or closes flow paths.
  • Springs: return the moving element to its default position and set cracking or opening pressures.
  • Actuator: the input that moves the element, such as a solenoid coil, pilot line, lever, or proportional controller.
  • Seals and clearances: O-rings seal static joints, while precisely machined clearances (often just a few microns) limit leakage between moving parts.

The basic mechanism: how a valve controls oil

The simplest way to understand a valve is to follow the oil. In a typical directional valve, four ports are in play: P (pressure from the pump), T (tank return), and A and B (connections to the actuator).

Inside the body, a cylindrical spool slides within a bore. The spool has raised sections called lands and narrower sections called grooves. When the spool shifts, its lands cover or uncover internal passages. In one position, oil flows from P to A while B drains to T, which extends a cylinder. Shift the spool the other way and the connections reverse, which retracts it.

Pressure and flow valves work on a different principle: force balance. Oil pressure acts on a surface area inside the valve and pushes against a spring. When pressure overcomes the spring force, the element moves and changes the opening. The spring setting therefore defines the pressure at which the valve acts.

Main types of hydraulic valves

Hydraulic valves fall into four broad categories, each matched to a specific control task.

Directional control valves

These start, stop, and steer flow. They are described by ways (number of working ports) and positions (number of spool states). A 4/3 valve, for example, has four ports and three positions.

The spool's center condition matters as much as its shifted positions:

  • Closed center: all ports blocked, holding the load and keeping the pump pressurized.
  • Open center: pump flow returns to tank at neutral, reducing heat and energy loss.
  • Tandem center: pump unloads to tank while actuator ports stay blocked.
  • Float center: actuator ports connect to the tank so the load can move freely.

Pressure control valves

These protect the system and shape force output:

  • Relief valves open when system pressure reaches a set limit, diverting oil to the tank. They are the primary safety device in most circuits.
  • Pressure-reducing valves maintain a lower pressure in a branch circuit, useful for clamping or secondary functions.
  • Sequence valves open only after a preset pressure is reached, so one operation finishes before the next begins.
  • Counterbalance valves hold a load in place and control its descent, common on cranes and lifts.
  • Unloading valves send pump flow to the tank at low pressure once a target is reached, saving energy.

Flow control valves

These set actuator speed by restricting or metering oil.

  • Needle valves offer simple, adjustable restriction, but flow varies as pressure changes.
  • Pressure-compensated flow controls use an internal compensator spool to keep flow steady even when load pressure fluctuates, giving consistent speed.
  • Priority valves direct flow to a critical function, such as steering, before supplying secondary circuits.

Check valves

Check valves allow flow in one direction only.

  • Standard check valves use a poppet or ball held on a seat by a light spring.
  • Pilot-operated check valves can be forced open by pilot pressure, allowing reverse flow only when needed, which makes them ideal for load holding.
  • Shuttle valves select the higher of two pressure signals or supply sources.

How are valves actuated?

The method of moving the spool or poppet shapes the valve's cost, speed, and capability:

  • Manual: levers, pedals, or knobs for simple or backup control.
  • Solenoid: electrical coils that push the spool directly, common on smaller valves.
  • Pilot-operated: a small pilot valve uses hydraulic pressure to shift a larger main spool, enabling high flow with low electrical power.
  • Proportional and servo: electronic controls position the spool anywhere within its stroke, giving smooth, variable control of flow and pressure with feedback for accuracy.

Spool vs. Poppet designs

Spool valves are versatile and can handle multiple flow paths, but they rely on tight clearances, so some internal leakage is normal. Poppet valves seat a cone or ball against a surface, giving virtually leak-free sealing, which is why they dominate load-holding and relief applications.

What affects valve performance?

Several factors influence how well a valve works over time:

  • Fluid cleanliness: particles lodge in tight clearances, causing sticking, scoring, and erratic response. Clean oil is the single biggest factor in valve life.
  • Correct sizing: an undersized valve creates excessive pressure drop and heat, while an oversized one can reduce control resolution.
  • Temperature and viscosity: extreme conditions change leakage rates and response times.
  • Wear and contamination: worn lands and seats increase internal leakage and reduce efficiency.

Common warning signs

Slow or inconsistent actuator movement, load drift, unusual noise, rising oil temperature, and pressure that won't hold are all signs that a valve may be leaking internally or sticking. Early inspection prevents damage to downstream components.

Hydraulic valves convert a pump's raw power into controlled, useful work. Directional valves steer the oil, pressure valves protect the system and set force, flow valves regulate speed, and check valves lock everything in place. Knowing how spools, poppets, springs, and actuators interact makes it easier to choose the right valve, diagnose problems, and keep equipment running reliably.

1. What is the main function of a hydraulic valve?

A hydraulic valve controls the direction, pressure, or flow rate of fluid in a system, which determines how and when actuators move and how much force they produce.

2. What are the four main types of hydraulic valves?

The four main types are directional control valves, pressure control valves, flow control valves, and check valves. Each manages a different aspect of fluid behavior.

3. What is the difference between a spool valve and a poppet valve?

A spool valve slides within a bore to open or close multiple flow paths and has small internal leakage. A poppet valve lifts off a seat and provides near-zero leakage, making it better for load holding.

4. How does a relief valve work?

A relief valve uses a spring to hold a poppet or spool closed. When system pressure exceeds the spring setting, the valve opens and diverts excess oil to tank, preventing overpressure.

5. What causes hydraulic valves to fail?

The most common causes are fluid contamination, overheating, incorrect sizing, pressure spikes, and normal wear. Maintaining clean oil and proper operating conditions greatly extends valve life.
