Proportional vs servo hydraulic valves: performance, control, and selection

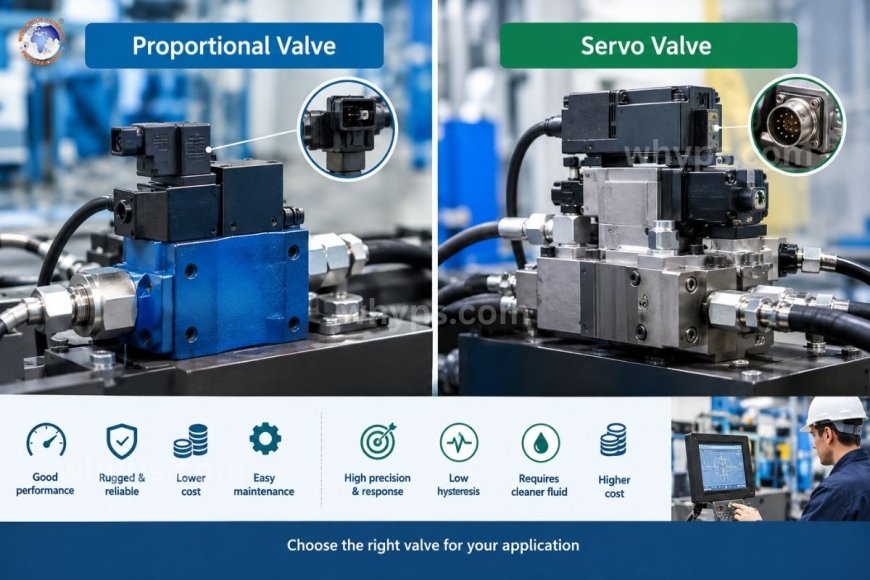

Proportional valves and servo valves both control flow or pressure continuously in response to an electrical command, but they sit at different points on the performance-versus-cost curve. Proportional valves are rugged, tolerate typical industrial oil cleanliness, and deliver good repeatability for most machinery. Servo valves offer much higher response speed, lower hysteresis, and tighter closed-loop accuracy, but they cost more and demand cleaner fluid and more careful system design. Choose proportional valves for general motion and force control, and servo valves when high-bandwidth, high-precision positioning or force control is critical.

Why continuous control matters in hydraulics?

Conventional on/off directional valves shift a spool fully from one position to another. That works for simple machines, but it produces abrupt starts, shocks, and wasted energy. Modern equipment needs smooth acceleration, variable speed, and controlled force. Proportional and servo valves meet that need by positioning the spool anywhere within its stroke in proportion to an electrical input signal, so the operator or controller can shape flow and pressure precisely.

Both valve families can look similar on a data sheet, which is why engineers often confuse them. The real differences lie in how the spool is driven, how fast it responds, how accurate it is, and what it demands from the rest of the system.

What is a proportional valve?

How it works

A proportional valve uses a proportional solenoid, whose force is roughly proportional to coil current, to move the spool against a centering spring. An electronic amplifier card converts a command signal, usually 0 to 10 V or 4 to 20 mA, into the coil current. Many designs add a pulse-width-modulated signal with a small superimposed oscillation called dither, which reduces stiction and improves smoothness. Higher-performance versions include an onboard position sensor, typically an LVDT, that closes the spool-position loop inside the valve.

Strengths

• Robust construction: Proportional valves tolerate shock, vibration, and the contamination levels typical of mobile and industrial machinery.
• Lower cost: Both the valve and its electronics are considerably less expensive than servo equivalents.
• Wide flow range: Direct-acting and pilot-operated versions cover everything from a few liters per minute to several hundred.
• Simple maintenance: Technicians can service them without specialized clean-room practices.

Limitations

• Higher hysteresis and deadband, especially in valves without spool feedback.
• Slower dynamic response than servo valves.
• Spool overlap, designed to limit leakage, can create a small zone where the command produces no flow.

What is a servo valve?

How it works

A classic servo valve uses a torque motor to move a flapper between two nozzles or a jet pipe toward two receiving ports. This creates a pressure difference across the main spool, which shifts until a feedback spring or electronic sensor balances the command. Because the first stage is extremely sensitive and the spool is lapped to very tight clearances, the valve reacts quickly and accurately to very small signals. Modern designs also include direct-drive servo valves, where a linear force motor drives the spool, and servo-proportional hybrids that blur the line between the two categories.

Strengths

• High dynamic response: Servo valves reach the frequency range needed to control rapidly changing loads.
• Very low hysteresis and excellent Resolution: They respond to tiny command changes, supporting fine positioning.
• Near-zero overlap: Precision-lapped spools give smooth control around the null position.

Limitations

• Higher purchase and maintenance cost.
• Sensitivity to contamination, since small nozzles and tight clearances can clog or wear quickly.
• Continuous internal pilot leakage in many designs, which consumes some flow and generates heat.

Performance comparison

Response and bandwidth

Bandwidth describes how fast a valve can follow a changing command. As a rough guide, standard proportional valves respond in the range of a few tens of hertz, high-end proportional valves with spool feedback reach somewhat higher, and servo valves can reach well beyond a hundred hertz. Always check the manufacturer's frequency-response curves at the amplitude and pressure you will actually use, because published figures vary widely.

Hysteresis, repeatability, and resolution

Proportional valves without feedback may show hysteresis of a few percent, while models with LVDT feedback improve markedly. Servo valves typically stay well below one percent. For applications such as test rigs or precise position control, that difference decides whether the loop is stable and accurate.

Fluid cleanliness

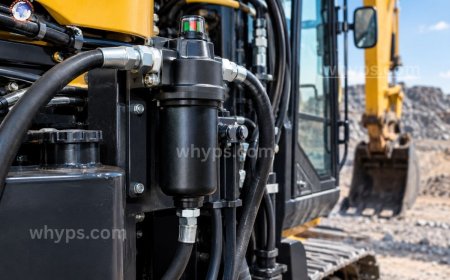

Servo valves generally require cleaner oil, often ISO 4406 codes around 15/13/10 or better, while proportional valves usually tolerate a code or two dirtier. Cleaner oil means finer filtration, closer monitoring, and stricter service practices, all of which add to the operating cost of a servo system.

Energy use and leakage

Servo valves often leak a small amount continuously in the pilot stage, so they pair best with pressure-compensated pumps or accumulators that keep power consumption reasonable. Proportional valves generally leak less in neutral, but their larger overlap can reduce fine control.

Cost of ownership

The initial price is only part of the story. Servo systems often need better filtration, a manifold with careful machining, and engineers who can tune a closed loop. Proportional systems usually cost less to install, commission, and maintain.

Control considerations

Open-loop vs. closed-loop: Proportional valves are often used in open-loop speed or pressure control, where the operator accepts moderate accuracy. Servo valves almost always operate in closed-loop control with position, velocity, or force feedback from the actuator.

Amplifier and controller: Match the electronics to the valve. Proportional valves need properly set ramps, gain, dither, and deadband compensation. Servo valves need a servo controller with fast, stable loop closure and, increasingly, digital interfaces such as CANopen or industrial Ethernet protocols.

Spool geometry: Overlap, critical-center, and underlap spools behave differently around the null position. Critical-center spools give the best control but leak more and cost more.

Fail-safe behavior: Confirm what the valve does on loss of power or signal. Many designs use a spring-centered or defined fail position, which is essential for safety on presses, lifts, and mobile equipment.

Typical applications

Proportional valves are common in:

• Excavators, cranes, and other mobile machinery
• Plastic injection molding and press speed or pressure control
• Material handling and tension control
• General industrial machinery with variable-speed actuators

Servo valves are common in:

• Flight simulators and motion platforms
• Material and fatigue test systems
• Steel and paper mill gauge or tension control
• High-end injection molding and robotics
• Aerospace and defense actuation

How to choose between proportional and servo valves

Work through these questions in order:

1. What accuracy do you actually need? If positioning within a fraction of a millimeter under dynamic load is essential, lean toward servo. If a few percent is acceptable, proportional is likely enough.
2. How fast must the system respond? Compare the valve's frequency response with the dynamics of your load and actuator, not just the headline specification.
3. What is your fluid cleanliness? If you cannot reliably maintain clean oil, a servo valve will not survive long.
4. What is your environment? Dust, shock, vibration, and temperature swings favor robust proportional designs.
5. What is the total budget? Include filtration, controllers, commissioning, and maintenance.
6. Is there a middle option? High-response proportional valves with onboard feedback, or direct-drive servo-proportional valves, often deliver most of the performance of a servo valve at a lower cost and with better contamination tolerance.

Maintenance and reliability tips

• Filter to the cleanliness level specified by the valve manufacturer, and verify it with regular oil analysis.
• Keep coil connections and electronics sealed against moisture and vibration.
• Monitor for signs of drift, rising hysteresis, or slow response, which often indicate contamination, wear, or a failing sensor.
• Replace or recalibrate valves on a schedule matched to the criticality of the machine.

Proportional and servo valves are not rivals so much as tools for different jobs. Proportional valves offer dependable, economical control for the majority of industrial and mobile hydraulic machines. Servo valves reward the extra cost and care with outstanding speed and precision where the application truly demands it. Define your accuracy, response, and cleanliness requirements first, and the right valve usually becomes clear.

1. What is the main difference between a proportional valve and a servo valve?

Both modulate flow or pressure continuously, but servo valves respond faster, show lower hysteresis, and control more precisely. Proportional valves are more robust, less expensive, and more tolerant of contamination.

2. Can a proportional valve replace a servo valve?

Sometimes. High-response proportional valves with spool feedback can handle many applications once reserved for servo valves, but demanding high-bandwidth closed-loop systems may still need a true servo valve.

3. Why do servo valves need cleaner hydraulic oil?

Their small nozzles, tight spool clearances, and sensitive first stage are easily clogged or worn by particles. Contamination causes drift, instability, and premature failure.

4. Do proportional valves need closed-loop control?

Not always. Many work well in open loop, but adding position or pressure feedback improves accuracy and repeatability when the process requires it.

5. Are servo valves more energy efficient?

Not necessarily. Servo valves can offer precise control that reduces wasted motion, but pilot leakage and the need for cleaner, pressure-compensated supply can offset those gains. Efficiency depends on the full system design.
