What are pilot-operated check valves, and where are they used?

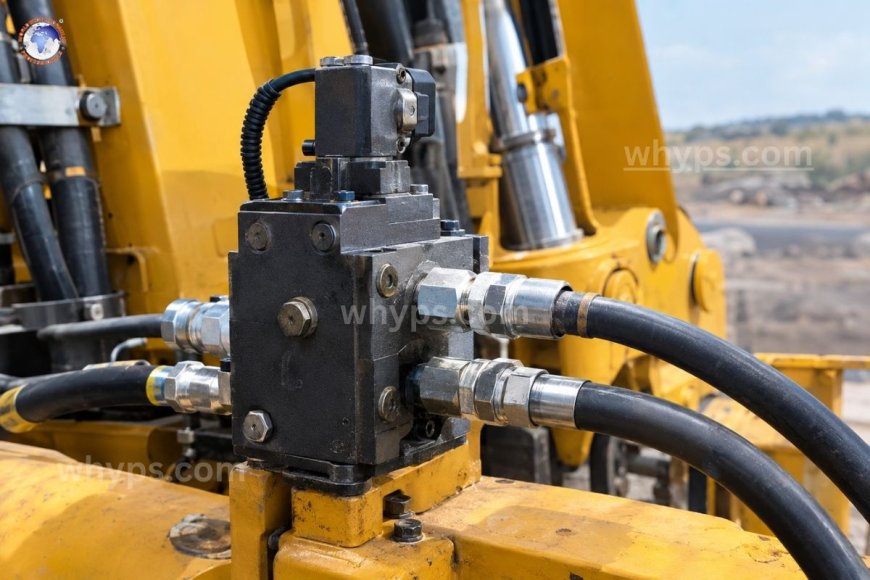

A pilot-operated check valve is a hydraulic valve that allows free flow in one direction, blocks flow in the opposite direction like a standard check valve, and opens that blocked path on demand when a separate pilot pressure signal is applied. This makes it ideal for holding loads securely on cylinders and motors, and it is widely used in lifts, presses, clamps, cranes, and mobile equipment. In many hydraulic circuits, the hardest job is not moving a load but holding it still. A cylinder supporting a boom, a press ram, or a lifting platform must stay put when the pump stops, yet release smoothly when the operator wants to lower it. A pilot-operated check valve, often called a POCV, a pilot check, or a hydraulically piloted check valve, solves exactly this problem. This guide explains how it works, the main design variations, where it is used, and what to consider when selecting one.

How a pilot-operated check valve differs from a standard check valve

A standard check valve uses a spring-loaded poppet or ball that lifts off its seat when inlet pressure overcomes the spring force. Flow passes freely from the inlet to the outlet. If flow tries to reverse, system pressure pushes the poppet harder onto its seat, and the valve seals tight.

The limitation is obvious: a standard check valve can never allow reverse flow. In a circuit where a cylinder must retract or lower a load, that blocked direction eventually needs to open. A pilot-operated check valve adds a pilot piston that can mechanically unseat the poppet when a pilot pressure signal arrives, so reverse flow becomes possible only when the operator or control system wants it.

How a pilot-operated check valve works

The operation can be understood as three distinct states.

Free flow direction

When oil enters the valve from the pump side, it pushes the poppet off its seat against a light spring. Oil flows through to the actuator with very little pressure drop, typically only a few bars depending on the spring cracking pressure and flow rate.

Blocked direction

When the pump stops or flow tries to return from the actuator, the load pressure and spring force press the poppet firmly onto its seat. Because poppet designs seal with metal-to-metal or soft-seat contact, leakage is extremely low. The actuator stays locked in position, even under heavy load, without creeping or drifting.

Pilot-assisted opening

To release the load, pilot pressure is applied to a small piston on the pilot port. As pressure builds, the piston moves and pushes the poppet off its seat, opening the reverse path. Oil from the actuator now flows back through the valve, and the load can lower or the cylinder can retract. When the pilot pressure is removed, the spring reseats the poppet, and the load is held again.

In most circuits, the pilot signal is taken from the opposite side of the cylinder or from the same line that drives the actuator in the opposite direction. This way, the valve opens automatically whenever the operator commands movement in the release direction.

Key design features and variations

Pilot ratio

The pilot ratio is the relationship between the area of the poppet seat and the area of the pilot piston. A common ratio is 3:1, meaning a pilot pressure about one-third of the load-induced pressure can open the valve. Ratios such as 2:1, 4:1, or higher are available. A higher ratio needs less pilot pressure but can make load lowering less stable, while a lower ratio gives more controlled opening.

Internal and external drain

Because the pilot piston sits behind the poppet, back pressure in the return line can interfere with opening. Valves with an external drain isolate the pilot piston chamber from outlet pressure, giving consistent pilot behavior when the outlet has significant back pressure. Valves without a drain are simpler and suit circuits where the outlet connects directly to the tank at low pressure.

Single and double pilot-operated check valves

A single valve controls one cylinder port. A double pilot-operated check valve, often called a dual or twin POCV, controls both ports of a cylinder or hydraulic motor. Each side is opened by pressure on the opposite side. Dual valves are commonly mounted directly on actuators or sandwiched between a directional valve and its subplate, which keeps both lines locked when the directional valve is centered.

Mounting styles

Pilot-operated check valves come as line-mounted bodies, cartridge types for manifold blocks, modular sandwich valves for stacked circuits, and cylinder-mounted bodies that bolt directly onto the actuator port. Direct mounting is common in safety-critical applications because it removes hoses and fittings between the valve and cylinder, so a hose burst cannot release the load.

Where are pilot-operated check valves used?

Load holding in cylinder circuits

The most common use is holding a cylinder in position. Vertical cylinders supporting gravity loads, such as lift tables, tailgate lifts, and scissor platforms, rely on pilot checks to prevent the load from settling when the directional valve is shifted to neutral.

Cranes, booms, and lifting equipment

Truck-mounted cranes, aerial work platforms, and boom lifts use pilot-operated check valves to keep booms and jibs locked in position. Direct mounting at the cylinder protects against hose failure, which is an important safety consideration in these machines.

Hydraulic presses and clamping systems

Press rams, workholding clamps, and fixtures need to hold pressure while a machining or forming operation takes place. A pilot check keeps clamp pressure steady after the pump has unloaded, which saves energy and reduces heat generation.

Mobile and construction equipment

Excavators, loaders, backhoes, and telehandlers use pilot checks on outriggers, stabilizer legs, and bucket or boom cylinders. They stop the machine from slowly sinking when parked and keep outriggers extended during operation.

Agricultural and forestry machinery

Implement lift cylinders, tilt functions, and grapple clamps that use pilot checks to maintain position during transport and work. Loader arms and log-handling attachments benefit from the same drift-free holding behavior.

Accumulator and pressure maintenance circuits

In circuits where pressure must be kept in a portion of the system, a pilot check can isolate an accumulator or pressurized line until a controlled release is needed, improving both safety and energy efficiency.

Hydraulic motor circuits

When paired with a hydraulic motor, a dual pilot check can hold the motor shaft stationary for winches, slewing drives, and hoists. For overrunning loads, it is typically combined with a counterbalance valve to control lowering speed.

Benefits of pilot-operated check valves

• Reliable load holding: Poppet seating gives near-zero leakage compared with spool valves, which always have some internal clearance leakage.
• Energy savings: The pump can unload or stop while the load remains held.
• Safety: Direct cylinder mounting protects the load if a hose or fitting fails.
• Simple, compact design: Few moving parts mean high reliability and easy maintenance.
• Low pressure drop in free flow: Efficient flow to the actuator with minimal heat generation.

Selection considerations

Choosing the right valve involves more than matching port sizes.

• Pilot ratio and pressure: Confirm that available pilot pressure can open the valve under the maximum load-induced pressure.
• Back pressure: Use an external drain version when return-line pressure is significant.
• Cracking pressure: A higher spring rate gives stronger sealing but increases pressure drop in the free direction.
• Flow rating: Oversized flows cause high pressure drop and noise, and undersized valves can chatter.
• Mounting style: Direct cylinder mounting is recommended where safety standards or risk assessments require protection against hose failure.
• Fluid compatibility and cleanliness: Seat materials and seals must match the fluid type, and fluid cleanliness must be maintained to prevent debris from lodging between poppet and seat.

Common problems and how to avoid them

Load drift: Usually caused by contamination or a worn seat that prevents the poppet from sealing. Flushing the system, improving filtration, and replacing the poppet or valve restore performance.

Chattering or unstable lowering: Often occurs when a high pilot ratio is used with an overrunning load. A lower ratio, a flow control, or a counterbalance valve can stabilize movement.

The valve will not open: Check for insufficient pilot pressure, blocked pilot lines, or excess back pressure on a non-drained valve.

Thermal pressure rise: Trapped oil between a closed pilot check and the actuator can expand with heat and raise pressure. A thermal relief valve protects against this in sensitive circuits.

Pilot-operated check valves are a simple but powerful component that solves one of hydraulics' most important challenges: holding a load securely and releasing it only when commanded. Their near-zero leakage, compact design, and safety benefits make them a standard choice in cranes, lifts, presses, mobile machinery, and many industrial circuits. Matching the pilot ratio, drain configuration, and mounting style to the application will give reliable performance and a long service life.

1. What is the main purpose of a pilot-operated check valve?

Its main purpose is to lock an actuator in position by blocking reverse flow, while allowing that flow to open when a pilot pressure signal is applied.

2. How is a pilot-operated check valve different from a counterbalance valve?

A pilot check simply opens or closes the reverse flow path. A counterbalance valve adds an adjustable relief setting, which controls lowering speed and prevents runaway on overrunning loads.

3. What does the pilot ratio mean?

The pilot ratio compares the poppet seat area to the pilot piston area. A 3:1 ratio means roughly one-third of the load pressure is required at the pilot port to open the valve.

4. When should I use an external drain version?

Use it when the return line has significant or fluctuating back pressure, since that pressure would otherwise assist the poppet in staying closed and make opening unpredictable.

5. Why do pilot-operated check valves hold loads better than spool valves?

Poppet seats seal with direct contact, so leakage is minimal. Spool valves rely on small clearances, which allow slow internal leakage and cause cylinder drift over time.
